LD1090

Description

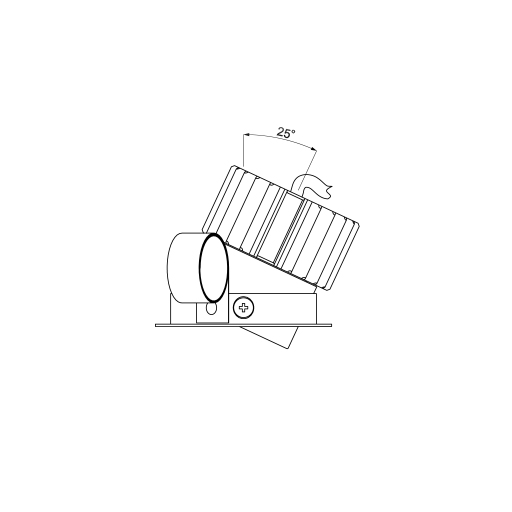

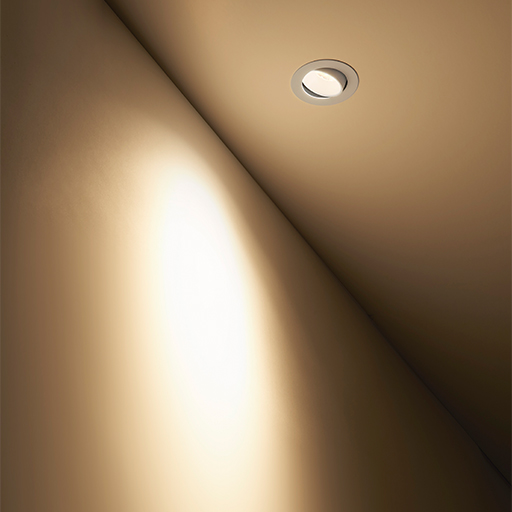

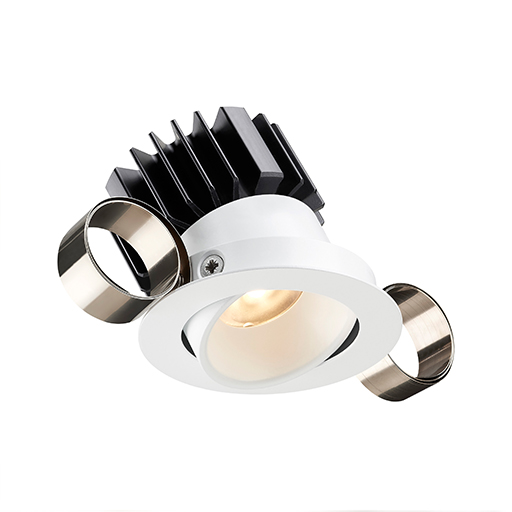

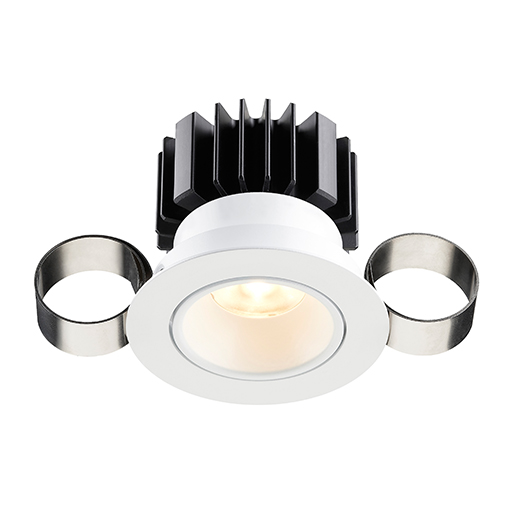

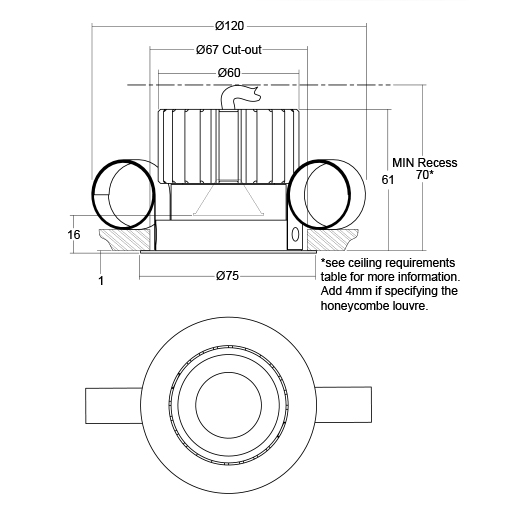

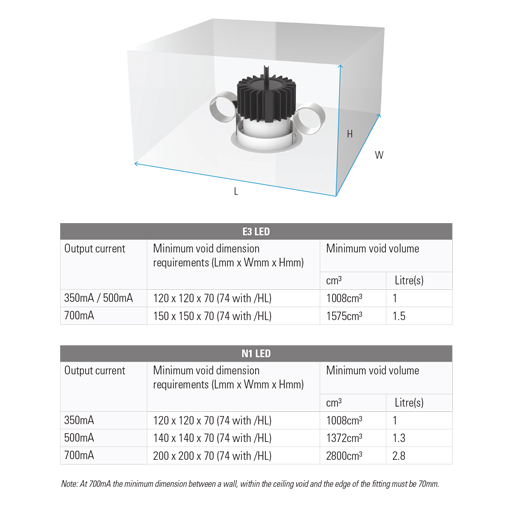

The LD1090 is part of a new range of ultra shallow, high power downlights designed to fit into ceilings with a minimal recess depth. The adjustable compact, high quality downlight delivers in excess of 900lm light output making it ideal for general downlighting, as well as wall washing and column lighting applications. This fitting is rated at IP40 as standard, but can be specified as IP65 for wet/humid areas including bathrooms and spas. Careful LED selection and extensive thermal testing and development time has resulted in a product that offers huge light output, from a very compact, shallow fitting. A minimalistic design ensures it complements most interior project styles.

Applications

Downlights, Wall Wash, Yacht Lighting

Fixing

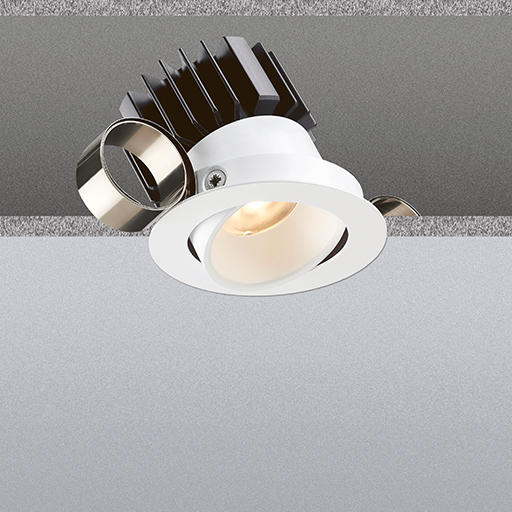

Constant force springs

Lamp Information

Cree CXB 1310 COB LED Engine - 7W @ 350mA, 10W @ 500mA or 14W @ 700mA

Materials

Anodised aluminium, stainless steel constant force springs

IP Rating

IP40 or IP65

Accessories

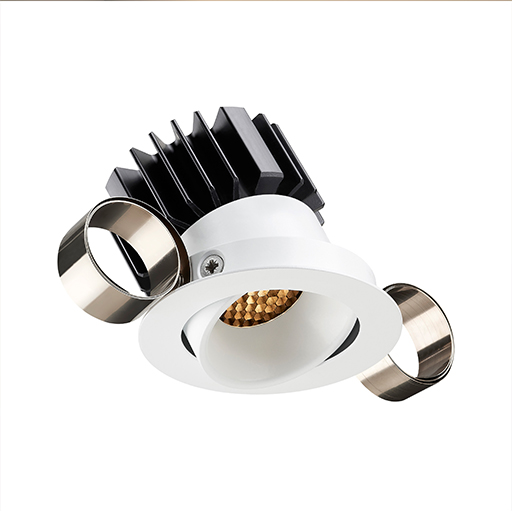

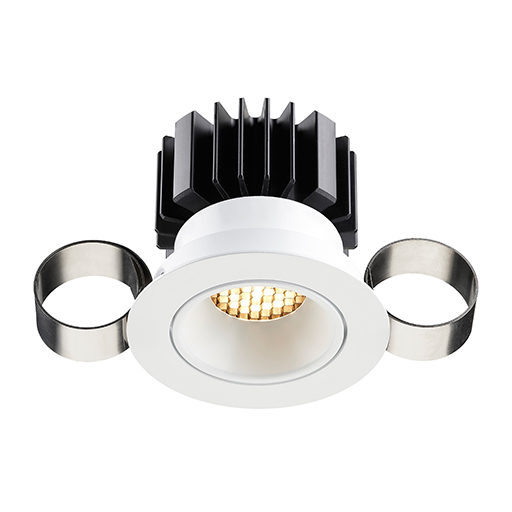

/HL - Honeycombe Louvre

Downloads

LD1090
Datasheet
LD1090
Design Pack
LD1090
Photometric LDT
Files
LD1090
Drivers
