LD11

Description

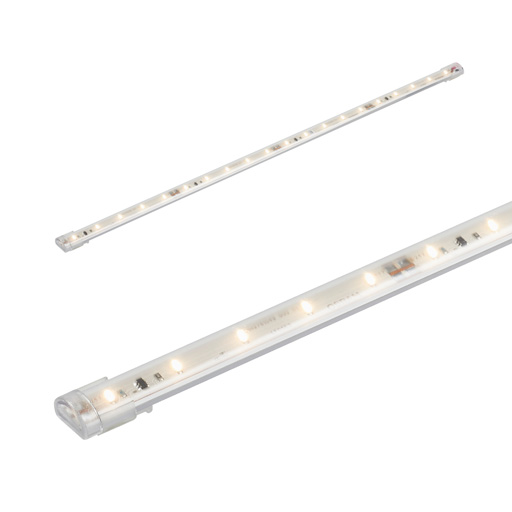

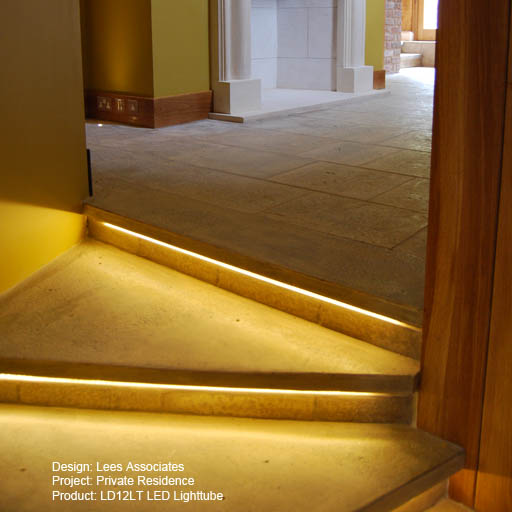

LD11 replaces our LD12LT. The LED is now housed in a much lower profile polycarbonate extrusion, allowing it to be used in even smaller details.  A custom plastic mix was developed, which adds a slight frost for an even, diffused wash. It is a 24V DC system allowing long lengths to be powered from a single driver. The system is a very cost effective solution when compared to bare LED products, but with the added advantage of protecting the LEDs from impacts, dust and moisture. Lengths are custom made. Photometric files are available in the design pack.

Applications

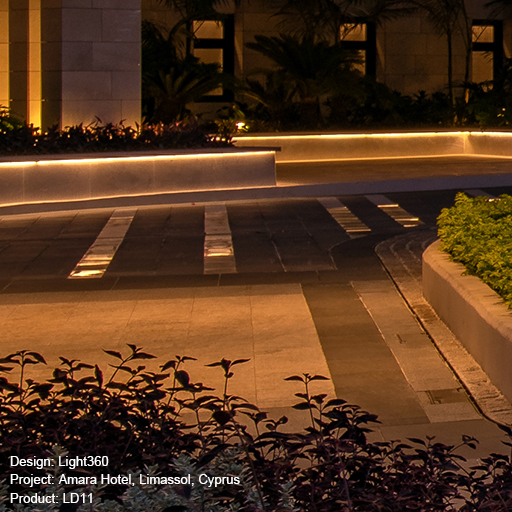

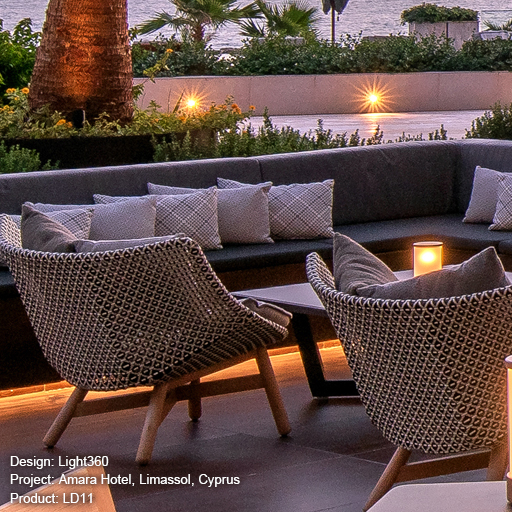

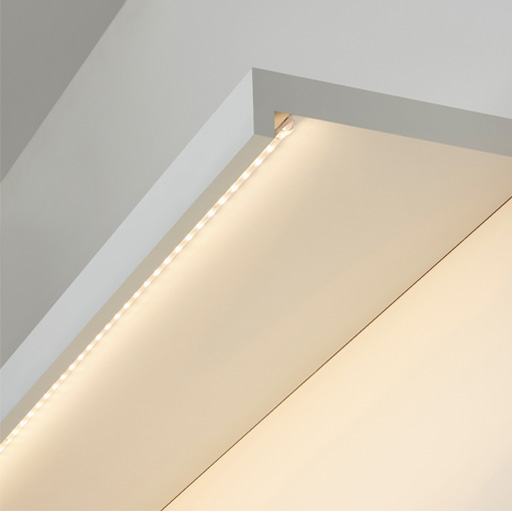

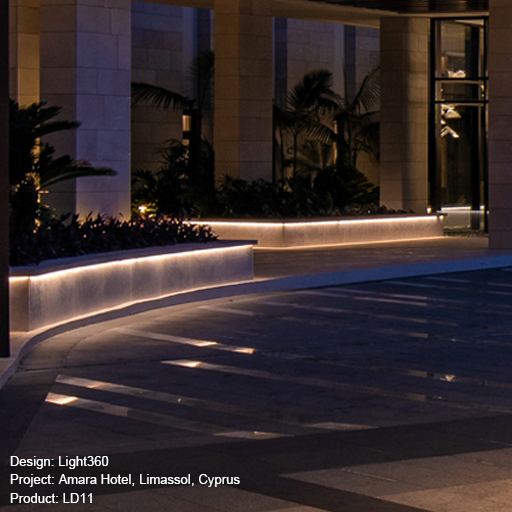

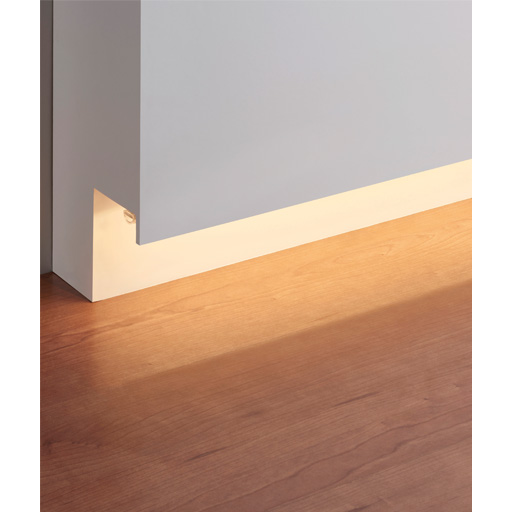

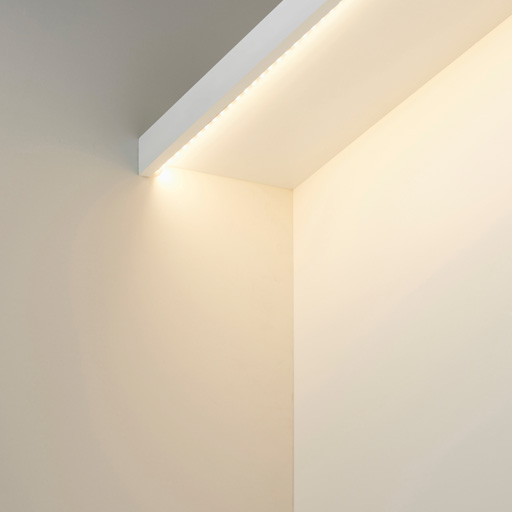

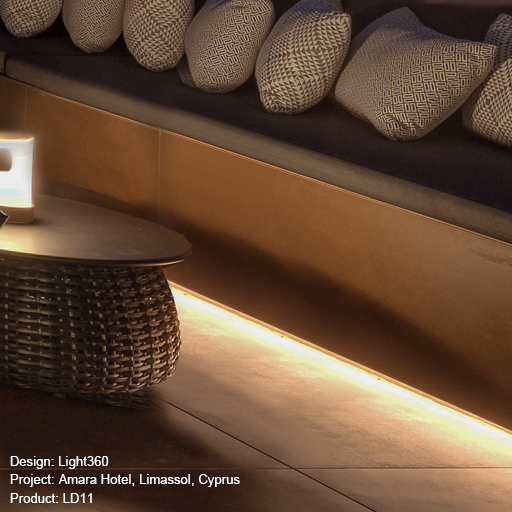

Bathroom and Mirror, Colour Change, Cove Lighting, Display and Shelf, External, Linear, Steps, Yacht Lighting

Fixing

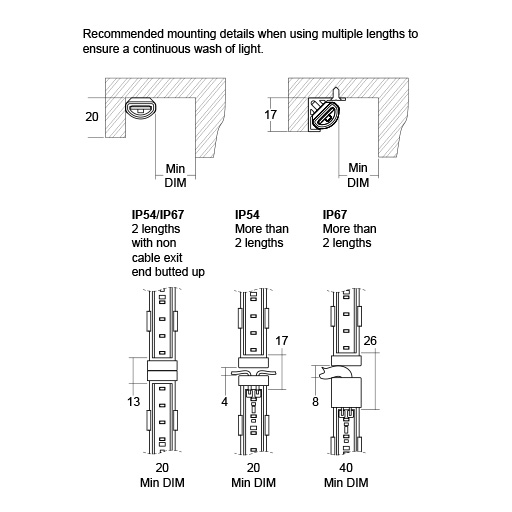

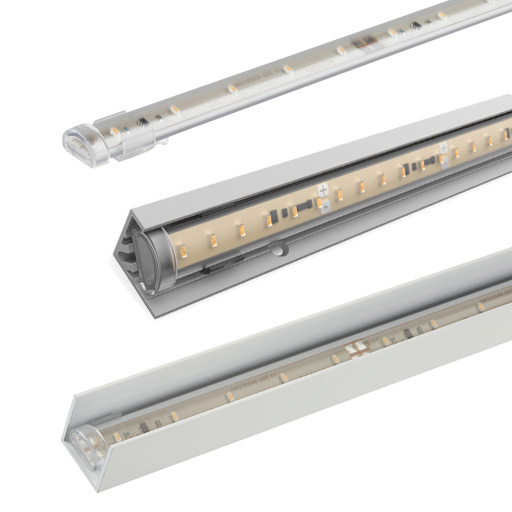

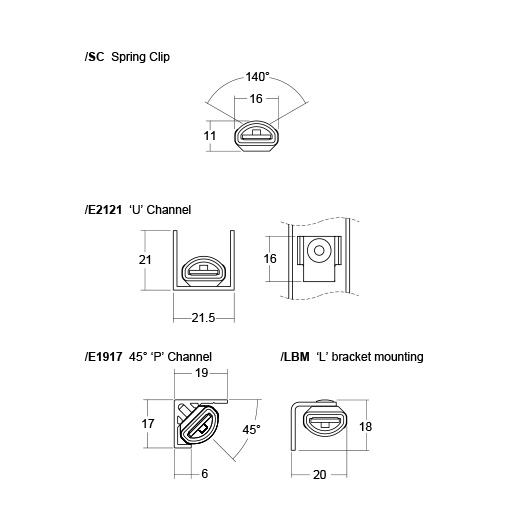

Either fixing clips or Aluminium P or U channel

Lamp Information

Three LED output options are available; Eco (220lm/m), Short (780lm/m) and RGB ECO (180lm/m)

Materials

Polycarbonate extrusion, aluminium heat sink

IP Rating

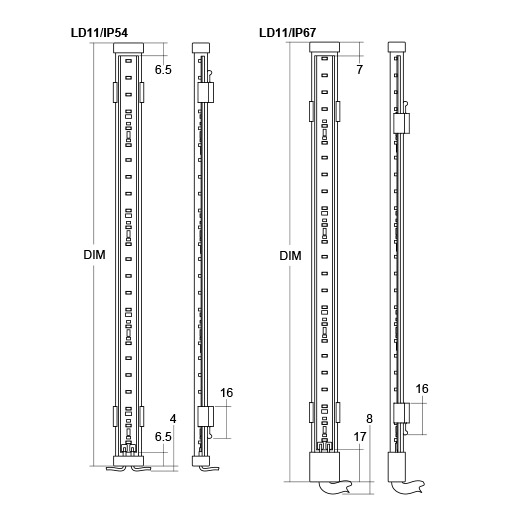

IP54 as standard but can be sealed to IP67

Downloads

LD11
Datasheet
LD11
Design Pack
LD11
Photometric LDT
Files
LD11
Drivers
