LD1210

Description

The LD1210 has been discontinued and is replaced by our range of high-power downlights including the LD1094 and LD1083Please speak to a member of our sales team by calling +44 (0) 1322 524 902 or emailing [email protected] for any project requirements.

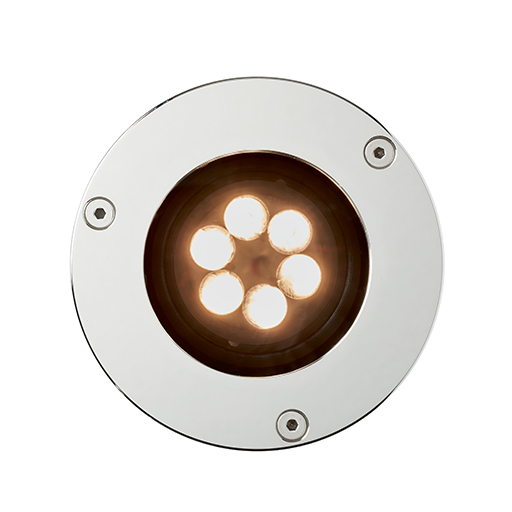

The LD1210 has been updated to have 3 countersunk fixings on the front. It is a very powerful low glare IP67 rated downlight primarily designed for use on yachts. It is designed to be set flush into the ceiling. Ideal for wall washing or general downlighting, it uses a 6 LED cluster with a range of beam angle options. It can be run up to 700mA. Photometric data is available in the design pack.

Applications

Downlights, Wall Wash, Yacht Lighting

Fixing

3 screws into mounting surface

LED Information

1 x 6 LED cluster: 7W @ 350mA, 10W @ 500mA and 14W @ 700mA

Materials

Stainless steel 316 bezel, hard anodised aluminium body

IP Rating

IP67

Downloads

LD1210
LD1210 Datasheet
LD1210
Design Pack
LD1210
Photometric LDT
Files
LD1210
Drivers
