LD22

Description

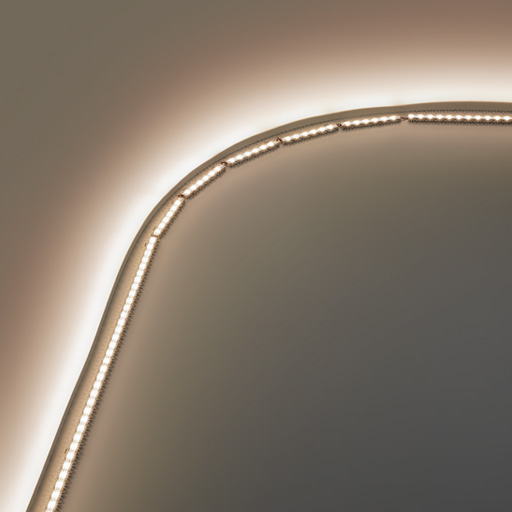

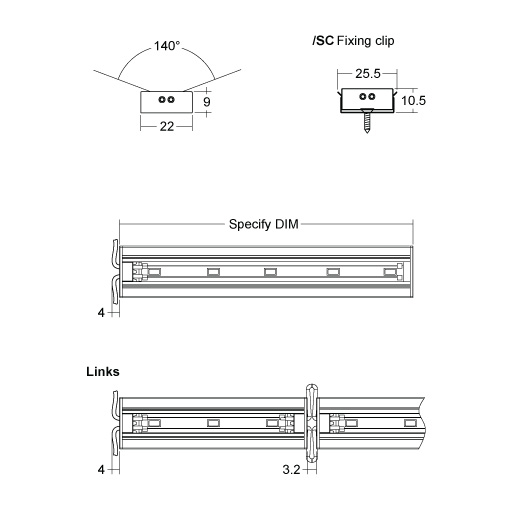

LD22 is a very small, low profile linear system. Designed to maximise the light output with a broad beam, it is ideal for coves, shelf details, recesses and highlighting architectural details. It is a 24V DC system allowing long lengths to be powered from a single driver, with a wide range of LED colour and output options. Lengths are custom made to suit, and include an interlinked option for curved details. Photometric data is available in the design pack.

Applications

Cove Lighting, Display and Shelf, Linear, Picture Lighting, Surface Mounted, Wall Wash

Fixing

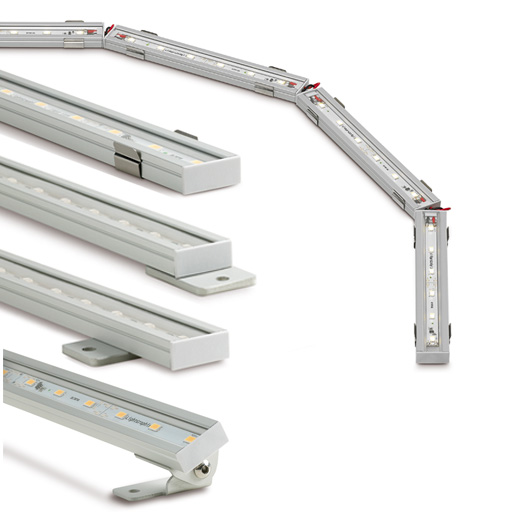

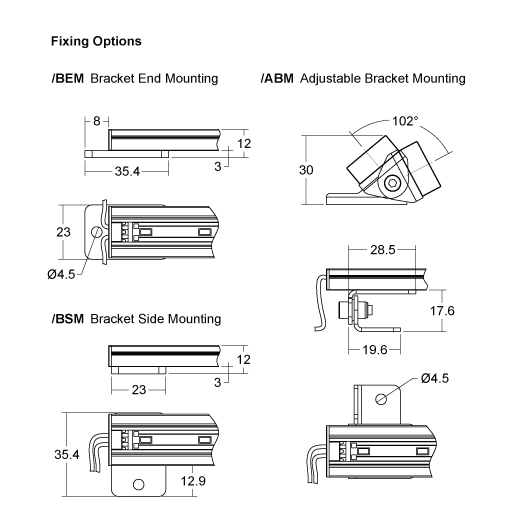

A range of fixing options are available, which include a mini adjustable pivot bracket

Lamp Information

Four LED output options are available; Eco (220lm/m), LGX9C (900lm/m), Power (1700lm/m) and RGB

Materials

Aluminium and ABS plastic

IP Rating

IP40 (IP54 option)

Accessories

/FC Frosted Cover for a more diffused beam of light

Downloads

LD22
Datasheet
LD22
Design Pack
LD22
Photometric LDT
Files
LD22
Drivers
