LD34

Description

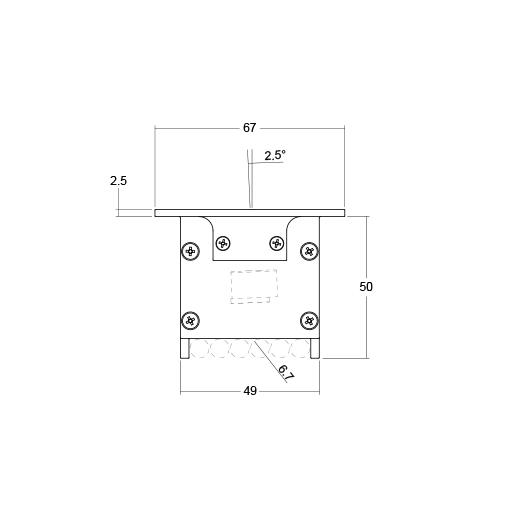

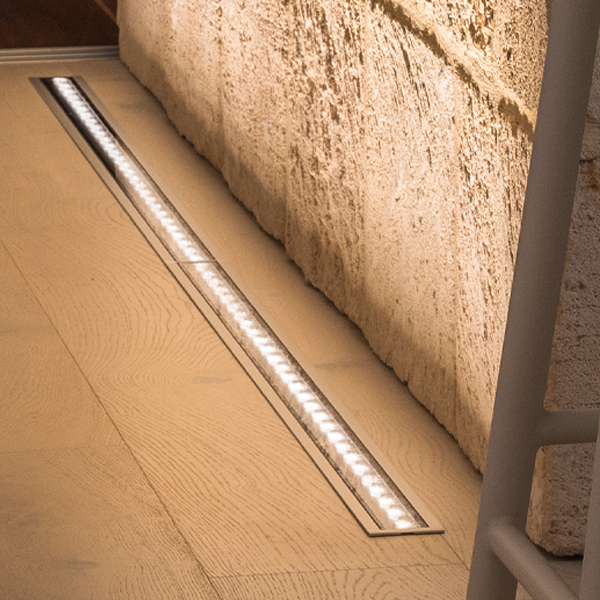

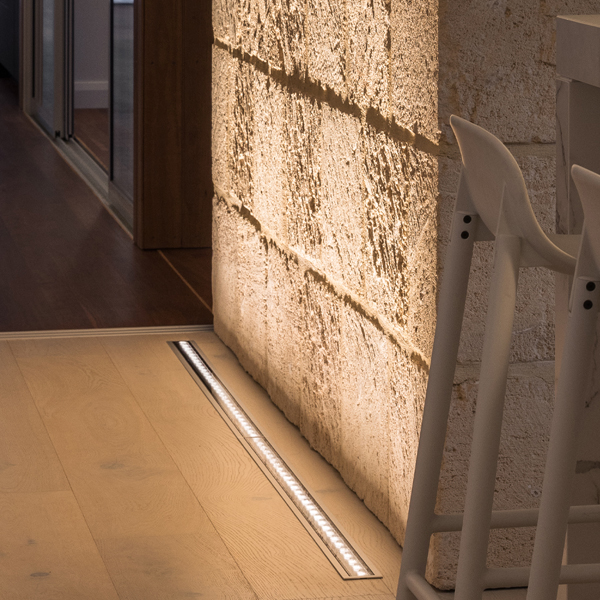

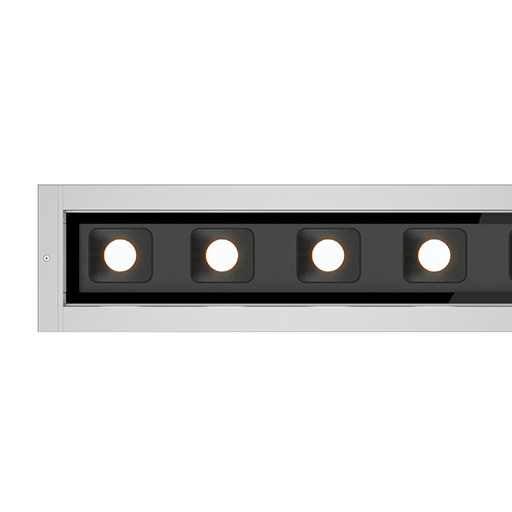

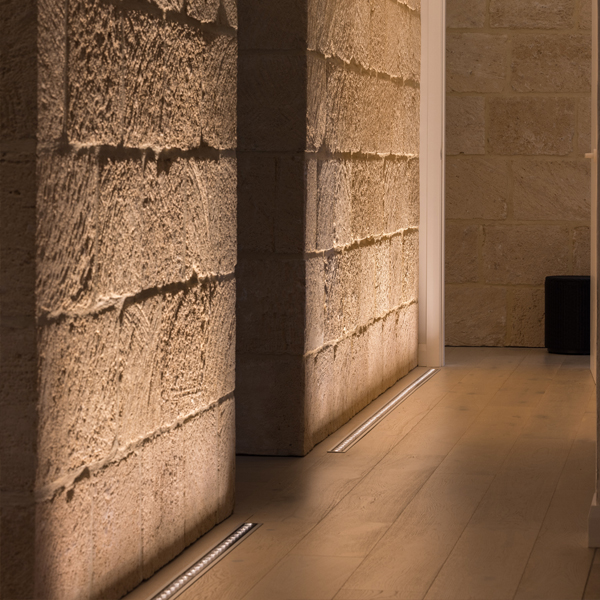

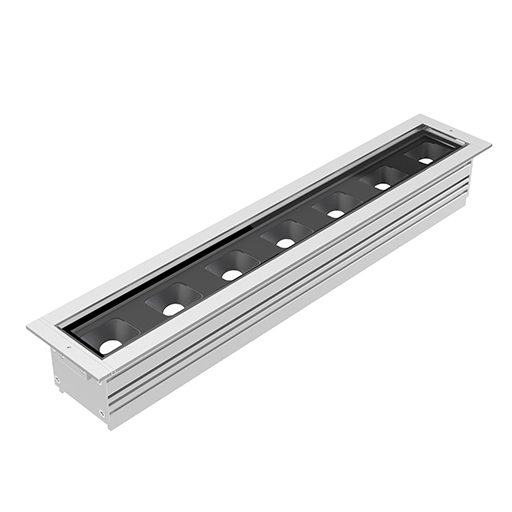

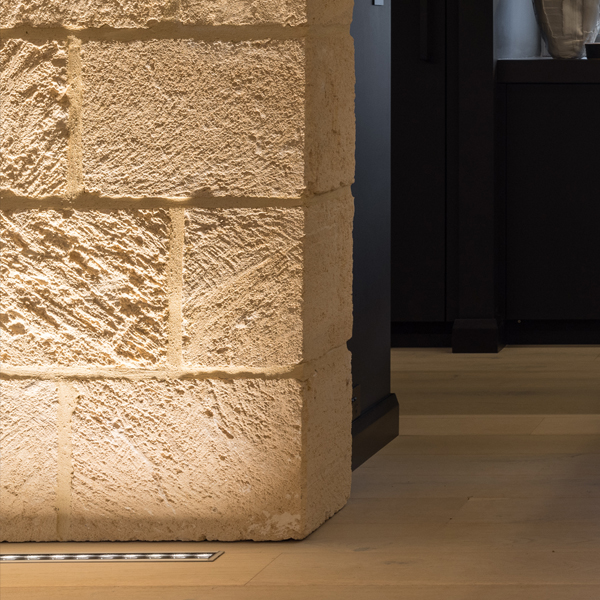

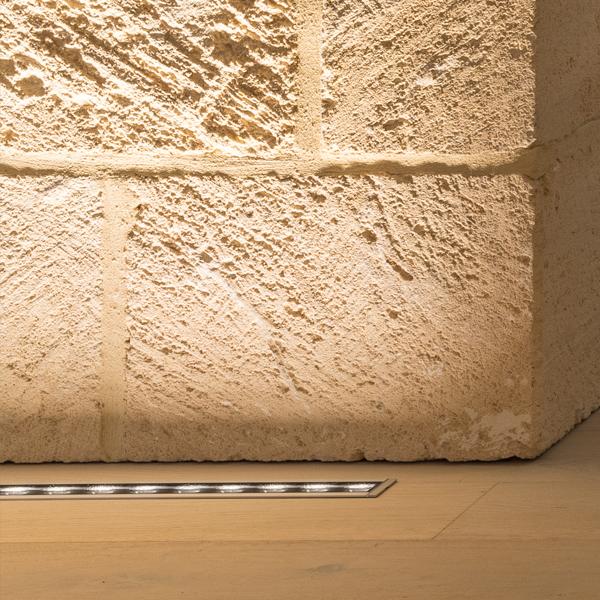

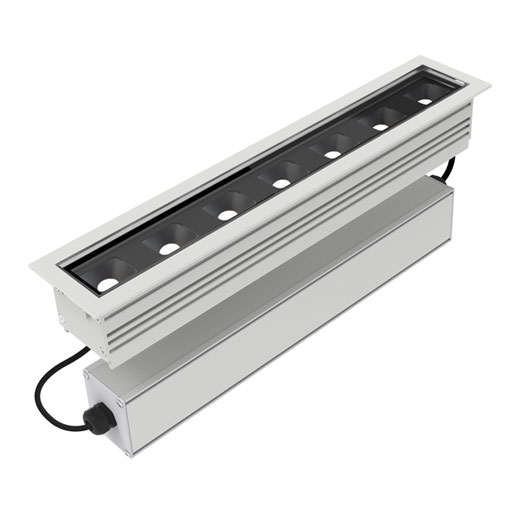

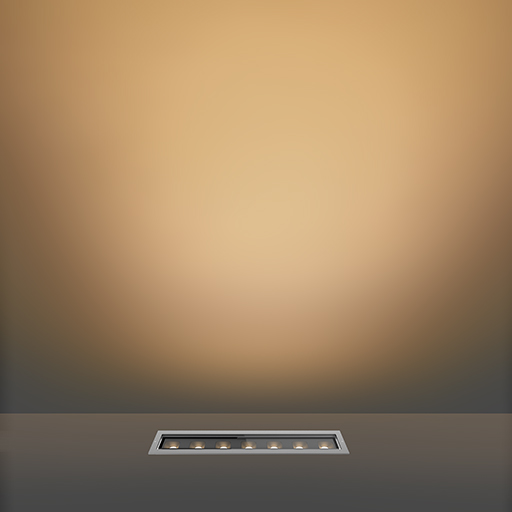

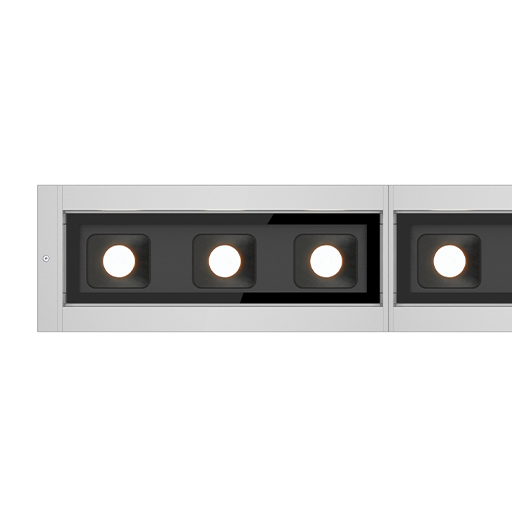

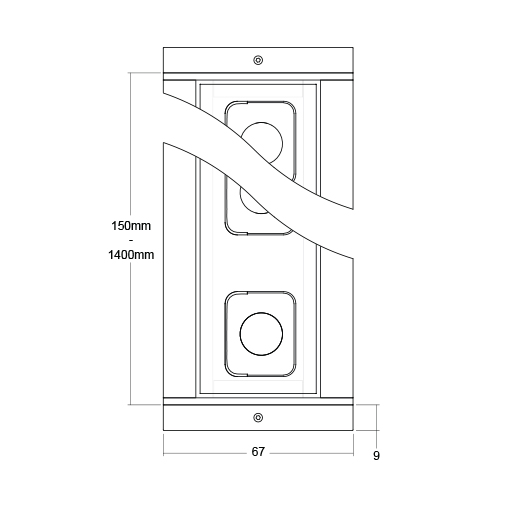

LD34 is a fixed 2.5° tilt, shallow recessed, low glare, in-ground linear wall grazer, which offers outstanding continuous wall washing capabilities. This IP67 rated, high power surface grazer, features an optional frosted diffusion filter to illuminate lower parts of the wall, with individual cowls over each LED ensuring low glare from the viewers perspective. Available in customised lengths up to 1.4m, with integral glare control options and a range of colour temperatures, including RGBW and Tunable white, the LD34 combines a compact minimal design with the latest in LED technology.

Applications

External, Linear, Recessed Uplighting, Steps, Wall Wash, Pathway

Fixing

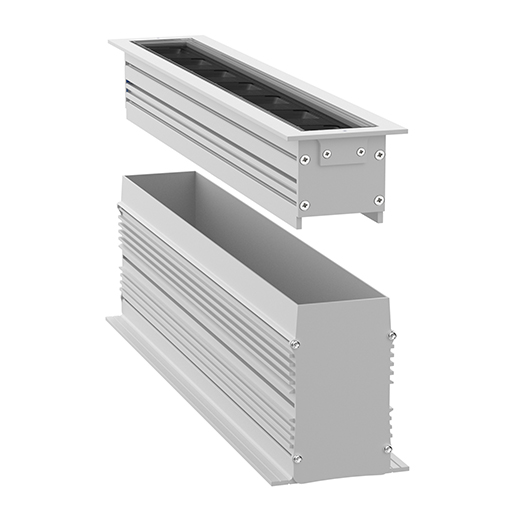

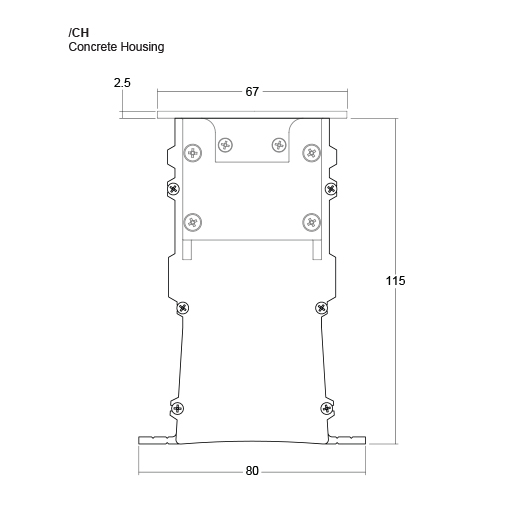

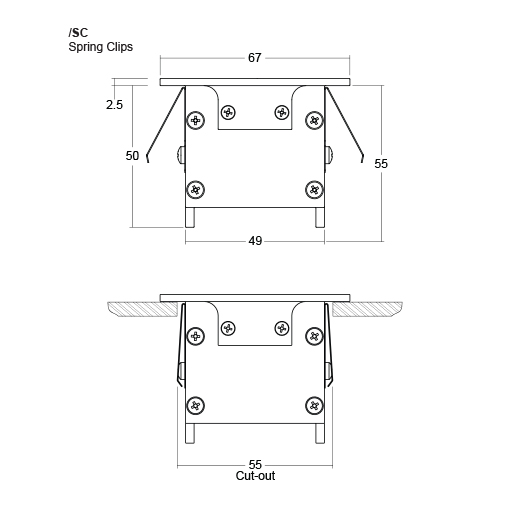

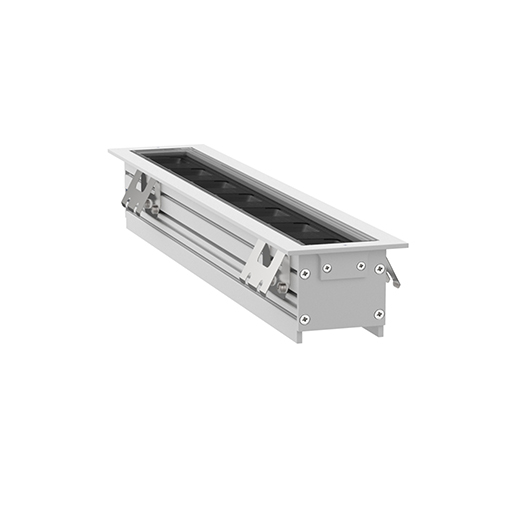

Spring Clips, Concrete Housing

Lamp Information

Cree XPG: 2 output options - 1.7W per LED @ 500mA, 2.4W per LED @ 700mA

Materials

Anodised Aluminium

IP Rating

IP67

Accessories

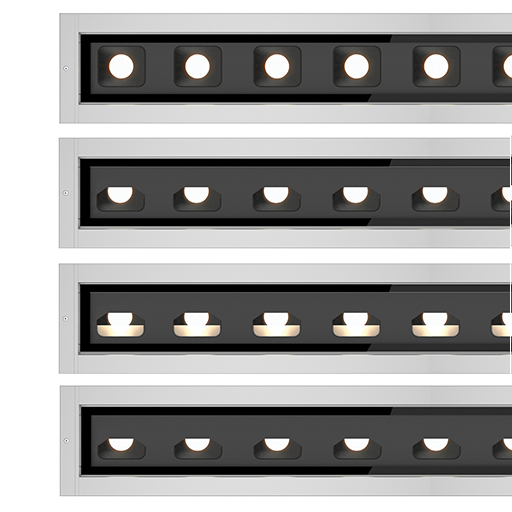

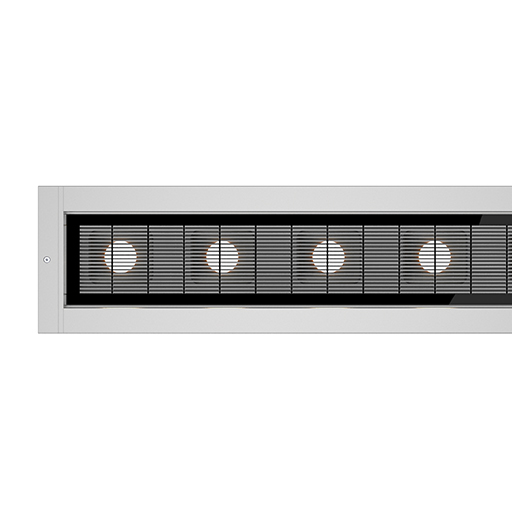

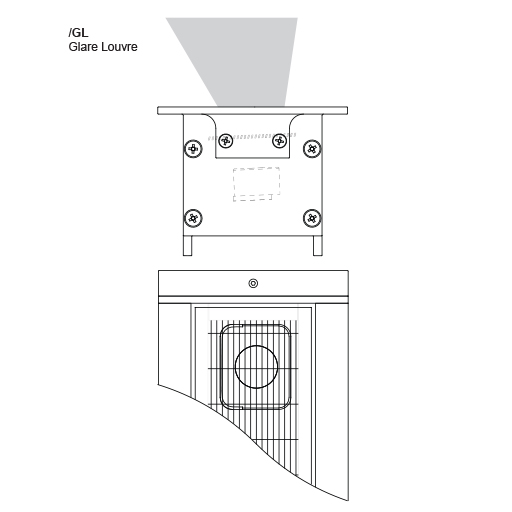

/FD Frost, /GS40 40% Glare Shield, /GS50 50% Glare Shield, /GL Anti Glare Louvre

Downloads

LD34
LD34 Datasheet
LD34
Design Pack
LD34
Photometric LDT
Files
LD34
Drivers
