LD47

Description

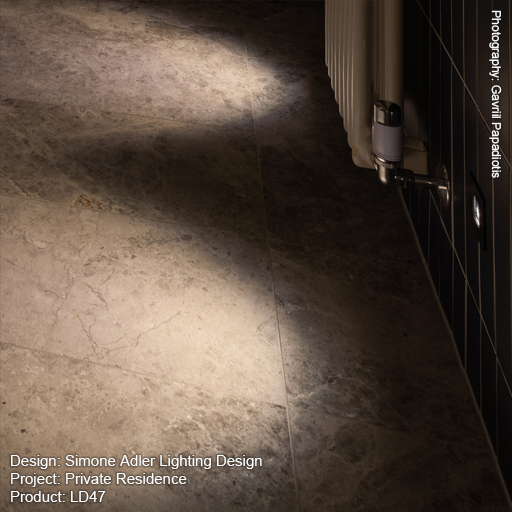

The LD47 has been updated with the latest LED technology and fitted with our new optics. The lens assembly is set back and inclined by 20° for a floor wash illumination and minimal glare. This is a high quality fitting with a machined stainless steel 316 bezel and black anodized body, for indoor and outdoor use. It has no visible fixings and the glass is fixed with a hidden gasket, so no unsightly glue line. Available with a choice of lens angles and LED colours.

Applications

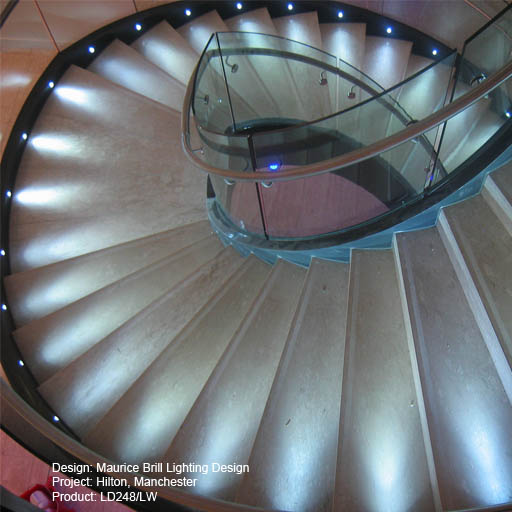

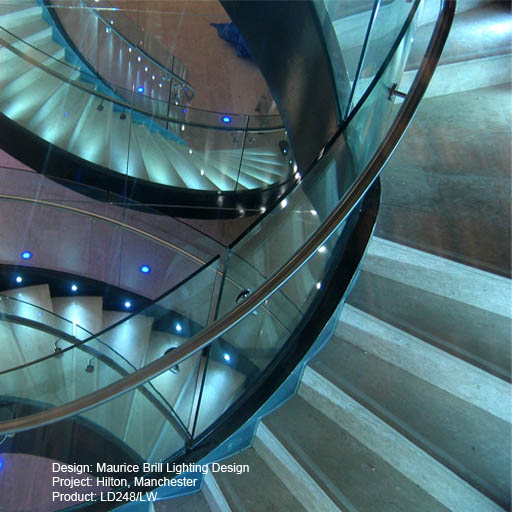

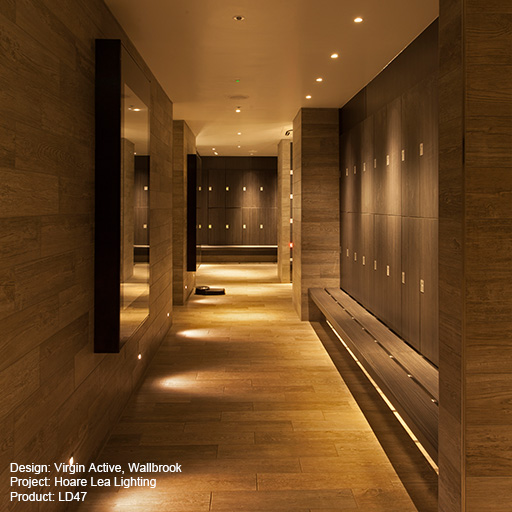

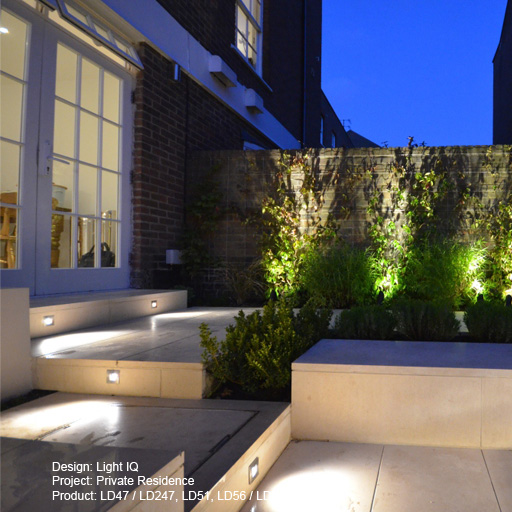

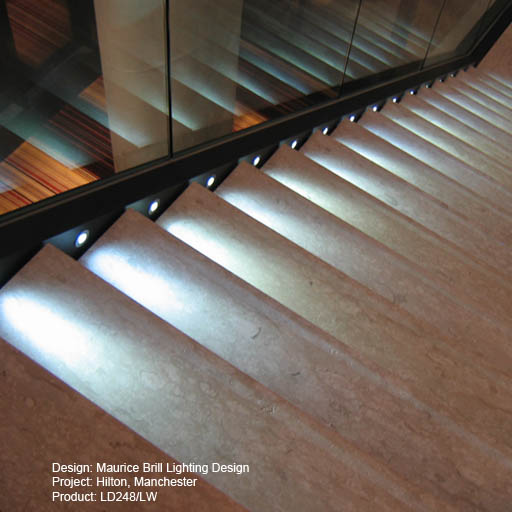

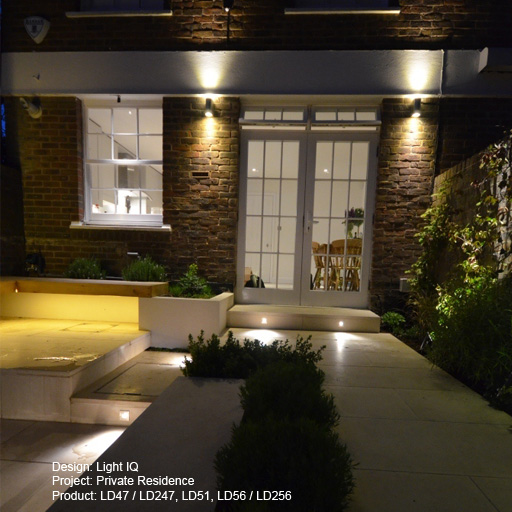

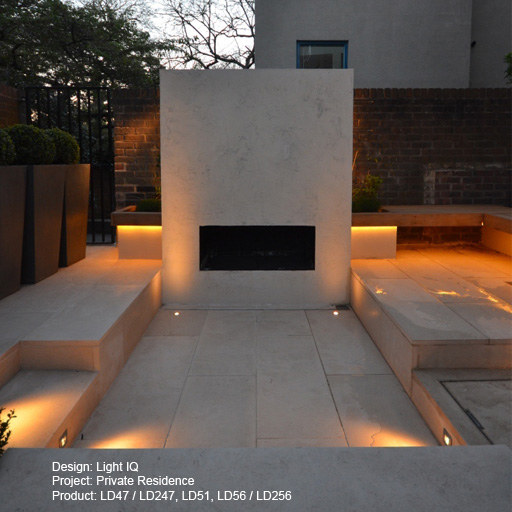

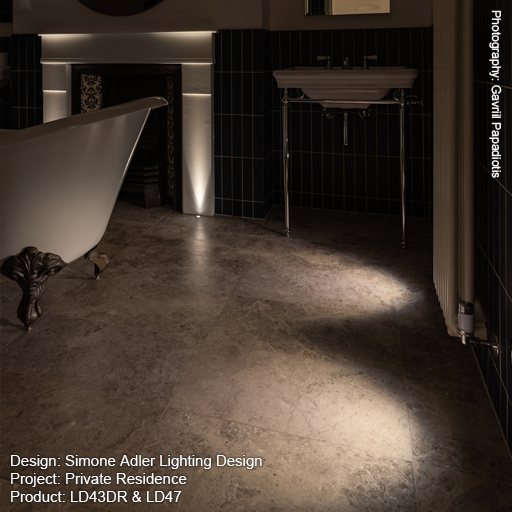

Bathroom and Mirror, External, Floor Wash, Steps, Yacht Lighting

Fixing

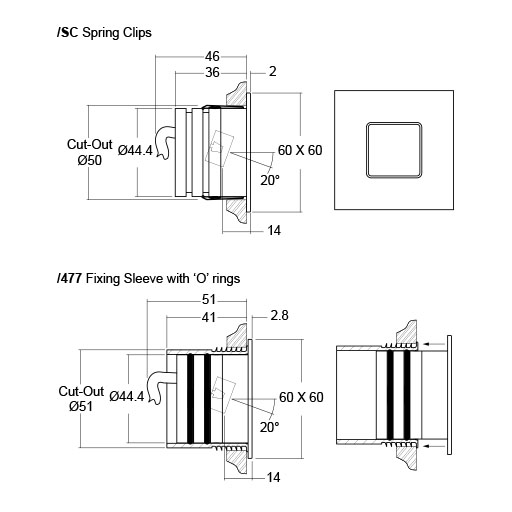

Two options are available for fixing - spring clips or 'O' rings and the /477 fixing sleeve

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD47-350), 1.7W @ 500mA (LD47-500) or 2.4W @ 700mA (LD47-700)

Materials

Stainless steel 316 bezel, hard anodised aluminium body

IP Rating

IP67

Accessories

/477 Fixing sleeve and 'O' rings

Downloads

LD47
Datasheet
LD47
Design Pack
LD47
Drivers
