LD52

Description

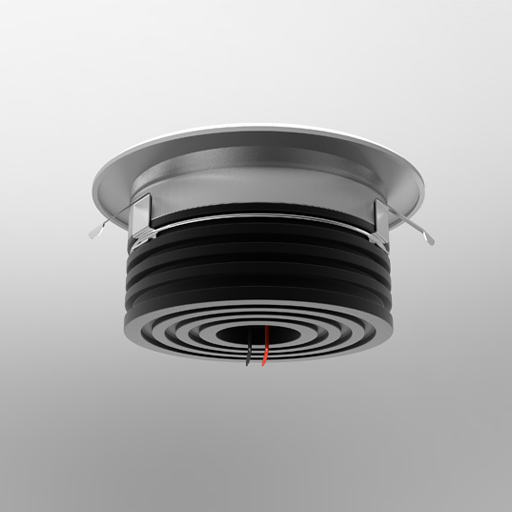

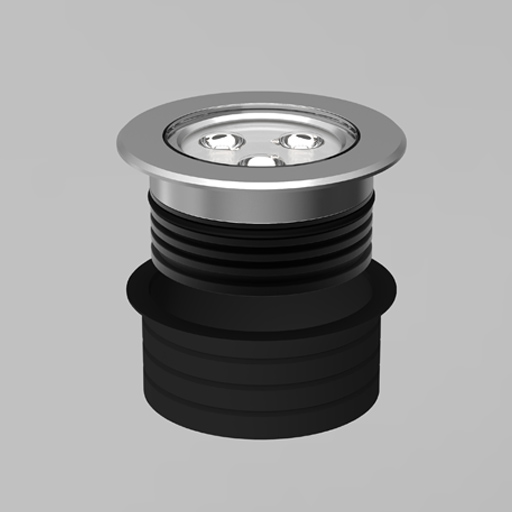

LD52 is a very low depth triple LED uplight. It is has been redesigned with a walk over stainless steel bezel and toughened glass. It is ideal for applications where mounting depth is at a minimum but high output is required. It utilizes the latest LED technology with new high efficiency optics which guarantees excellent beam spread and shape. Fixing is by 3 spring clips or by the /484S first fix sleeve and O rings; this provides a watertight seal ideal for external applications. LD52 can be driven up to a current of 500mA (5.1W) at an ambient temperature of 45°C. For a low depth triple LED indoor downlight please see our LD75.

Applications

Bathroom and Mirror, External, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting

Fixing

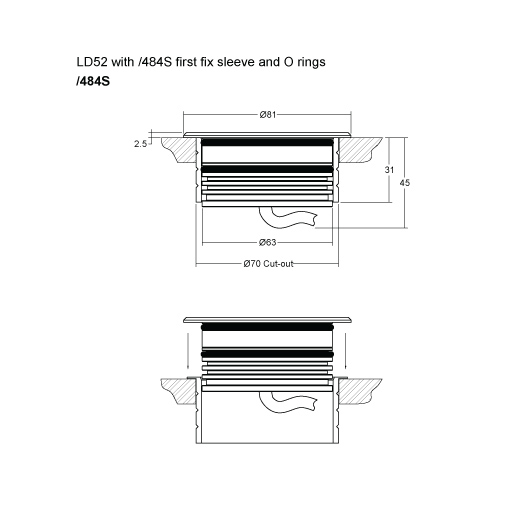

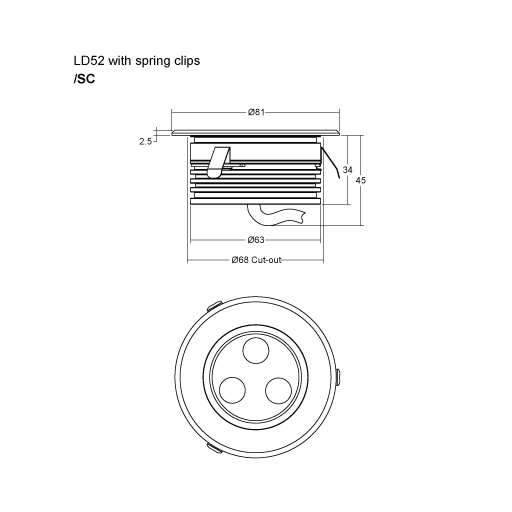

Spring clips or /484S first fix sleeve

Lamp Information

3 x Cree XPG: 2 output options - 3.6W @ 350mA (LD52-350) and 5.1W @ 500mA (LD52-500)

Materials

Stainless steel 316 bezel and anodised aluminium body

IP Rating

IP67

Downloads

LD52
Datasheet
LD52
Design Pack
LD52
Photometric LDT
Files
LD52
Drivers

Similar Products

LD75
