LD56

Description

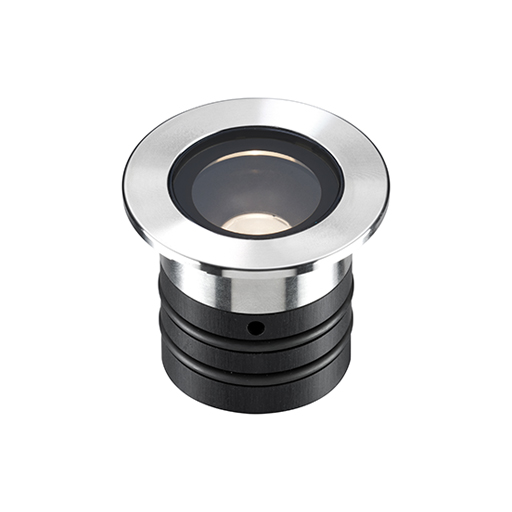

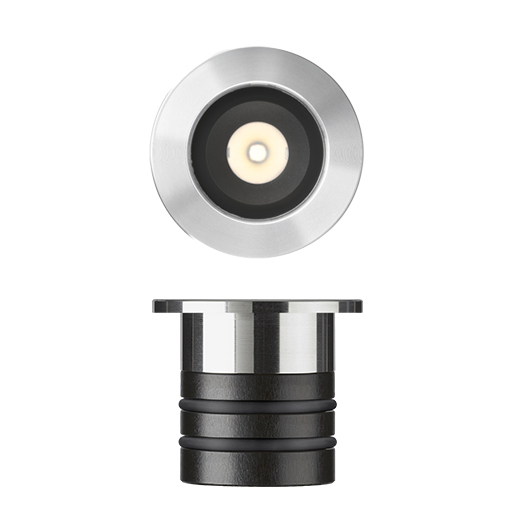

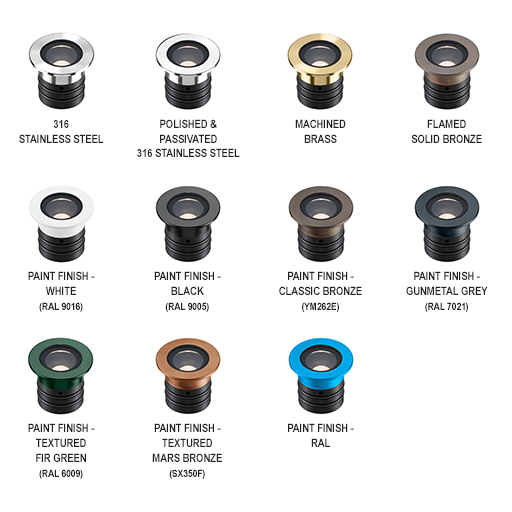

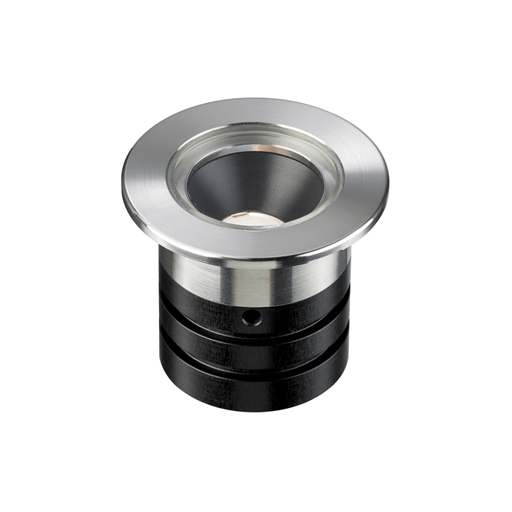

The LD56 packs a lot of features into a very compact product with a recess depth of just 42mm. The optics are deep recessed for reduced glare and offer fantastic beam shape and spread, with narrow, medium, wide and oval beams available.Featuring a high IP68 rating, the LD56 is incredibly versatile and has been used in projects all over the world in a multitude of applications, including as a downlight. This is a very tough, high quality fitting, available in a wide range of high-grade machined metals and paint finishes.

Applications

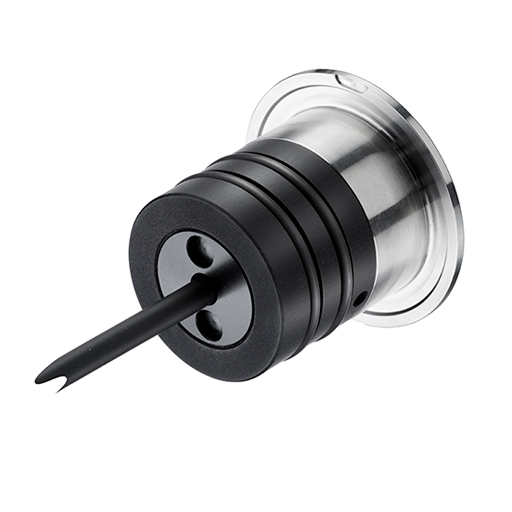

Bathroom and Mirror, Downlights, External, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

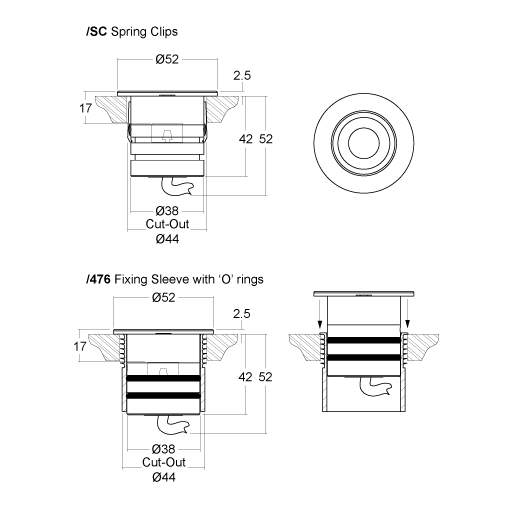

Spring clips /SC, O-rings and /476 fixing sleeve, Ground tube /476GT

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD56-C1-350), 1.7W @ 500mA (LD56-C1-500), 2.4W @ 700mA (LD56-C1-700)

Materials

316 Stainless Steel bezel, hard anodised aluminium body, 5mm black ceramic screen print borosilicate glass

IP Rating

IP68 - Not for permanent submersion (use LD242A)

Accessories

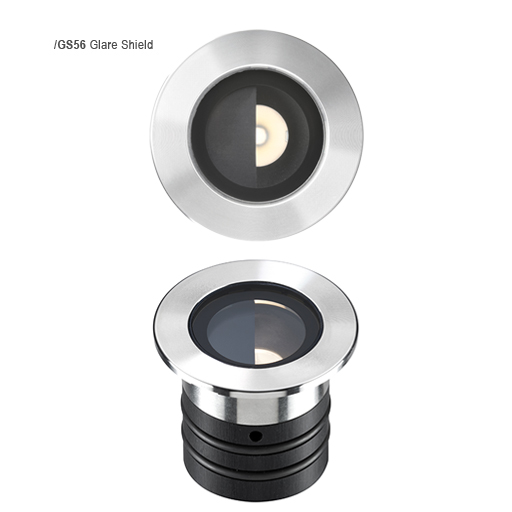

/GS56 Glare shield
