LD64

Description

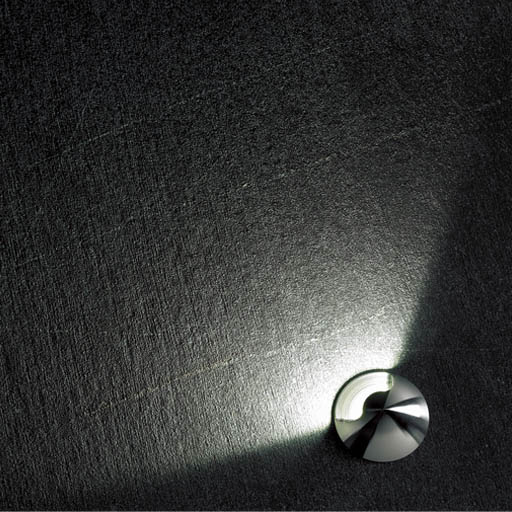

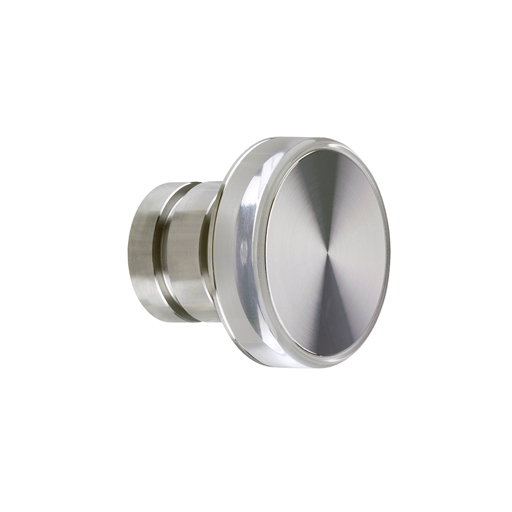

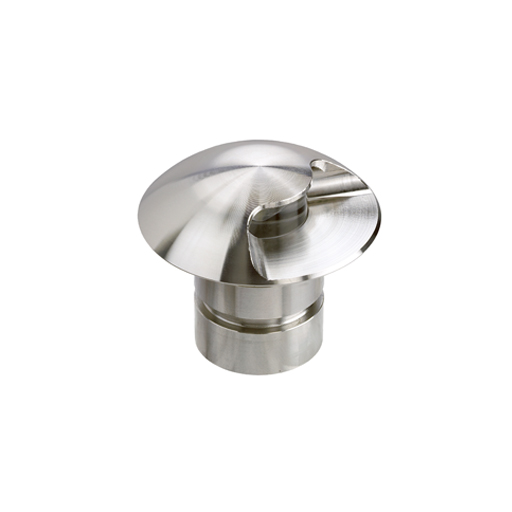

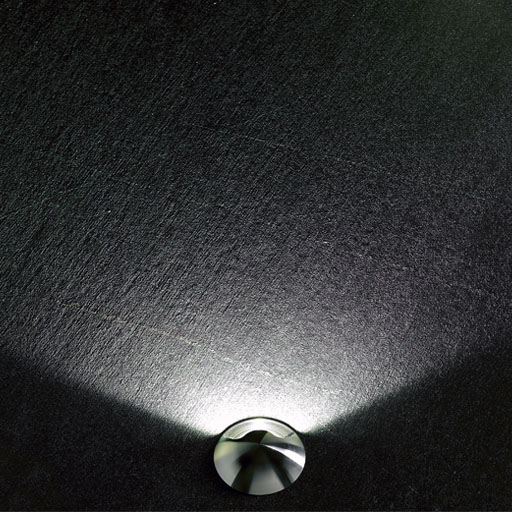

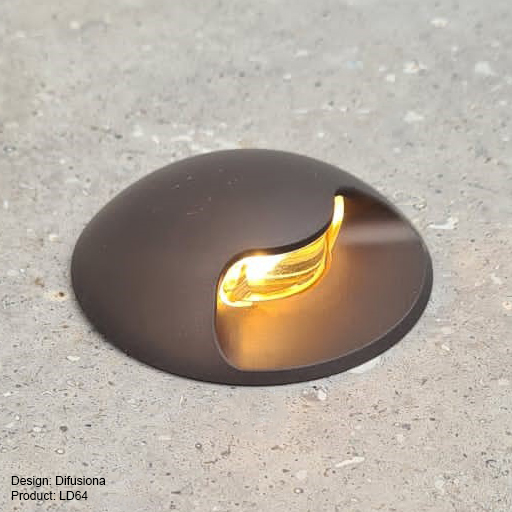

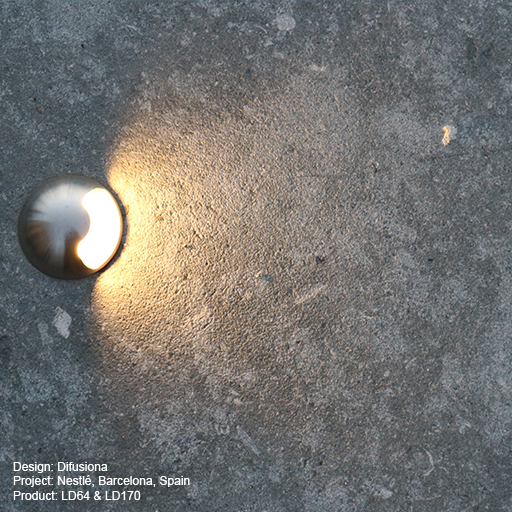

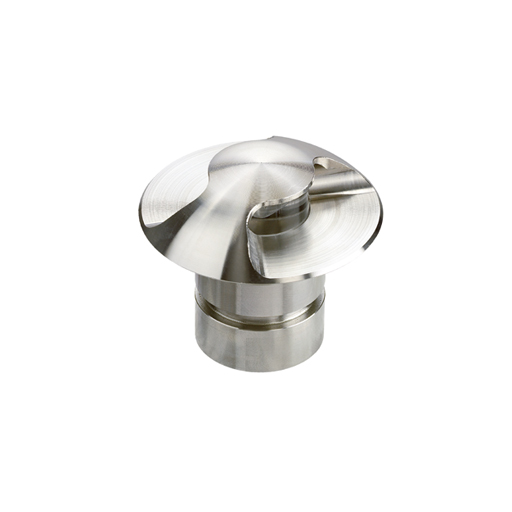

The LD64 is a miniature in-ground LED surface washer that uses a specially designed reflector to produce a 120° angle of illumination. It is manufactured from a single billet of 316 stainless steel making it extremely robust. It is useful for a wide range of applications including steps and pathways and can be used on interior or exterior walls to create interesting effects. With no visible fixings it is secured either by O-rings and a first fix sleeve or a ground tube.

Applications

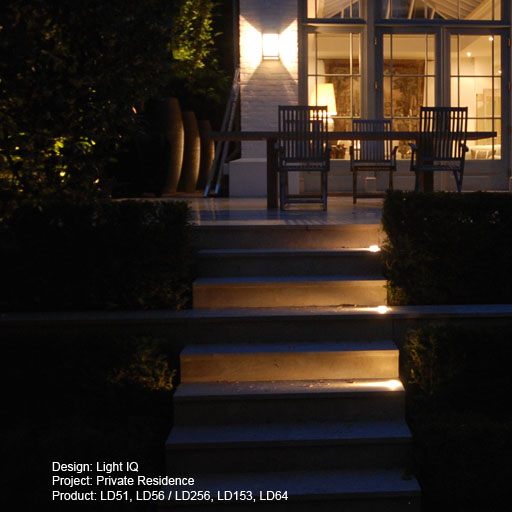

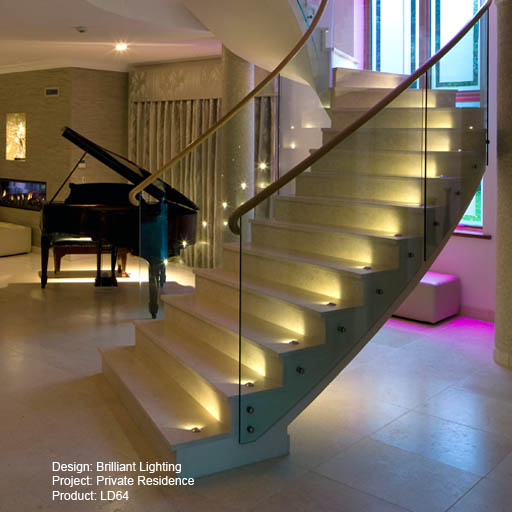

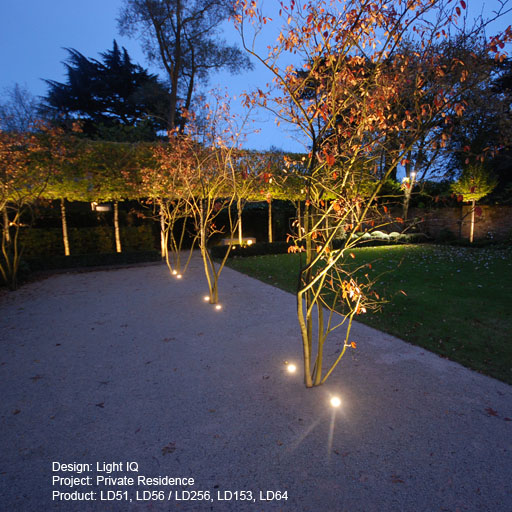

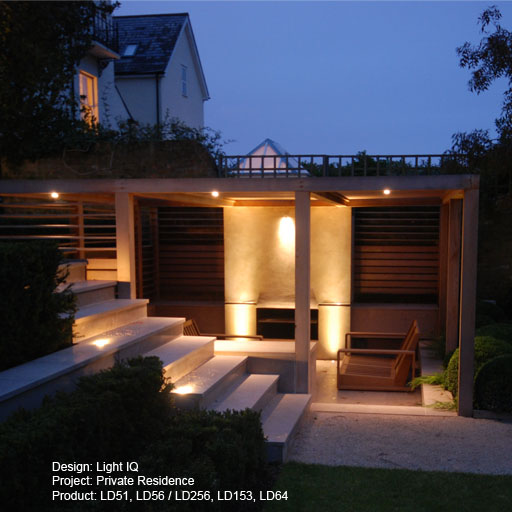

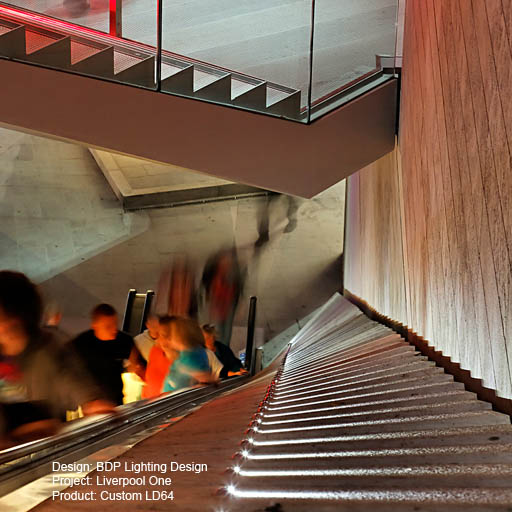

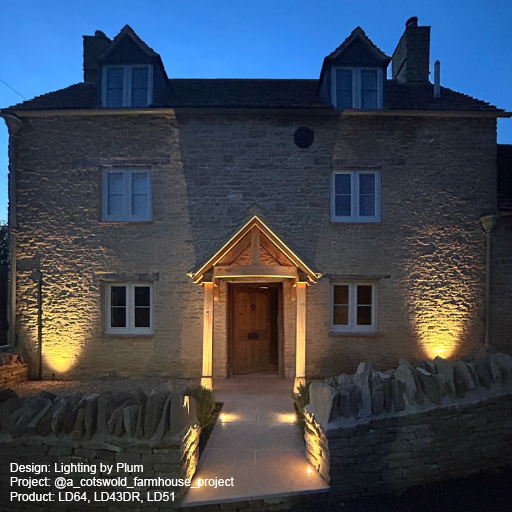

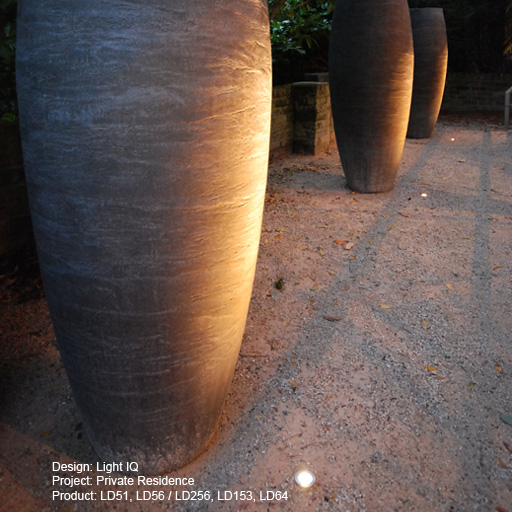

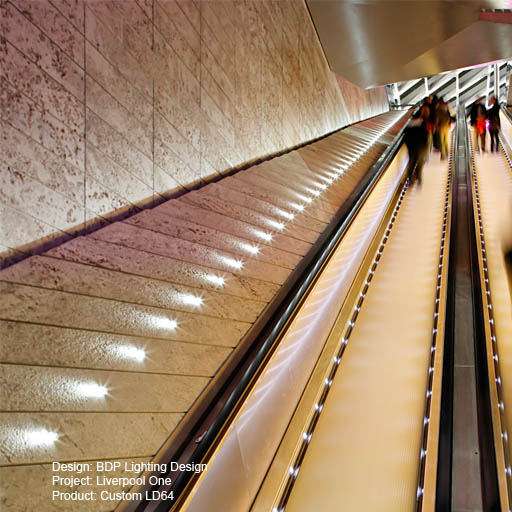

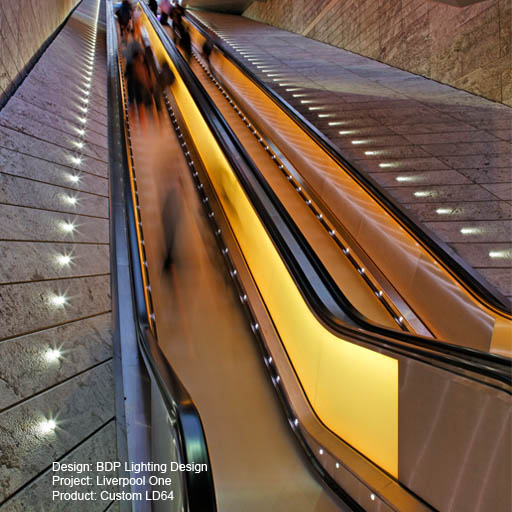

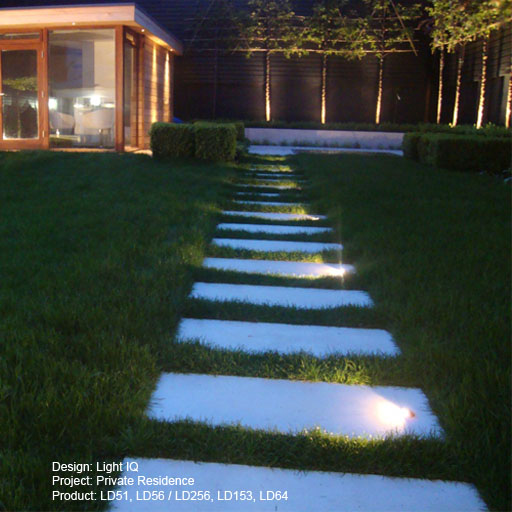

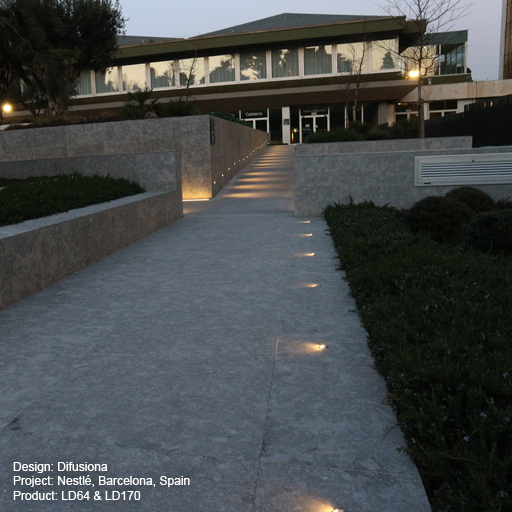

External, Floor Wash, Steps, Wall Wash, Yacht Lighting, Pathway, RLE - Replaceable Light Engines

Fixing

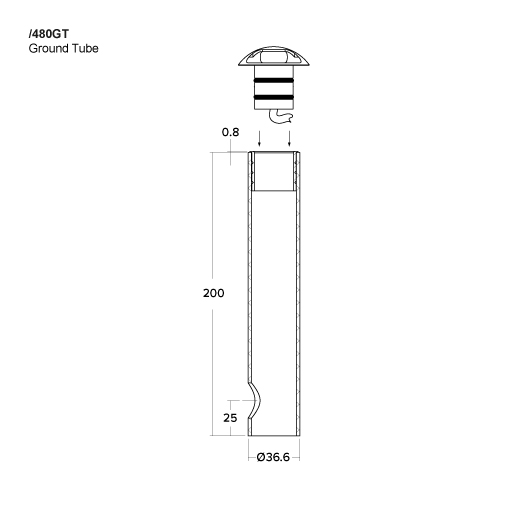

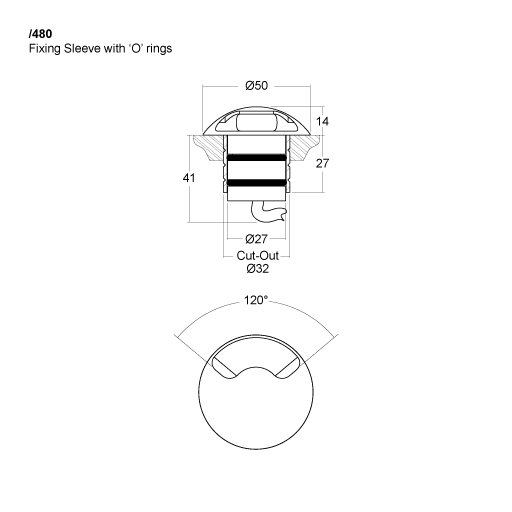

O-rings and first fix /480 sleeve, /480GT Ground tube

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD64-C1-350), 1.7W @ 500mA (LD64-C1-500)

Materials

316 Stainless Steel, Polished & Passivated 316 Stainless Steel, Flamed Solid Bronze

IP Rating

IP67

Downloads

LD64
LD64LD65C1 Datasheet
LD64
Design Pack
LD64
Photometric LDT
Files
LD64
Install Instructions
LD64
Drivers
