LD150T

Description

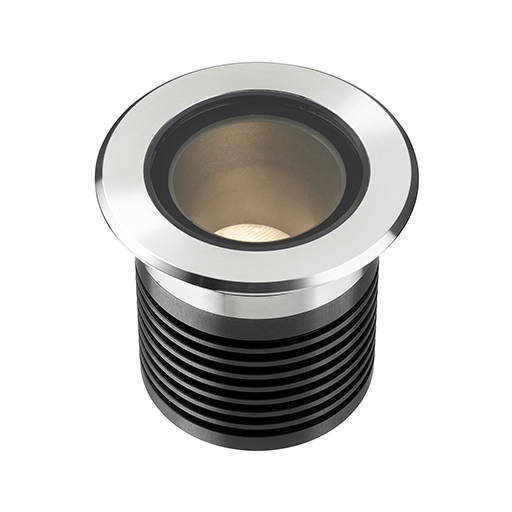

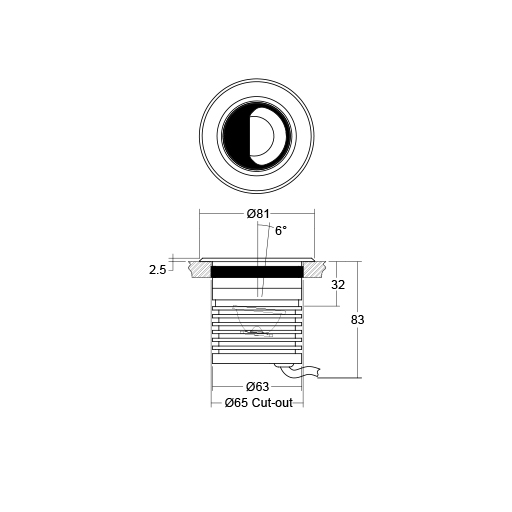

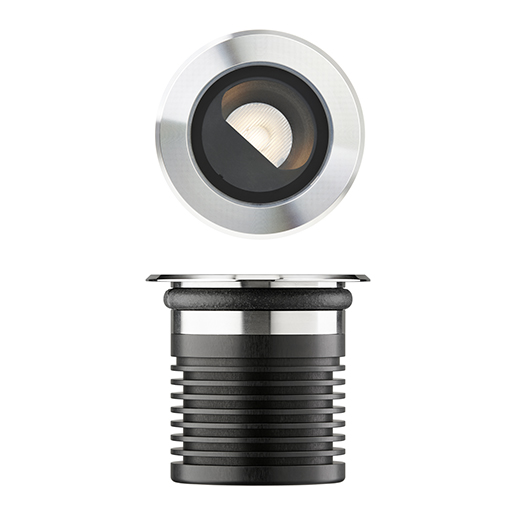

The LD150T has been designed with the LED and optics on a 6º tilt. This allows the light to be focused onto the lit surface, and enables the uplighters to be set further away from the wall if required. It has been designed specifically to produce low glare illumination to exterior walls and columns. Very powerful for its size and depth, the LD150T features the E1 LED engine, featuring high ef ficient optics, along with a range of different light engines. It can be used for a wide range of project styles with a minimal aesthetic and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials ensuring excellent thermal and light output performance.

Applications

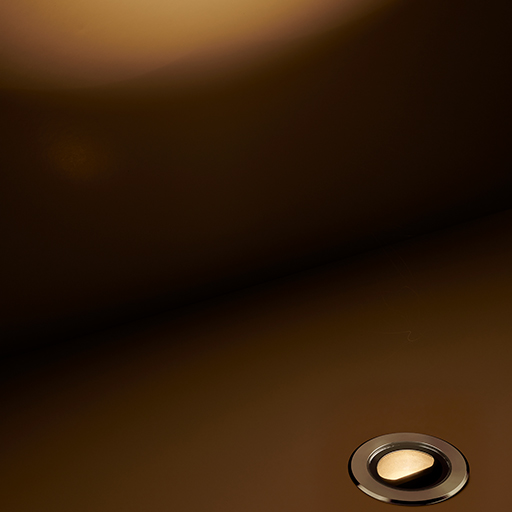

Recessed Uplighting, Wall Wash

Fixing

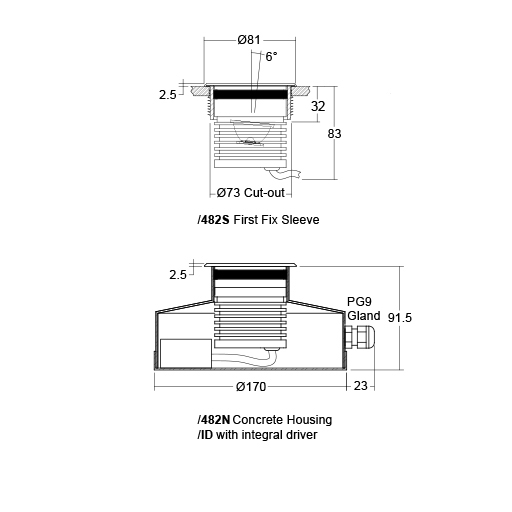

Push fit into cut out with the soft silicon seal, using the fixing sleeve or the concrete housing with optional integral driver

Lamp Information

E1 LED Engine - Up to 10W @ 700mA (White)

E1-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)

Materials

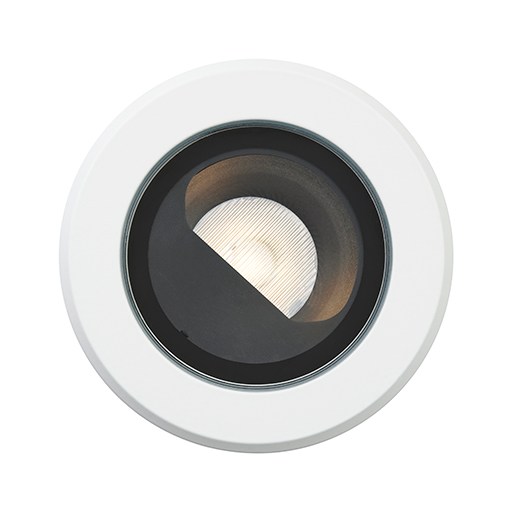

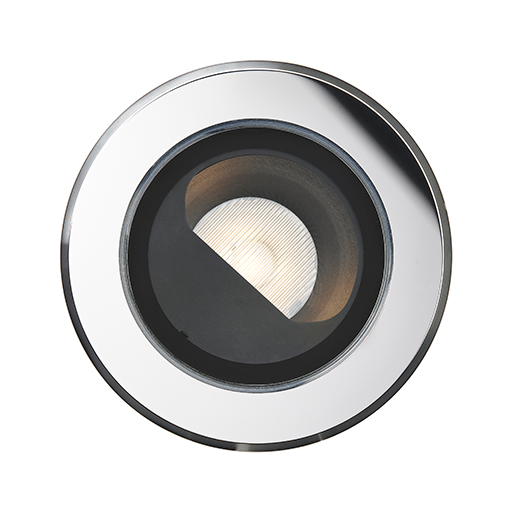

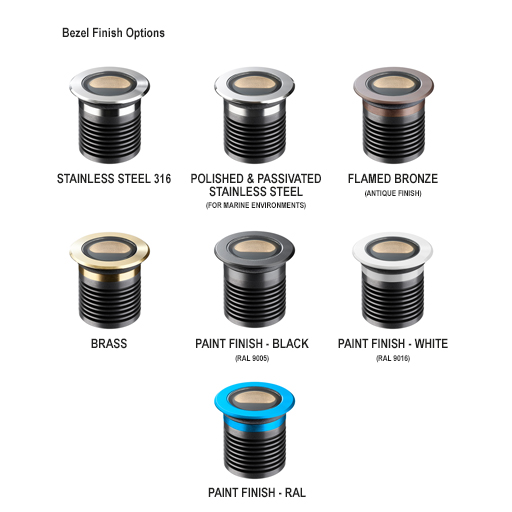

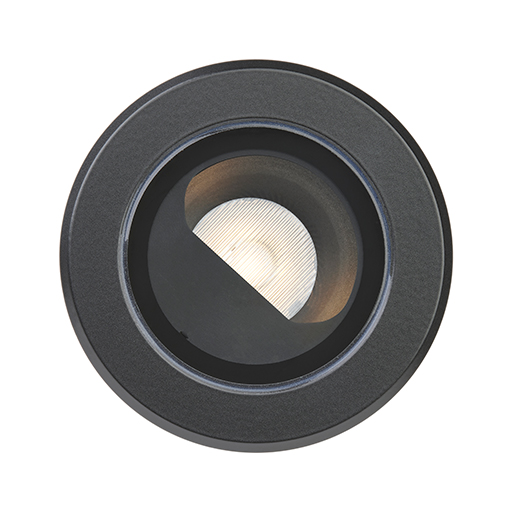

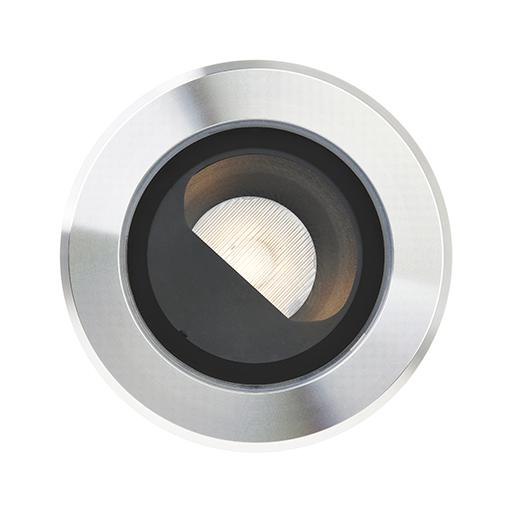

Bezel - Machine finish stainless steel 316 or bronze, Body - black anodised aluminium

IP Rating

IP54

Accessories

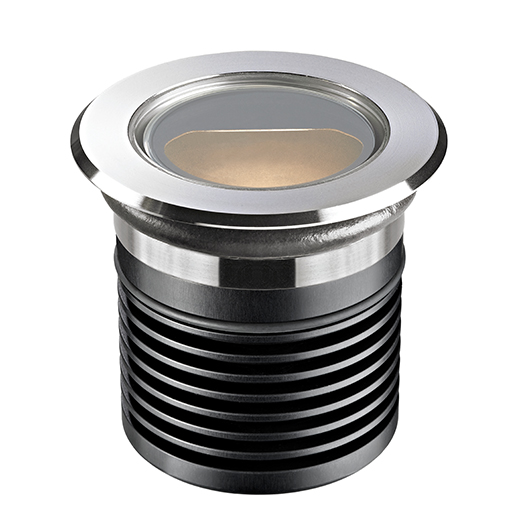

/GS Glare shield, /482S First fix sleeve, /482N Concrete housing with optional /ID Integral driver

Downloads

LD150T
LD150T Datasheet
LD150T
Design Pack
LD150T
Photometric LDT
Files
LD150T
Drivers
