LD151

Description

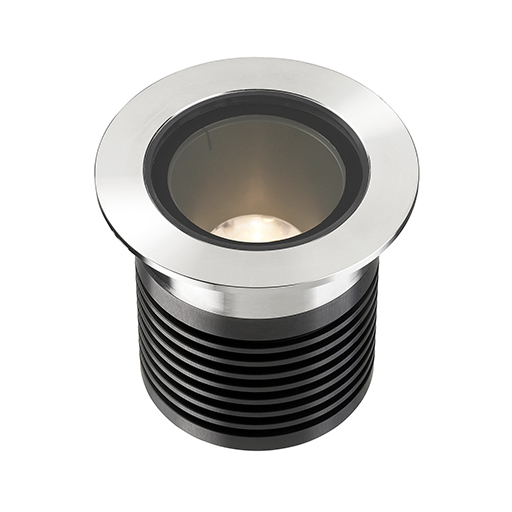

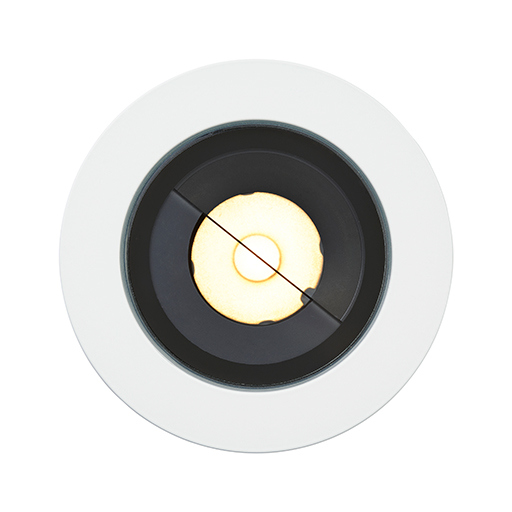

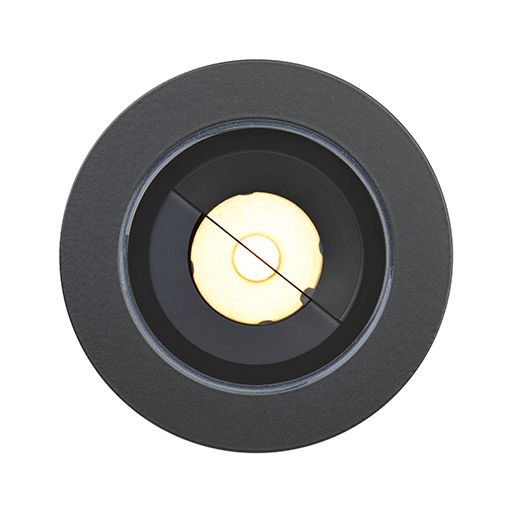

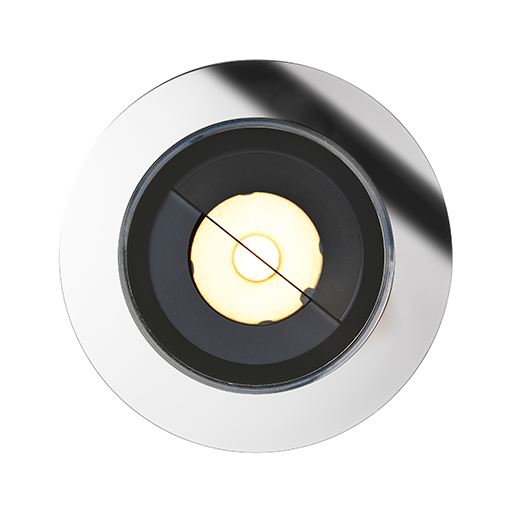

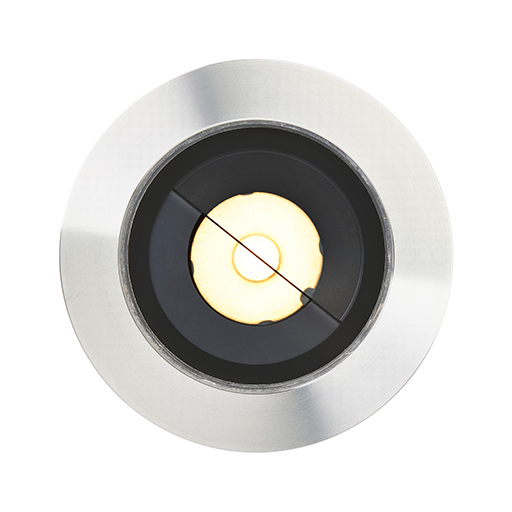

The LD151 is a powerful uplight with a compact size and depth, designed specifically to produce low glare illumination onto interior and exterior walls and columns. It can be specified with a wide range of options allowing it to suit most project requirements. Available LED engines include E3, Tunable White, RGBW and F1 which offer a range of colour temperatures between 2200K-5000K and beam angles, with multiple accessories and bezel finishes to choose from. The bezel aesthetic is minimal featuring black trim glass and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

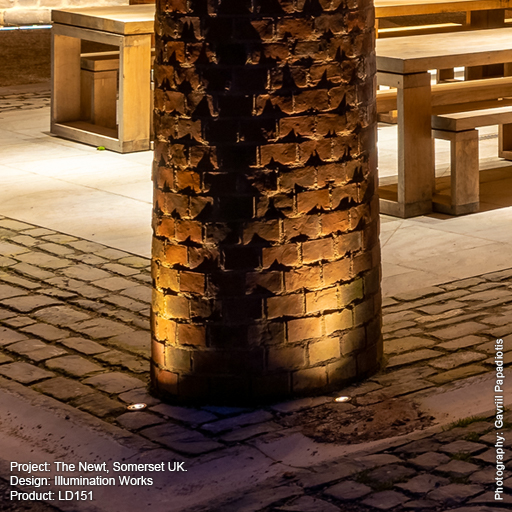

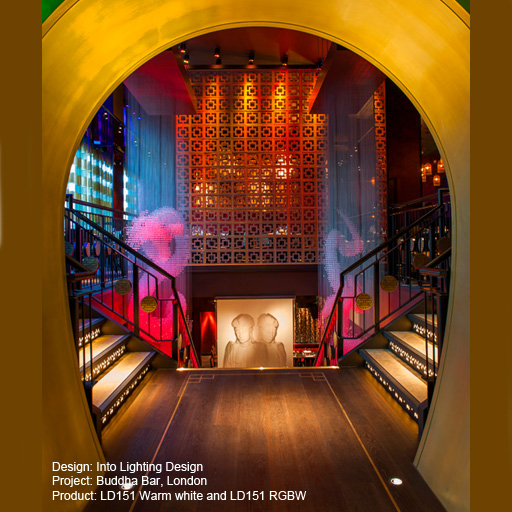

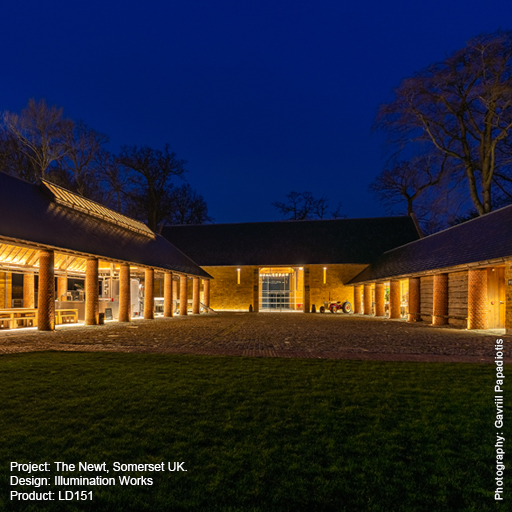

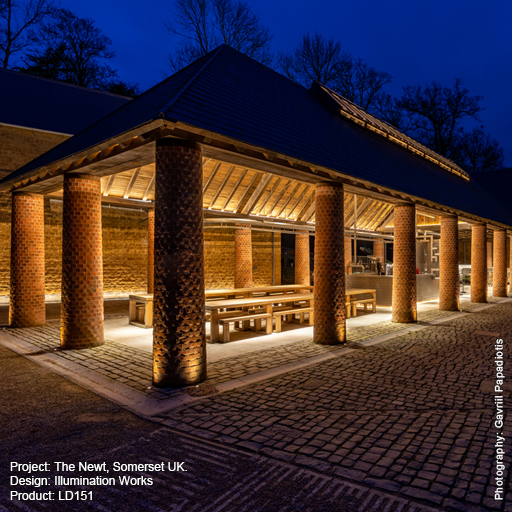

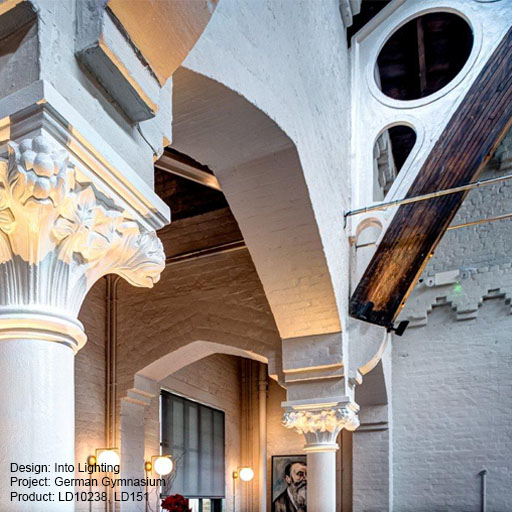

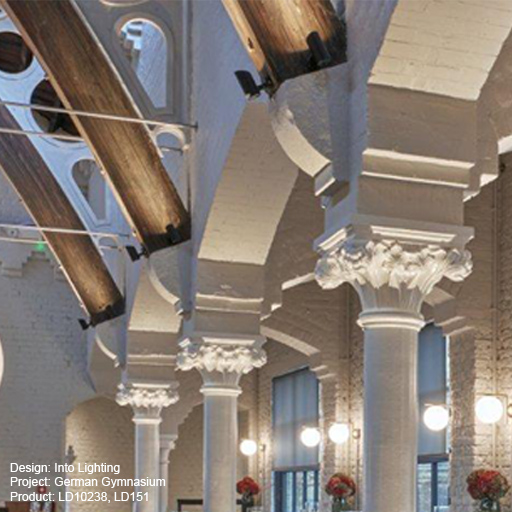

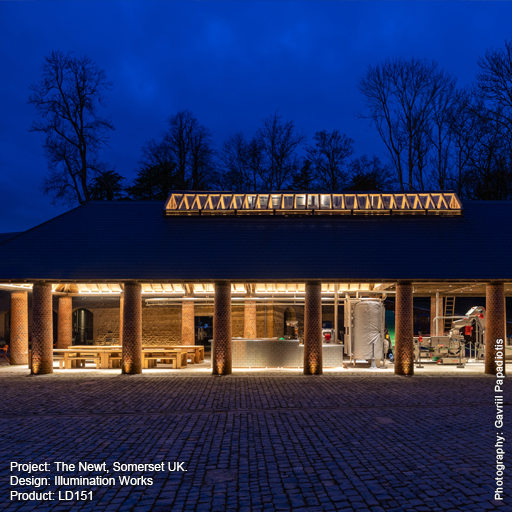

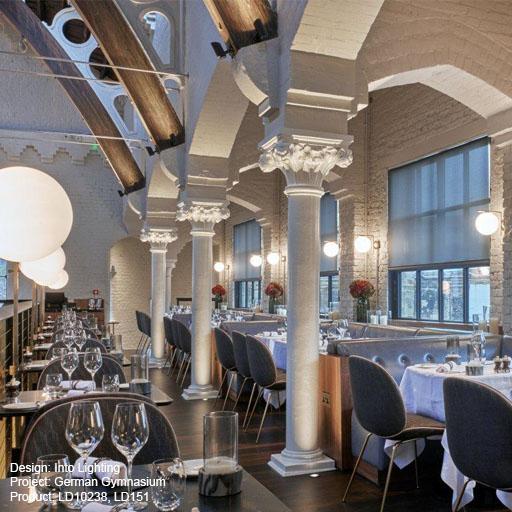

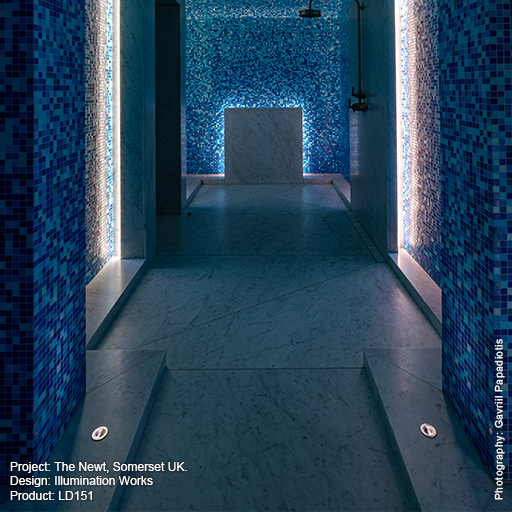

Colour Change, External, Recessed Uplighting, Wall Wash, Yacht Lighting, Tunable White, (600lm-900lm) Compact+ range

Fixing

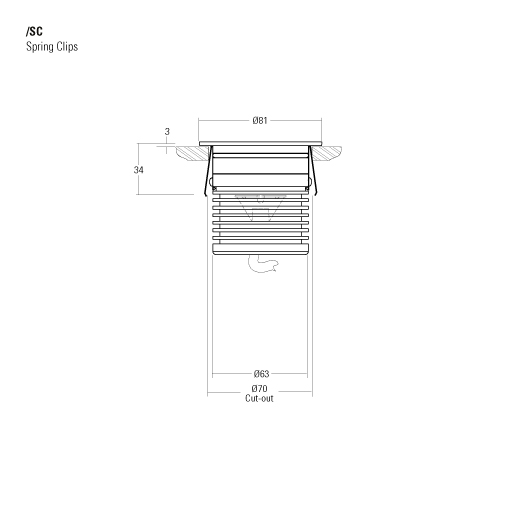

Mounting Spring Clips, Fixing Sleeve, Concrete Can Housing, Ground Tube

LED Information

E3 LED Engine - Up to 10W @ 700mA (White)
E3-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)
F1 LED Engine - Up to 7W @ 700mA (White)

TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)
RGBW LED Engine - Up to 7W @ 500mA (4 x 1.7W)
CLR LED Engine - Up to 7W @ 500mA

Materials

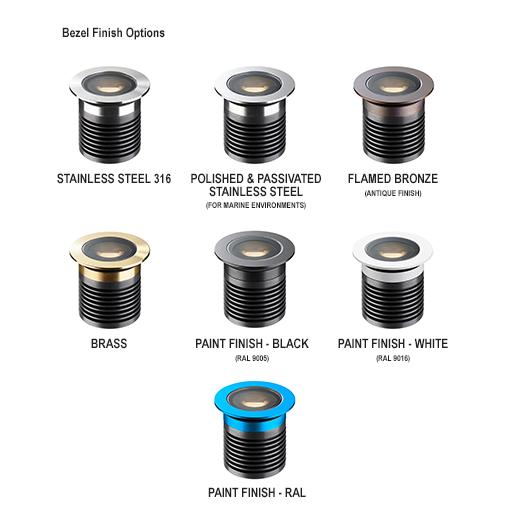

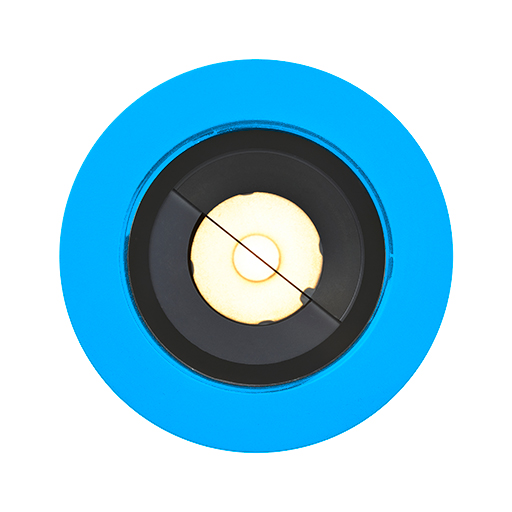

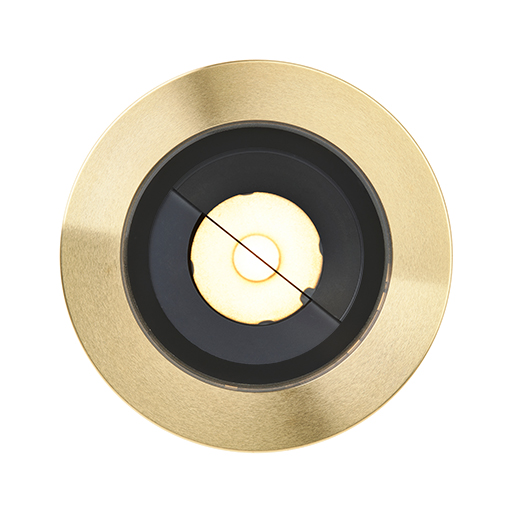

Bezel: machined 316 Stainless Steel 316, Polished Stainless Steel, Bronze, Brass and RAL paint finish

Body: black anodised aluminium

IP Rating

IP67

Accessories

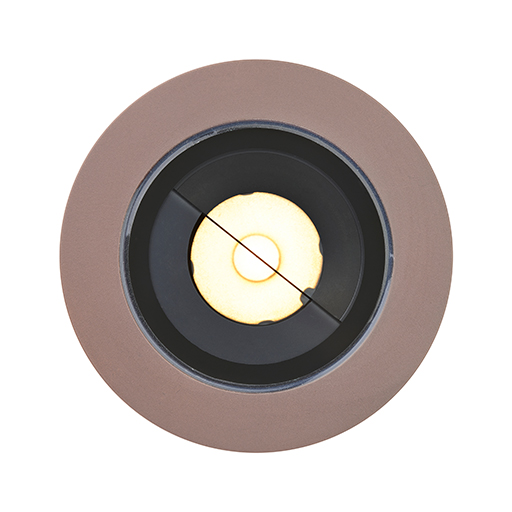

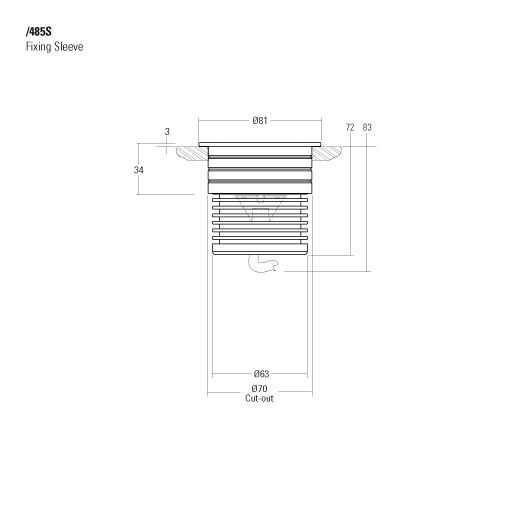

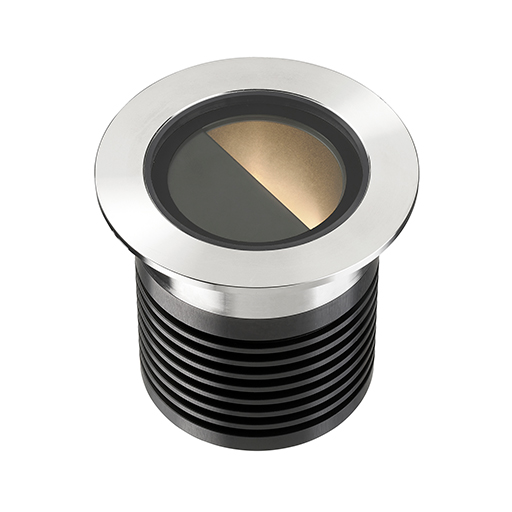

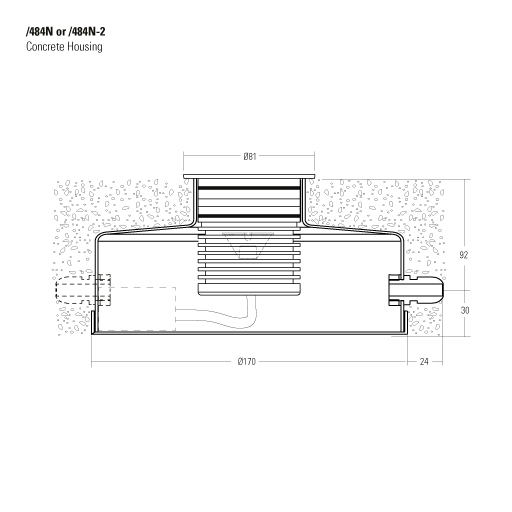

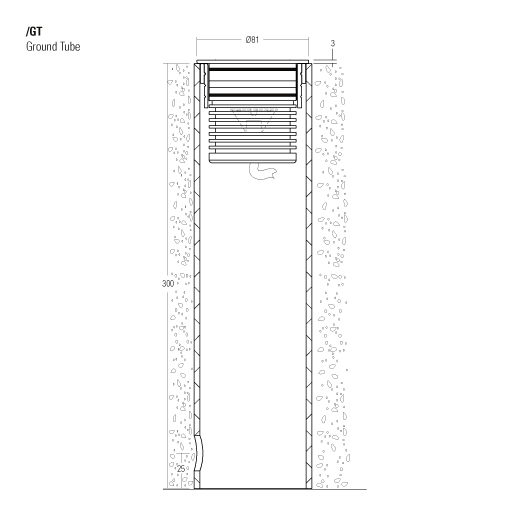

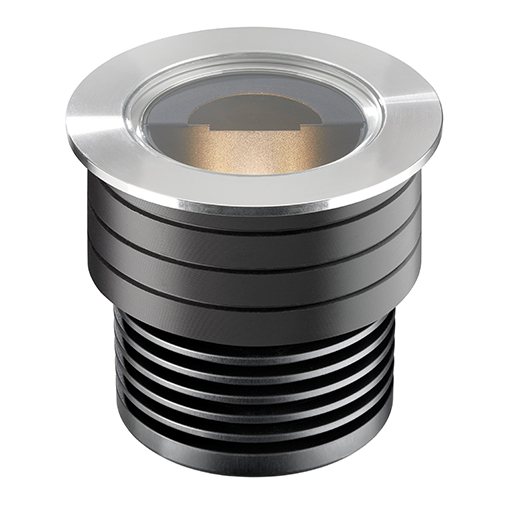

/GS Glare shield, /GSHM Half-moon glare shield, /484S fixing sleeve and 'O' rings /484N Concrete housing with optional /ID Integral driver, /484GT Ground tube

Downloads

LD151
LD151E3F1-11 Datasheet
LD151
Design Pack
LD151
Photometric LDT
Files
LD151
Install Instructions
LD151
Drivers
