LD153

Description

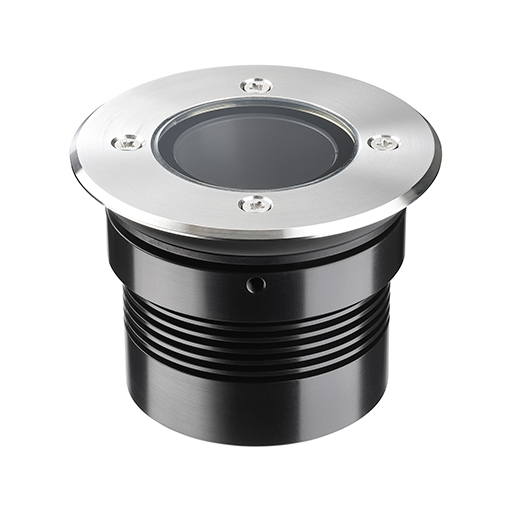

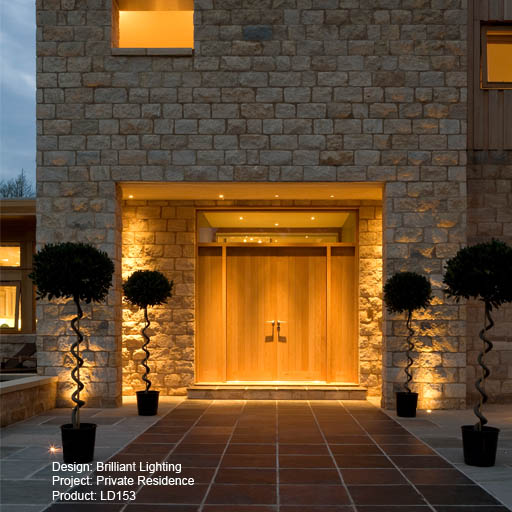

The LD153 is a powerful and robust uplight with a compact size and depth, ideal for lighting interior or exterior walls. This product can be specified with a wide range options allowing it to suit many project requirements with multiple bezel finishes to choose from. Available LED engines include E3, Tunable White, RGBW and F1 which offer a range of colour temperatures between 2200K-5000K and various beam angles. The bezel is secured by 4 screws that lock into the mounting surface using our clever O-ring compression system, acting as an additional layer of security in public areas. The LD153 features a black trim, toughened glass and emits a powerful but low glare illumination which can be further enhanced through the use of optional glare shield accessories. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

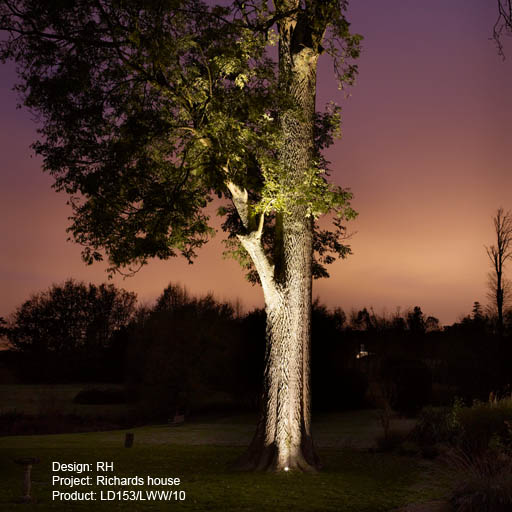

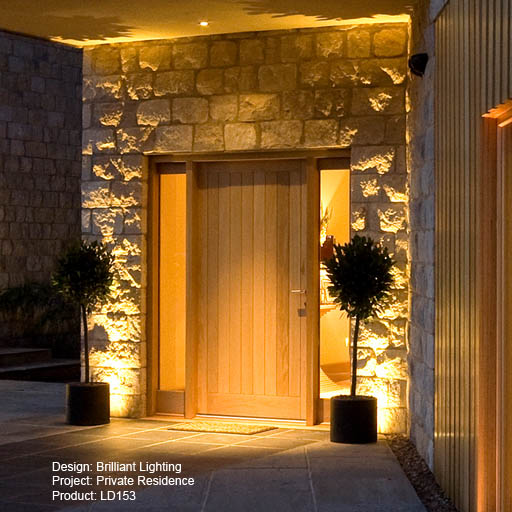

Colour Change, External, Recessed Uplighting, Wall Wash, Tunable White, (600lm-900lm) Compact+ range

Fixing

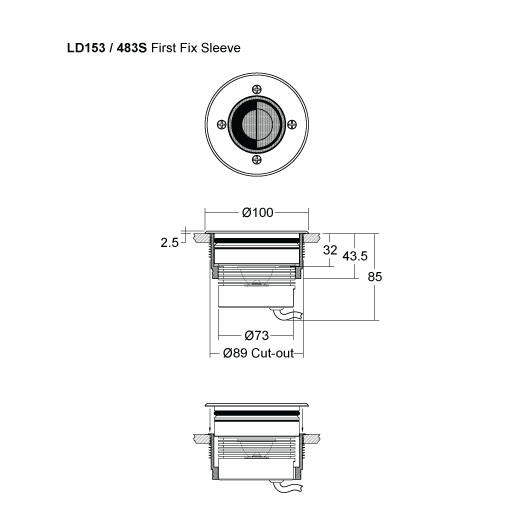

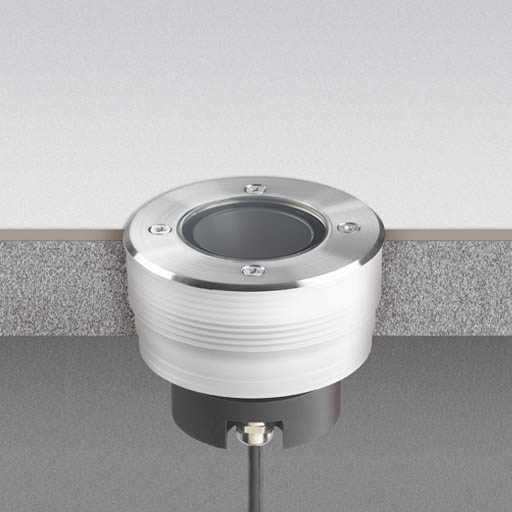

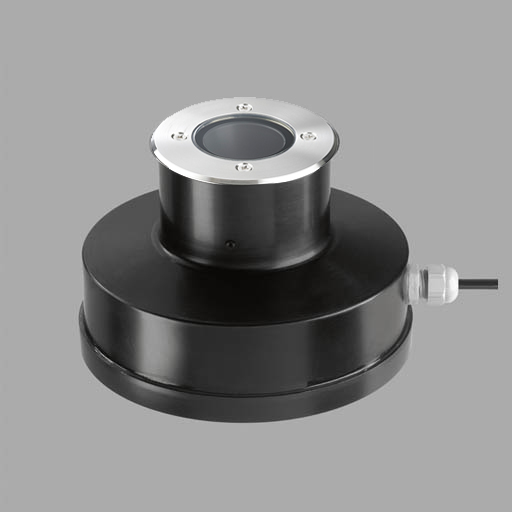

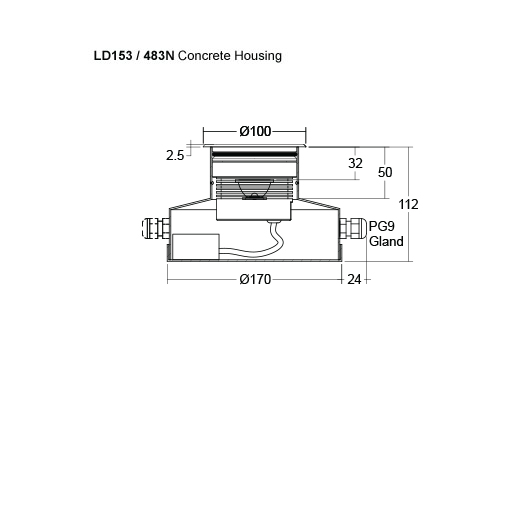

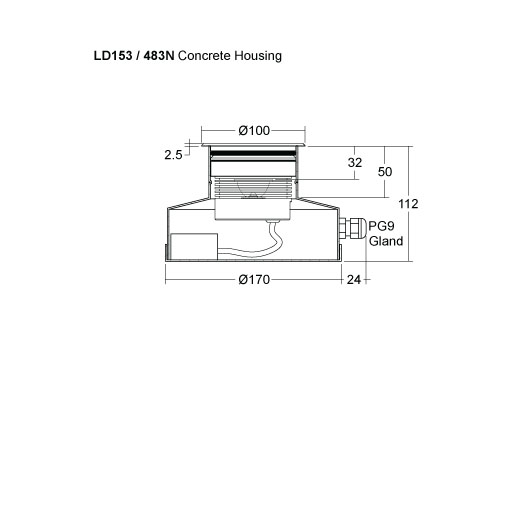

LD153 must be used with the /483S sleeve or /483N concrete housing. A watertight compression system is used to secure the fitting

LED Information

E3 LED Engine - Up to 10W @ 700mA (White)

E3-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)

F1 LED Engine - Up to 7W @ 700mA (White)

TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)

RGBW LED Engine - Up to 7W @ 500mA (4 x 1.7W)

CLR LED Engine - Up to 7W @ 500mA

Materials

Bezel: machined 316 Stainless Steel, Polished Stainless Steel, Brass, Bronze and RAL paint finishes.

Body: black anodised aluminium

IP Rating

IP67

Accessories

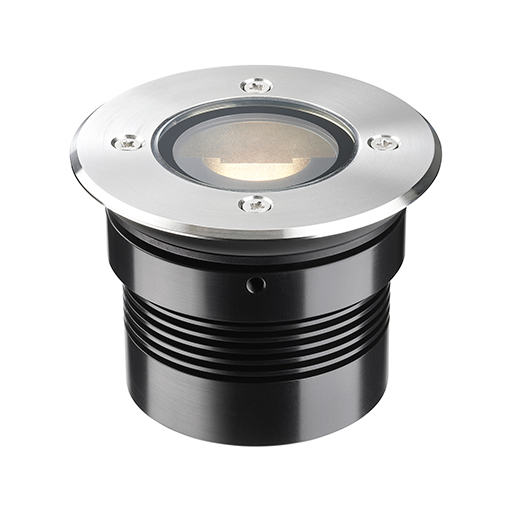

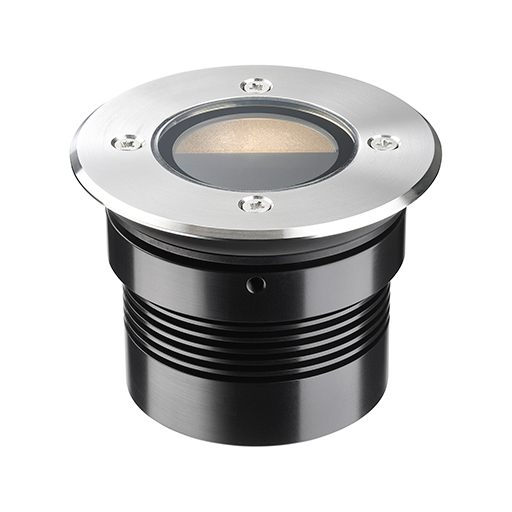

/GS Glare shield, /GSHM Half-moon glare shield, /483S First fix sleeve, /483N Concrete housing with optional /ID Integral driver
