LD170

Description

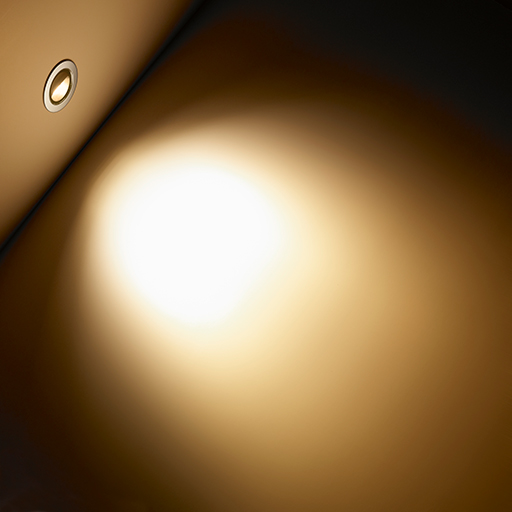

The LD170 is a powerful but compact, recessed wall light designed to produce a low glare uniform floor wash for interior and exterior applications. LD170 is ideal for the illumination of broad steps and pathways with its wide oval beam, integral glare baffle and 20° kick lens which focuses the beam down onto the lit surface. Available LED engines include E3 and F1 which offer colour temperatures between 2200K-5000K, with optional accessories and bezel finishes to choose from. The bezel aesthetic is minimal featuring black trim glass and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

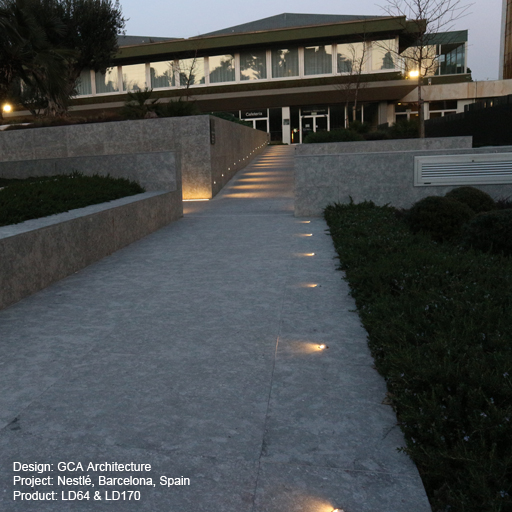

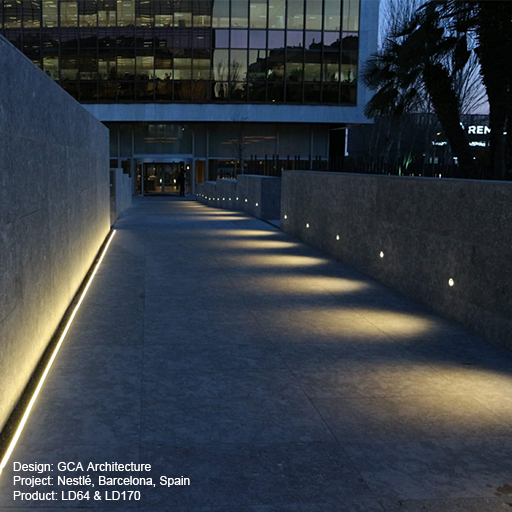

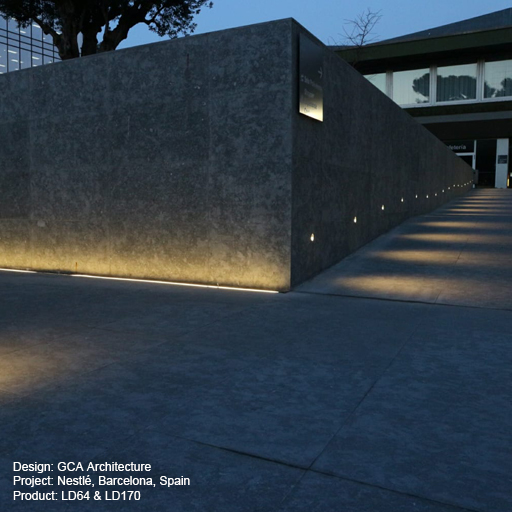

External, Floor Wash, Steps, Yacht Lighting, (600lm-900lm) Compact+ range

Fixing

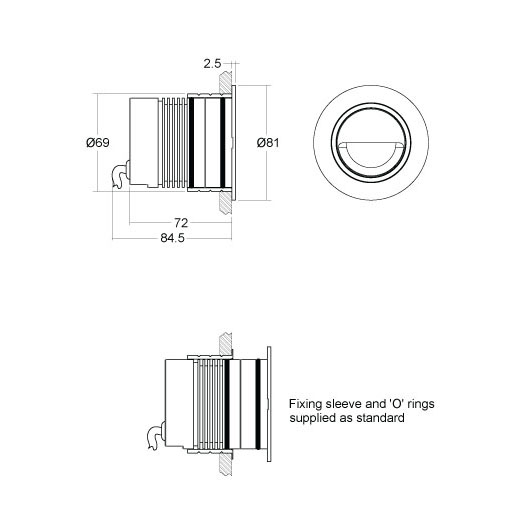

Fixing sleeve is bonded into mounting surface. LD170 has two 'O' rings to secure it into the sleeve

LED Information

E3 LED Engine - Up to 7W @ 500mA (White)

E3-2CH LED Engine
Channel 1 - Up to 7W @ 500mA (White)
Channel 2 - Up to 2 x 1.7W @ 500mA (Secondary colour)

F1 LED Engine - Up to 5W @ 500mA (White)

Materials

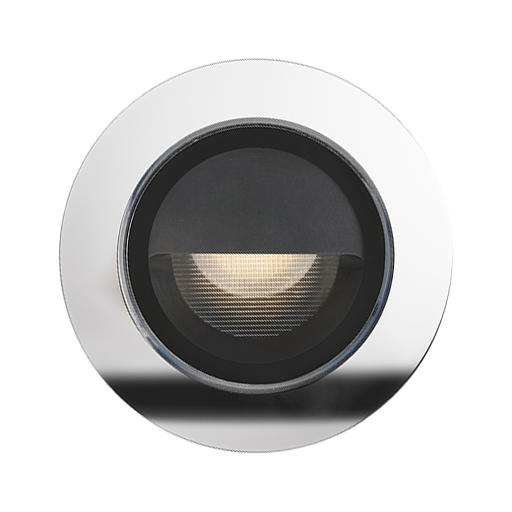

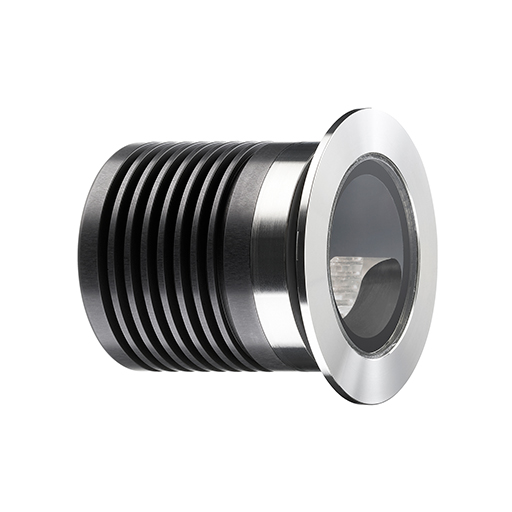

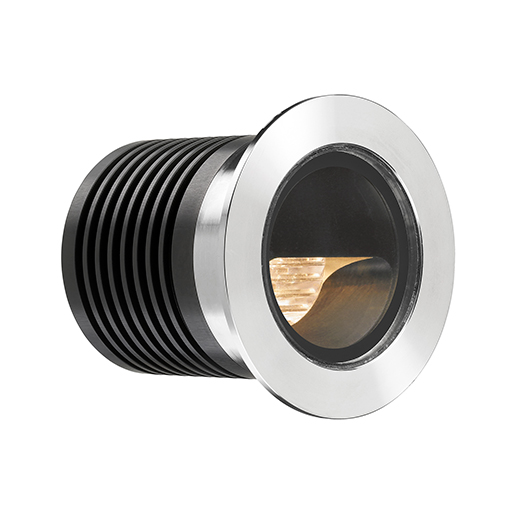

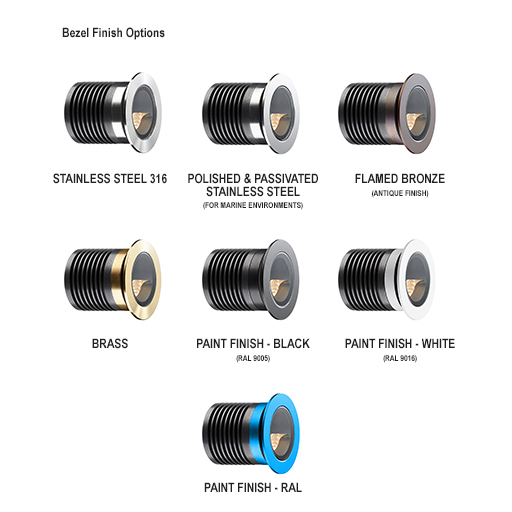

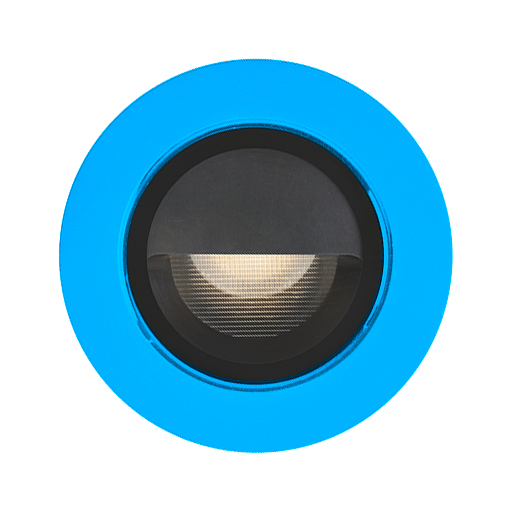

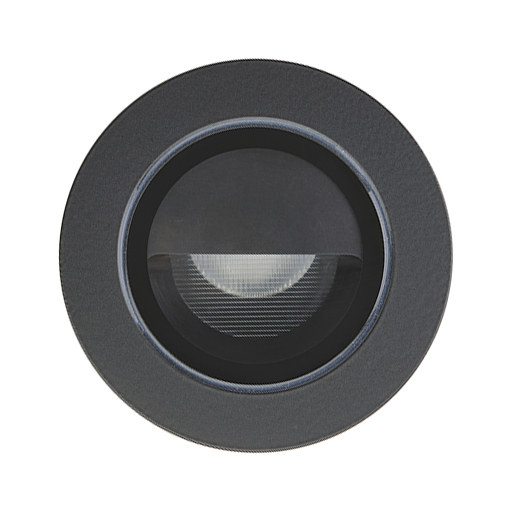

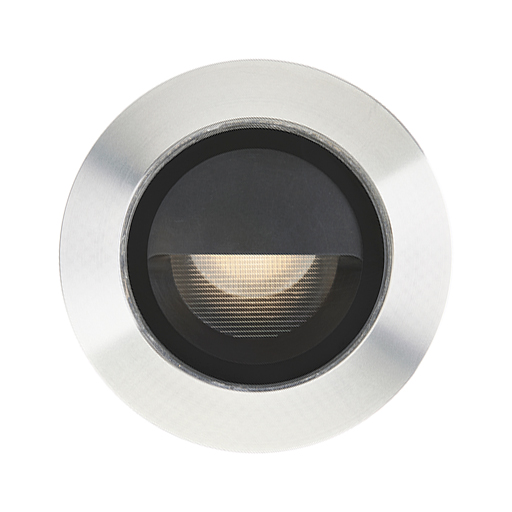

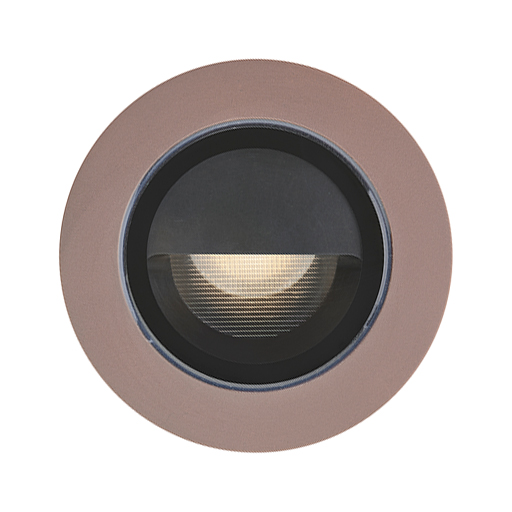

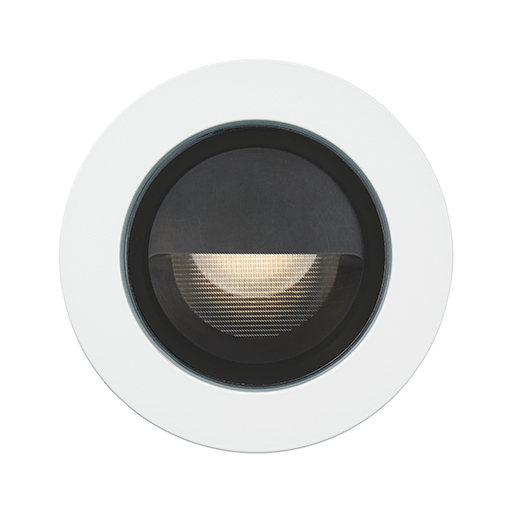

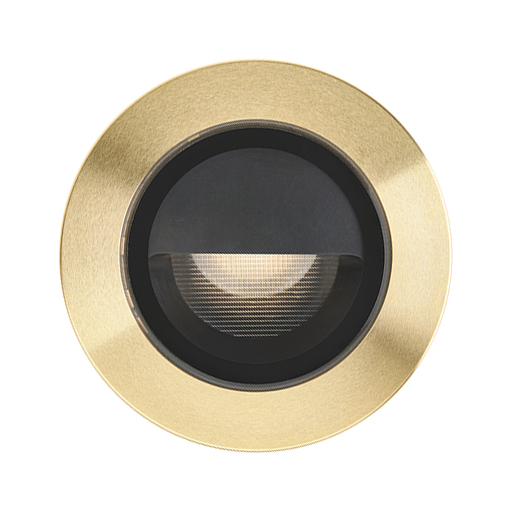

Bezel: machined 316 Stainless Steel, Polished 316 Stainless Steel, Flamed Bronze, Brass, RAL paint finish

Body: black anodised aluminium

IP Rating

IP67

Downloads

LD170
LD170E3F1-3 Datasheet
LD170
Design Pack
LD170
Photometric LDT
Files
LD170
Install Instructions
LD170
Drivers
