LD10235

Description

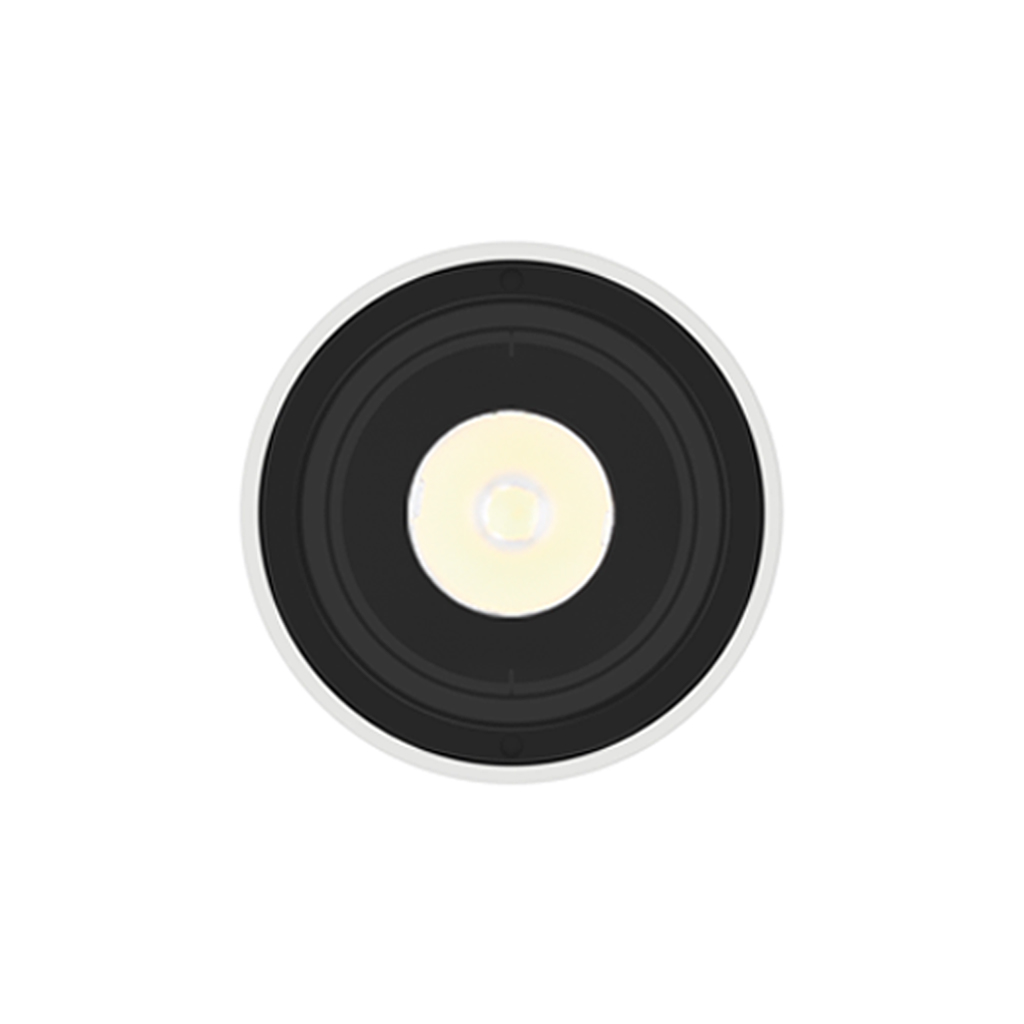

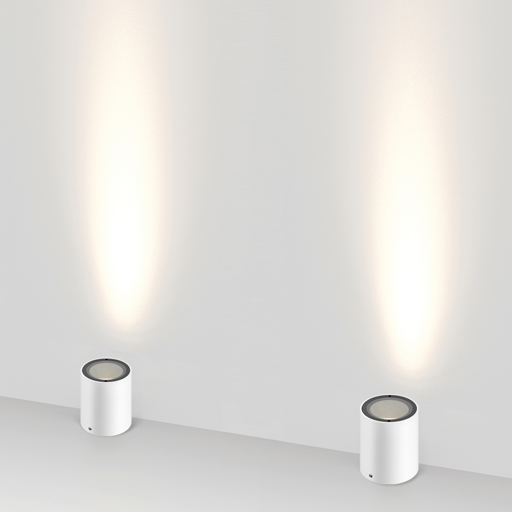

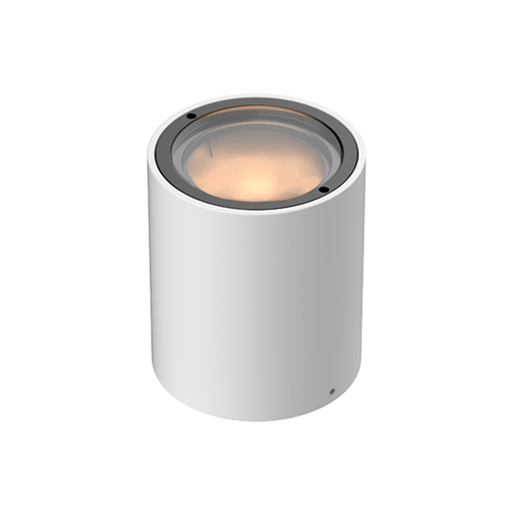

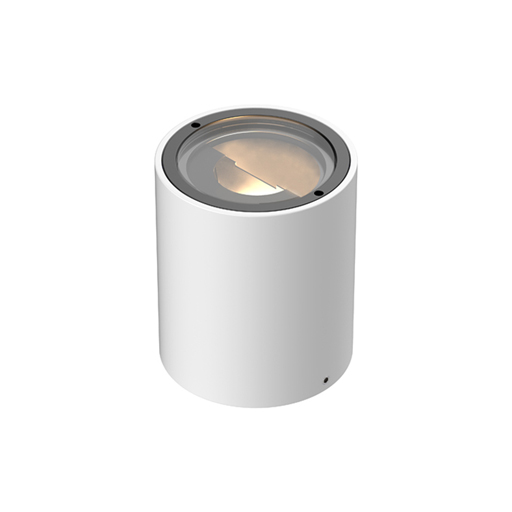

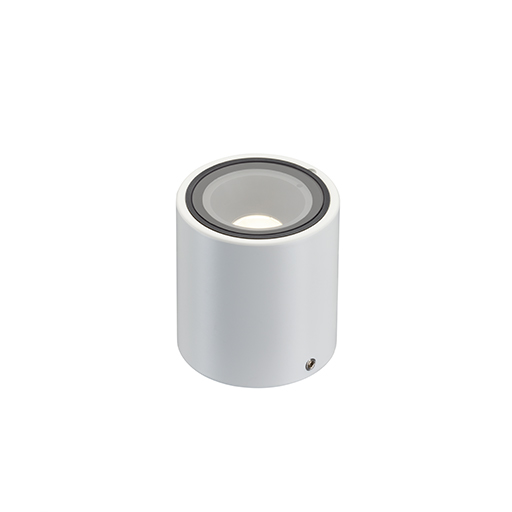

LD10235 is a high power floor or ceiling mounted spotlight. It has been designed for applications where a recessed fitting cannot be installed, and a surface mounted solution is required. The LD10235 features a deep recessed E1 LED engine, optional glare shields and a range of optics. The LD10235 has been designed specifically to produce low glare illumination to walls and columns. This is a very tough, high quality fitting, machined from high grade materials ensuring excellent thermal and light output performance. Ideal for interior and exterior applications, incorporating an integral anti-wicking barrier for added protection. The LD10235 is available with a choice of switched; 0-10V, DMX, Dali or Mains dimmable remote drivers.

Applications

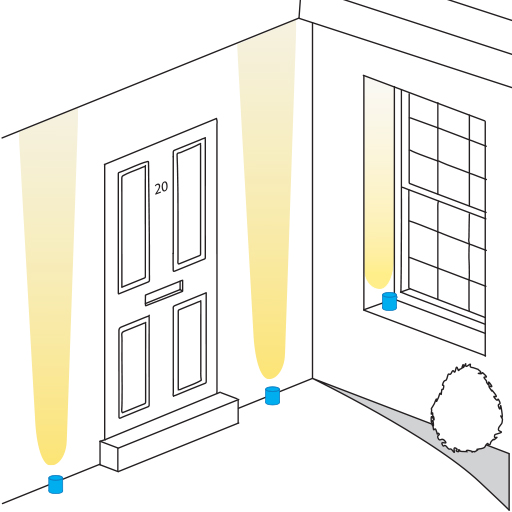

Colour Change, External, Surface Mounted, Wall Wash, Yacht Lighting, Pathway, Tunable White

Fixing

Fixing is by a first fix aluminium bracket attached to the mounting surface. The main body is then attached to the bracket by two discreet stainless steel M4 grub screws.

Lamp Information

E1 LED Engine - Up to 10W @ 700mA (White)

E1-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)

TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)

RGBW LED Engine - Up to 7W @ 500mA (4 x 1.7W)

CLR LED Engine - Up to 7W @ 500mA

Materials

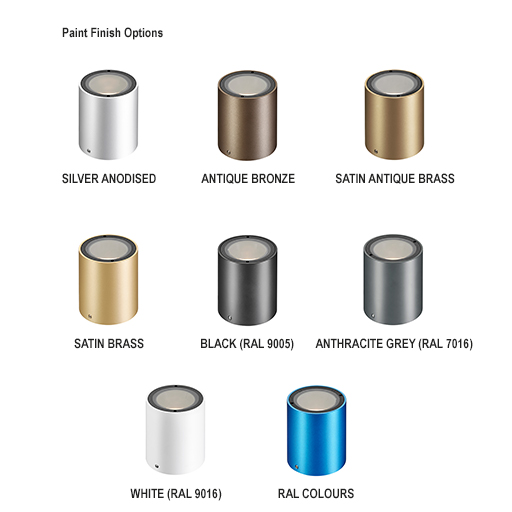

Anodized aluminium, body and bracket

IP Rating

IP67

Accessories

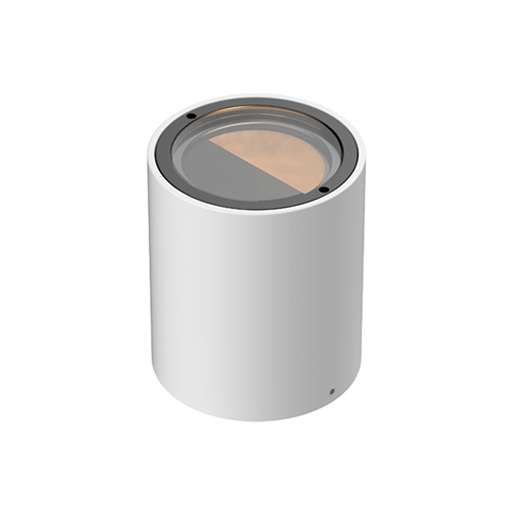

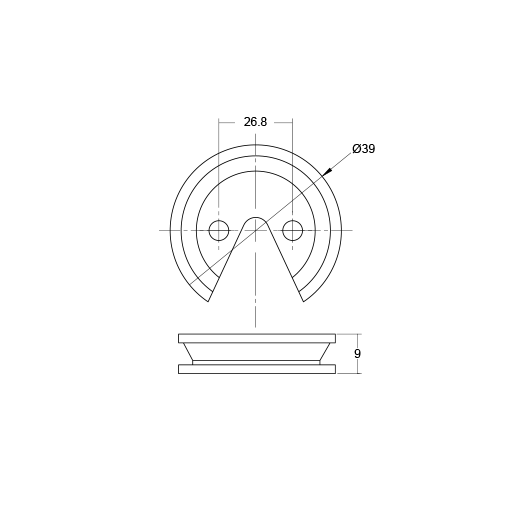

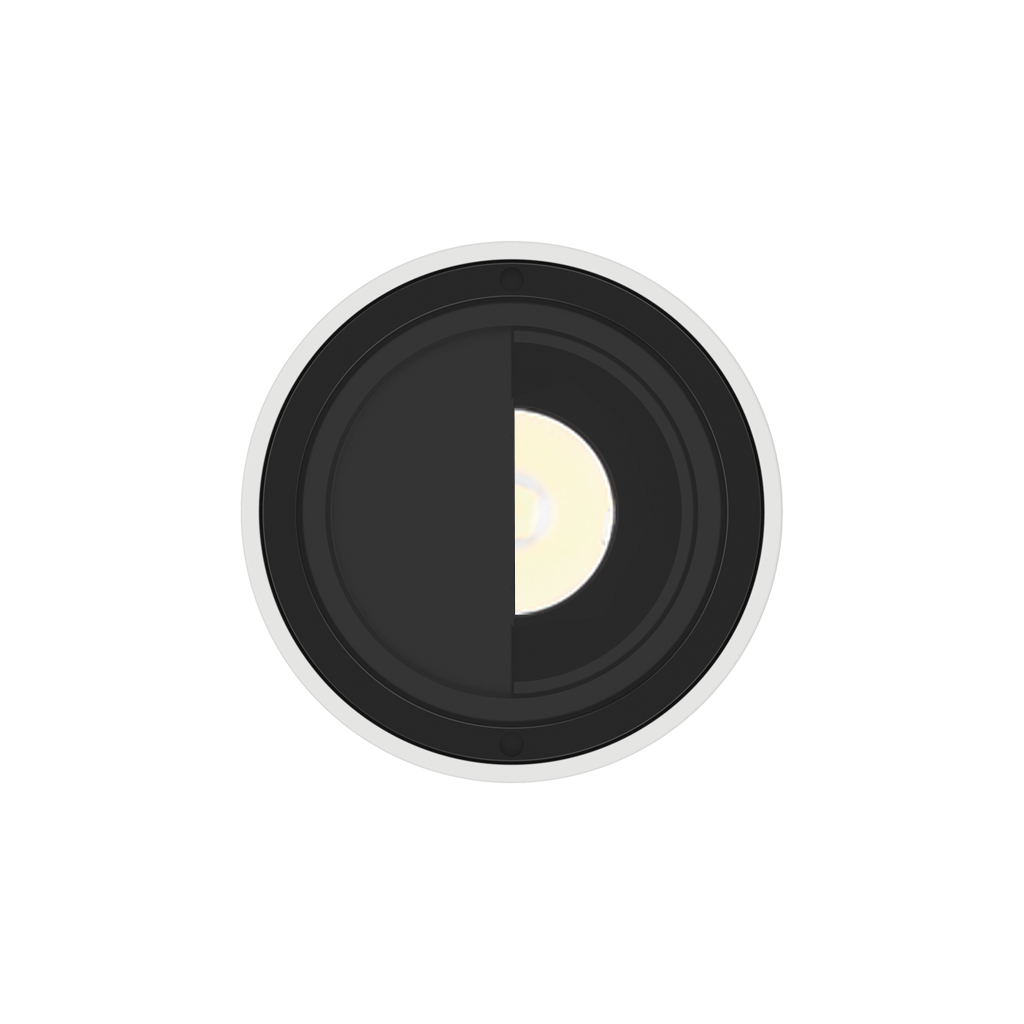

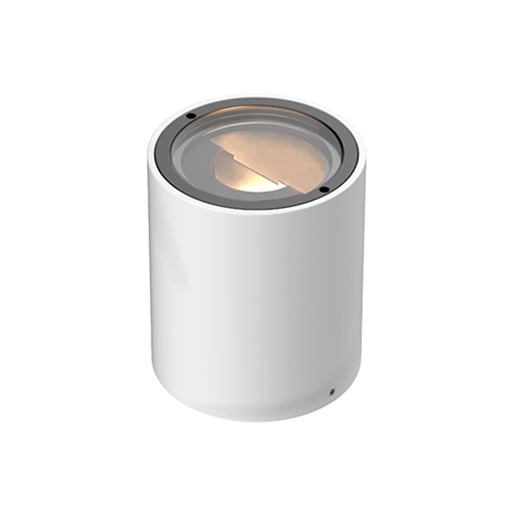

/GS Glare shield, /GSHM Half-moon glare shield

Downloads

LD10235
LD10235E1 Datasheet
LD10235
Design Pack
LD10235
Photometric LDT
Files
LD10235
Drivers
