LD95

Description

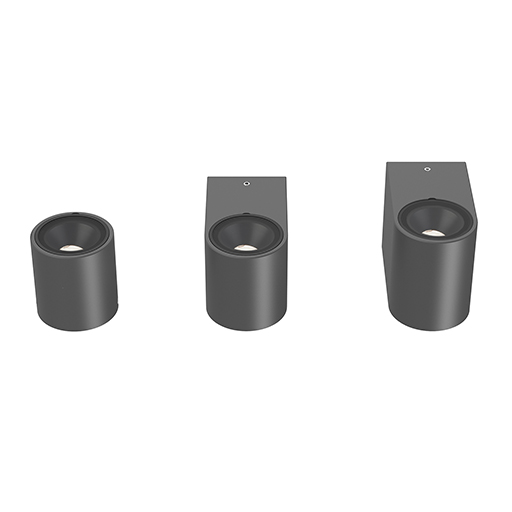

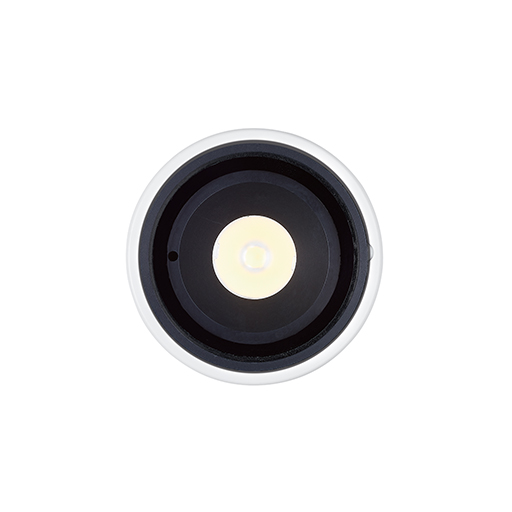

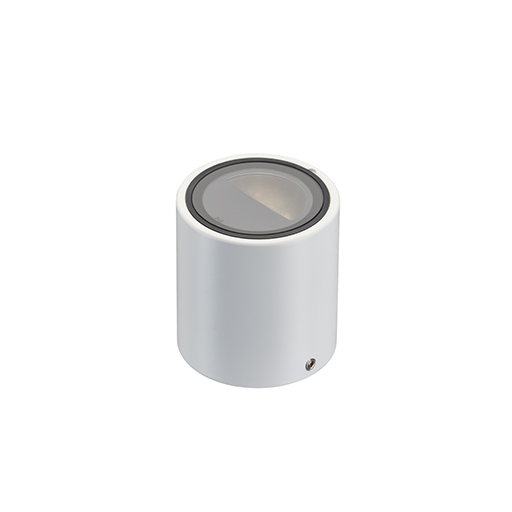

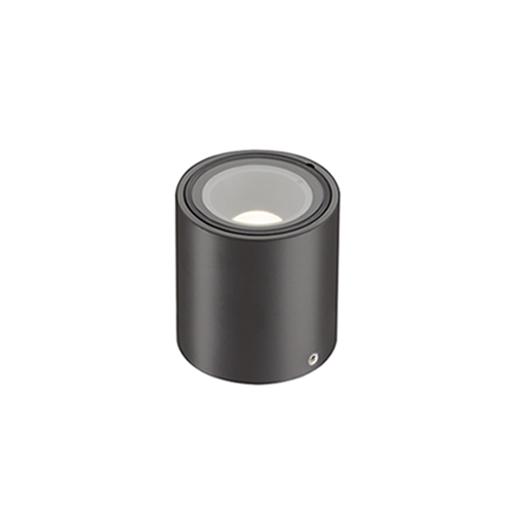

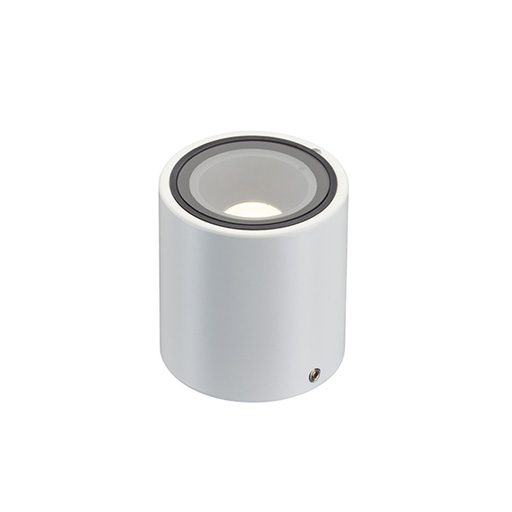

LD95 is a miniature floor or ceiling mounted spotlight. It has been designed for applications where a recessed fitting cannot be installed, and a discreet, non-obtrusive solution is required. It features a deep recessed LED and optional glare shield, removing the need for a large cowl. Using the latest in LED technology, with a typical 93 CRI in 3000K warm white, the LD95 offers an excellent diffused beam shape from a range of optics. The LD95 incorporates an integral anti-wicking barrier for added protection and is available with a choice of switch, 0-10V, DMX, Dali or mains dimmable remote drivers.

Applications

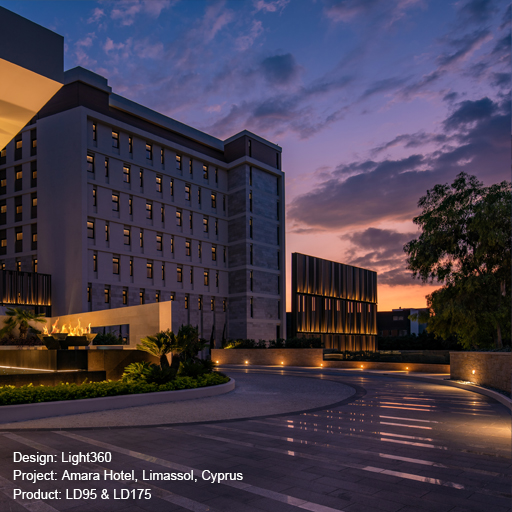

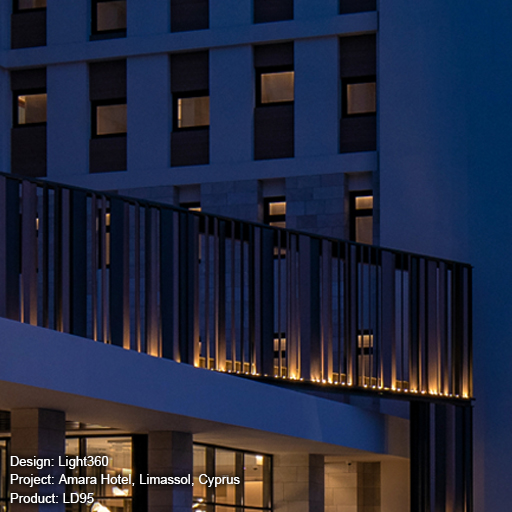

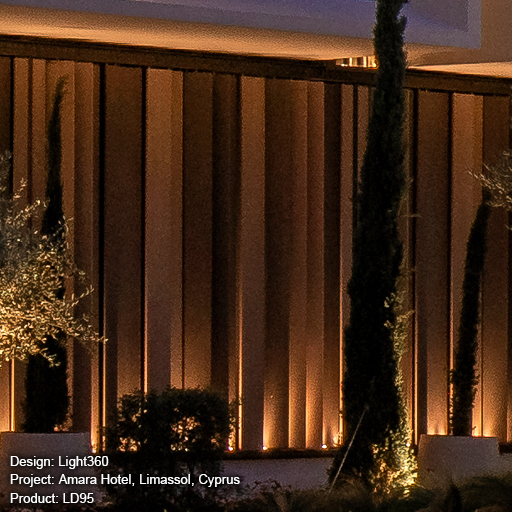

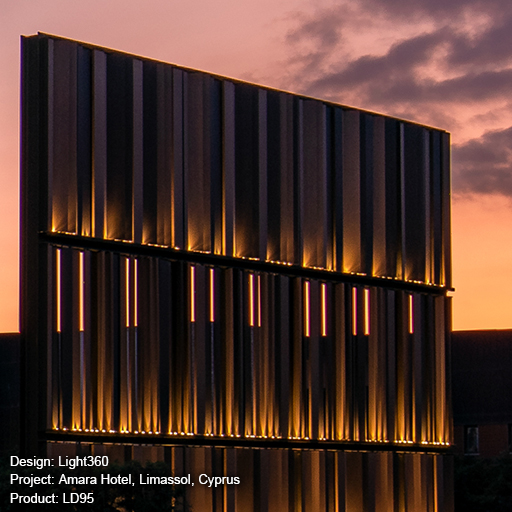

Floor Wash, Surface Mounted, Wall Wash, Yacht Lighting

Fixing

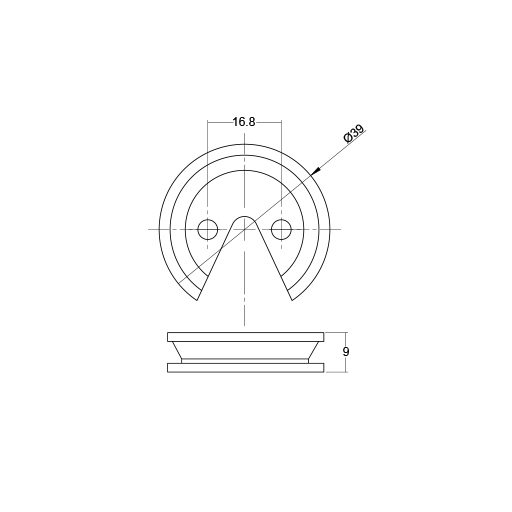

First fix aluminium bracket attached to the mounting surface with discreet stainless steel M4 grub screws.

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD95-C1-350), 1.7W @ 500mA (LD95-C1-500), 2.4W @ 700mA (LD95-C1-700)

Materials

Machined & iridited painted aluminium body, 1mm low iron glass

IP Rating

IP66

Accessories

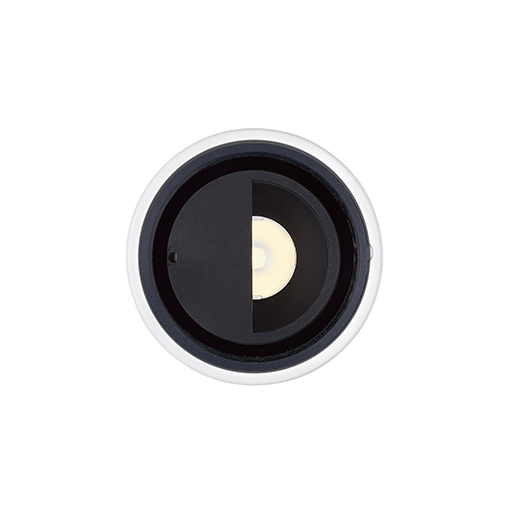

/GS Glare shield

Downloads

LD95
LD95C1-2 Datasheet
LD95
Design Pack
LD95
Photometric LDT
Files
LD95
Install Instructions
LD95
Drivers
