LD97

Description

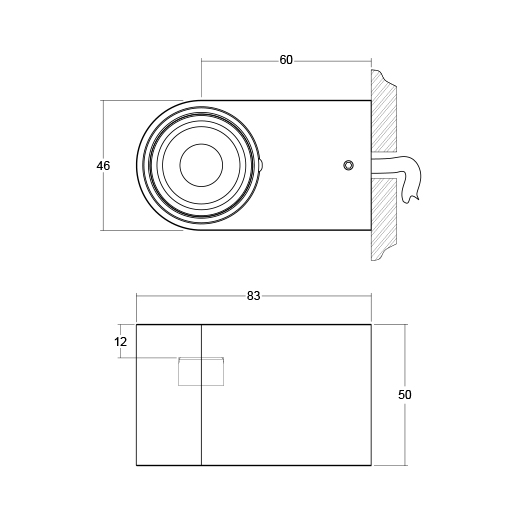

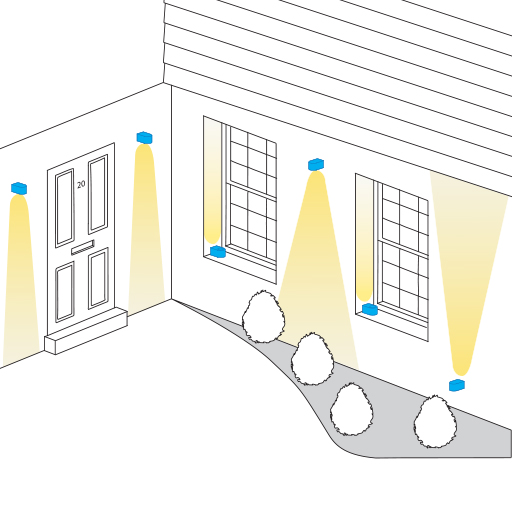

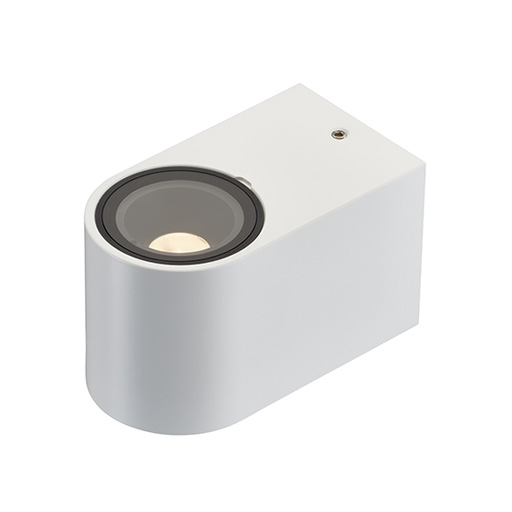

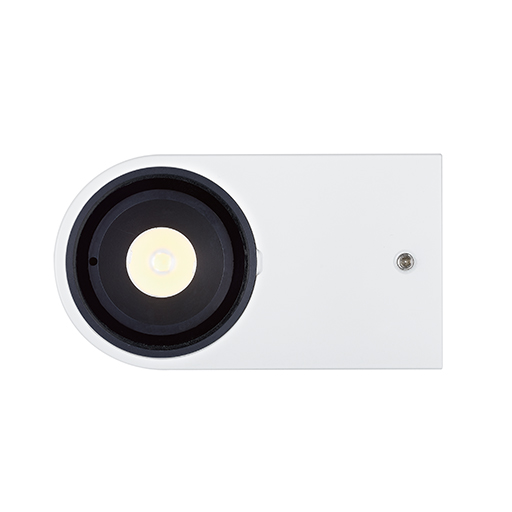

The LD97 is a miniature surface mounted LED wall light. Minimal design allows it to blend seamlessly into most project styles, and fit into the smallest of details. A choice of beam angles and LED colours offers the designer a range of uses, which include window reveal lighting, wall washing and path illumination. LD97 has been designed to withstand the harshest of conditions. The small but very robust body is machined from a solid billet of aluminium and incorporates an integral anti-wicking barrier for added protection.

Applications

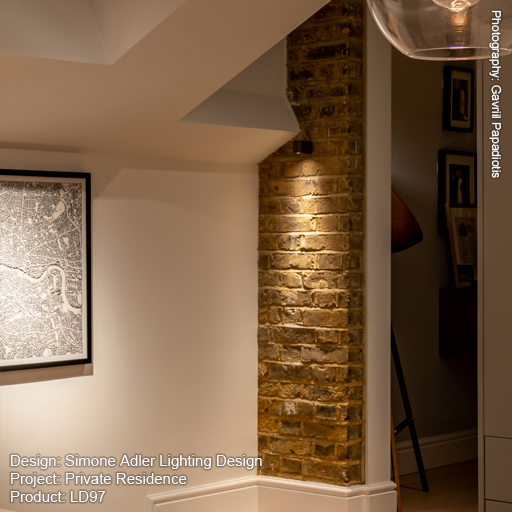

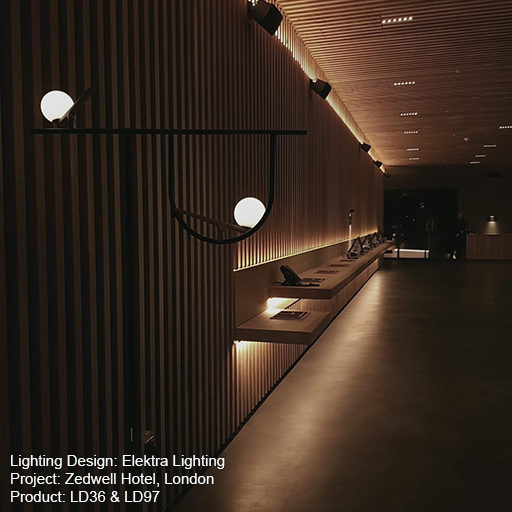

Surface Mounted, Wall Wash, Yacht Lighting

Fixing

Fixing is by a first fix stainless steel bracket attached to the mounting surface. The main body is then attached to the bracket by two discreet stainless steel M4 grub screws.

Lamp Information

Cree XPG2: 3 output options - 1.2W @ 350mA (LD96-350), 1.7W @ 500mA (LD96-500) and 2.4W @ 700mA (LD96-700)

Materials

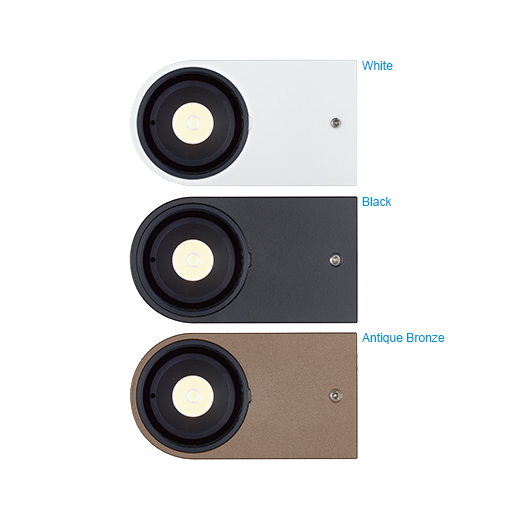

Iridited aluminium body with stainless steel fixing bracket

IP Rating

IP66

Accessories

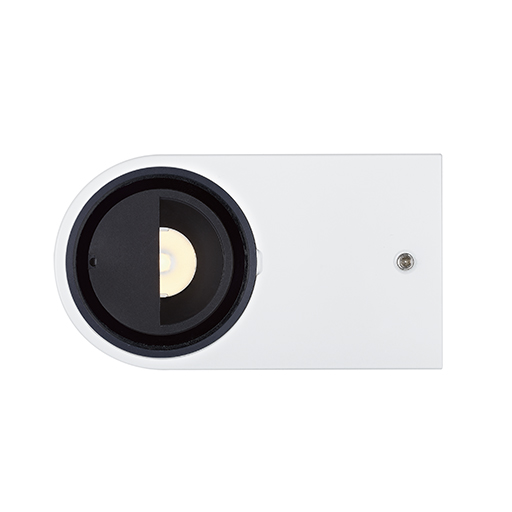

/GS Glare shield

Downloads

LD97
Datasheet
LD97
Design Pack
LD97
Drivers

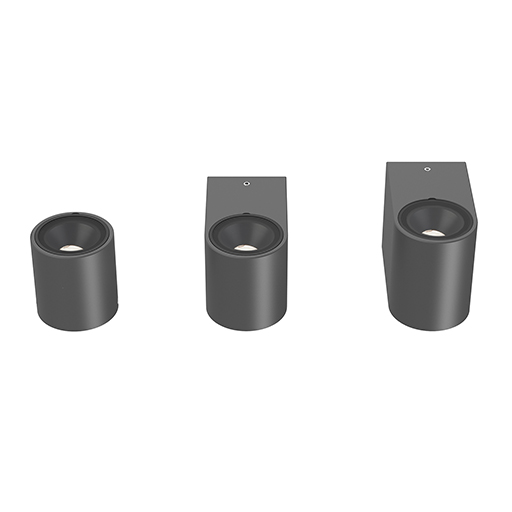

Similar Products
