LD10236

Description

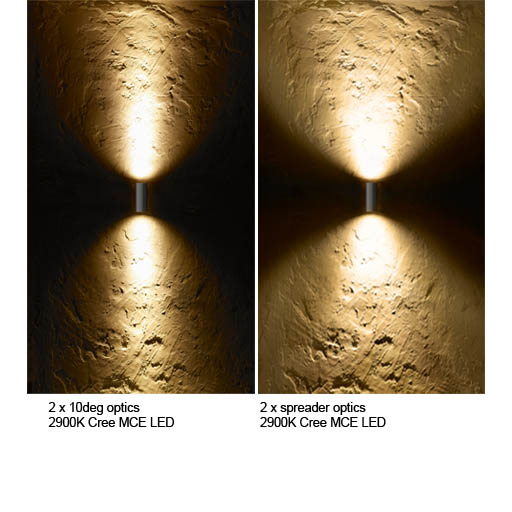

The LD10236 is a powerful double output surface mounted fitting, designed for interior and exterior wall washing applications. It can be specified with a wide range of options allowing it to suit most project requirements. Available LED engines include E3, Tunable White, RGBW and F1, which offer a range of colour temperatures between 2200K-5000K, with multiple beam angles and paint finishes to choose from. The fitting emits a beam at both the top and bottom and houses a matt black inner baffle with two recessed LEDs that are held in place by anti-glare rings for a low glare illumination. The LD10236 body is a machined billet of aluminium offering a robust and minimal design with a large selection of paint finishes available as well as discreet fixing options, that will allow it to blend into many environments. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

Colour Change, External, Surface Mounted, Wall Wash, Tunable White, (600lm-900lm) Compact+ range

Fixing

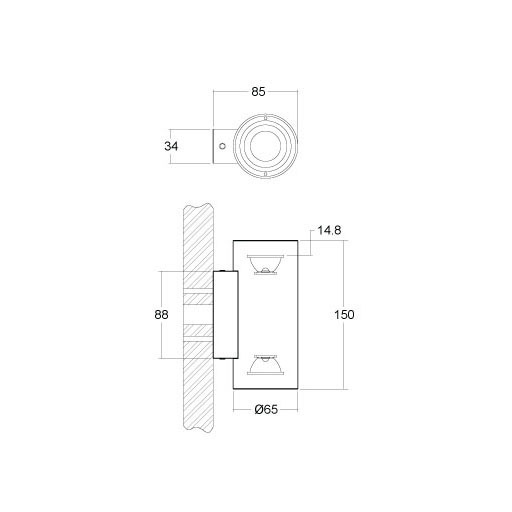

Fixing is by a first fix stainless steel bracket attached to the mounting surface. The main body is then attached to the bracket by two discreet stainless steel M6 security grub screws.

LED Information

2 x E3 LED Engine - Up to 14W @ 500mA (White)

2 x E3-2CH LED Engine
Channel 1 - Up to 14W @ 500mA (White)
Channel 2 - Up to 4 x 1.7W @ 500mA (Secondary colour)

2x F1 LED Engine - up to 14W @ 700mA

2 x TW LED Engine - Up to 14W @ 500mA (2 channels of 4 x 1.7W)

2 x RGBW LED Engine - Up to 14W @ 500mA
2 x CLR LED Engine - Up to 14W @ 500mA

Materials

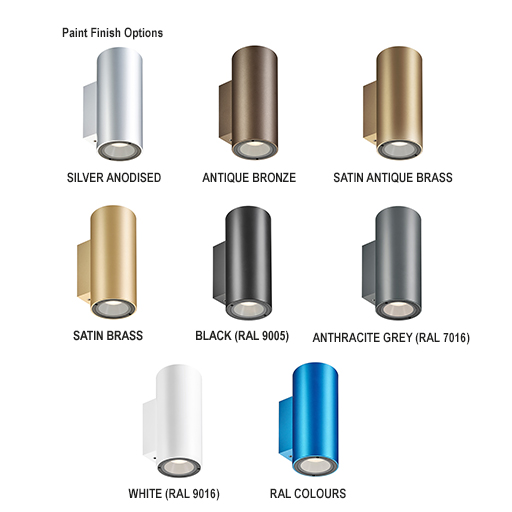

Body: machined billet of aluminium with RAL paint finishes available

Fixing bracket: stainless steel fixing bracket

IP Rating

IP67

Downloads

LD10236
LD10236E3F1-7 Datasheet
LD10236
Design Pack
LD10236
Photometric LDT
Files
LD10236
Install Instructions
LD10236
Drivers
