LD96

Description

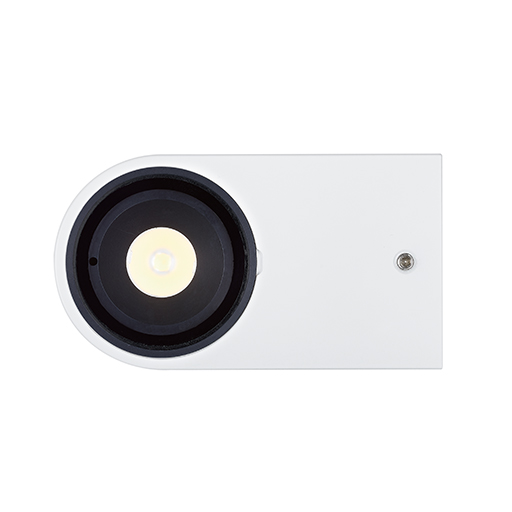

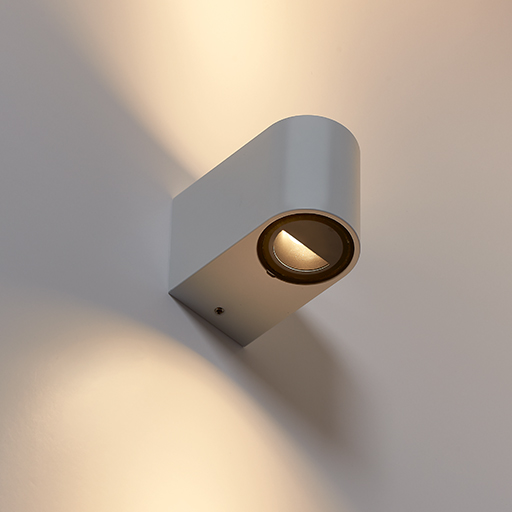

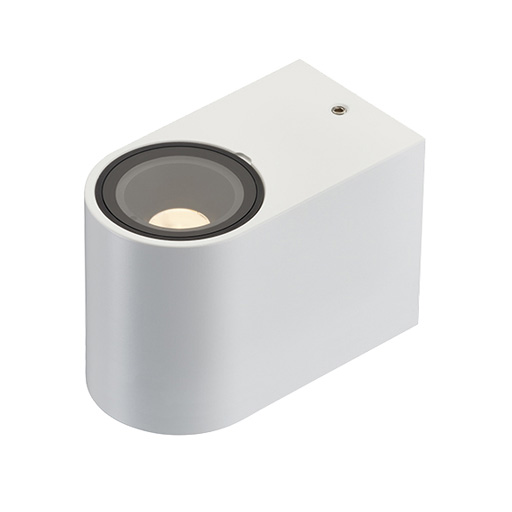

The LD96 is a miniature version of the LD10236 up and down wall washer. Its minimal design allows it to blend seamlessly into most project styles and will fit into the smallest of features. A choice of beam angles and LED colours offers the designer a range of uses, as well as providing the opportunity to use differing optics on opposite side of the product. The small but very robust body is machined from a solid billet of aluminium and incorporates an integral anti-wicking barrier for added protection.

Applications

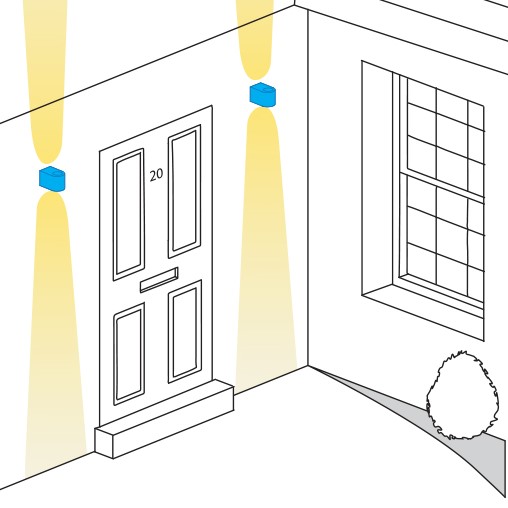

Floor Wash, Surface Mounted, Wall Wash, Yacht Lighting

Fixing

First fix stainless steel bracket attached to the mounting surface with two discreet stainless steel M4 grub screws.

LED Information

2 X NICHIA C1 LED Engine: 2.4W @ 350mA (LD96-C1-350), 3.4W @ 500mA (LD96-C1-500), 4.8W @ 700mA (LD96-C1-700)

Materials

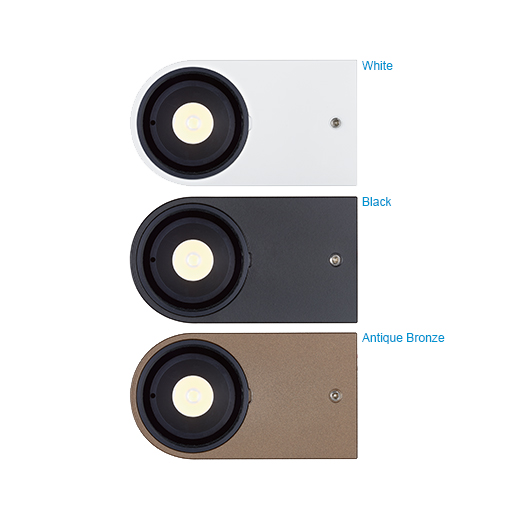

Machined & iridited painted aluminium body, 1mm low iron glass

IP Rating

IP66

Accessories

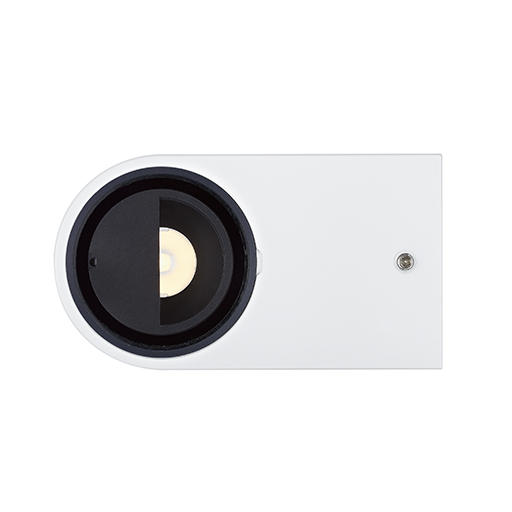

/GS Glare shield

Downloads

LD96
LD96C1-3 Datasheet
LD96
Design Pack
LD96
Photometric LDT
Files
LD96
Install Instructions
LD96
Drivers

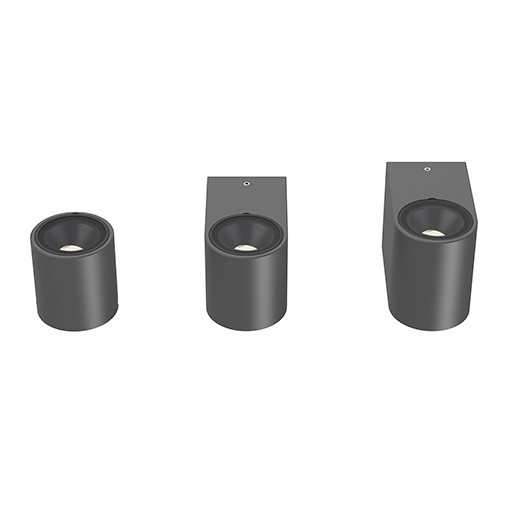

Similar Products
