LD175

Description

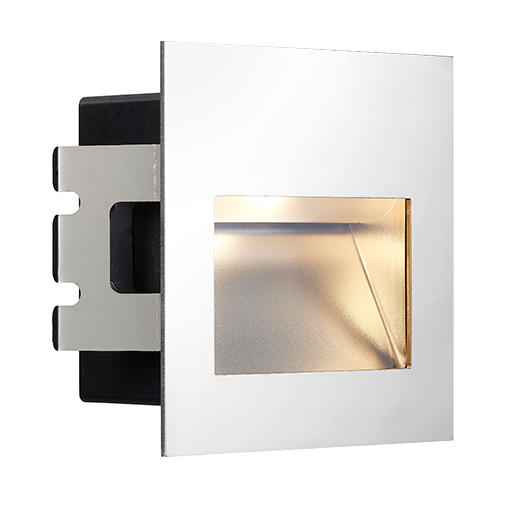

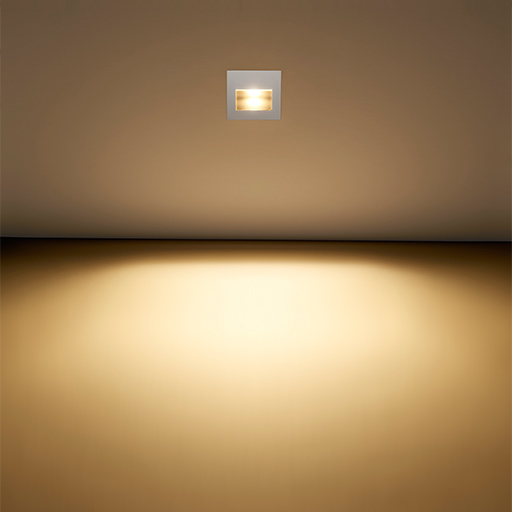

The LD175 features the new E1 LED engine; brighter and more efficient than the previous generation LED. LD175 is designed for lighting installations where a very high output is required over what the LD59 is capable of producing. LD175 builds upon the LD59, with its remarkable uniform floor washing capabilities, together with its broad diffused beam shape and 410 lumen output, it is ideal for larger external projects.



LD175 features a high quality machined anodised body and is IP67 rated making it suitable for both internal and external lighting installations. This shallow recess depth wall light has the LED and diffuser assembly recessed deep within the fitting ensuring low glare. Photometric data is available in the design pack.

Applications

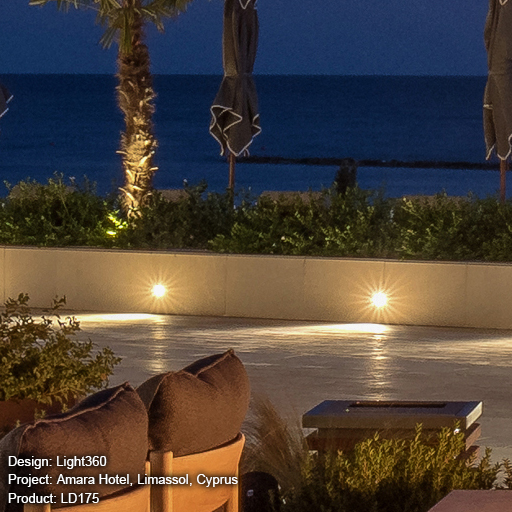

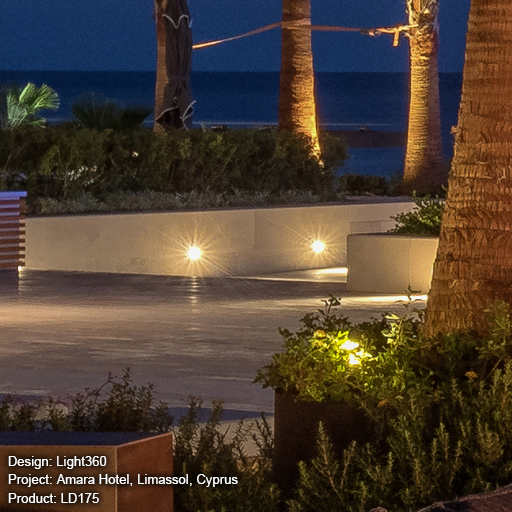

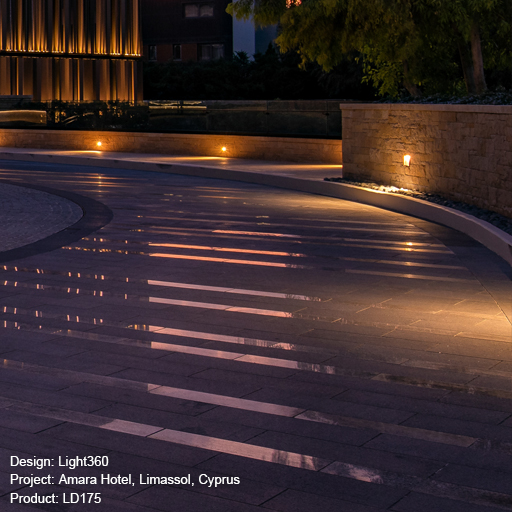

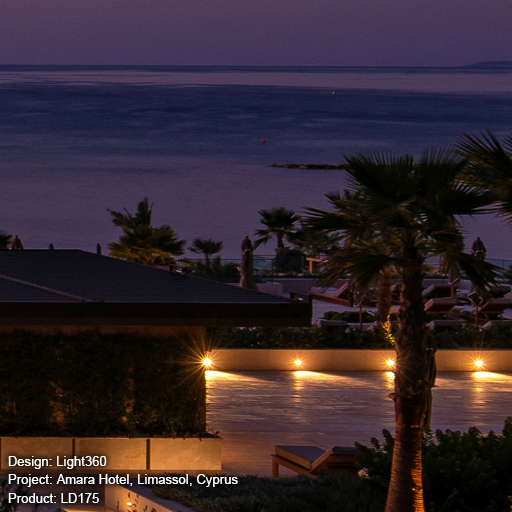

Colour Change, External, Floor Wash, Steps, Yacht Lighting, Tunable White

Fixing

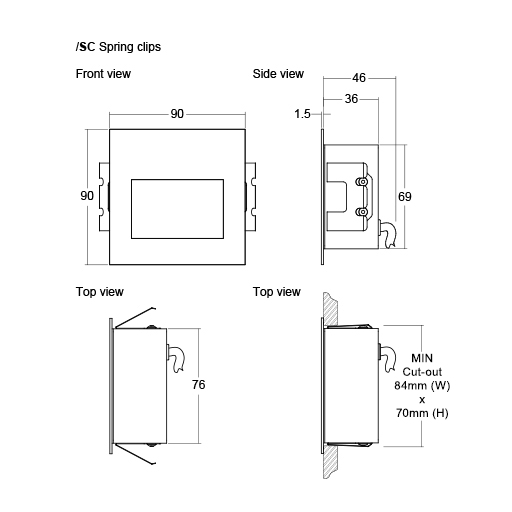

Supplied as standard with spring clips

Lamp Information

E1 LED Engine - Up to 7W @ 500mA (White)

TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)

RGBW LED Engine - Up to 7W @ 500mA (4 x 1.7W)

CLR LED Engine - Up to 7W @ 500mA

IP Rating

IP67

Accessories

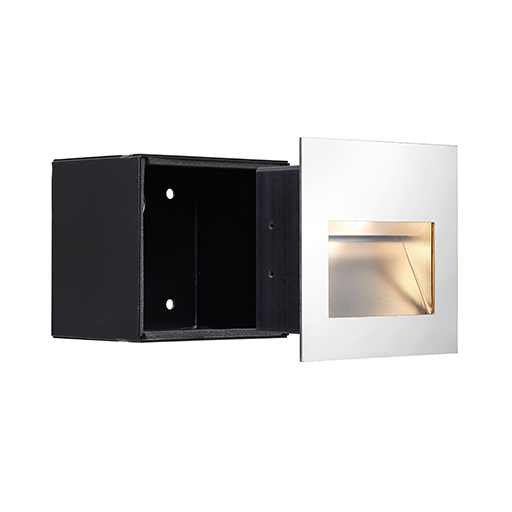

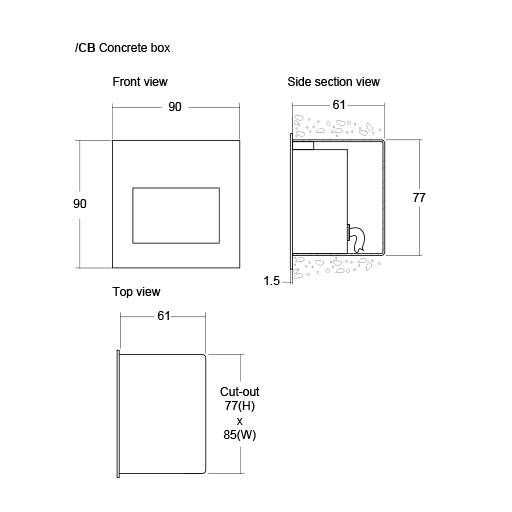

/CB - Concrete-in back box

Downloads

LD175
LD175 Datasheet
LD175
Design Pack
LD175
Photometric LDT
Files
LD175
Drivers

Similar Products

LD59
