LD59

Description

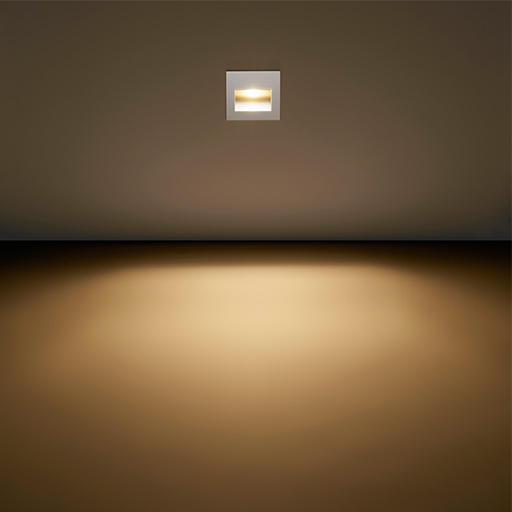

LD59 replaces the LD10234, it offers the same low glare, broad illumination and is rated IP67 for both internal and external projects. The square recessed wall light uses a single LED for a soft edge beam with no multiple shadows. It comes as standard with a polished 1.5mm stainless steel bezel with no visible fixings, creating an attractive fitting for indoor or outdoor use. The specular reflector gives a diffused wash of light onto a path or floor with minimal glare.

Applications

Floor Wash, Steps, Yacht Lighting

Fixing

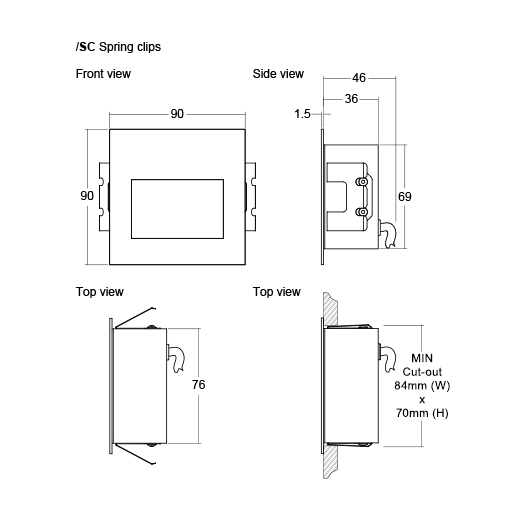

Supplied as standard with spring clips

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA, 1.7W @ 500mA and 2.4 @ 700mA

IP Rating

IP67

Accessories

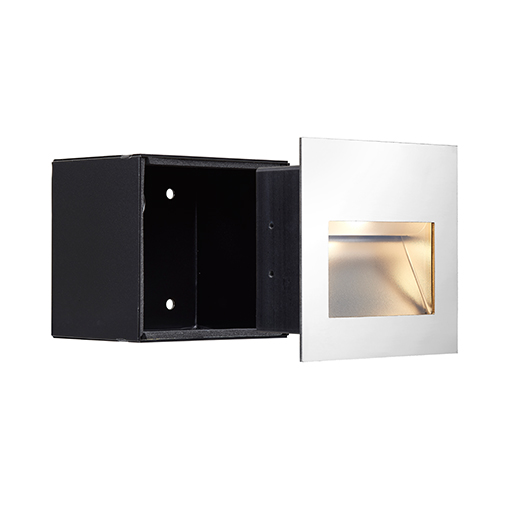

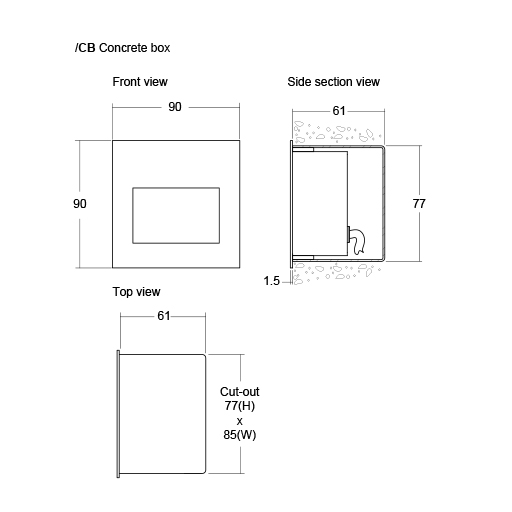

/CB - Concrete-in back box

Downloads

LD59
Datasheet
LD59
Design Pack
LD59
Photometric LDT
Files
LD59
Drivers
