LD30

Description

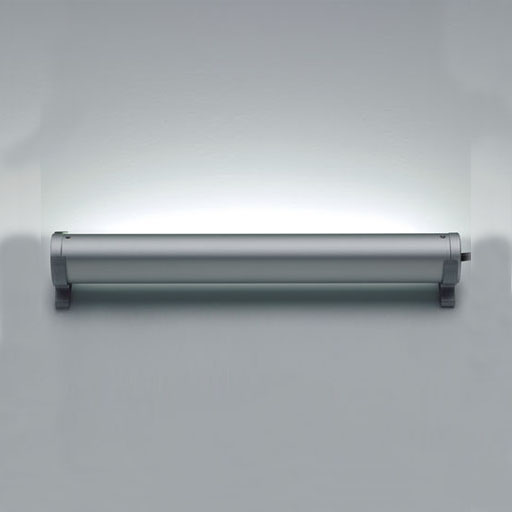

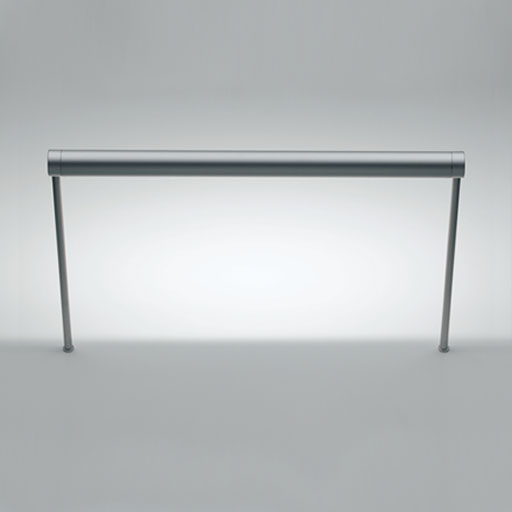

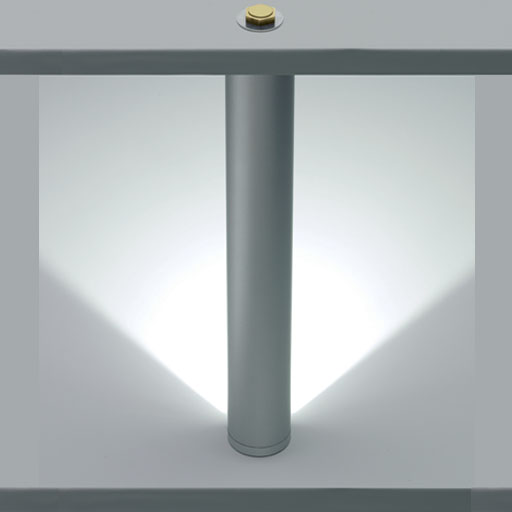

The new LD30 has been updated with the latest LED technology. The ultra slim profile is the ideal lighting solution for display cases. The unique linear reflector system where the LEDs are mounted within it, creates a very even and focused beam with no spotting from lenses or loss of output from just using the LED itself. For its size this system packs a huge punch! LD30 offers great flexibility to the designer, with a range of options that suit most applications, details and project budgets. With all our linear products they are custom made, so we manufacture to the size required on site up to a maximum single length of 2 metres. Photometric data is available in the design pack.

Applications

Colour Change, Display and Shelf, Linear, Surface Mounted, Wall Wash

Fixing

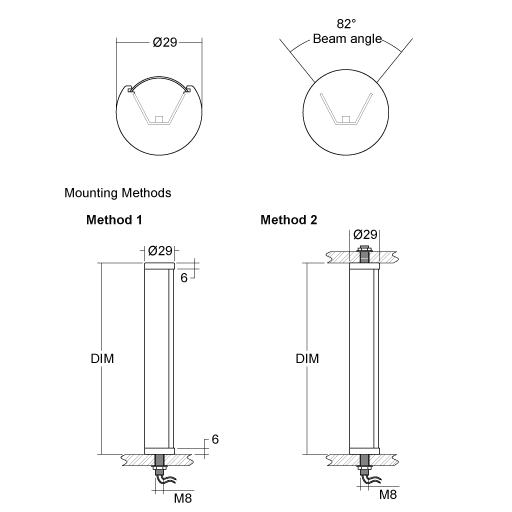

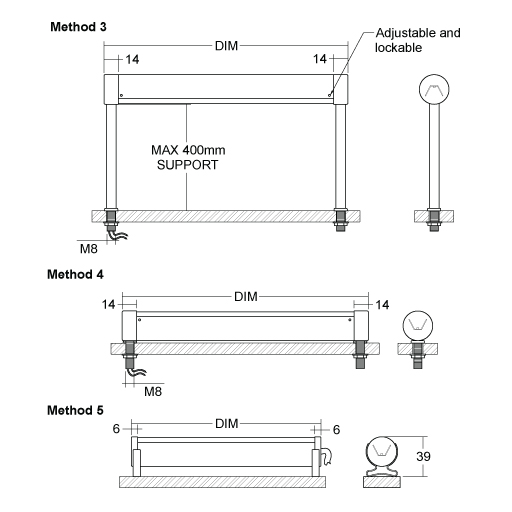

5 different mounting options are available

Lamp Information

CREE XPG: 2 output options - 1.2W LEDs @ 350mA (LD30-350) or 1.7W LEDs @ 500mA (LD30-500)

Materials

Anodised aluminium extrusion, PMMA acrylic lid, anodised aluminium end caps

IP Rating

IP40

Downloads

LD30
Datasheet
LD30
Design Pack
LD30
Photometric LDT
Files
LD30
Drivers
