LD30HR-24V

Description

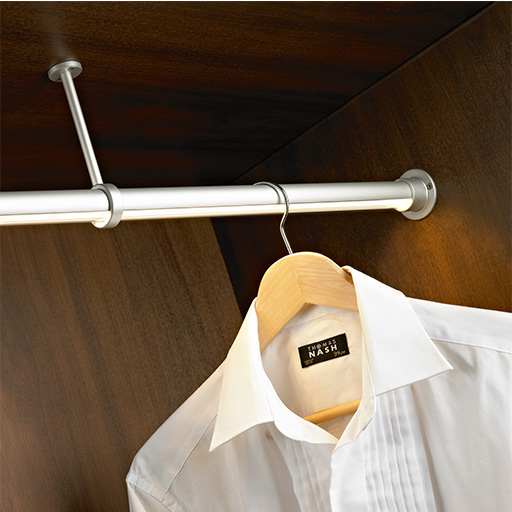

The ultra slim profile of the updated LD30HR creates a very neat way of illuminating clothes in a wardrobe. LD30HR-24V incorporates a 24V LED tape with very close pitch LEDs and an opal diffuser. This creates a very consistent, diffused wash of light onto the clothes below, with no spotting of LEDs. Due to the 24V conversion the LED hanging rail no longer requires multiple drivers, ensuring that savings are achieved on both costs and installation time. Manufactured from high quality, hard wearing extruded and machined aluminium parts these fittings are ideal for high usage environments such as hotels and cloakrooms. The system is custom made to the exact dimensions on site ensuring no gaps in the light output.

Applications

Display and Shelf, Linear, Surface Mounted

Fixing

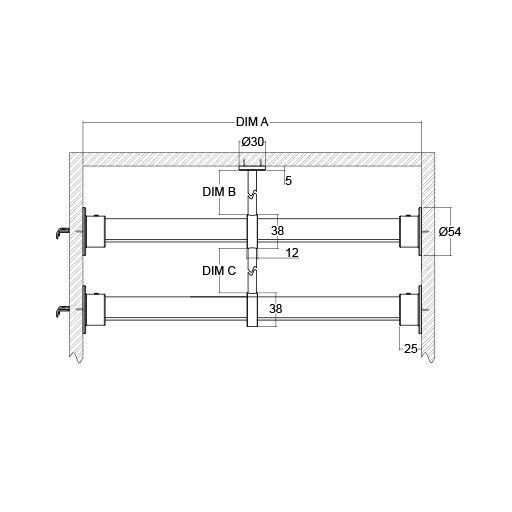

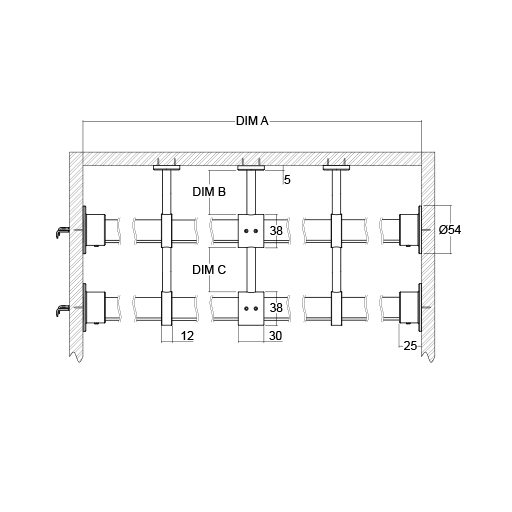

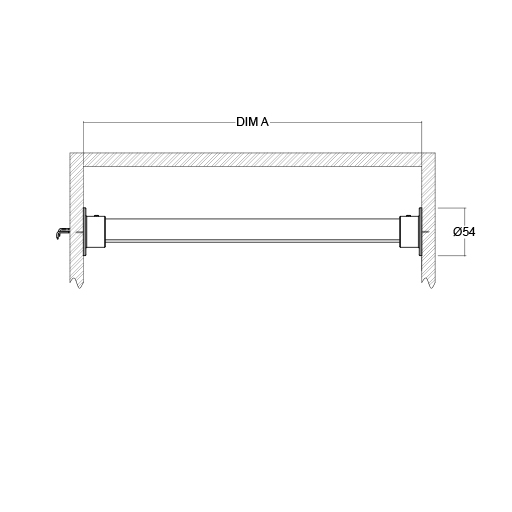

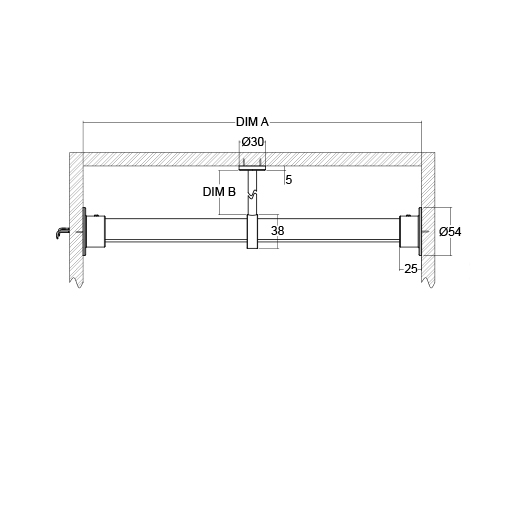

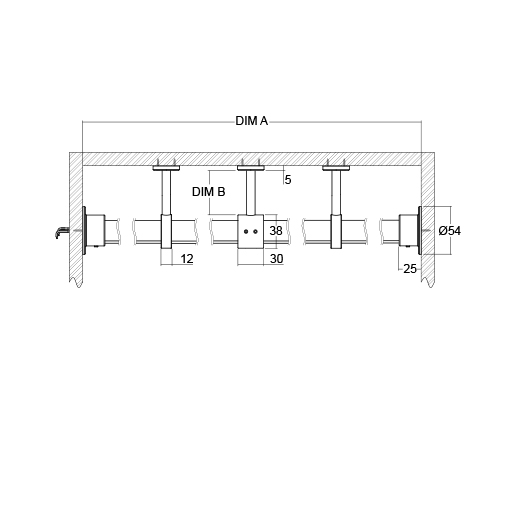

Two machined brackets fixed to the sides of the wardrobe, a /CS central bracket for lengths over 1.2m or /CP coupler for distances over 3m

Lamp Information

Short pitch LED

Materials

Anodised aluminium extrusion, Polycarbonate lid

IP Rating

IP40

Downloads

LD30HR-24V
Datasheet
LD30HR-24V
Design Pack
LD30HR-24V
Drivers
