LD36

Description

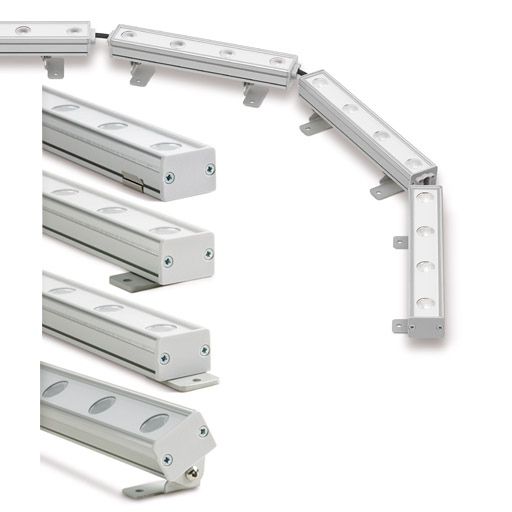

The successor to our very popular LD35, the new LD36 surface washer offers more output, improved optics and higher efficiencies. It features the latest in LED technology and uses collimating lenses to focus the light, packaged in a new, more compact profile. Designed to create a continuous wash, the LED spacing is maintained across multiple lengths, so no dark spots! New high efficiency optics specially designed for LightGraphix guarantee excellent beam spread and shape. LD36 offers great flexibility to the designer, with a range of options that suit most applications, details and project budgets. Lengths are custom made to suit, to a maximum of 2.1 metres. Photometric data is available in the design pack.

Applications

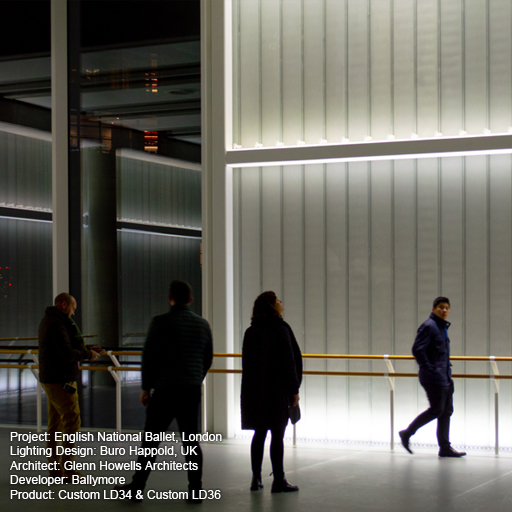

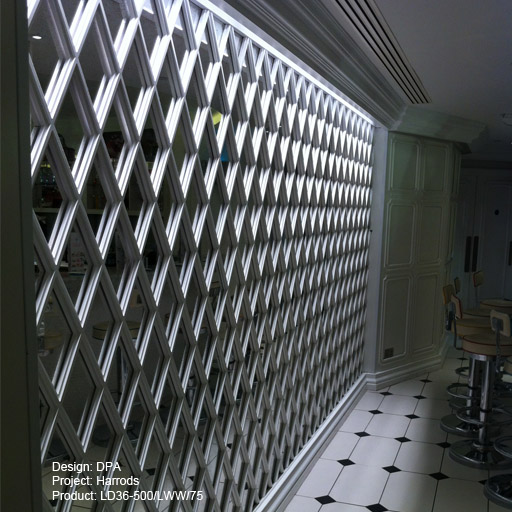

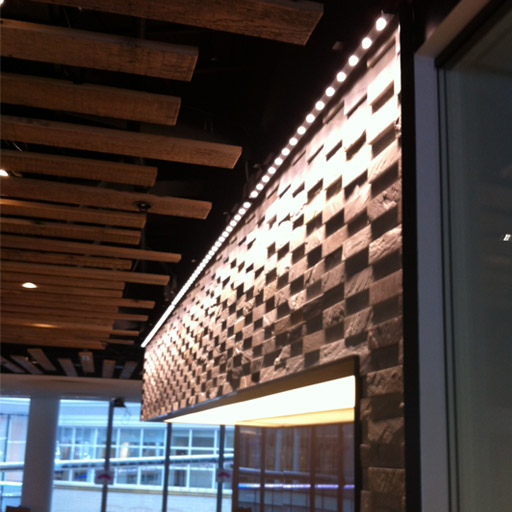

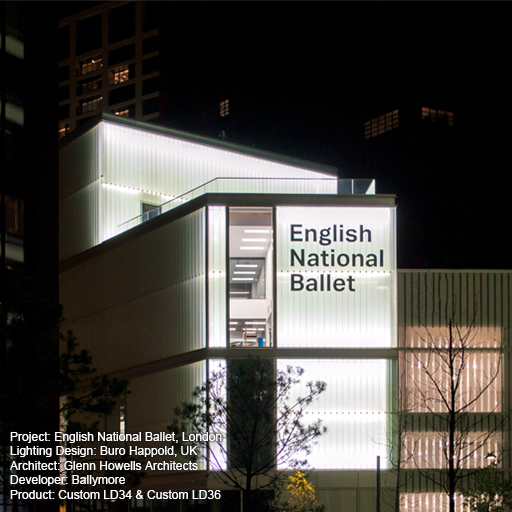

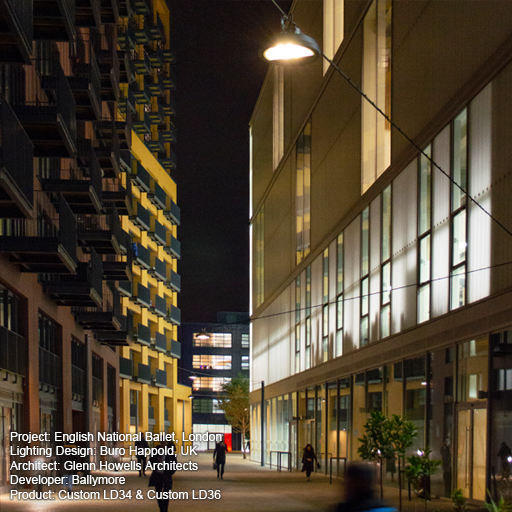

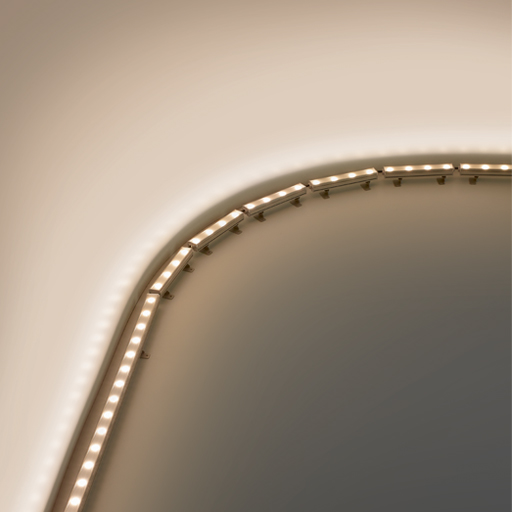

Cove Lighting, Display and Shelf, Linear, Surface Mounted, Wall Wash

Fixing

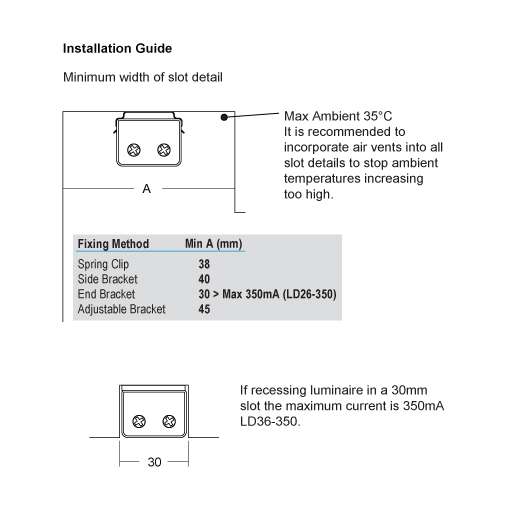

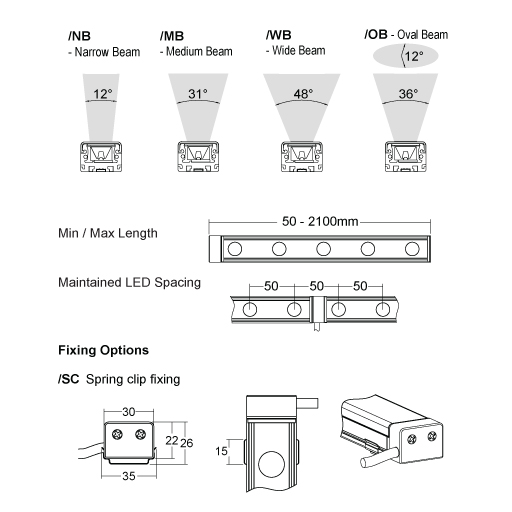

4 fixing methods are available, including a low profile adjustable bracket

Lamp Information

CREE XPG: 2 output options - 1.2W LEDs @ 350mA (LD36-350) or 1.7W LEDs @ 500mA (LD36-500)

Materials

Anodised aluminium extrusion, PMMA acrylic lid, ABS End caps

IP Rating

IP40 as standard (IP54 option)

Accessories

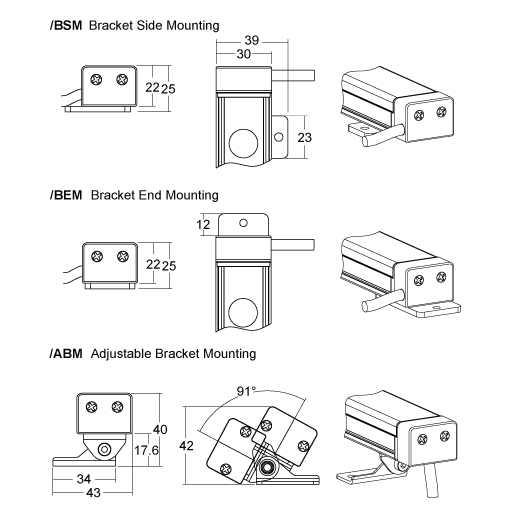

Spring Clip Fixing, Bracket Side/End Mounting, Adjustable Bracket Mounting

Downloads

LD36
Datasheet
LD36
Design Pack
LD36
Photometric LDT
Files
LD36
Drivers
