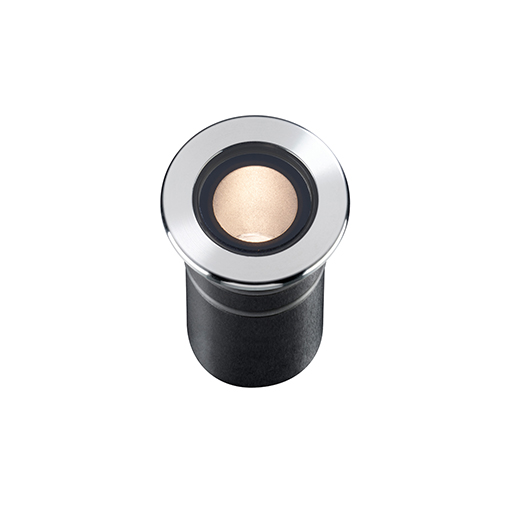

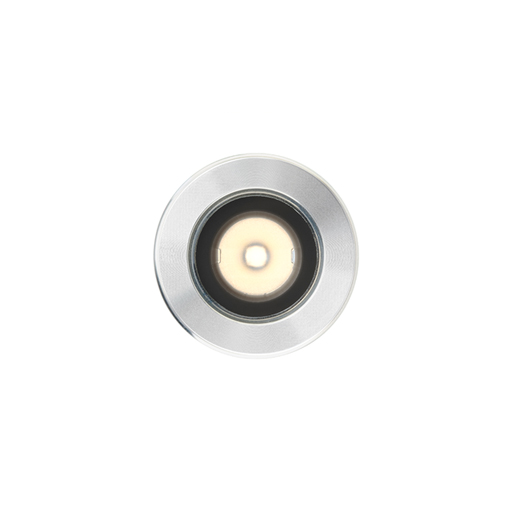

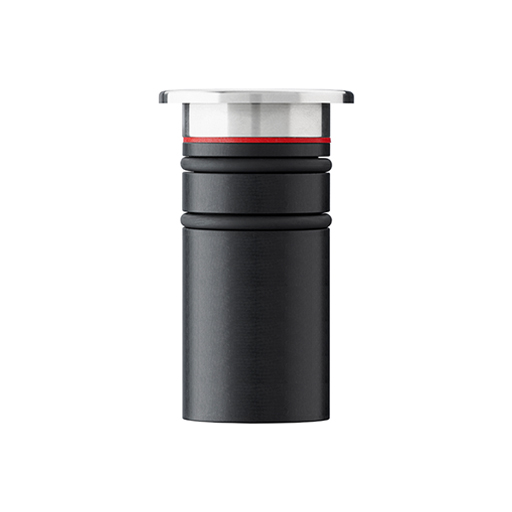

LD43DR

Description

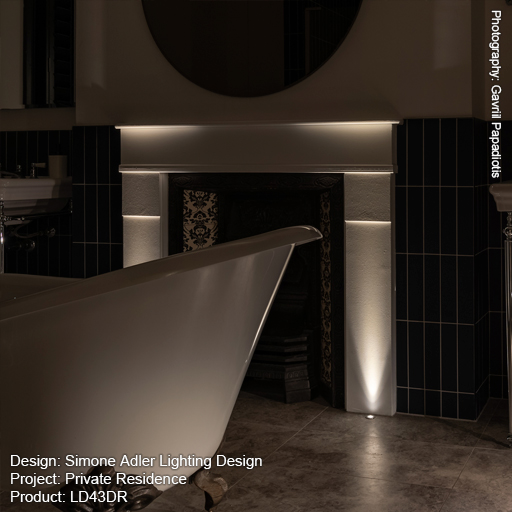

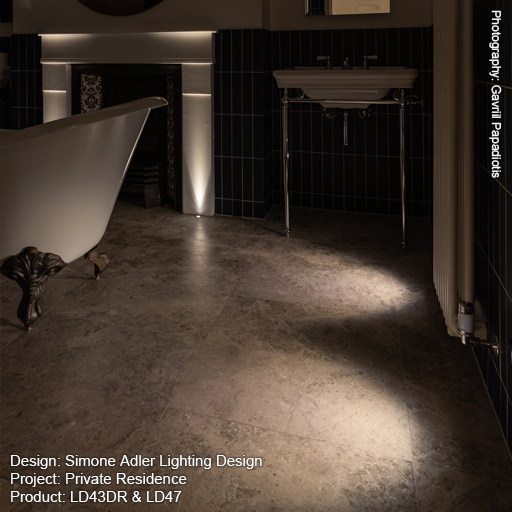

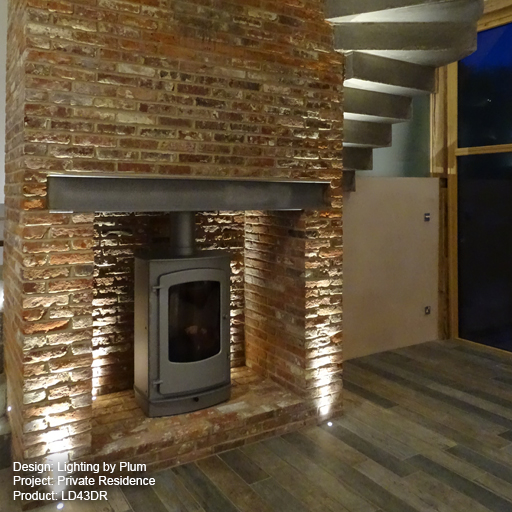

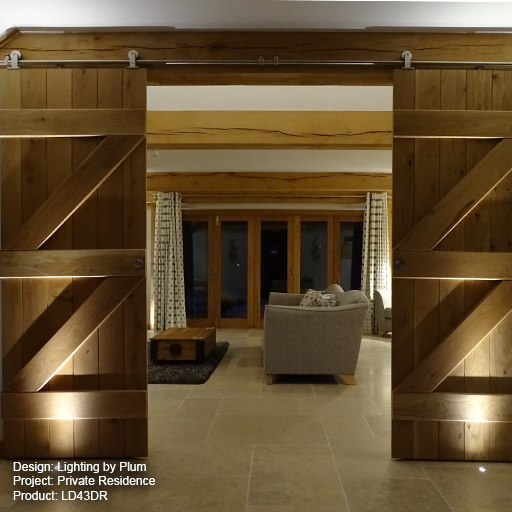

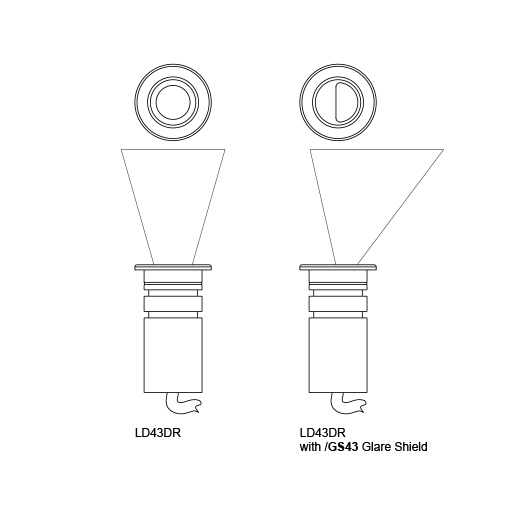

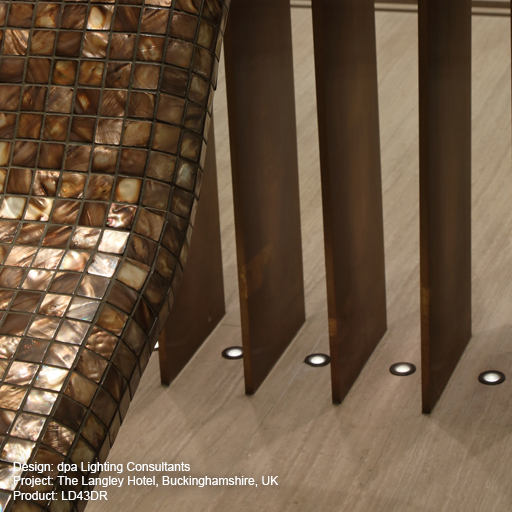

The LD43DR has a very deep recessed LED position with a small aperture, resulting in an uplight with little or no glare. The trade off is a beam which is quite hard on the edges, but makes it ideal for doorways and narrow corridors. It can only be specified with a narrow 12deg beam angle because of the small aperture. Our integral anti wicking barrier is integrated into the product to stop water ingress. An optional glare shield is available which further reduces glare. The bezel is the diameter as the LD42 and LD43 which enables the same look throughout a project.

Applications

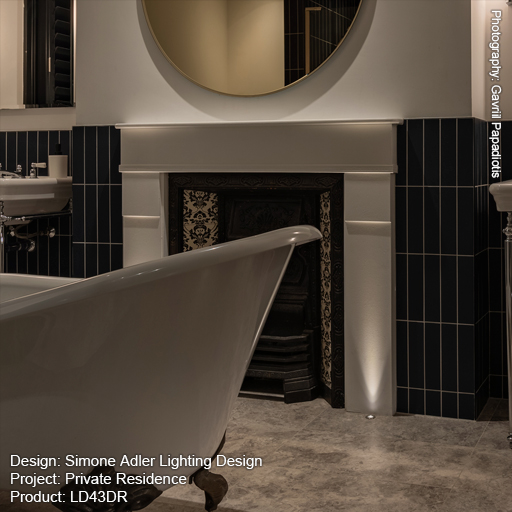

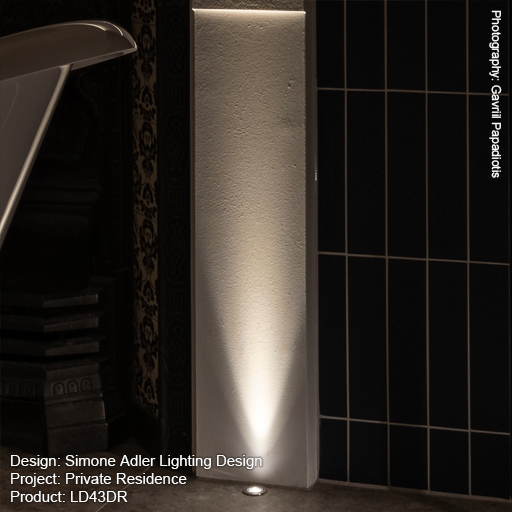

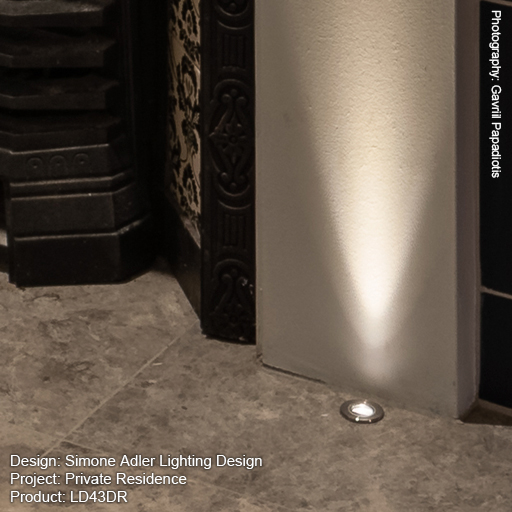

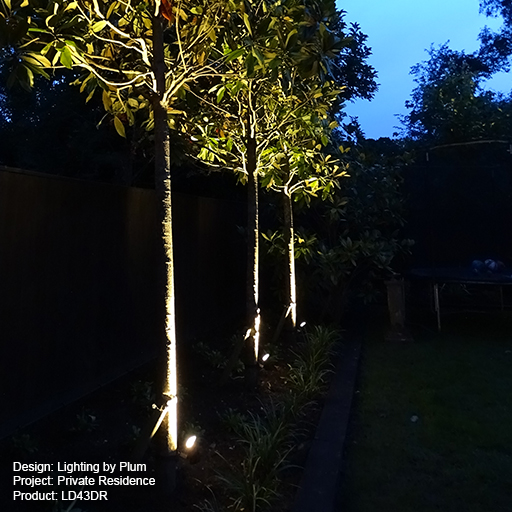

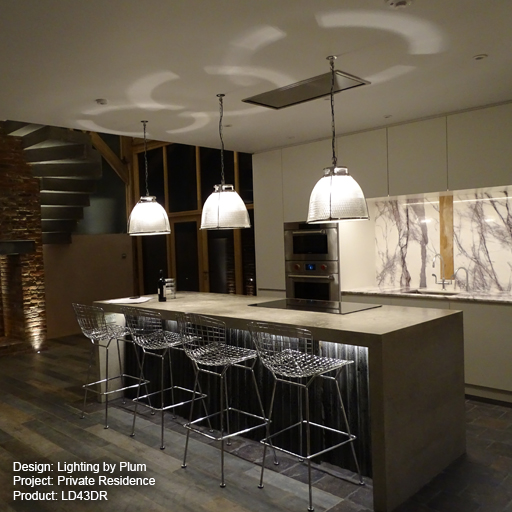

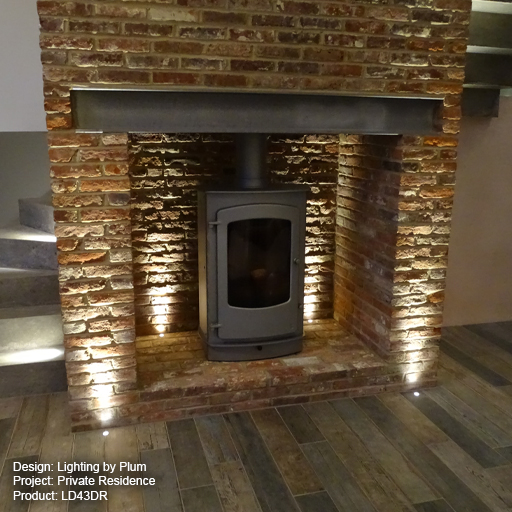

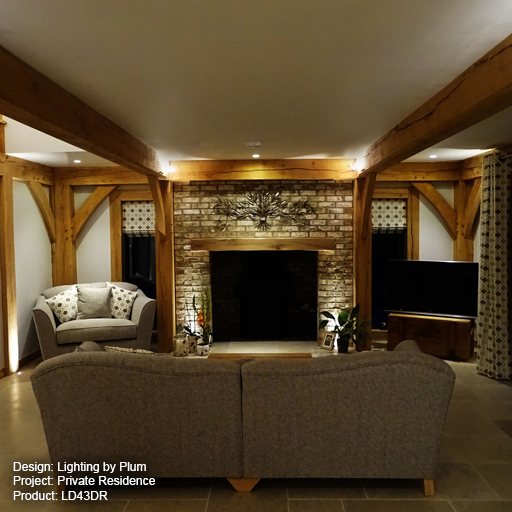

External, Recessed Uplighting, Wall Wash, Yacht Lighting

Fixing

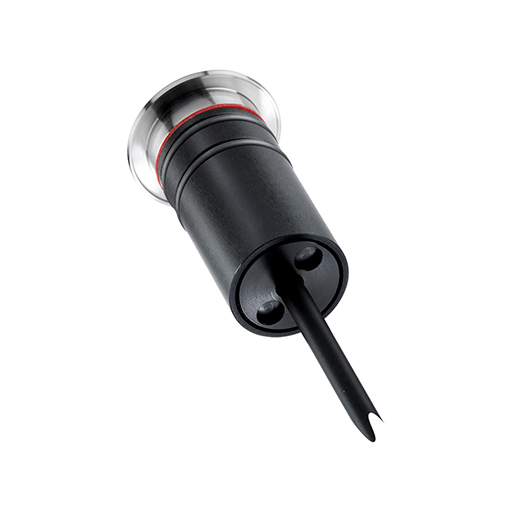

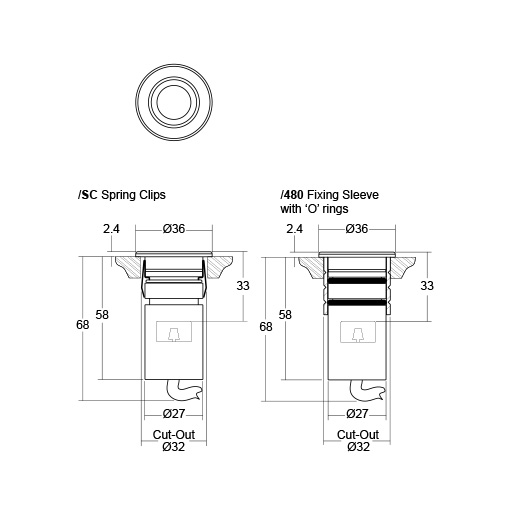

Two options are available for fixing - spring clips or 'O' rings with the /480 fixing sleeve

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD43DR-350), 1.7W @ 500mA (LD43DR-500) and 2.4W @ 700mA (LD43DR-700)

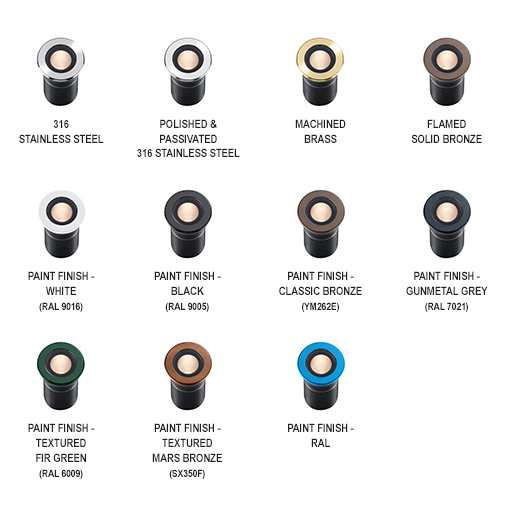

Materials

Stainless steel 316 and hard anodised aluminium

IP Rating

IP68

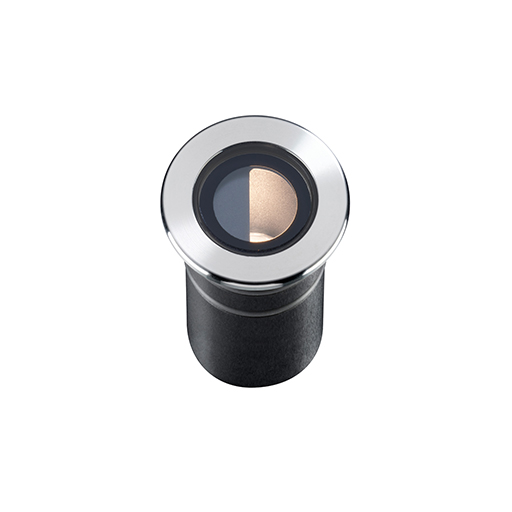

Accessories

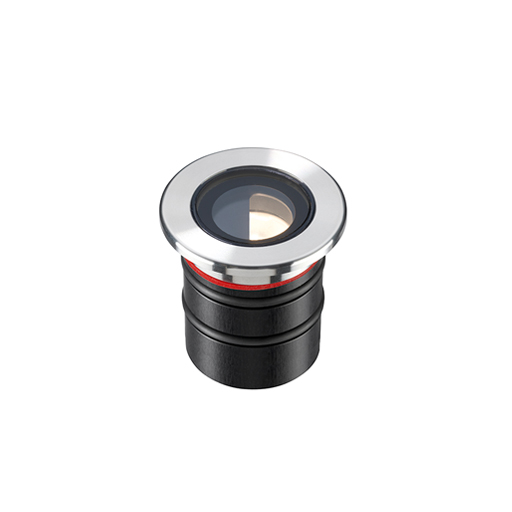

/480 sleeve and 'O' rings or /GS glare shield

Downloads

LD43DR
Datasheet
LD43DR
Design Pack
LD43DR
Drivers

Similar Products

LD43

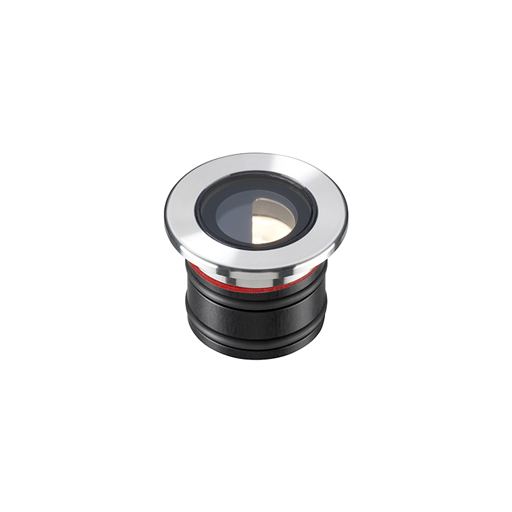

LD43W / LD43A
