LD71

Description

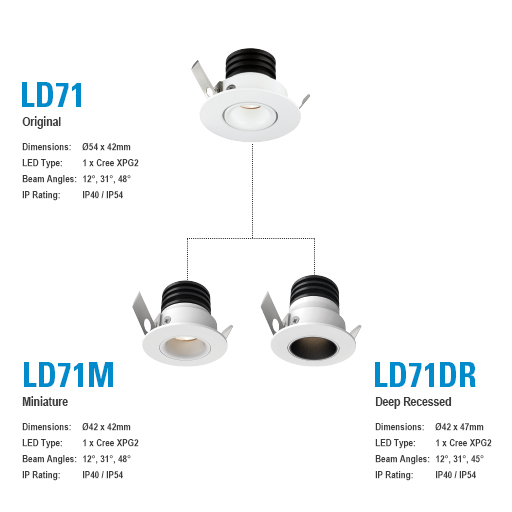

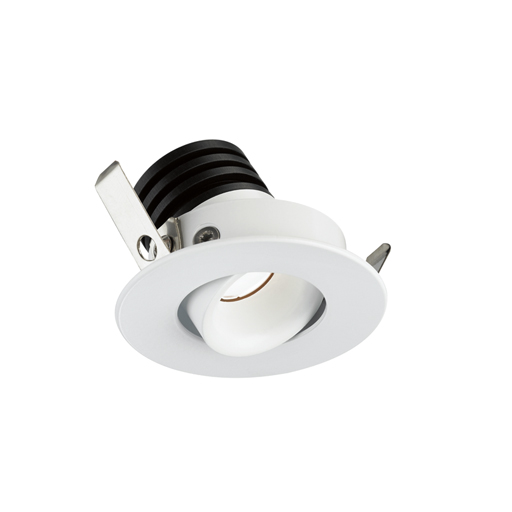

LD71 is a miniature adjustable LED downlight ideal for display, niches or general downlighting effects. It is very discreet with the LED set back by 10mm to reduce the glare, with a maximum tilt of 25°. It utilizes the latest LED technology with a typical CRI of 93 in warm white. New high efficiency optics specially designed for LightGraphix guarantee excellent beam spread and shape, with 3 different beam angles available. Fixing is by 2 spring fixing clips. LD71 can be driven up to a current of 700mA (2.4W) at an ambient temperature of 35°C. If using in an ambient of up to 45°C or very small voids then specify at 500mA max, LD71-500. Photometric data is available in the design pack.

Applications

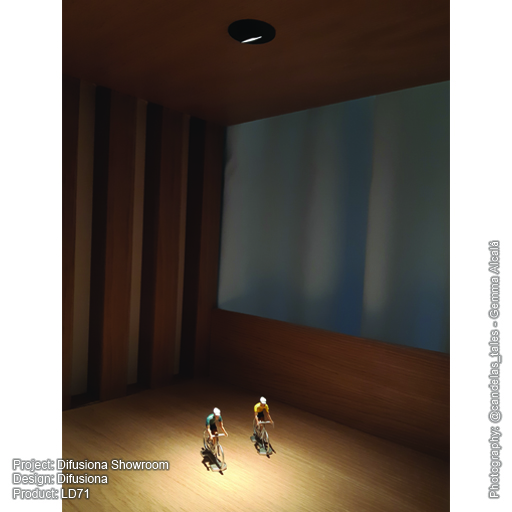

Display and Shelf, Downlights, Picture Lighting, Wall Wash

Fixing

2 spring clips

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD71-350), 1.7W @ 500mA (LD71-500) and 2.4W @ 700mA (LD71-700)

Materials

Anodised aluminium

IP Rating

IP40 (IP54 option for bathrooms and spa areas)

Downloads

LD71
Datasheet
LD71
Design Pack
LD71
Photometric LDT
Files
LD71
Drivers
