LD71DR

Description

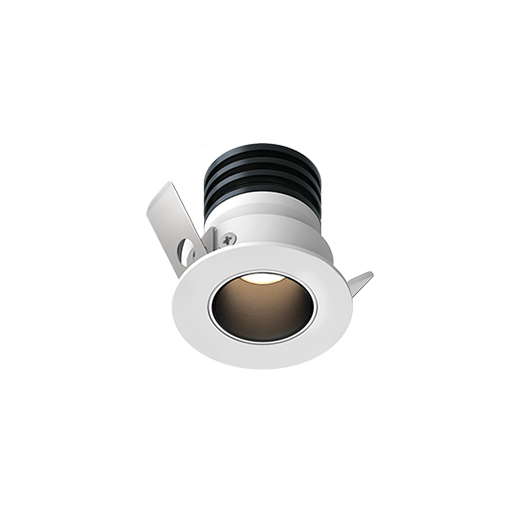

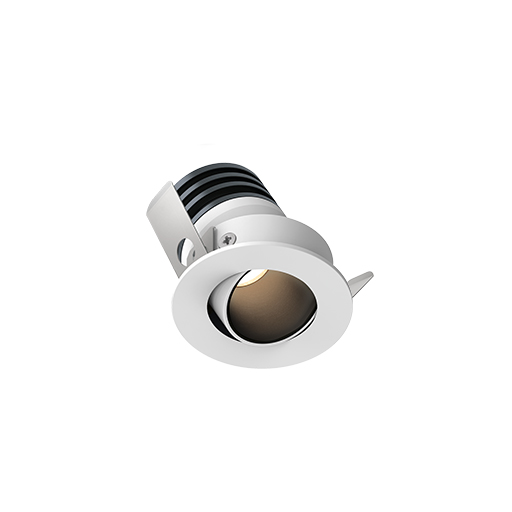

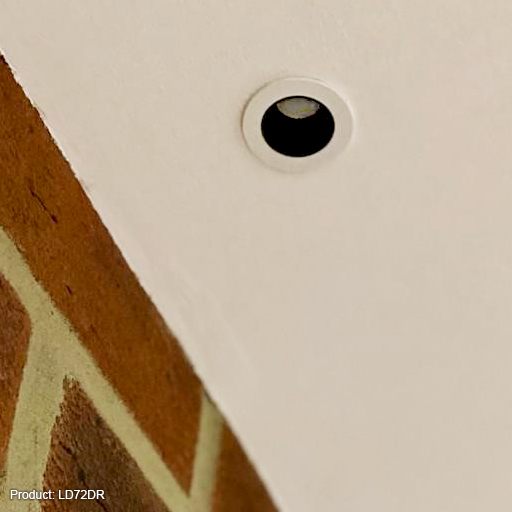

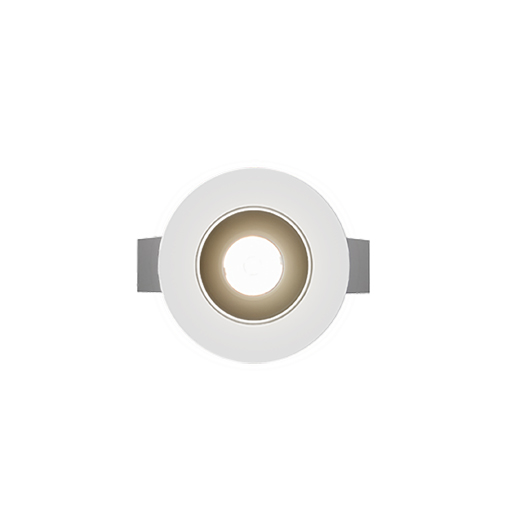

LD71DR is a miniature, adjustable deep recessed LED downlight with matt black baffle for low glare applications. With an adjustment of 25°, the LD71DR is ideal for displays niches or general downlighting effects. The LD71DR is very discreet with the LED set back by 15mm to further reduce the glare & a painted bezel which can be matched to the mounting surface. Utilizing the latest LED technology, the LD71DR achieves a typical CRI of 93 in warm white. IP40 as standard, but can be specified IP54 for bathrooms or wet environments.

Applications

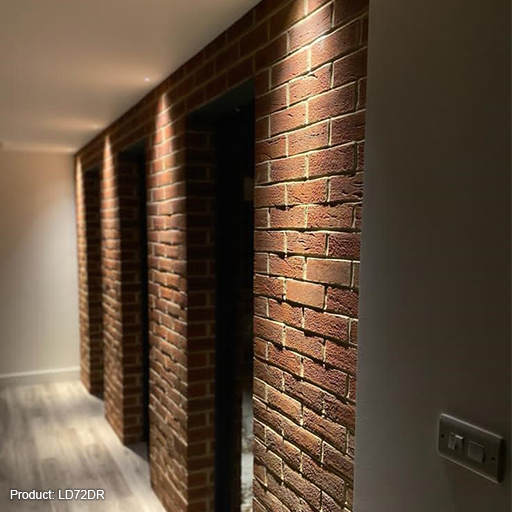

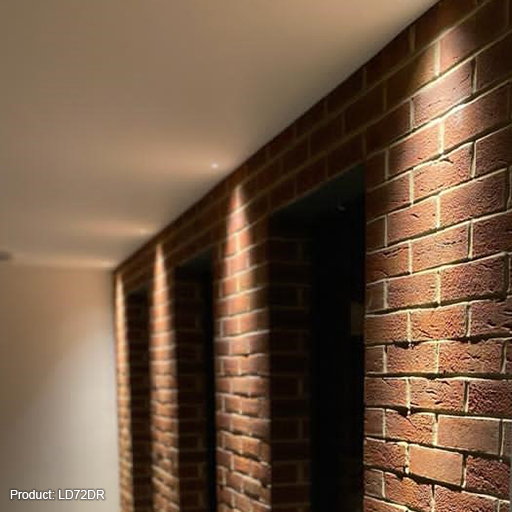

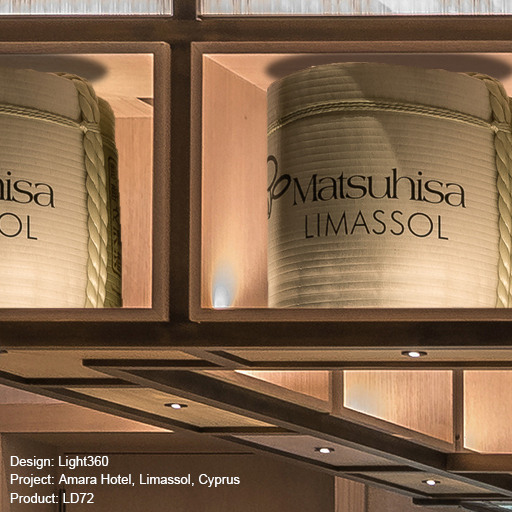

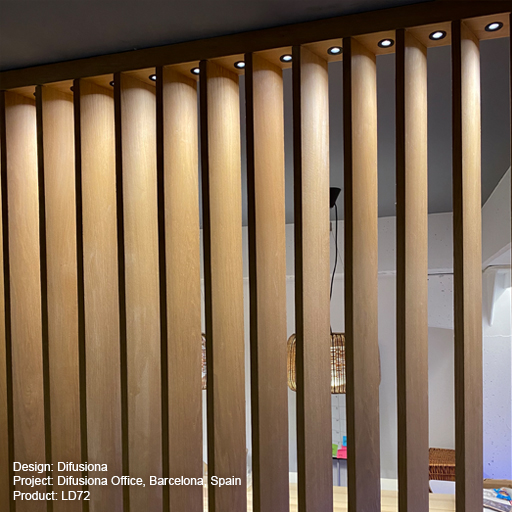

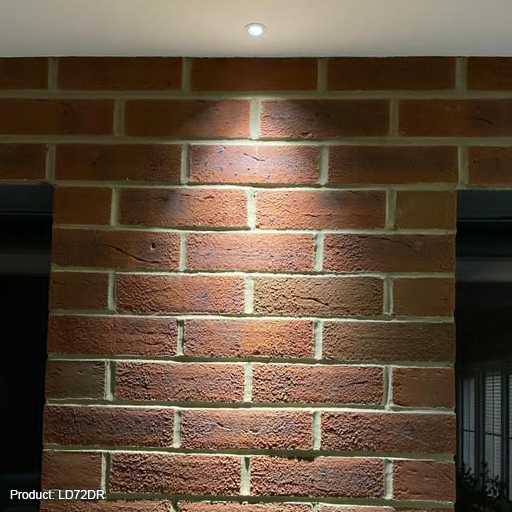

Display and Shelf, Downlights, Picture Lighting, Wall Wash

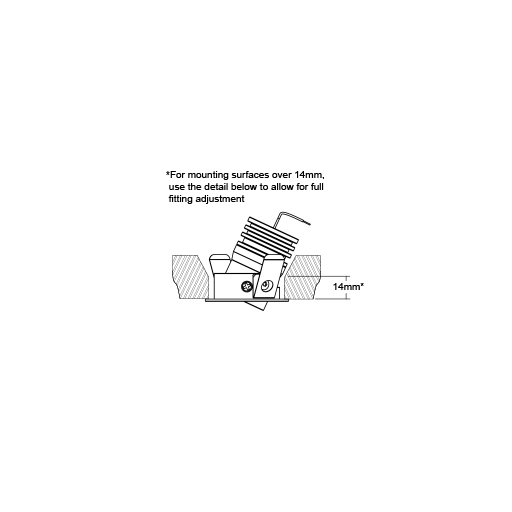

Fixing

2 Spring Clips

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD71DR-350), 1.7W @ 500mA (LD71DR-500) and 2.4W @ 700mA (LD71DR-700)

Materials

Anodised Aluminium

IP Rating

IP40 (IP54 option for bathrooms and spa areas)
