LD72M

Description

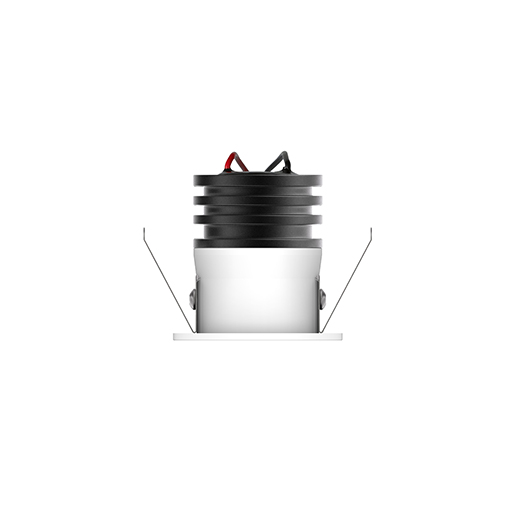

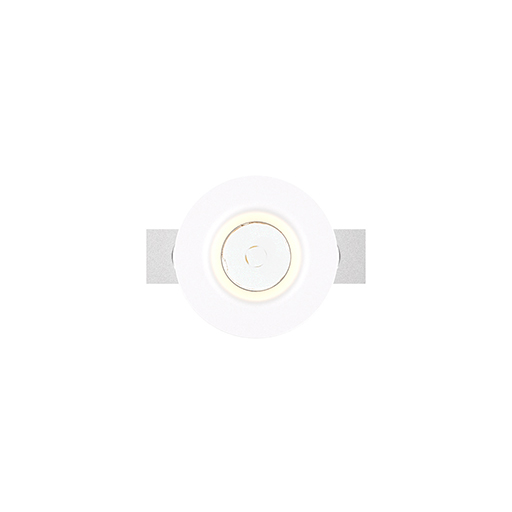

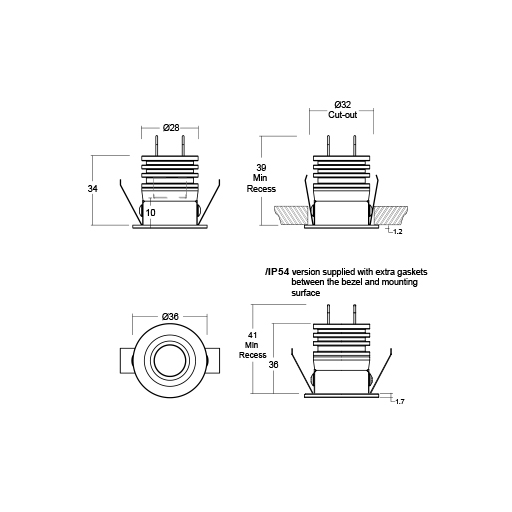

LD72M is a miniature, LED downlight, ideal for display, niches or general downlighting effects. It is very discreet with the LED set back by 10mm to reduce the glare, and a painted bezel which can be matched to the mounting surface. It utilizes the latest LED technology with a typical CRI of 93 in warm white. IP40 as standard, but can be specified IP54 for bathrooms or wet environments.

Applications

Bathroom and Mirror, Cove Lighting, Display and Shelf, Downlights, Picture Lighting, Wall Wash, Yacht Lighting

Fixing

2 Spring Clips

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD72M-350), 1.7W @ 500mA (LD72M-500) and 2.4W @ 700mA (LD72M-700)

Materials

Anodised Aluminium

IP Rating

IP40 (IP54 option for bathrooms and spa areas)

Downloads

LD72M
LD72M Datasheet
LD72M
Design Pack
LD72M
Photometric LDT
Files
LD72M
Drivers
