LD72

Description

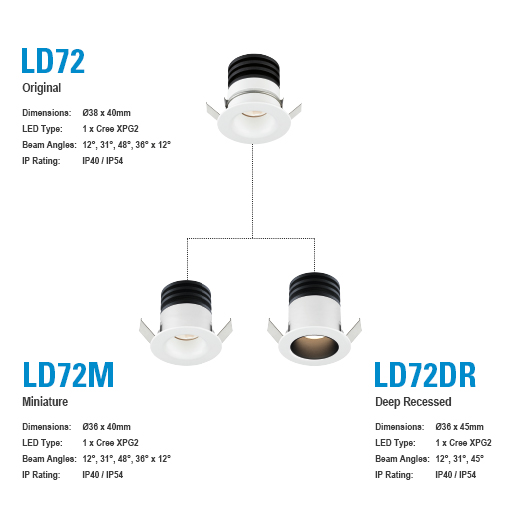

LD72 is a miniature LED downlight ideal for display, niches or general downlighting effects. It is very discreet with the LED set back by 10mm to reduce the glare, and a powdercoated bezel which can be matched to the mounting surface. It utilizes the latest LED technology with a typical CRI of 93 in warm white. New high efficiency optics specially designed for LightGraphix guarantee excellent beam spread and shape, with 4 different beam angles available. LD72 can be driven up to a current of 700mA (2.4W) at an ambient of 35°C. If using in ambient temperatures of up to 45°C or very small voids then specify at 500mA max, LD72-500. Photometric data is available in the design pack.

Applications

Bathroom and Mirror, Cove Lighting, Display and Shelf, Downlights, Picture Lighting, Wall Wash, Yacht Lighting

Fixing

Spring clips

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD72-350), 1.7W @ 500mA (LD72-500) and 2.4W @ 700mA (LD72-700)

Materials

Anodised aluminium

IP Rating

IP40 as standard (IP54 option available)

Downloads

LD72
Datasheet
LD72
Design Pack
LD72
Photometric LDT
Files
LD72
Drivers
