LD82

Description

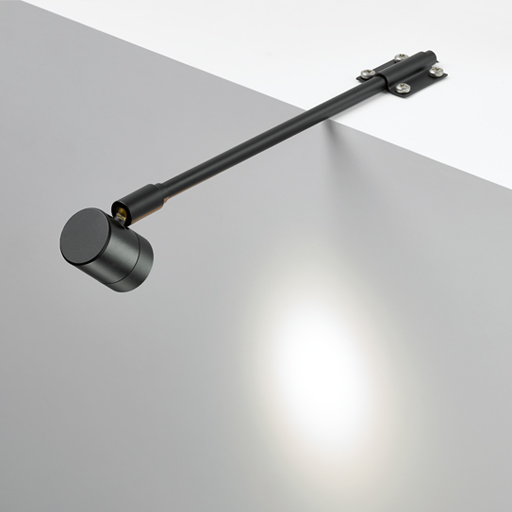

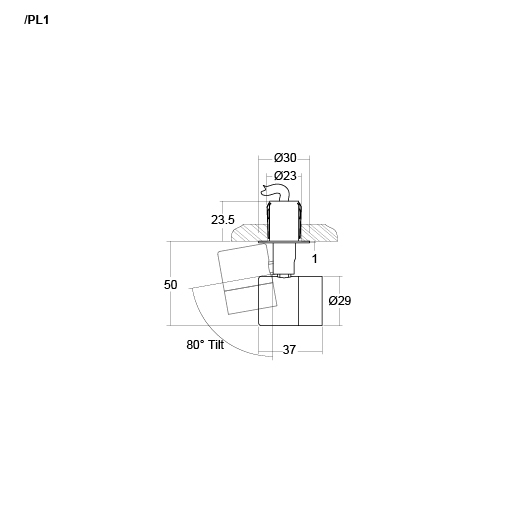

The LD82 is a high power, miniature LED spotlight with a drive current of up to 700mA (2.4W). It utilizes the latest LED technology with a typical CRI of 93 in warm white, making it ideal for showcase and display in retail environments where high CRI is required. The spotlight is mounted on a matching knuckle joint allowing easy adjustment and focusing. A stem is custom made to suit the dimensions required for the application. New high efficiency optics specially designed for LightGraphix guarantee excellent beam spread and shape, with 4 different beam angles available. Photometric data is available in the design pack.

Applications

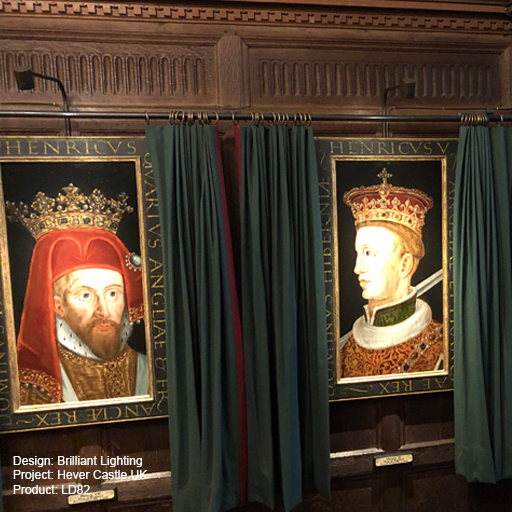

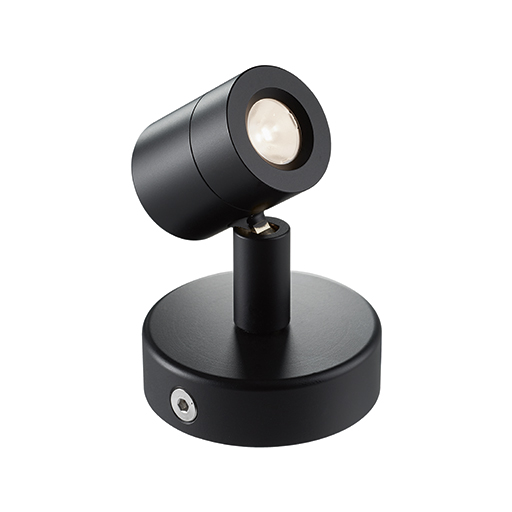

Display and Shelf, Surface Mounted

Fixing

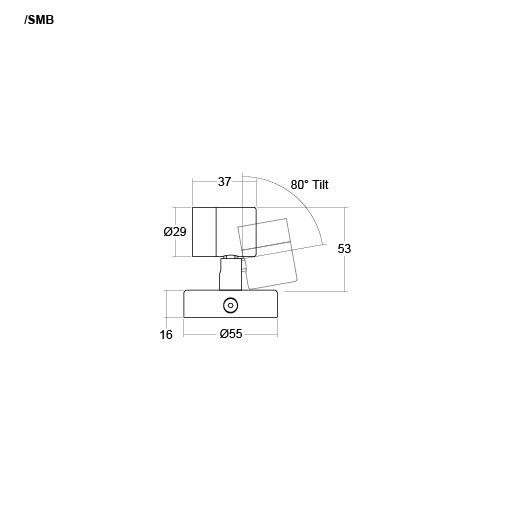

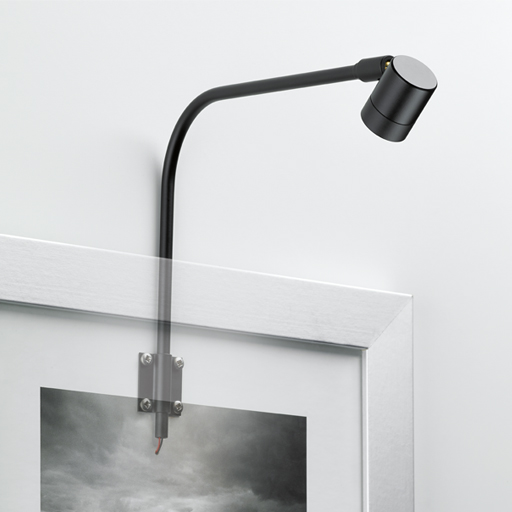

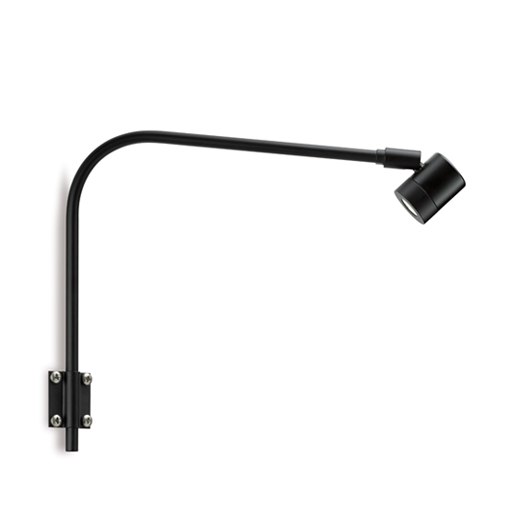

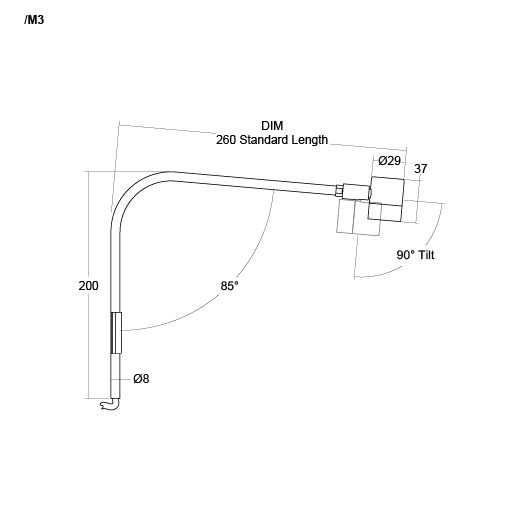

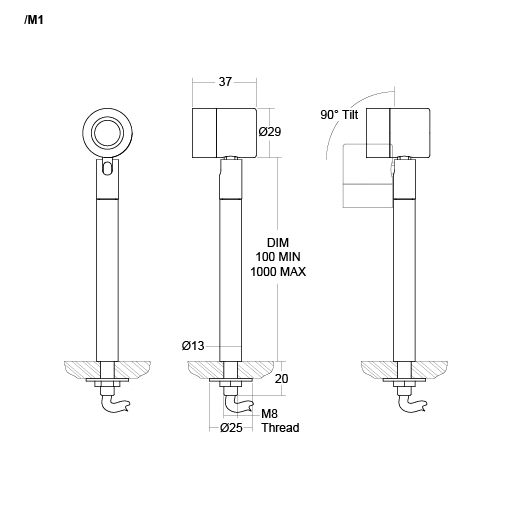

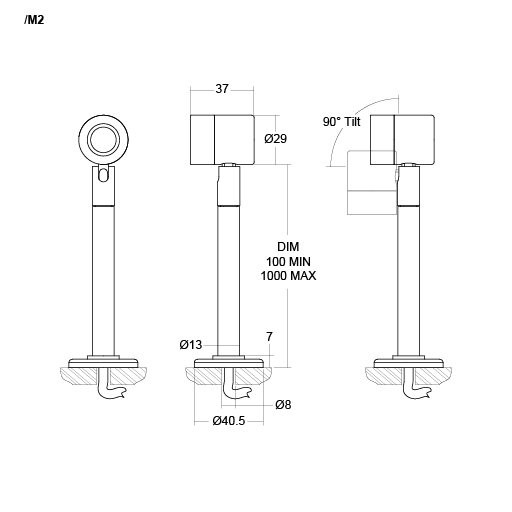

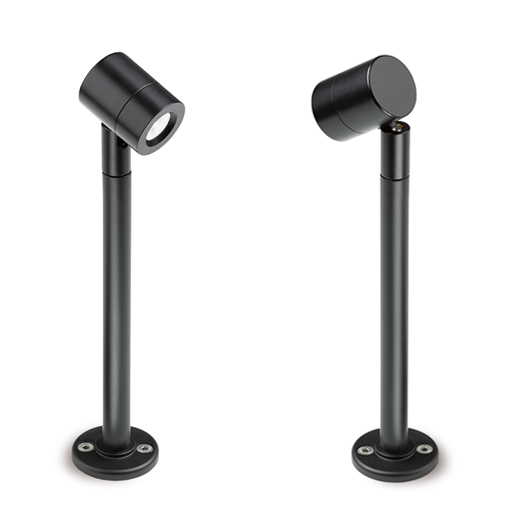

LD82 can be specified just with the knuckle joint or it can be used with the custom stem

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD82-350), 1.7W @ 500mA (LD82-500) and 2.4W @ 700mA (LD82-700)

Materials

Anodised aluminium

IP Rating

IP40

Downloads

LD82
Datasheet
LD82
Design Pack
LD82
Photometric LDT
Files
LD82
Drivers

Similar Products

LD81
