LD81

Description

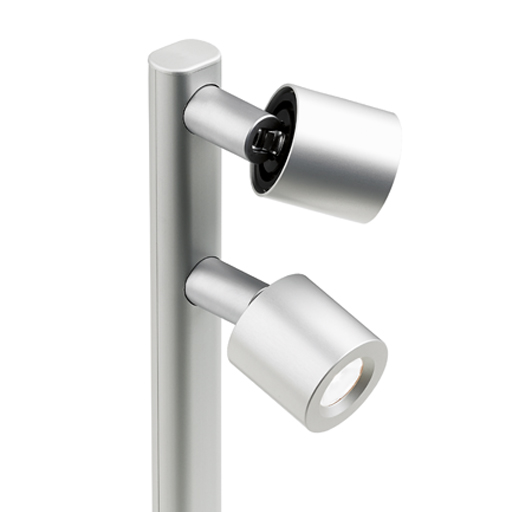

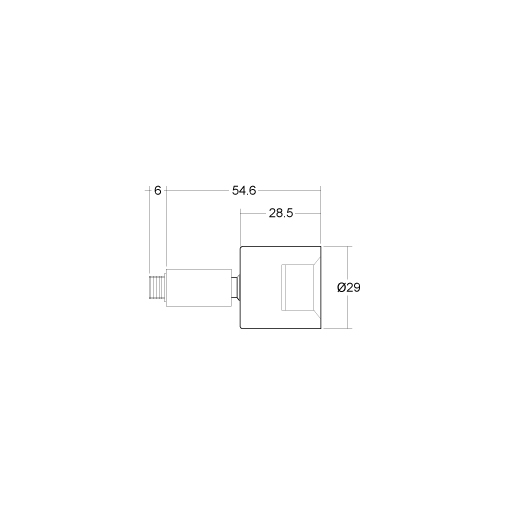

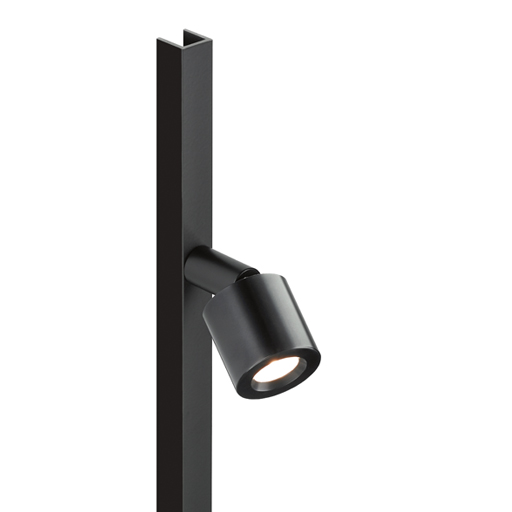

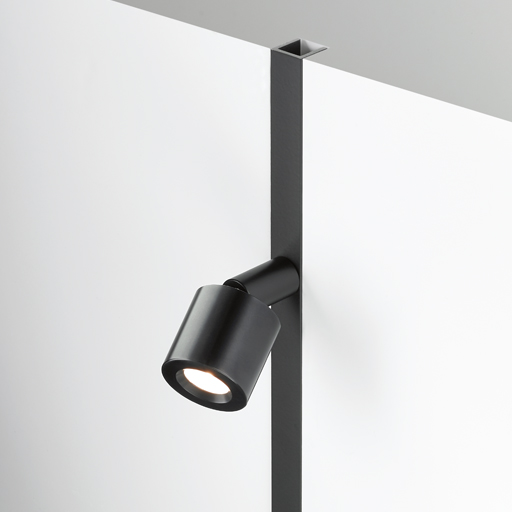

The new LD81 is a high power, miniature LED spotlight with a drive current of up to 700mA (2.4W). It utilizes the latest LED technology with a typical CRI of 93 in warm white, making it ideal for showcase and display. New high efficiency optics specially designed for LightGraphix guarantee excellent beam spread and shape, with 4 different beam angles available. We offer a wide range of mounting options to suit most applications. These are custom made to each projects requirement, allowing the designer to tailor the lighting layout for each display. The best method of specification for these spotlights and mounting systems is to send us a sketch of what is required. Photometric data is available in the design pack.

Applications

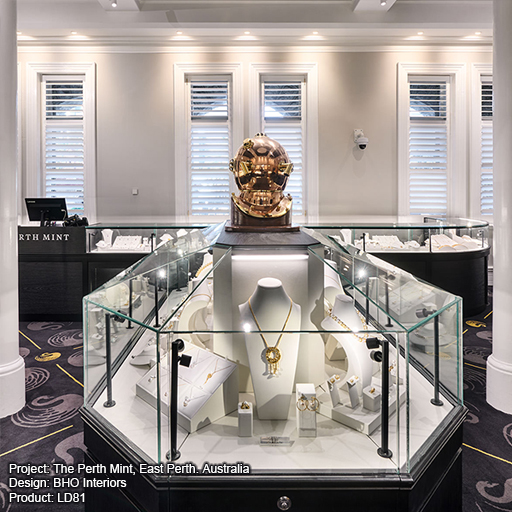

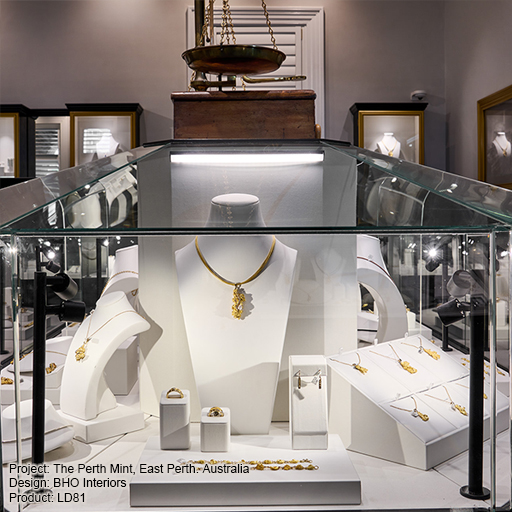

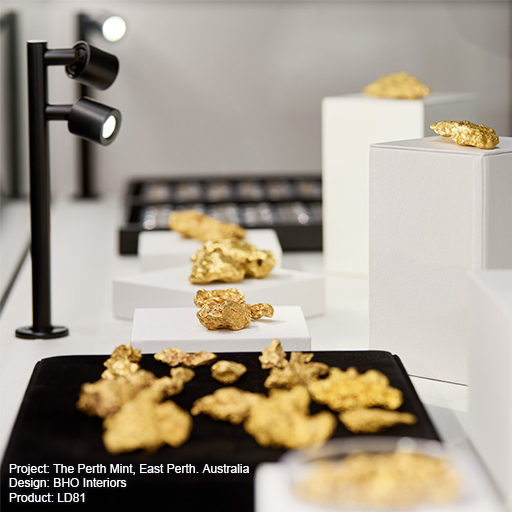

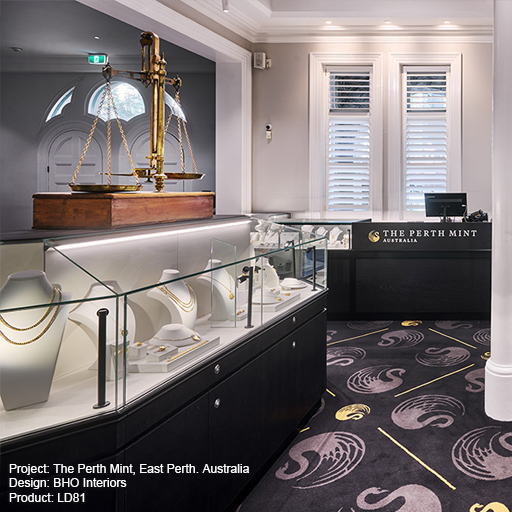

Display and Shelf, Picture Lighting, Surface Mounted

Fixing

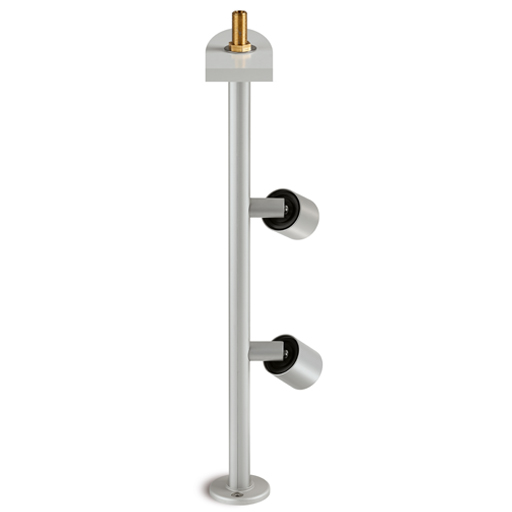

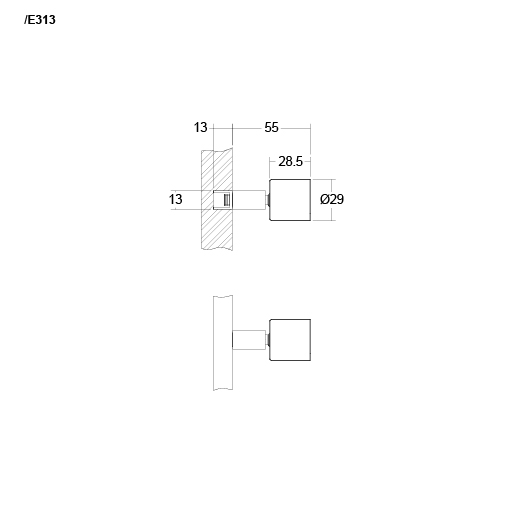

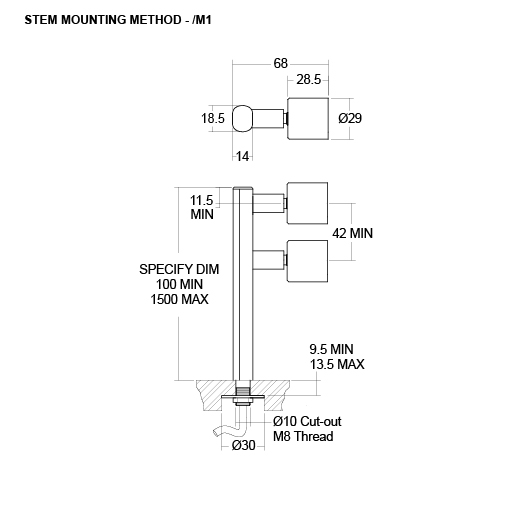

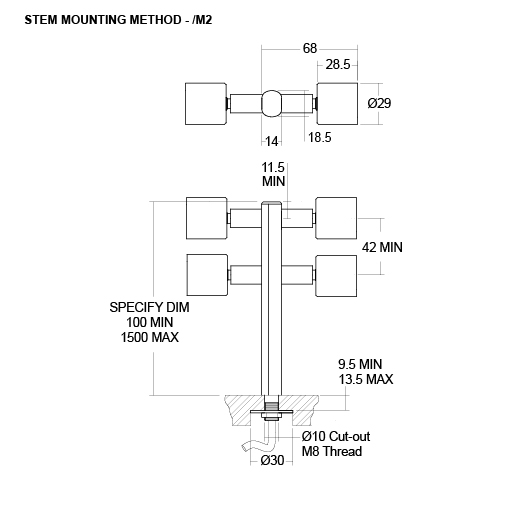

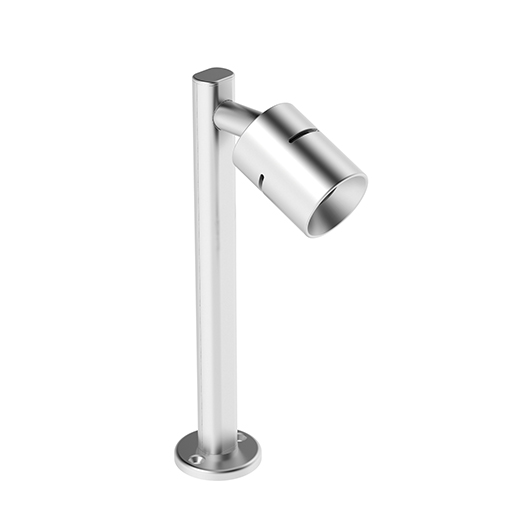

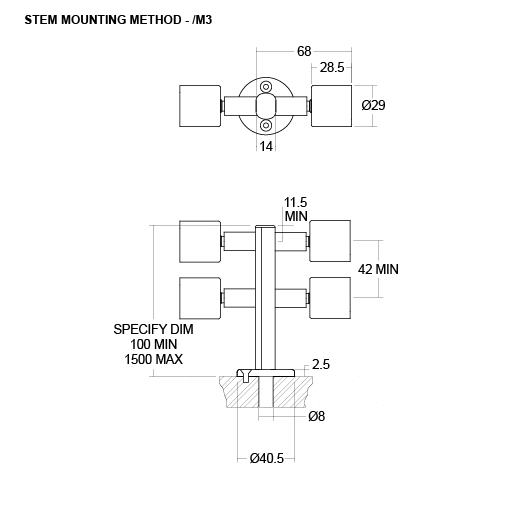

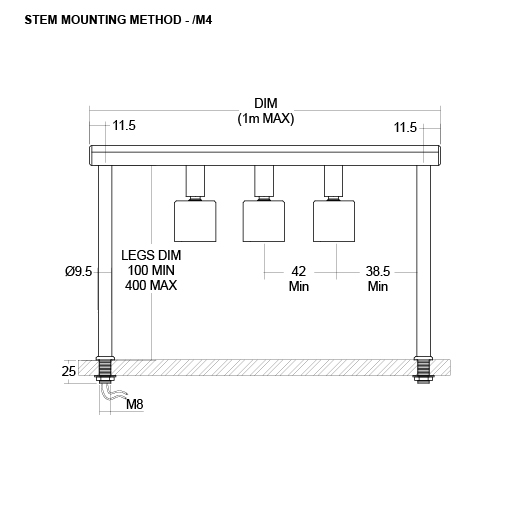

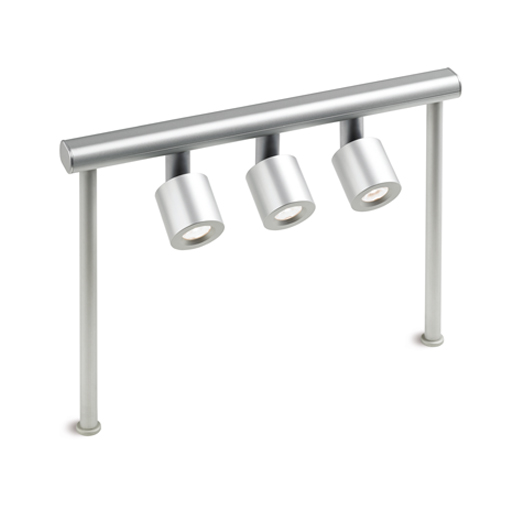

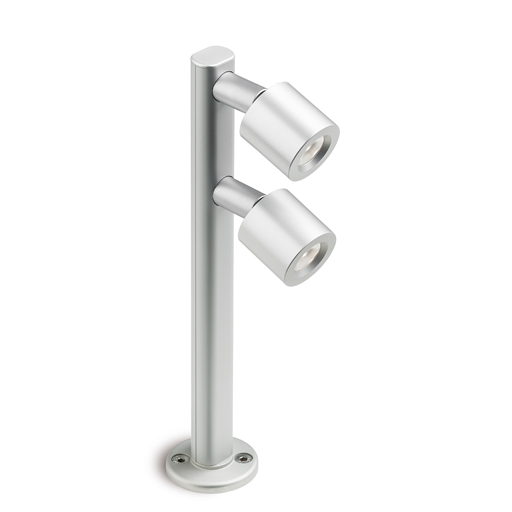

Knuckle joint (supplied with nut and washer) or using a range of mounting options

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD81-350), 1.7W @ 500mA (LD81-500) and 2.4W @ 700mA (LD81-700)

Materials

Anodised aluminium

IP Rating

IP40

Downloads

LD81
Datasheet
LD81
Design Pack
LD81
Photometric LDT
Files
LD81
Drivers

Similar Products

LD82
LD71
LD72
Spotlight Profile

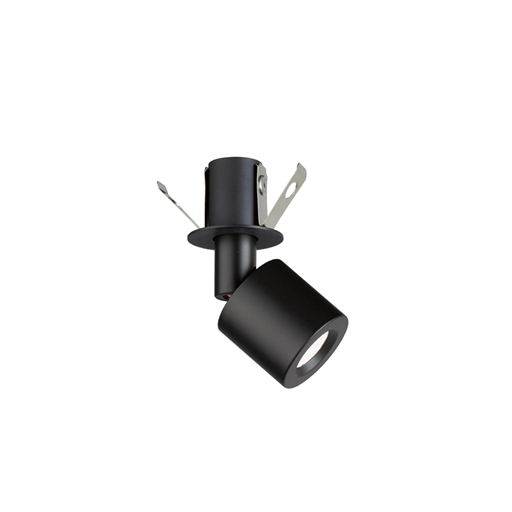

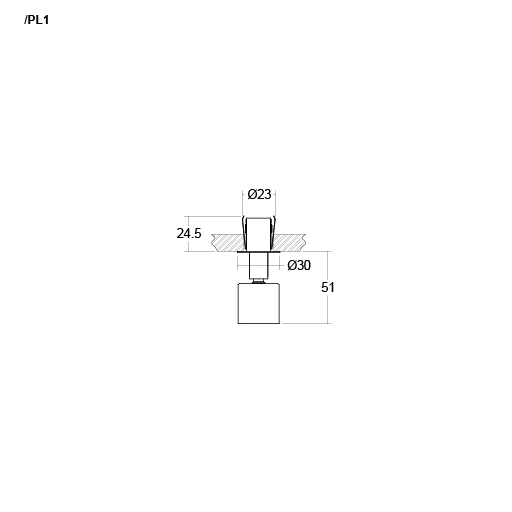

PL1
