LD83

Description

The LD83 has been discontinued and is replaced by our compact interior spotlight, LD233. Please speak to a member of our sales team by calling +44 (0) 1322 524 902 or emailing [email protected] for any project requirements.

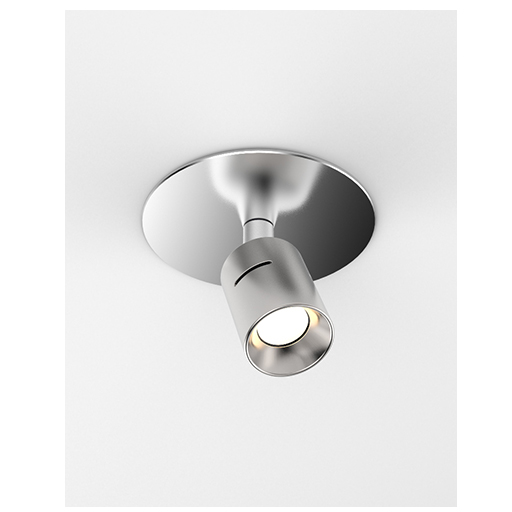

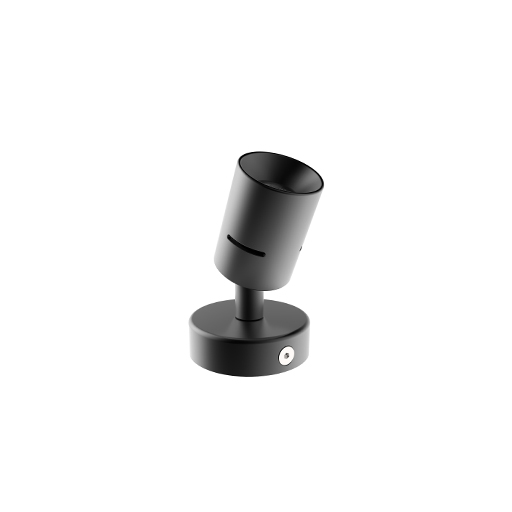

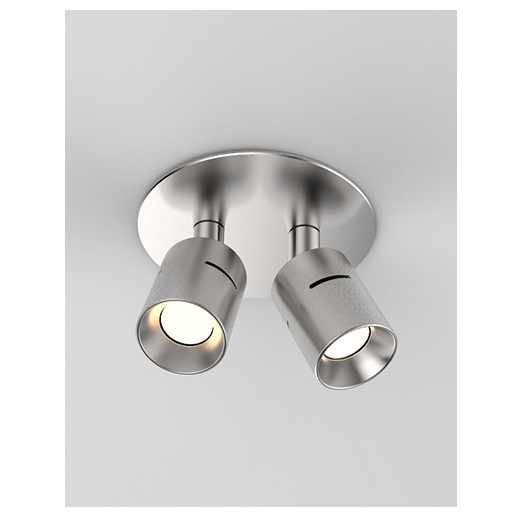

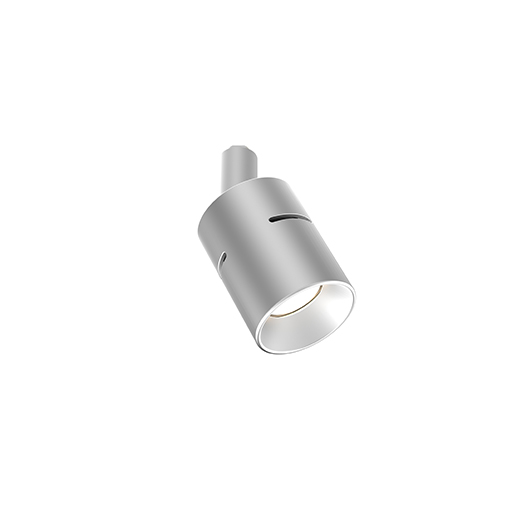

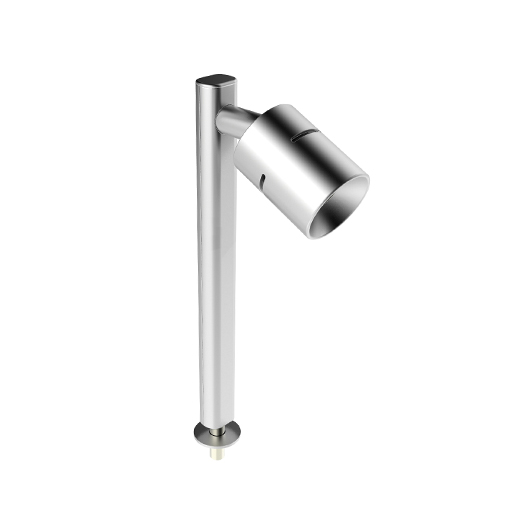

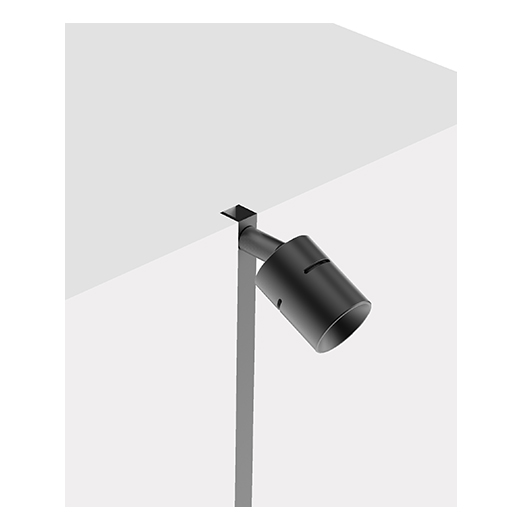

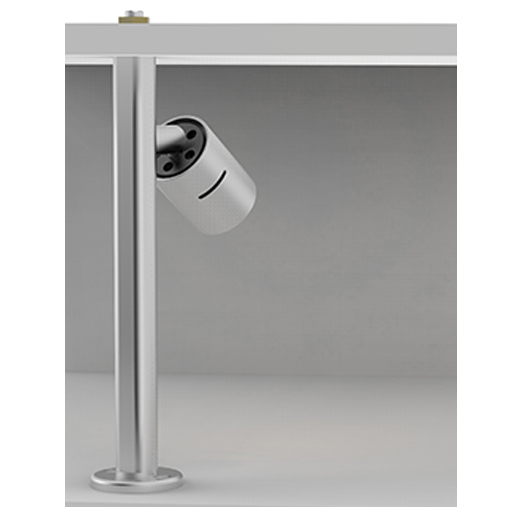

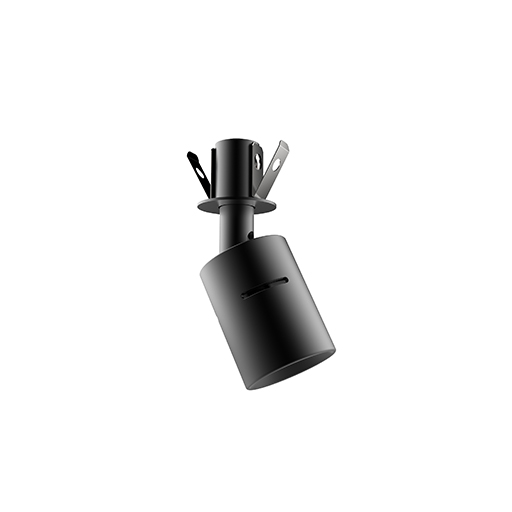

The LD83 is a high power, 3 Cluster, adjustable LED spotlight. It features a wide range of mounting options and is suitable for a huge variety of applications. Each mounting method is custom made to each projects requirements, allowing the designer to tailor the lighting layout for each display. The best method of specification for these spotlights and mounting systems is to send us a sketch of what is required. This can then be discussed and we will produce a project specification and quote.

Applications

Display and Shelf, Picture Lighting, Surface Mounted

Fixing

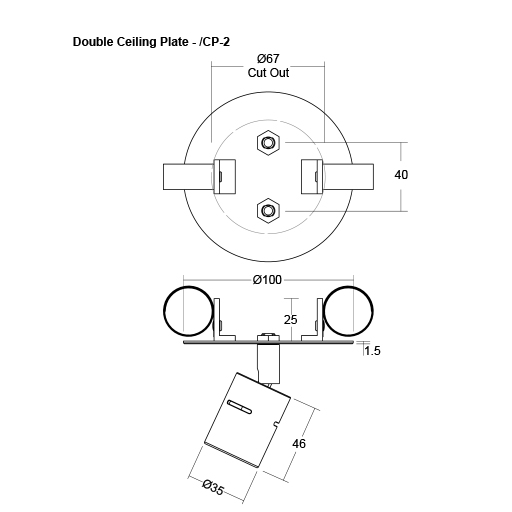

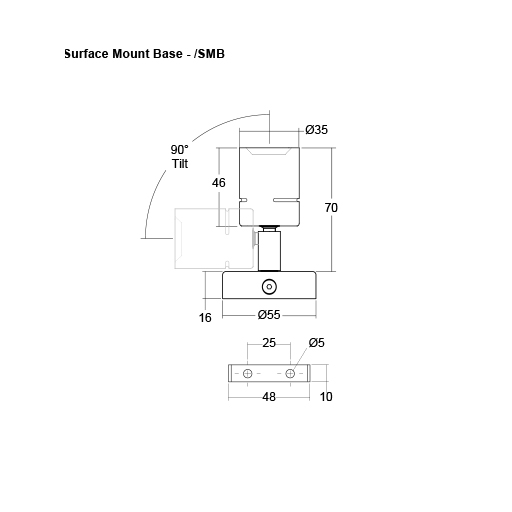

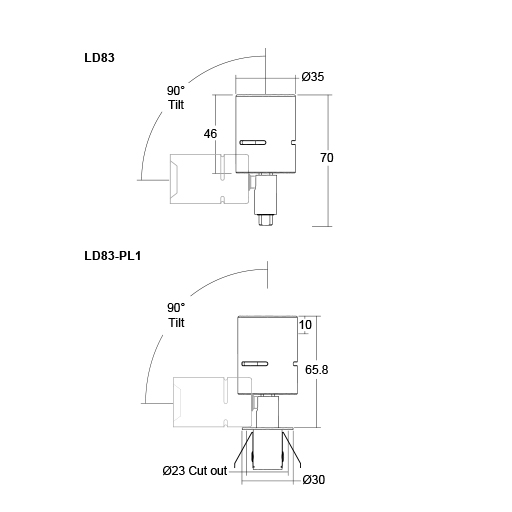

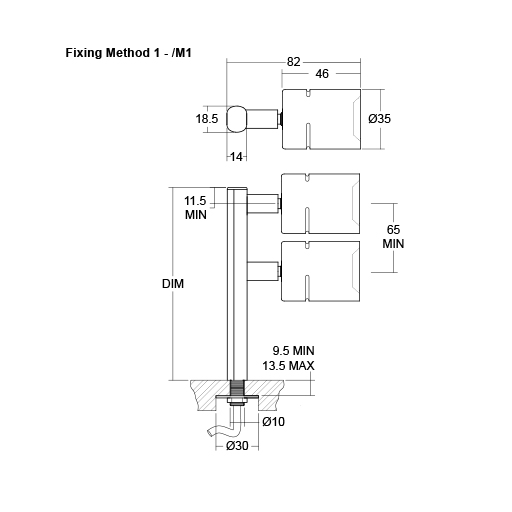

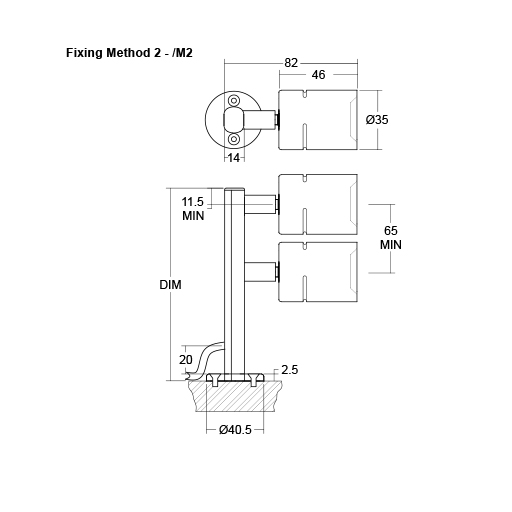

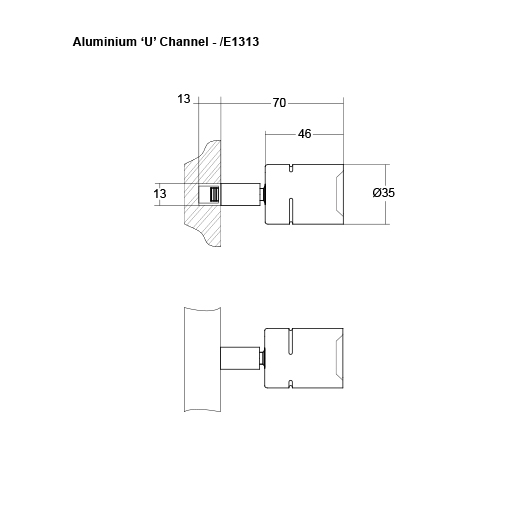

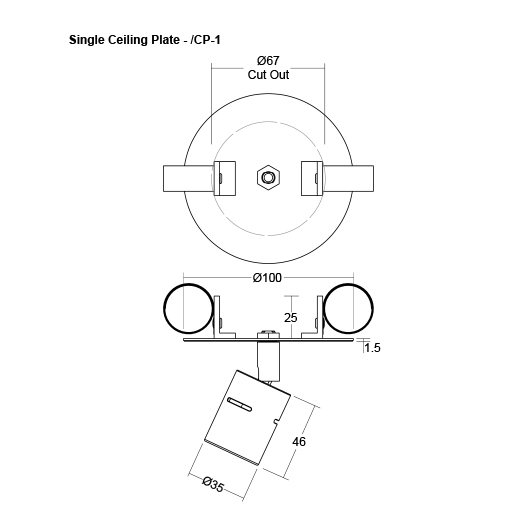

Knuckle joint (supplied with nut and washer) with up to 8x fixing options.

LED Information

NICHIA C1 LED Engine: 3.6W @ 350mA (LD83-C1-350), 5.1W @ 500mA (LD83-C1-500)

Materials

Painted anodised aluminium

IP Rating

IP40

Downloads

LD83
LD83C1-2 Datasheet
LD83
Design Pack
LD83
Photometric LDT
Files
LD83
Install Instructions
