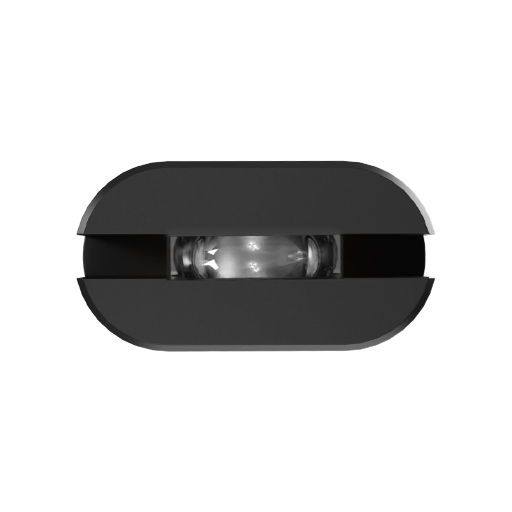

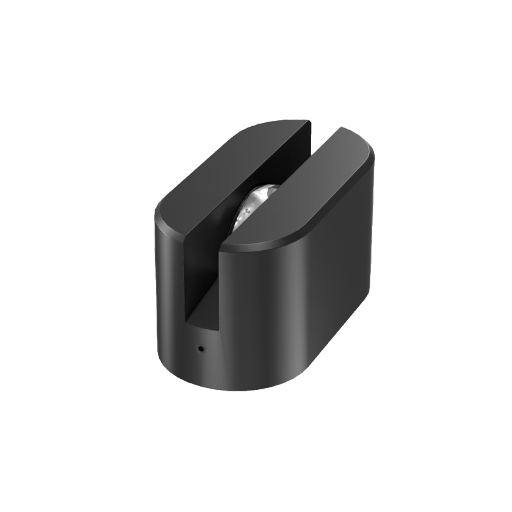

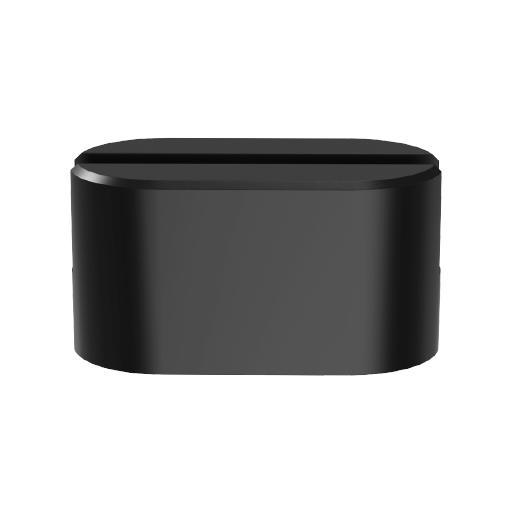

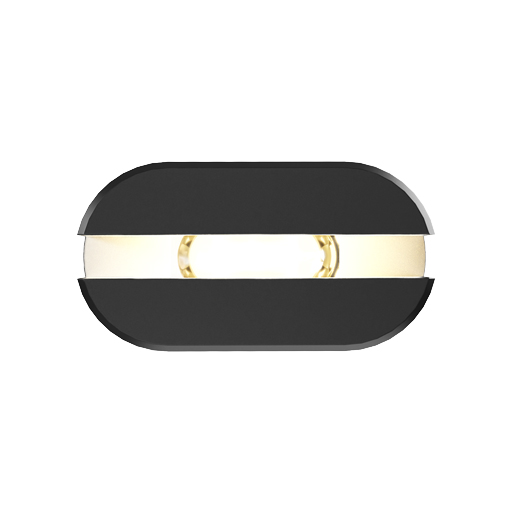

LD234

Description

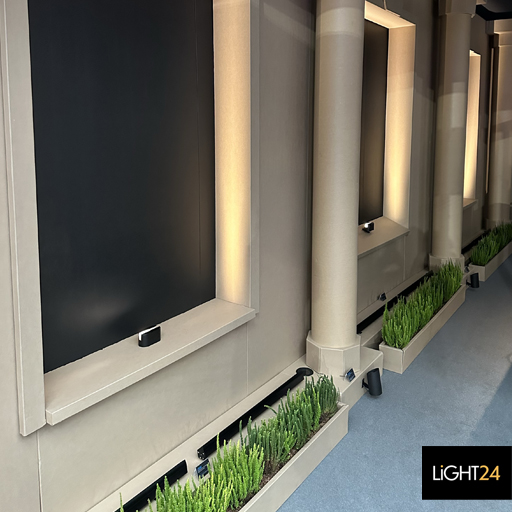

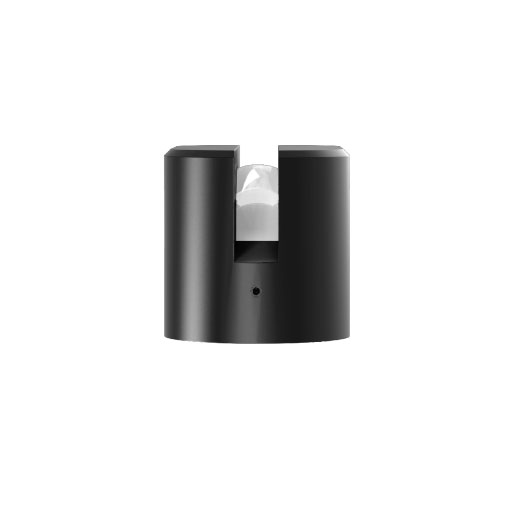

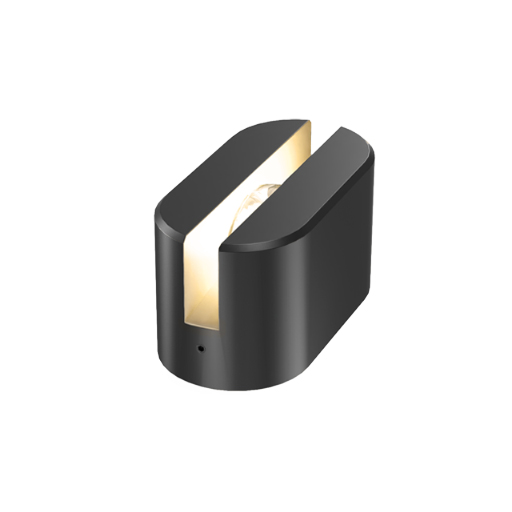

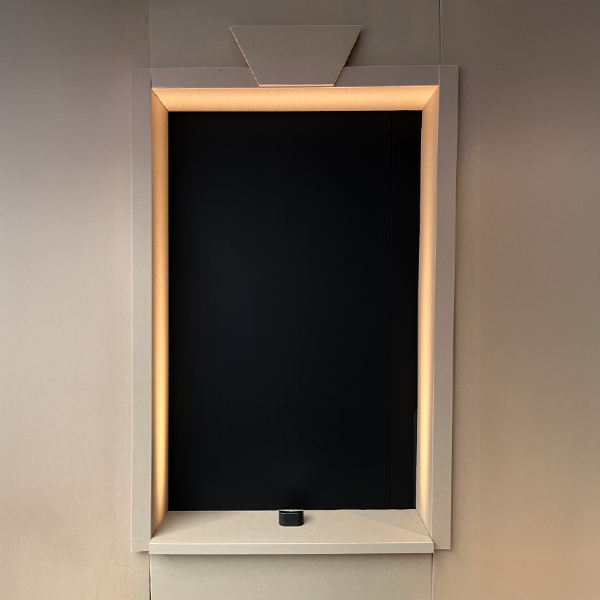

The LD234 is the LightGraphix solution for window reveal lighting, embodying our Product DNA in terms of glare control, superior beam quality, versatile mounting options and adaptability. As experts in exterior façade lighting, the LD234 was designed and engineered in-house with input from architects and lighting designers to eliminate common frustrations associated with lighting window reveals.

With three beam angles, multiple contractor-friendly power options, and our advanced E3 engine, the LD234 delivers up to 140 lumens whilst maintaining consistent colour temperatures and colour over angle. Its in-house developed Dual Optic system provides a greater than 180º visible beam spread, minimising glare and creating the perfect lit effect.

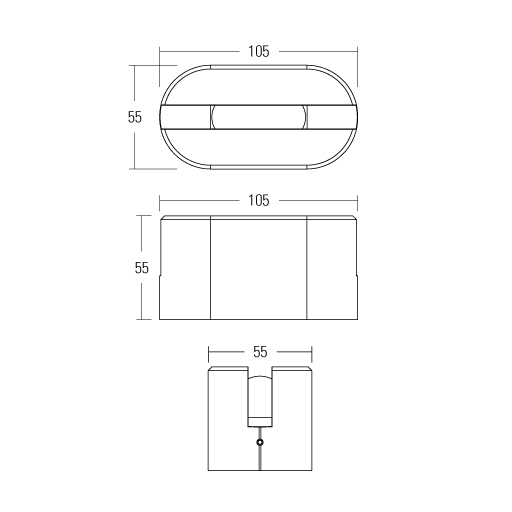

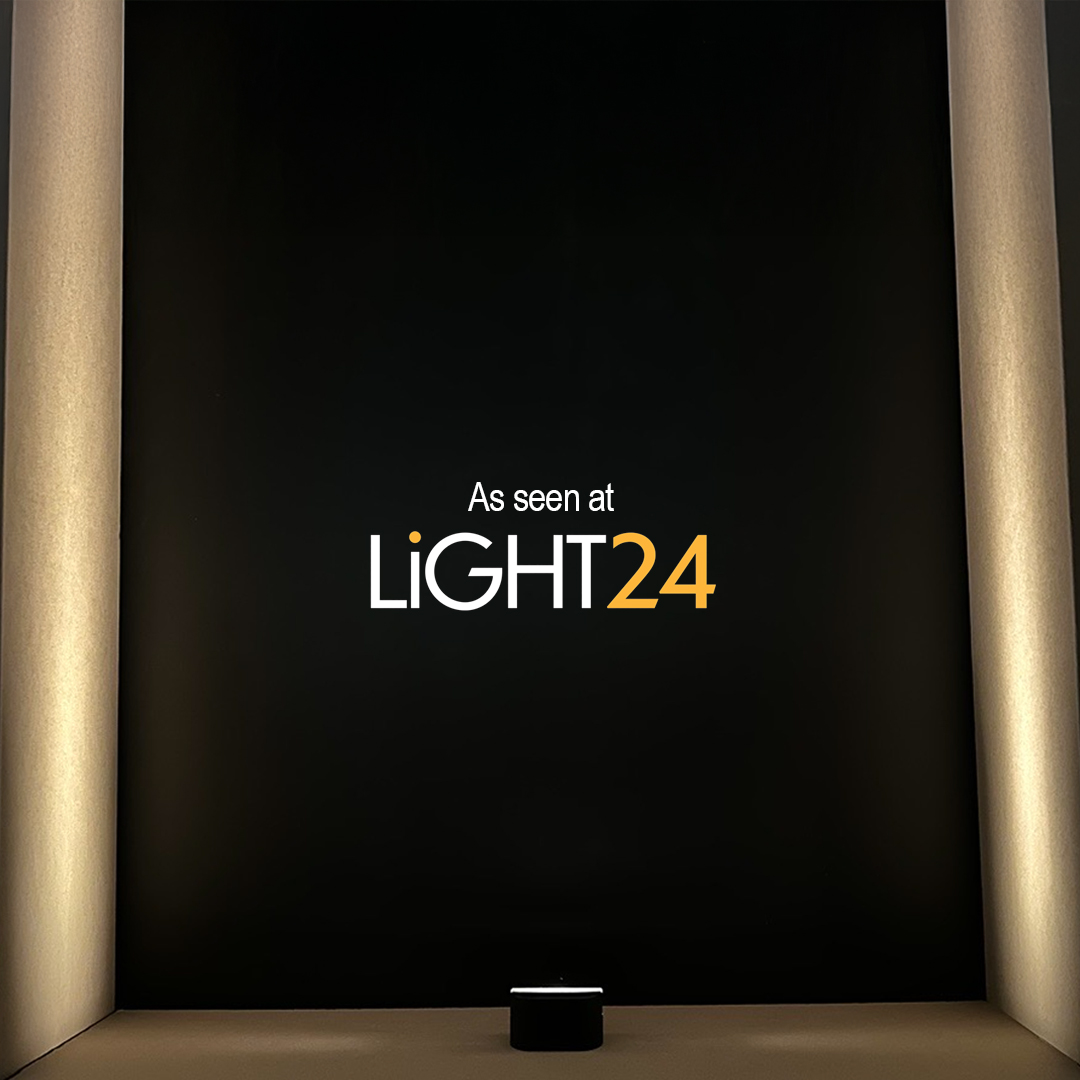

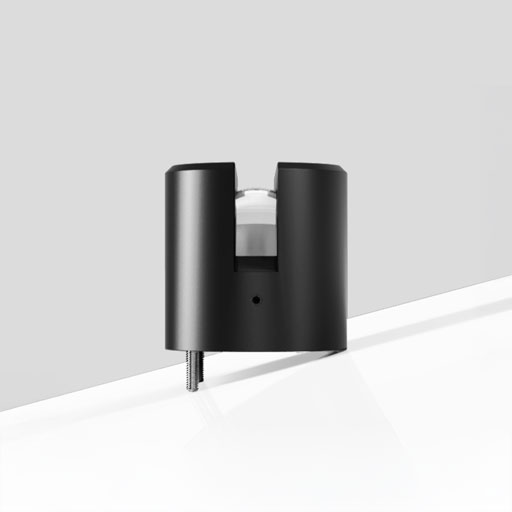

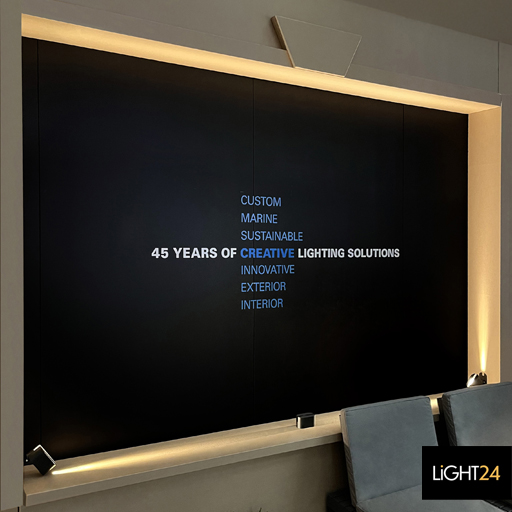

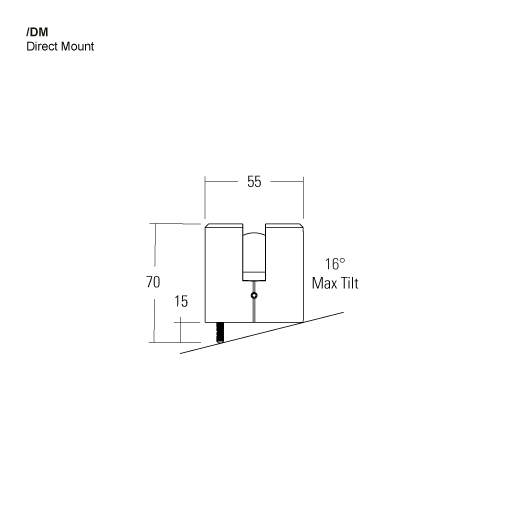

A machined aluminium body and IP65 rating ensure durability for indoor and outdoor use. Its versatile mounting options include a standard direct mount fixing with integrated tilt screws, to compensate for surface imperfections and sill angles up to 16°. Additional mounting options include adjustable and lockable brackets for surface, wall, or corner mounting. The LD234 flat top design supports levelling equipment, enabling you to record the installed angle, share it with contractors, and minimise the need to return to site to re-focus the project.

Key Features

• Highly versatile with a wide range of mounting options to suit all project types and installation requirements
• Industry-leading output with three constant current, three 24V options and three different beam angles: ENB, NB and MB
• Available in colour temperatures: 2200K, 2700K, 3000K, 4000K, 5000K
• LightGraphix in-house developed, built-in Dual Optic system for creating unrivalled soft edge beam quality (NB and MB)
• Designed for low-glare illumination, when viewed from outside and inside the building
• IP65 Rated
• High-quality machined aluminium metal parts
• Wide range of standard exterior (including coastal) rated finishes and custom RALs available to enable colour matching of all project and architectural styles

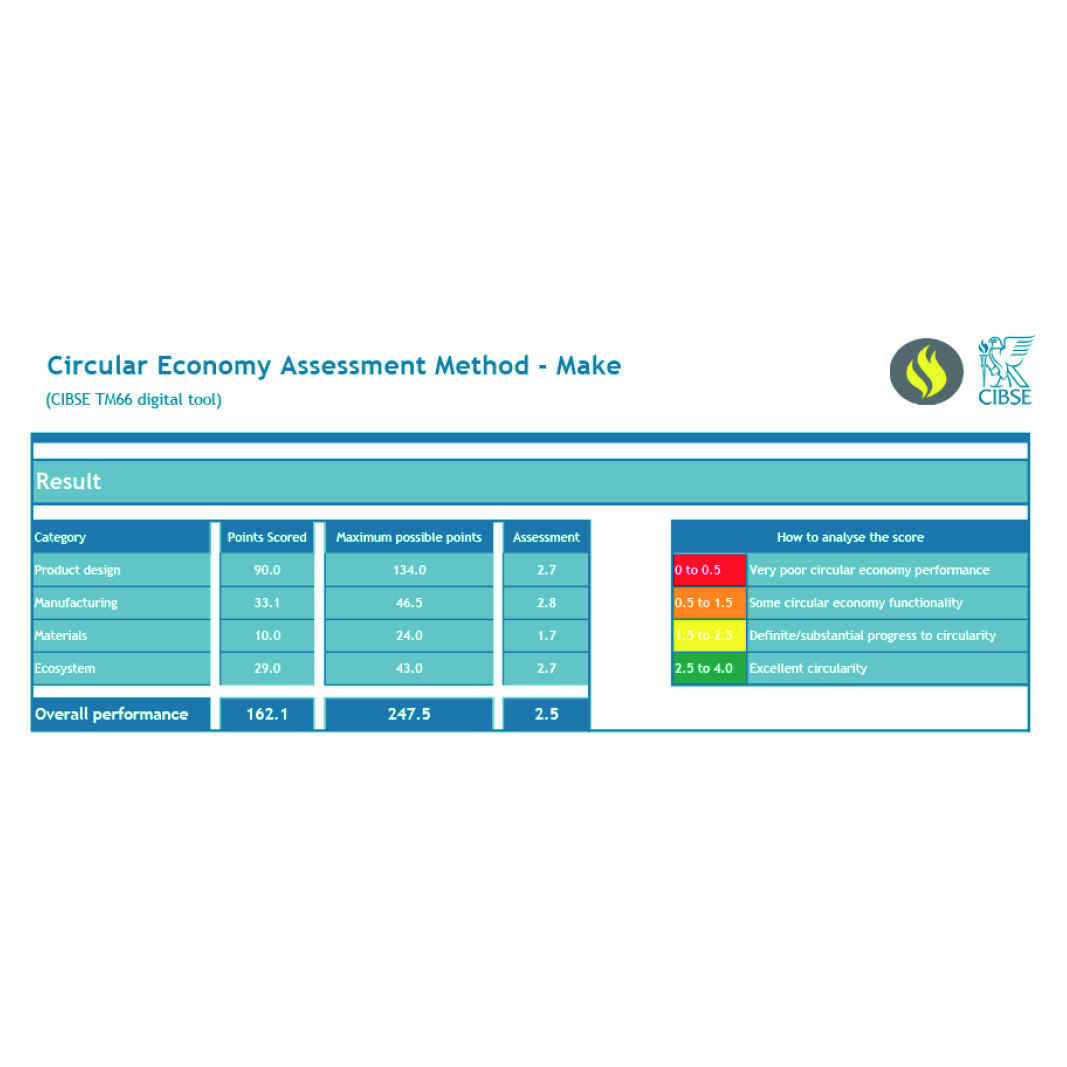

• Product compatible with our R+R (Repair & Refurbish) initiative
• Switched, 0-10V, Casambi, DMX, DALI or Mains dimmable drivers/controllers available

Applications

Surface Mounted, (400lm-600lm) Compact range, Part L Compliant (Display)

Fixing

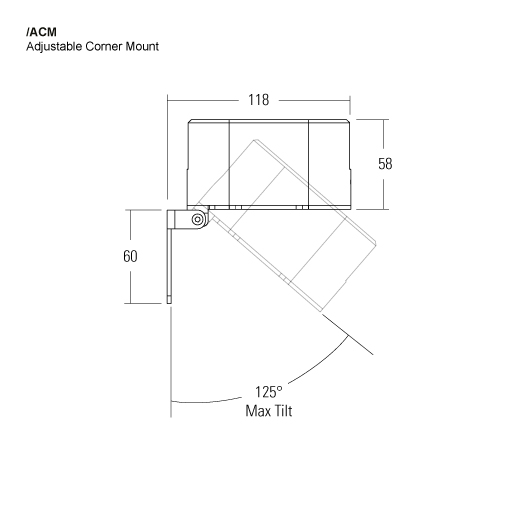

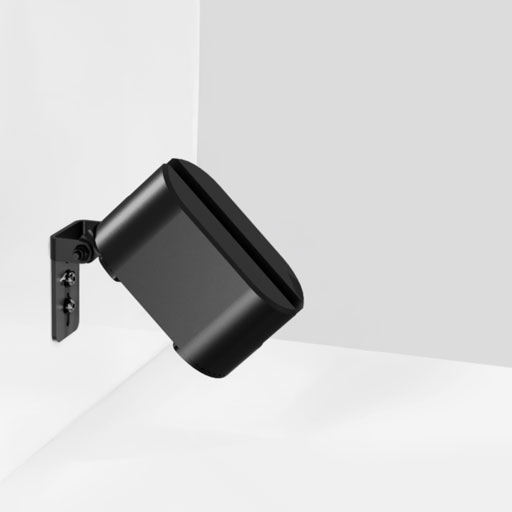

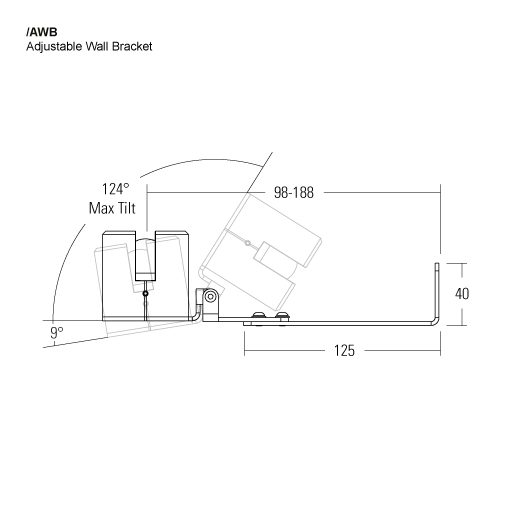

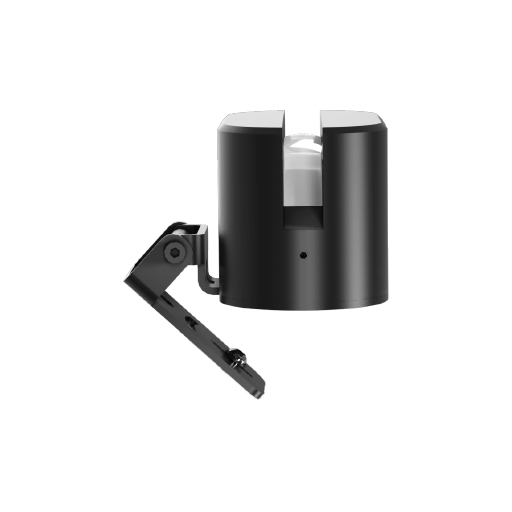

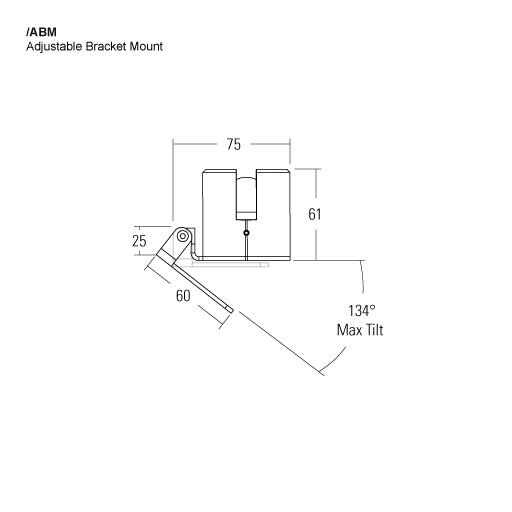

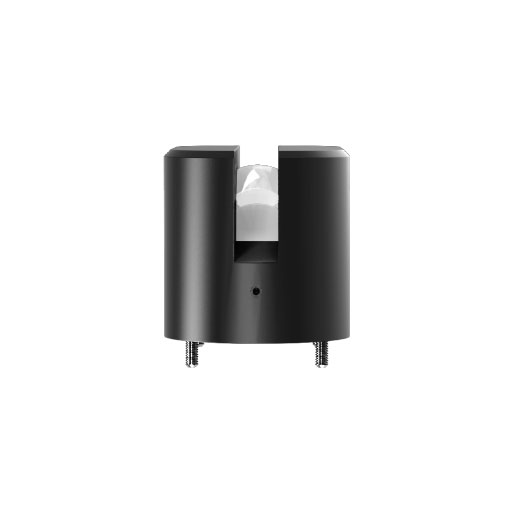

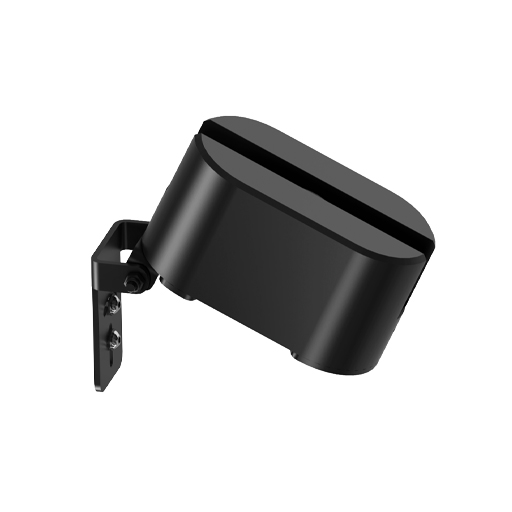

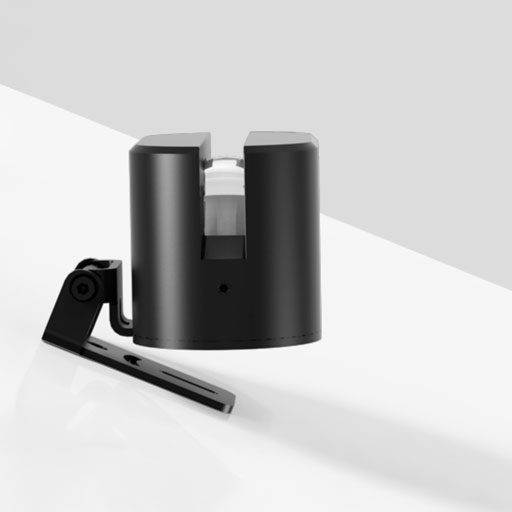

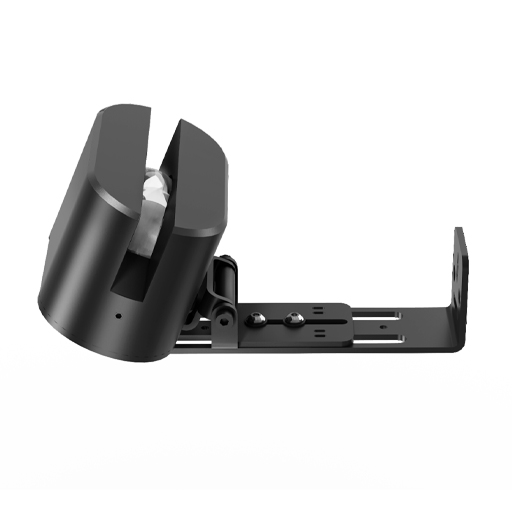

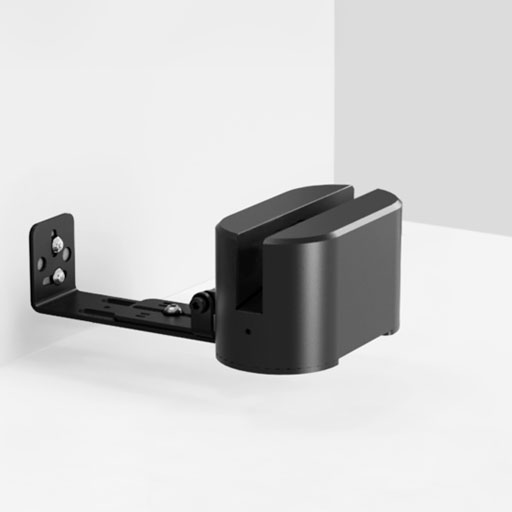

/DM Direct Mount Standard Fixing and Tilt Screws, /ABM Adjustable Bracket Mount, /AWB Adjustable Wall Bracket, /ACM Adjustable Corner Mount

LED Information

E3 LED Engine - up to 10W @ 700mA Constant Current, E3 LED Engine – up to 9W @ 24V Constant Voltage

Materials

Anodised aluminium body

IP Rating

IP65

Downloads

LD234E3-8 Datasheet

Design Pack

Photometric LDT
Files

Drivers
