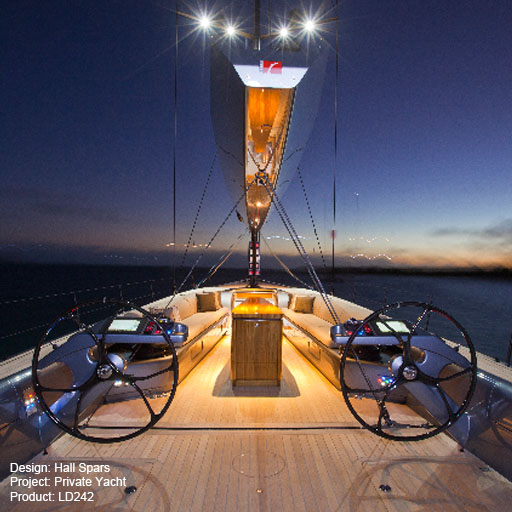

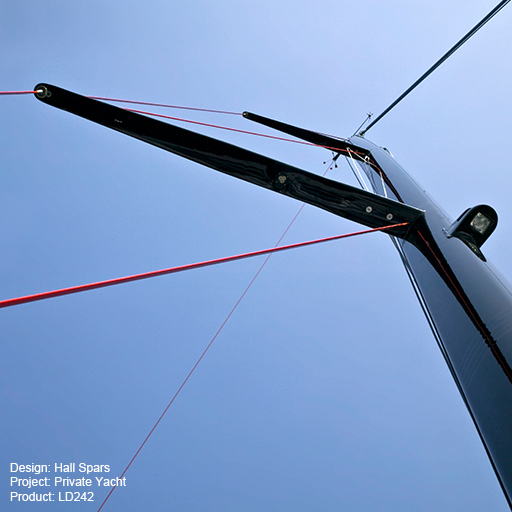

Private Yacht

Private Yacht Lightgraphix Creative Lighting Solutions
Private Yacht Lightgraphix Creative Lighting Solutions
< Back

LD242

Description

The LD242 is now even brighter and more efficient. The length has increased by 2mm, but overall dimensions remain the same. This is an ideal product for use on yacht spreaders or cockpit lighting. The narrow 12° beam will light a deck from 9m.

Applications

Downlights, External, Yacht Lighting

Fixing

2x countersunk screws

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD242-C1-350) 1.7W @ 500mA (LD242-C1-500) 2.4W @ 700mA (LD242-C1-700)

Materials

Hard anodised aluminium bezel & body, 5mm borosilicate glass

IP Rating

IP68 - Not for permanent submersion (use LD242A)

Accessories

/GS Glare Shield

Downloads

LD242
LD242C1-1 Datasheet
LD242
Design Pack
LD242
Photometric LDT
Files
LD242
Drivers

Similar Products

LD242A
