LD38

Description

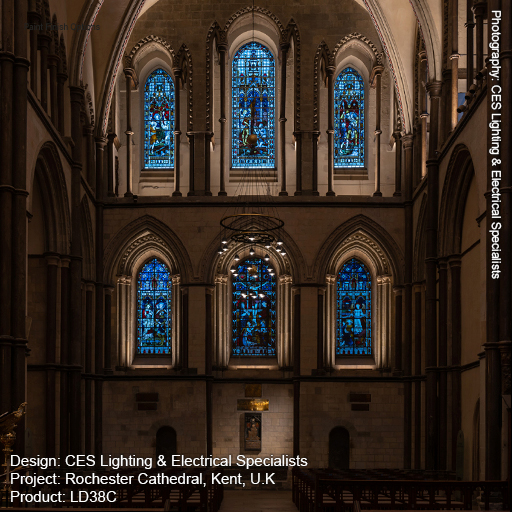

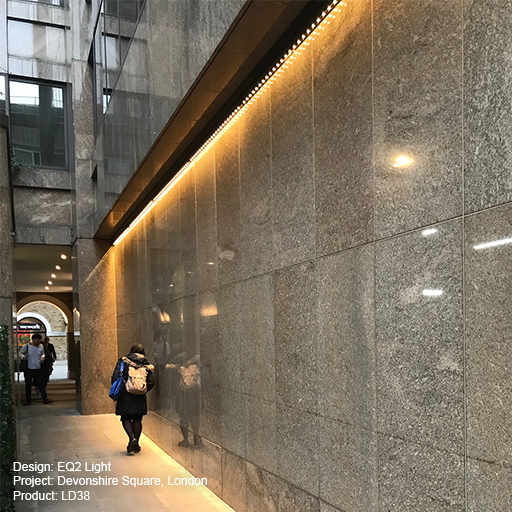

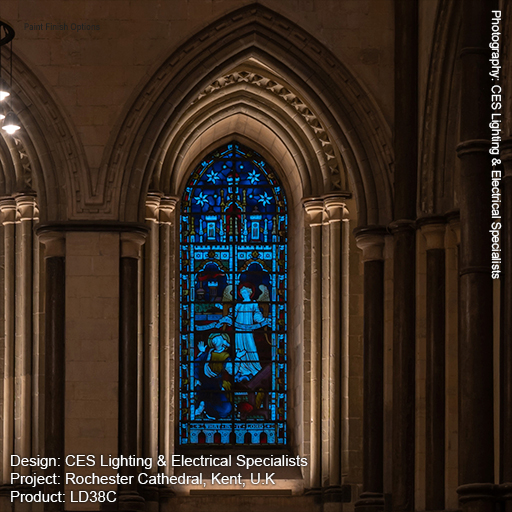

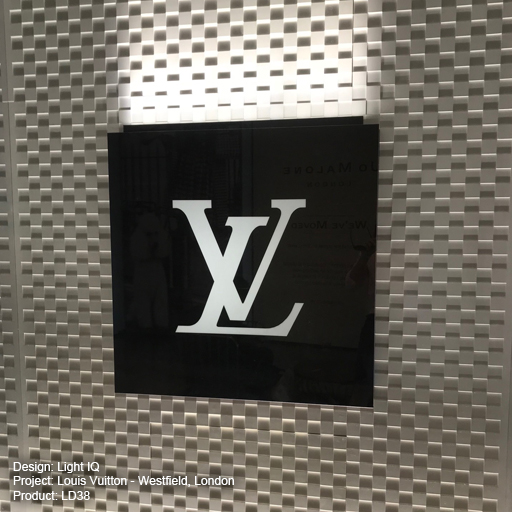

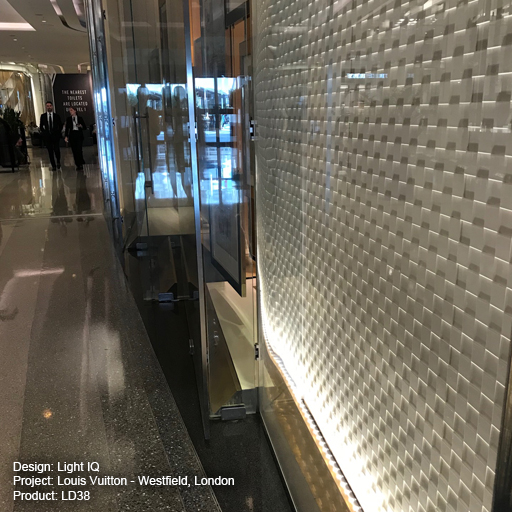

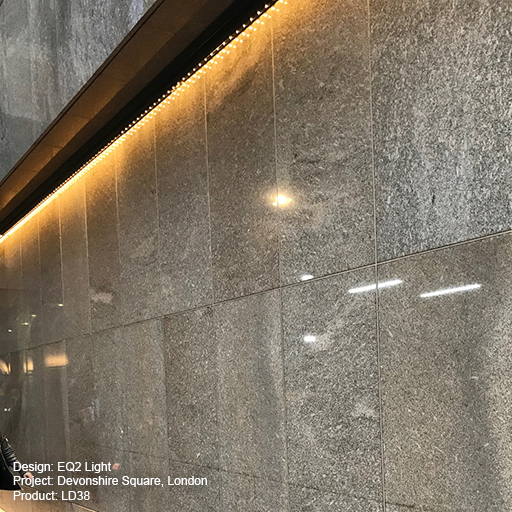

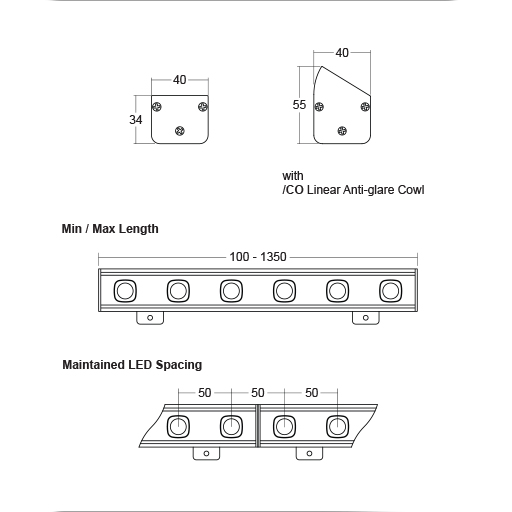

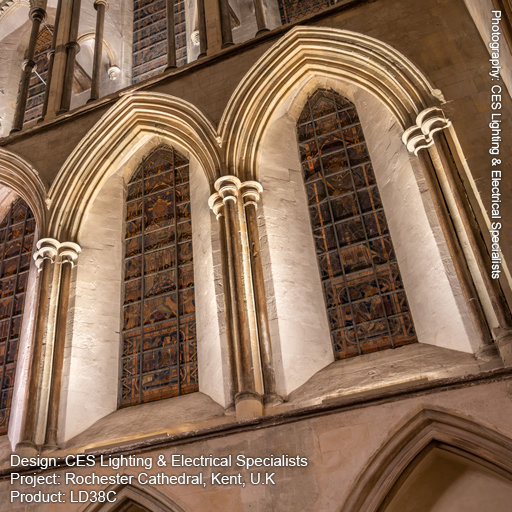

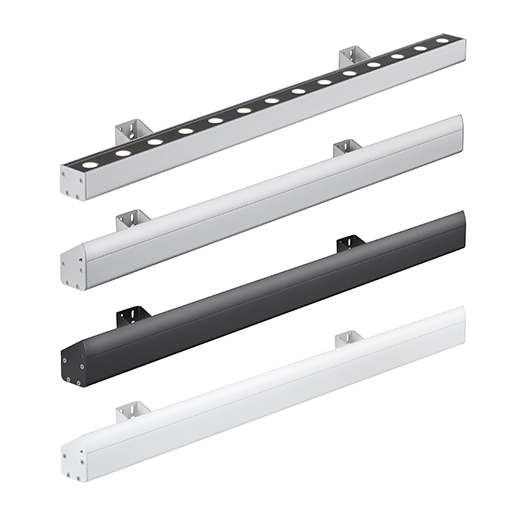

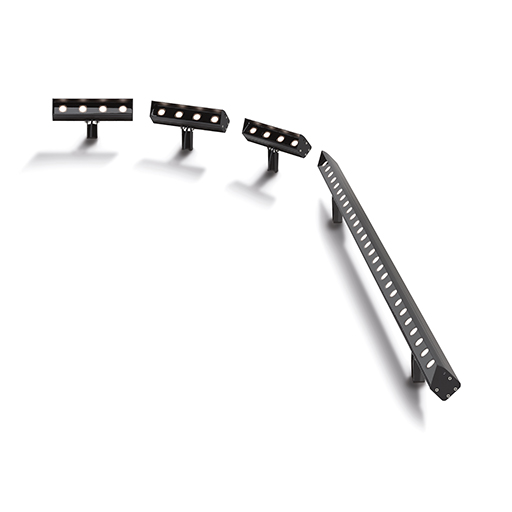

LD38 is a high-power linear surface grazer offering superb continuous wall washing capabilities. Compact with a minimal design, set lengths are available to a maximum of 1350mm, with evenly maintained spacing across LEDs, resulting in no shadows. White, RGBW and Tunable White engines are available along with a choice of optics for wall washing or flood lighting, various mounting options and glare control accessories, offering great flexibility for a variety of applications. For additional glare control, LD38C can be specified and is supplied with an integrated anti-glare cowl.

Applications

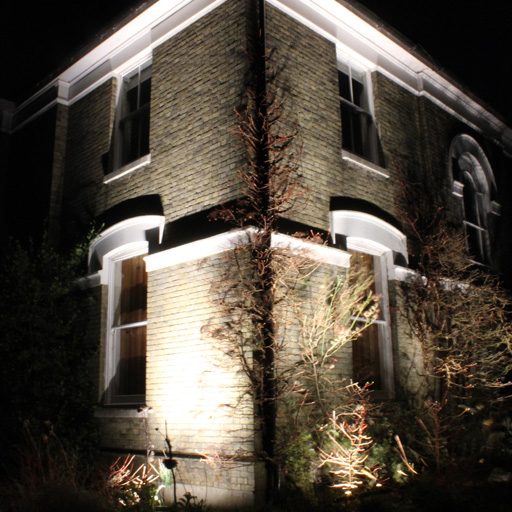

Colour Change, External, Linear, Surface Mounted, Wall Wash, Tunable White, Part L Compliant (Display), Fifty Degree Ambient (50°C)

Fixing

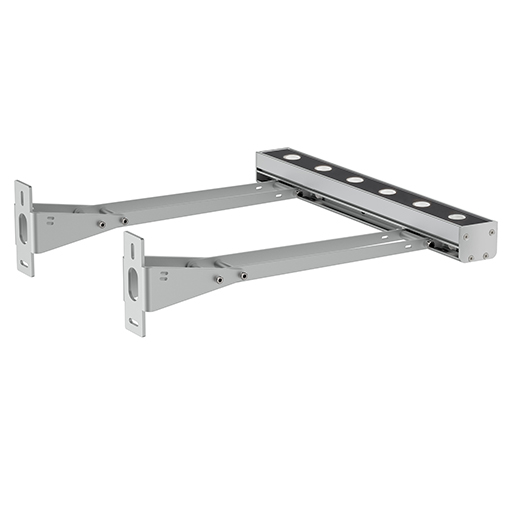

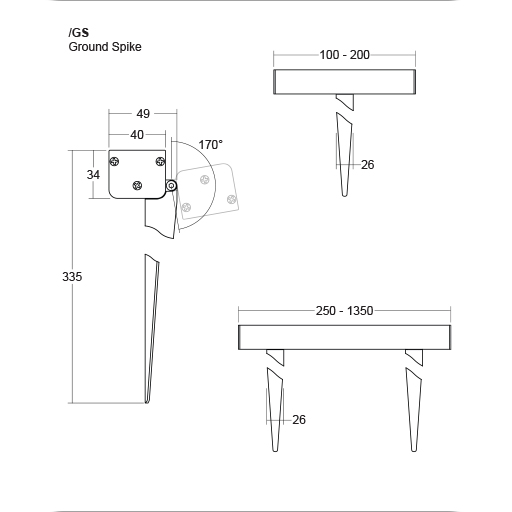

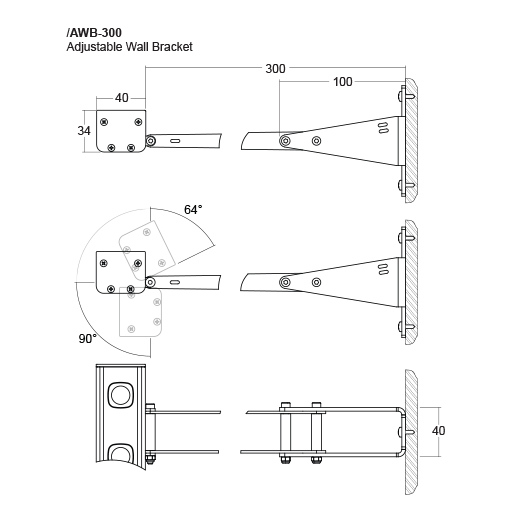

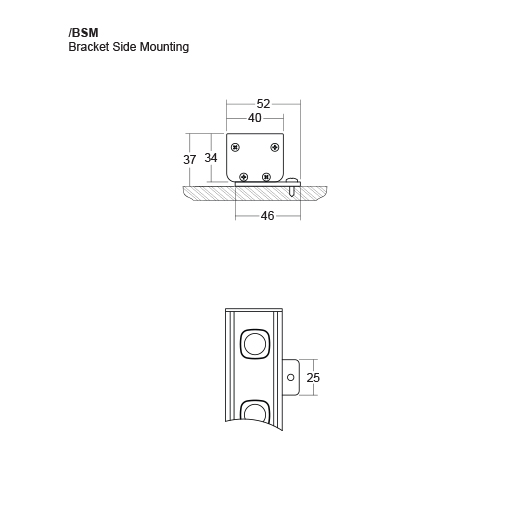

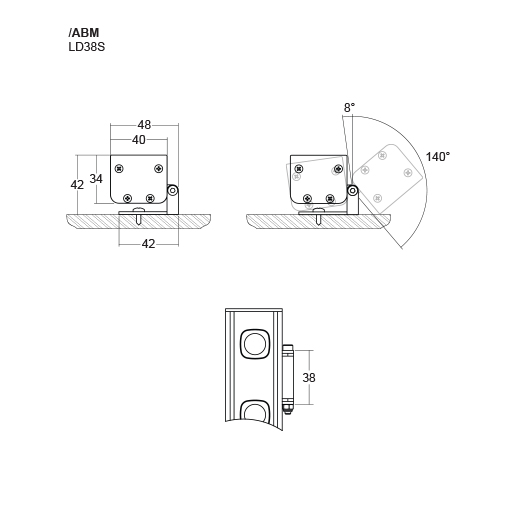

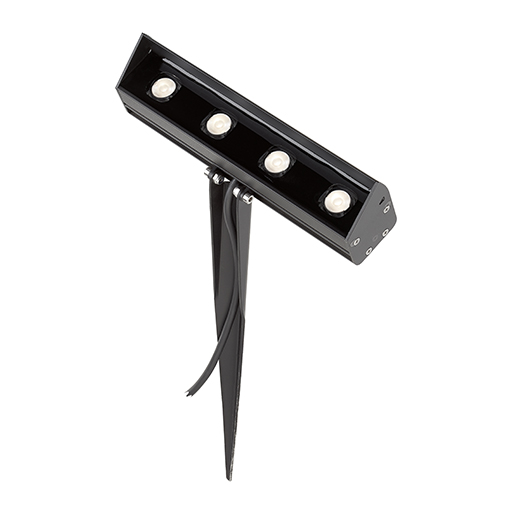

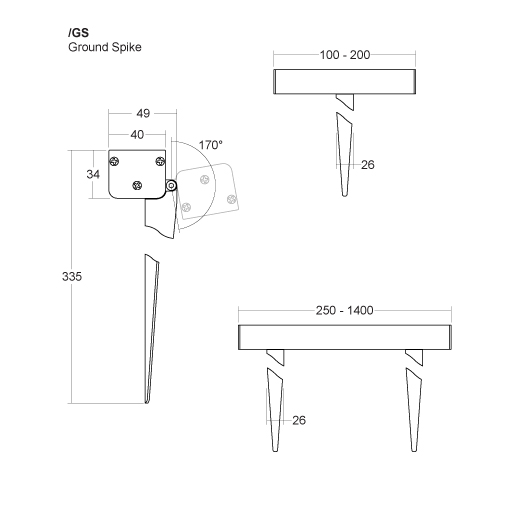

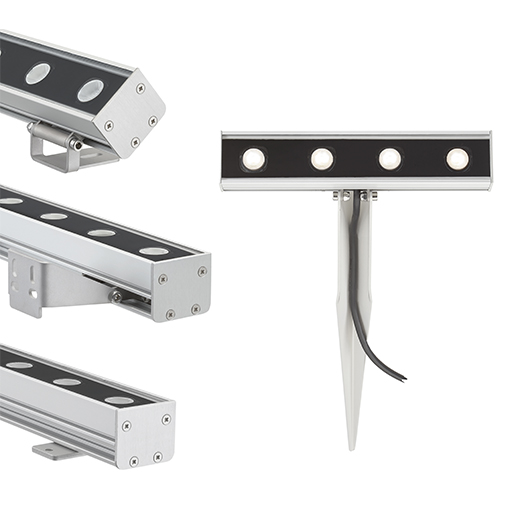

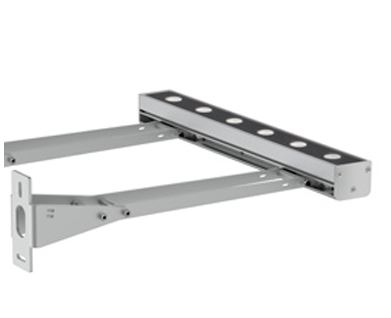

5 X fixing options

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD38-C1-350), 1.7W @ 500mA (LD38-C1-500), 2.4W @ 700mA (LD38-C1-700)

Materials

Anodised aluminium extrusion and end caps, 4mm low iron glass

IP Rating

IP67

Accessories

Anti Glare Louvre /GL, /GLF
