LD40

Description

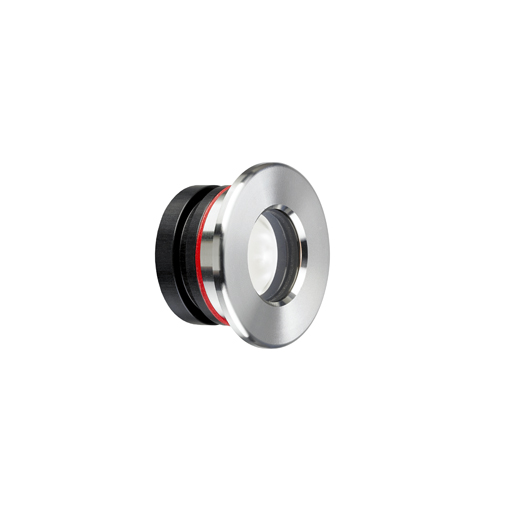

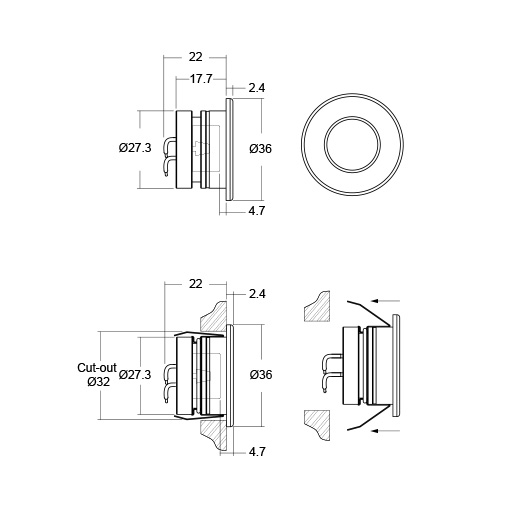

LD40 is a shortened version of our LD42, and has been designed for use in applications where recess depth is at a minimum. The optic has been moved further forward and the body length shrunk to allow for an overall depth of 22mm including cables. The high-power C1 NICHIA LED and range of optics make this a very useful, compact light fitting. Applications include shelf lighting and under kitchen cabinets.

Applications

Display and Shelf

Fixing

Spring clips /SC

Lamp Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD40-C1-350), 1.7W @ 500mA (LD40-C1-500), 2.4W @ 700mA (LD40-C1-700)

Materials

Machined 316 Stainless Steel bezel, hard anodised aluminium body, 5mm borosilicate glass

IP Rating

IP67

Downloads

LD40
LD40C1-2 Datasheet
LD40
Design Pack
LD40
Photometric LDT
Files
LD40
Drivers
