LD75

Description

The LD75 is now discontinued and has been replaced by the smaller and more powerful LD73/74 range, please see links below in 'similar products' or speak to a member of our sales team by calling +44 (0) 1322 524 902 or emailing [email protected] for any project requirements.

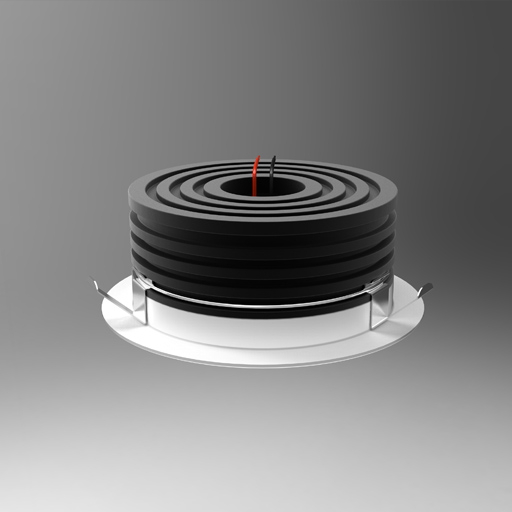

LD75 is a very low depth triple LED downlight. It is ideal for shelf and display case applications where mounting depth is at a minimum but high output is required. The bezel is only 1mm thick and can be powdercoated to match the mounting surface. It utilizes the latest LED technology with a typical CRI of 93in warm white. New high efficiency optics guarantee excellent beam spread and shape, with 3 different beam angles available. Fixing is by 3 spring clips. LD75can be driven up to a current of 500mA (5.1W) at an ambient of 45°C.

Applications

Display and Shelf, Downlights, Wall Wash

Fixing

Spring clips

LED Information

3 x Cree XPG: 2 output options - 3.6W @ 350mA (LD75-350), 5.1W @ 500mA (LD75-500)

Materials

Anodised aluminium

IP Rating

IP40

Downloads

LD75
LD75 Datasheet
LD75
Design Pack
LD75
Photometric LDT
Files
LD75
Drivers
