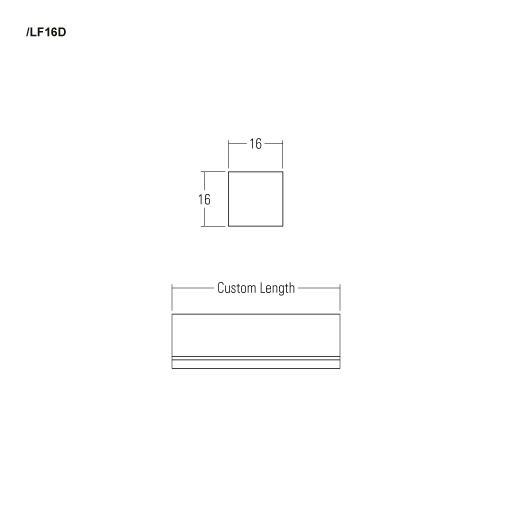

LF16D

Description

Key Features:

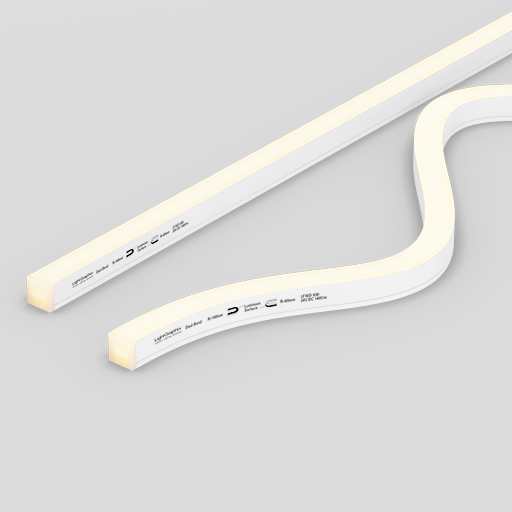

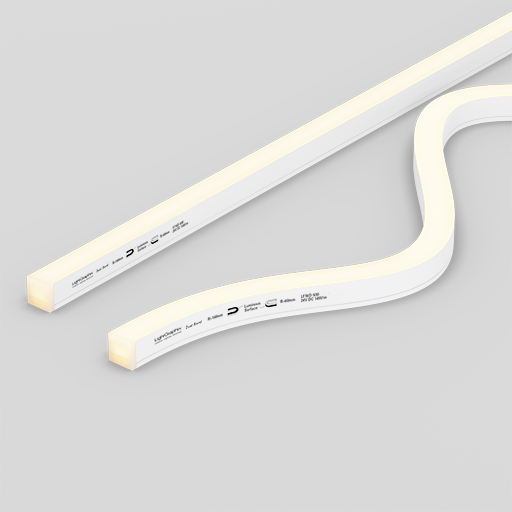

• Dual Bend system offers flexible illumination with both top bend (minimum radius 60mm) and side bend (minimum radius 140mm) capability.
• Colour-matched LEDs to the LightGraphix range
• Available in continuous lengths of up to 5 metres
• Quick turnaround from final site dimensions to delivered product all from our headquarters in the UK
• Versatile with a wide range of mounting options to suit all project types and installation requirements
• Tunable White, Dim to Warm, or Ultra Long configurations with lengths up to 50 metres available. Contact our sales department for details.
• Static white and tuneable white specifiable at 1mm increments
• Thicker PCB and two-sided soldering for ultra reliable and flexible dual bend product, matching or exceeding single bend products in minimum bend radius and illumination
• For matching rigid linear profile, see our LR17
• Switched, 0-10V, Casambi, DMX, DALI or Mains dimmable drivers available

Applications

Cove Lighting, Display and Shelf, Floor Wash, Steps, Yacht Lighting, Tunable White, NEW Product, CB Certified

Fixing

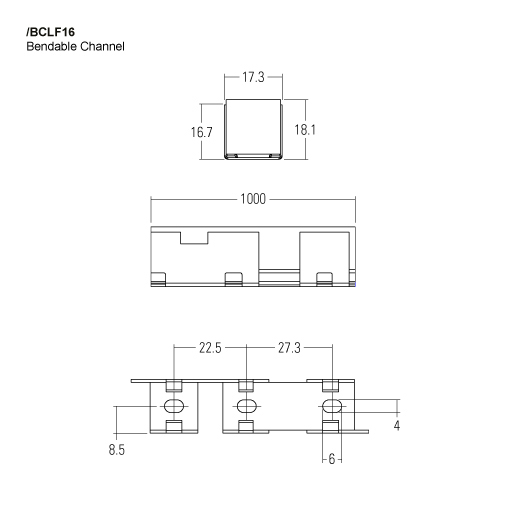

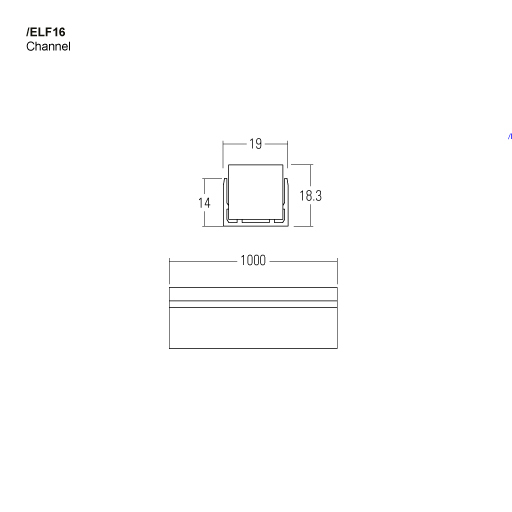

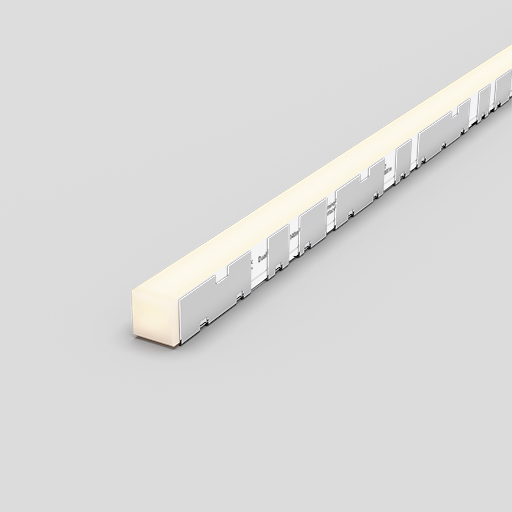

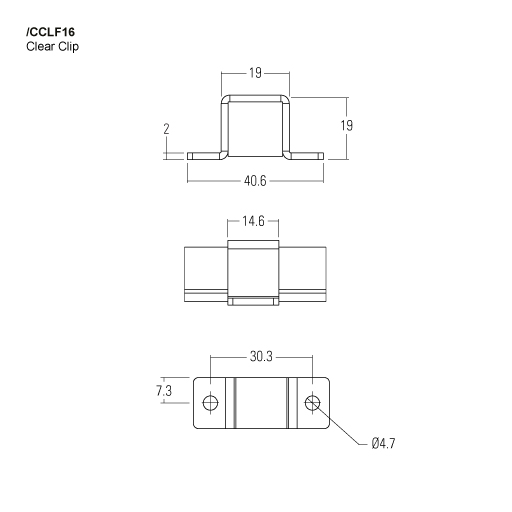

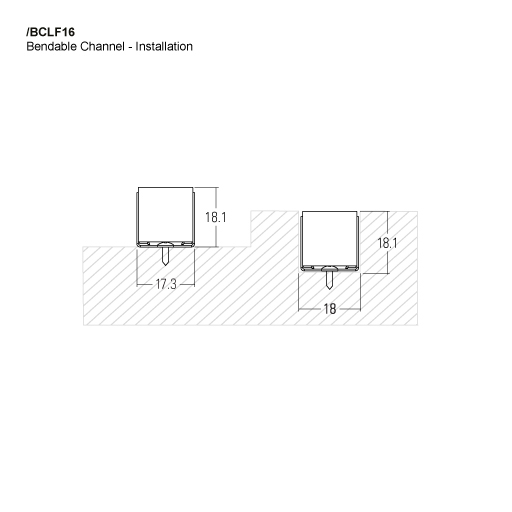

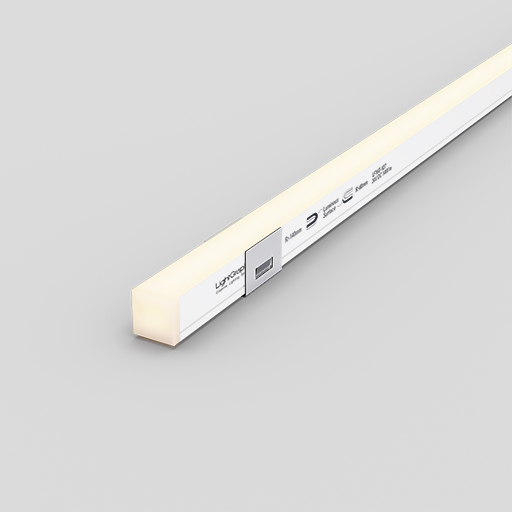

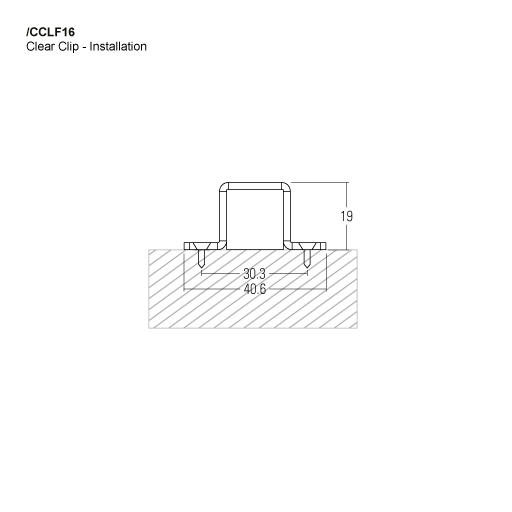

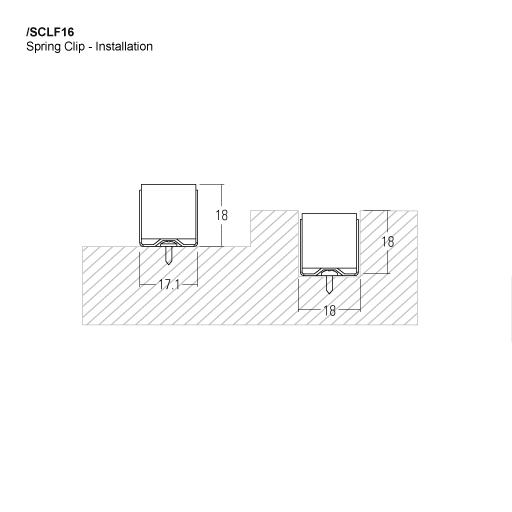

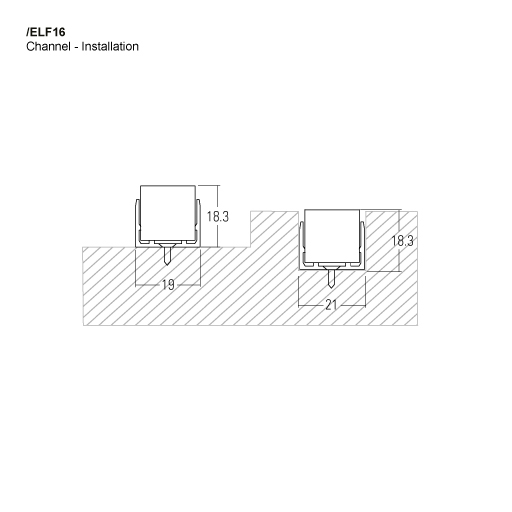

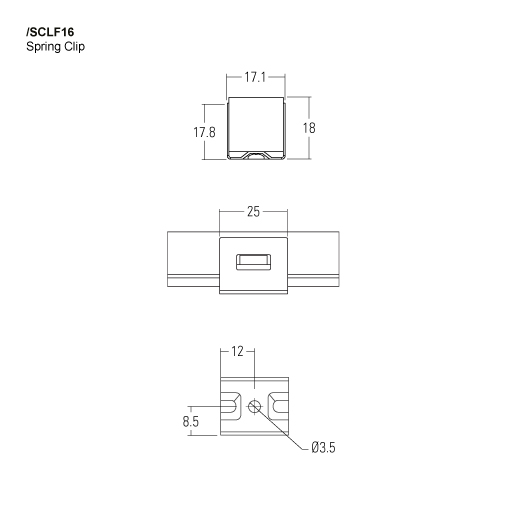

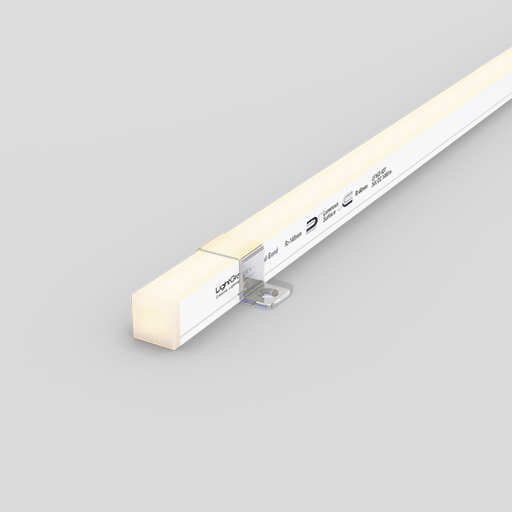

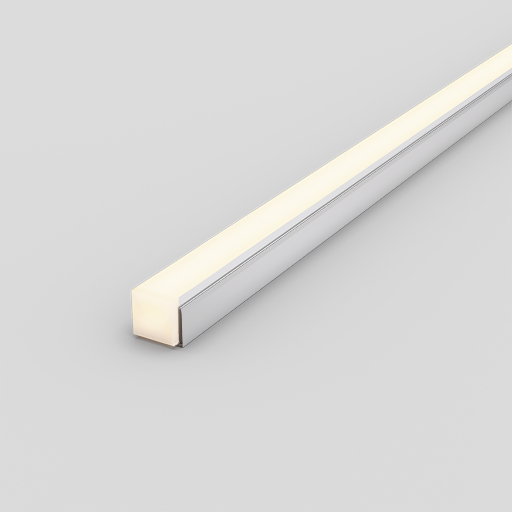

/SCLF16 Spring Clips, /CCLF16 Clear Clips, /BCLF16-xxx Bendable Channel, /ELF16-xxx Channel

LED Information

24V 14W/m

Materials

Silicon, Copper

IP Rating

IP67

Downloads

LF16D-1 Datasheet

Design Pack

Install Instructions

Drivers
