LD30HR

Description

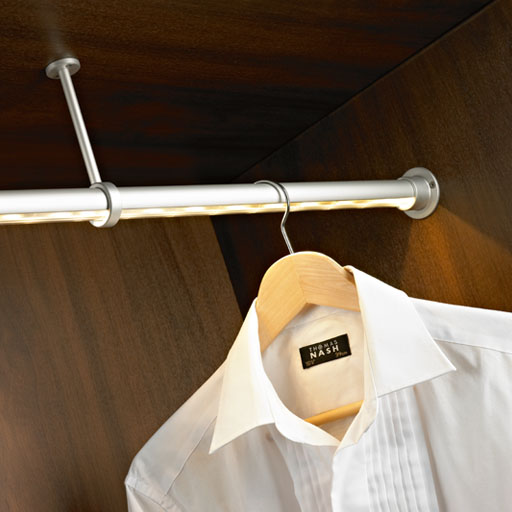

The new LD30 Hanging Rail has been updated with the latest LED technology. Its ultra slim profile creates a very neat way of illuminating clothes in wardrobes. The unique linear reflector system where the LEDs are mounted within it, creates a very even and focused beam with no spotting from lenses or loss of output from just using the LED itself. The deep recessed position and non specular reflector keep glare to a minimum. Our experience is that 75mm spacing provides an adequate and even wash of light for this application. We recommend silver anodised finish as this is the hardest wearing. Photometric data is available in the design pack.

Applications

Display and Shelf, Linear, Surface Mounted

Fixing

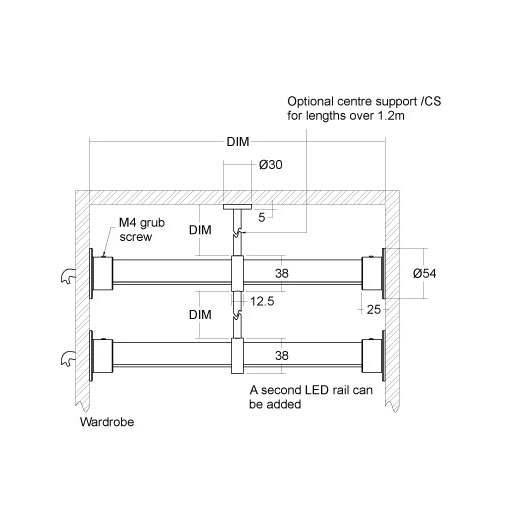

Two machined brackets fixed to the sides of the wardrobe, or a /CS central bracket for lengths over 1.2m

Lamp Information

Multiple Cree XPG LEDs: 1.2W LEDs @ 350mA (LD30HR-350)

Materials

Anodised aluminium extrusion, Acrylic lid

IP Rating

IP40

Downloads

LD30HR
Datasheet
LD30HR
Design Pack
LD30HR
Photometric LDT
Files
LD30HR
Drivers
