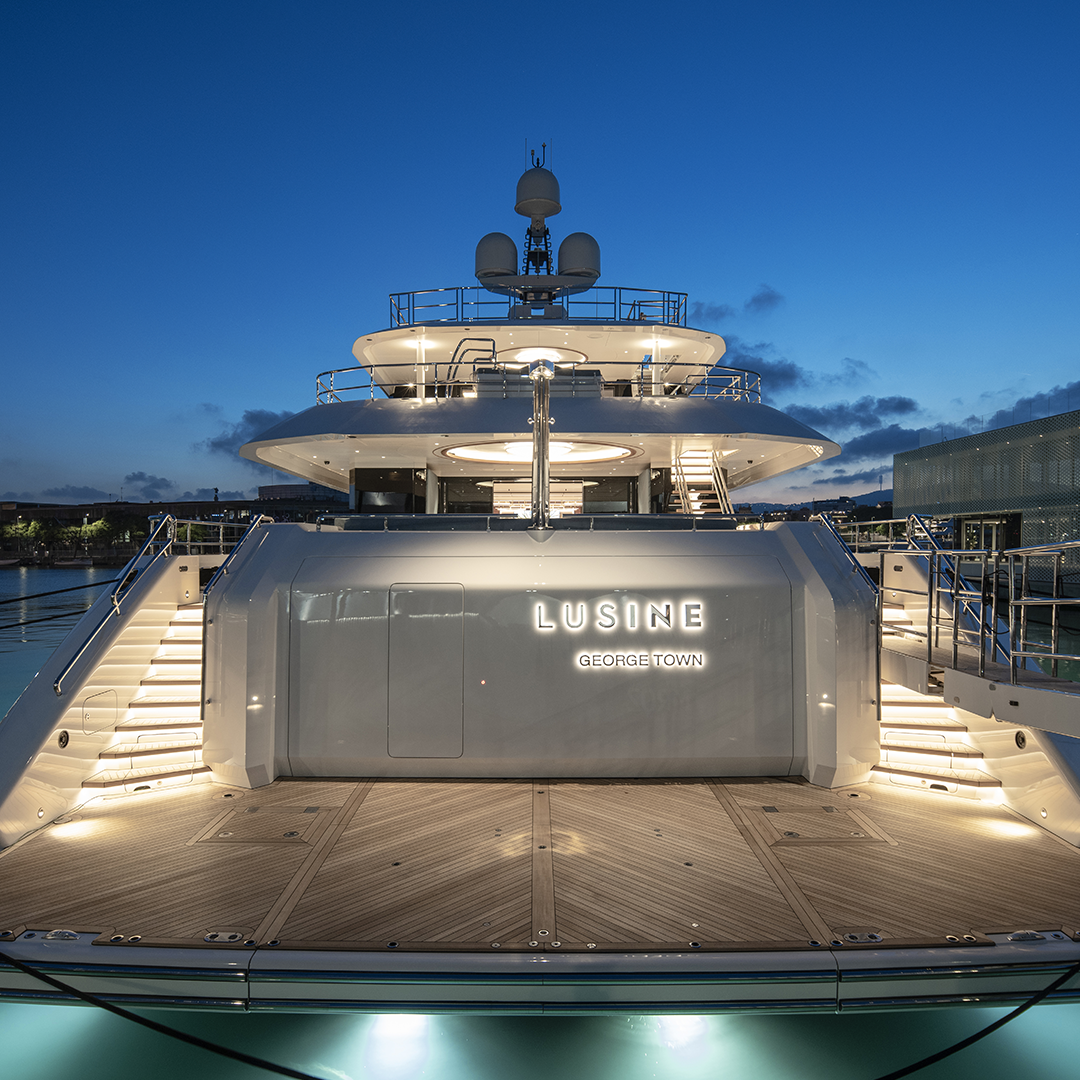

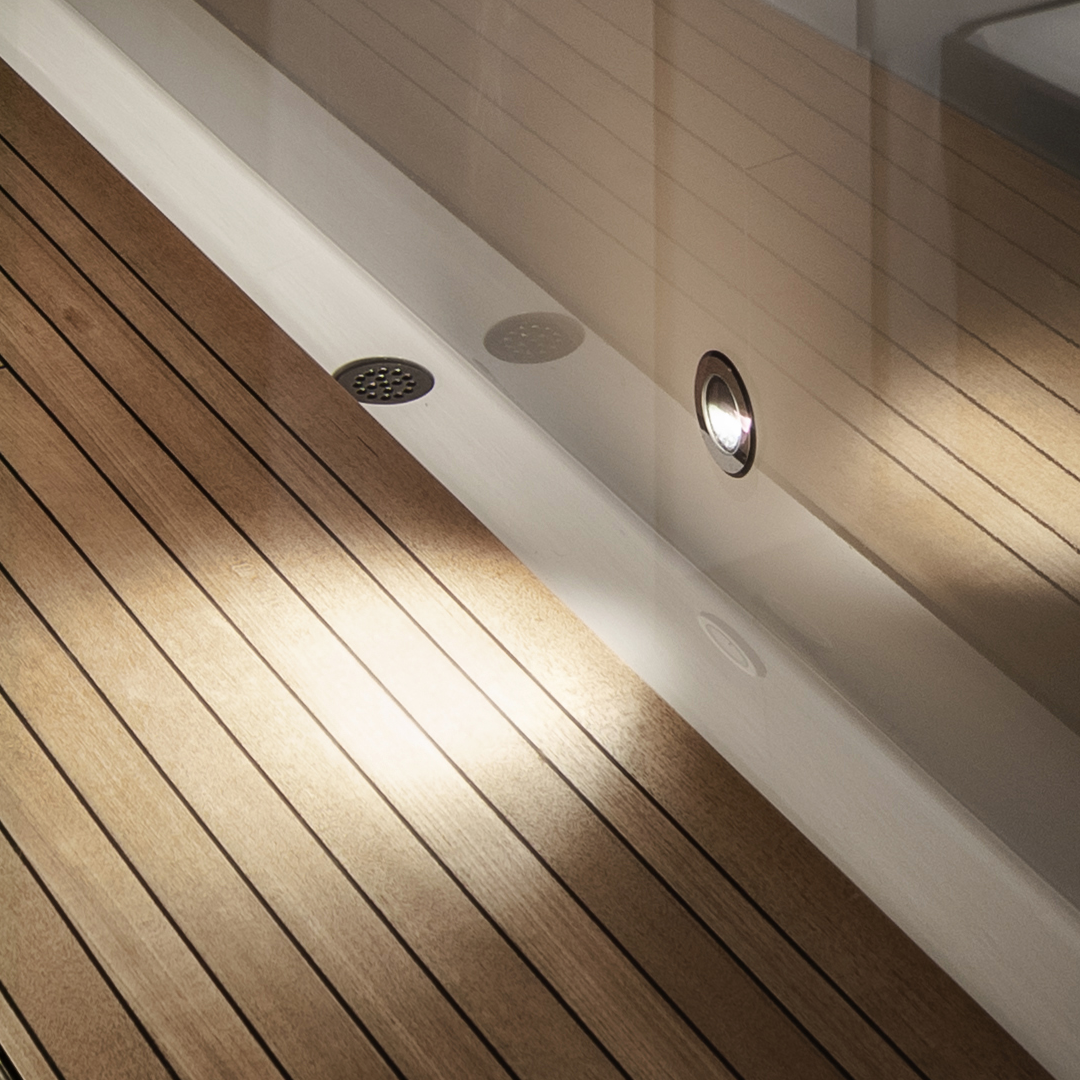

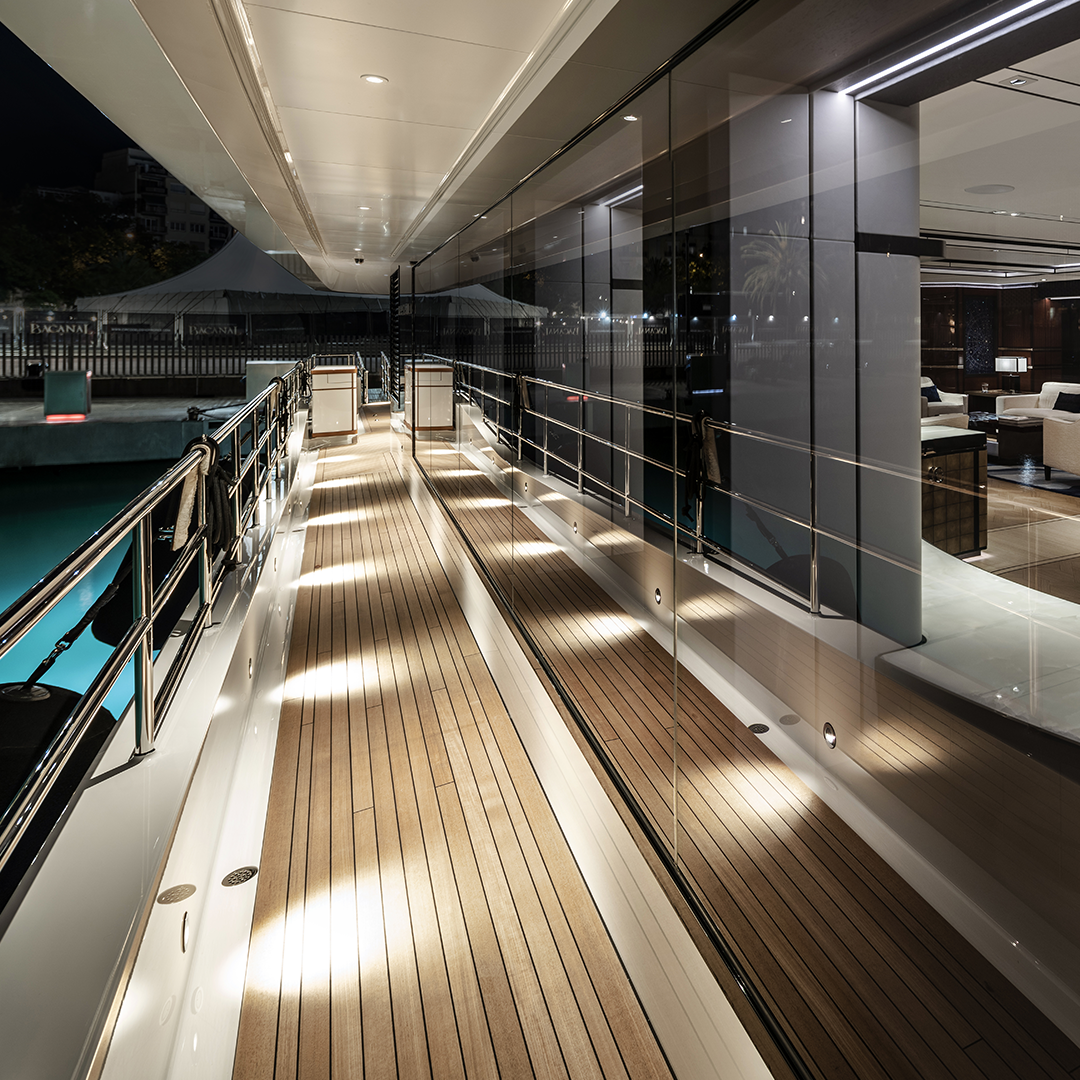

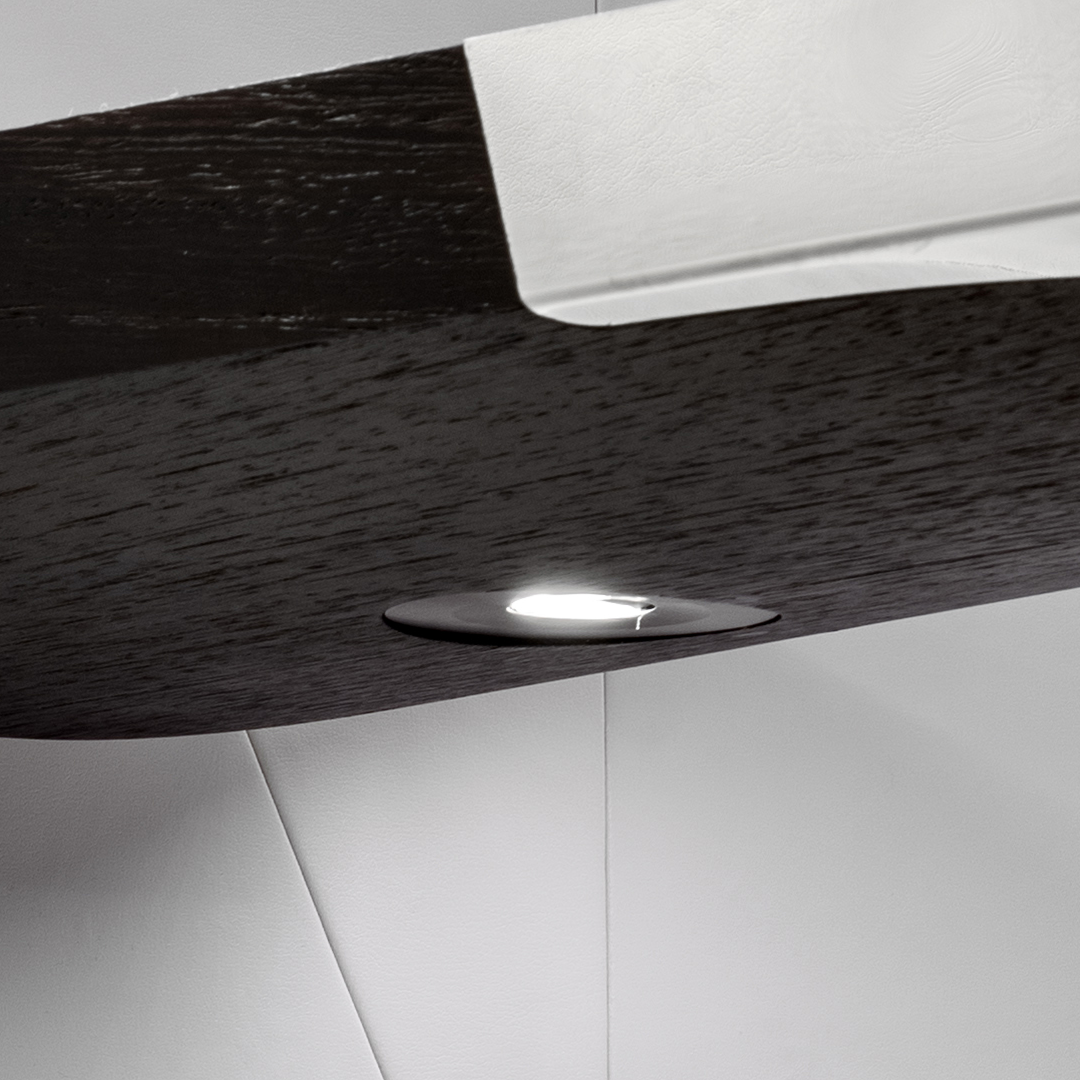

MY Lusine

MY Lusine  Lightgraphix Creative Lighting Solutions
MY Lusine  Lightgraphix Creative Lighting Solutions
MY Lusine  Lightgraphix Creative Lighting Solutions
MY Lusine  Lightgraphix Creative Lighting Solutions
MY Lusine  Lightgraphix Creative Lighting Solutions
MY Lusine  Lightgraphix Creative Lighting Solutions
MY Lusine  Lightgraphix Creative Lighting Solutions
< Back

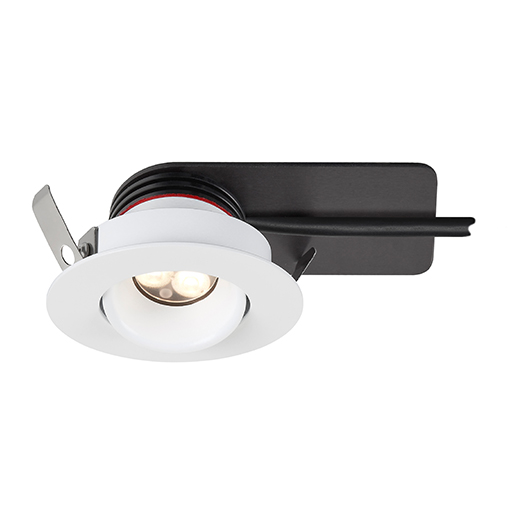

LD73SR

Description

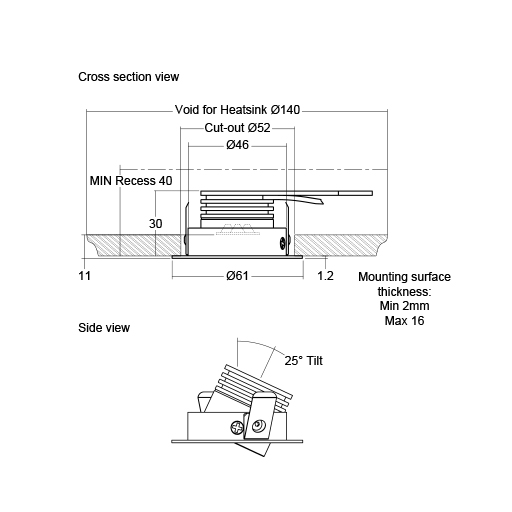

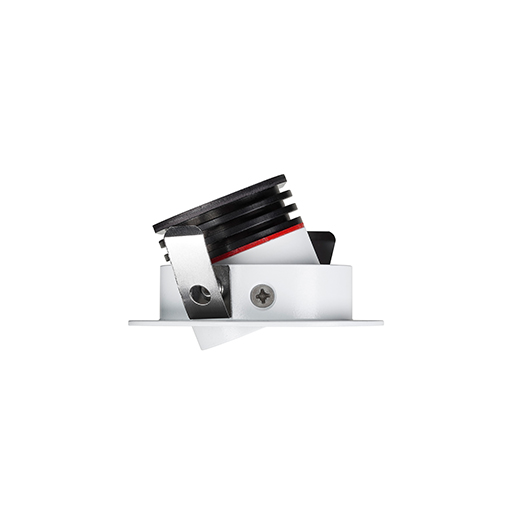

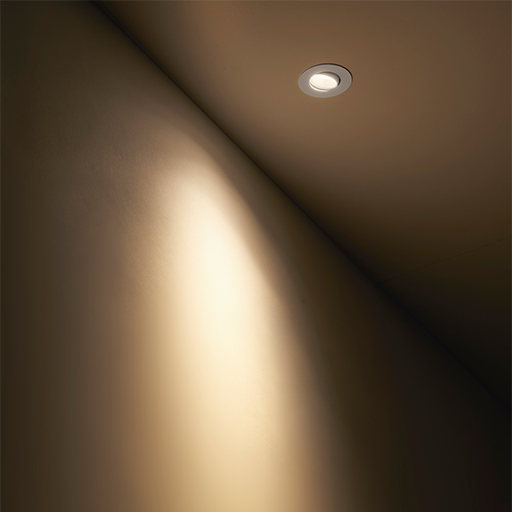

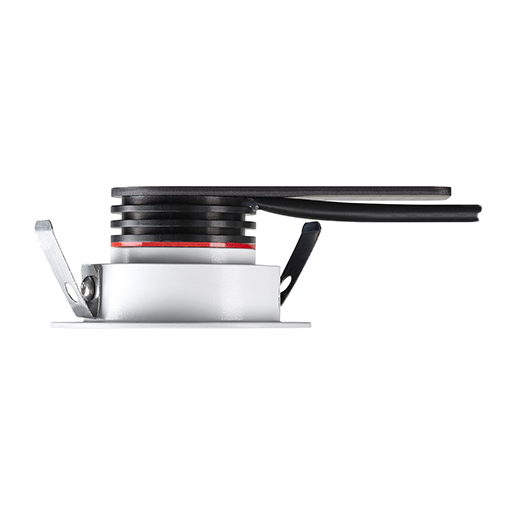

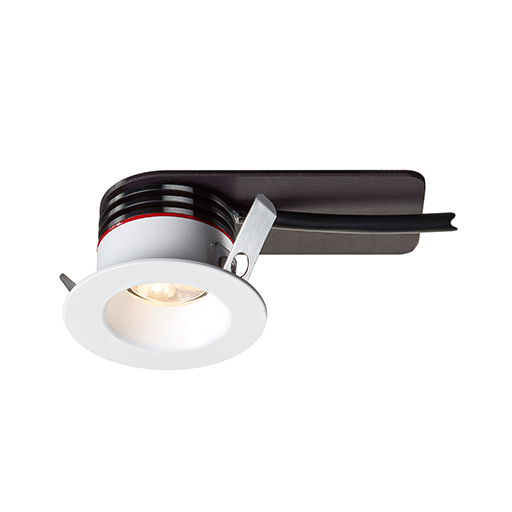

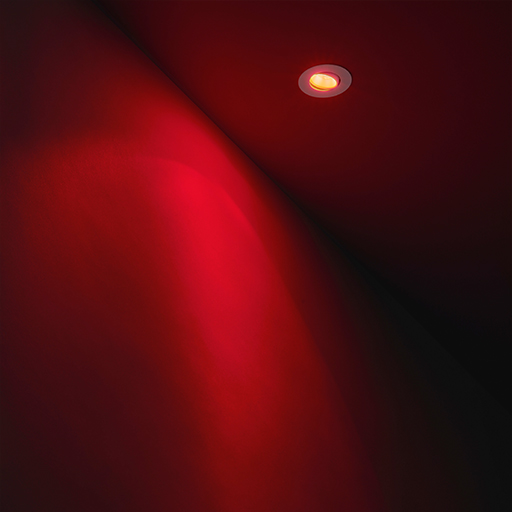

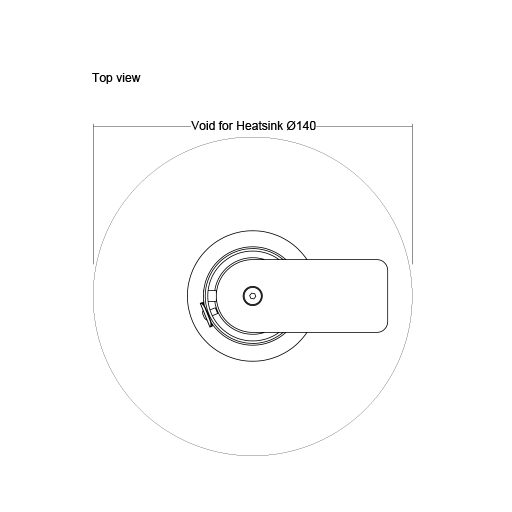

The LD73SR is part of a range of ultra shallow, high-power downlights designed to fit into ceilings with a minimal recess depth. The innovative horizontal heat sink plate combined with low profile optics ensure that the LD73SR fits into a ceiling depth of only 40mm, whilst delivering over 357lm. The tilt adjustment of 25° allows plenty of flexibility when focusing and makes it ideal for general lighting or display applications. Originally designed for yacht installations, this fitting can be specified with an extra red LED for nighttime navigation. It is also rated at IP54 as standard making it ideal for use in wet environments.

Applications

Display and Shelf, Downlights, Wall Wash, Yacht Lighting

Fixing

Spring Clips /SC

LED Information

3 X NICHIA LED C1 Engine: 3.6W @ 350mA (LD73SR-C1-350), 5.1W @ 500mA (LD73SR-C1-500)

Materials

Anodised aluminium body and painted bezel, 1.2mm borosilicate glass

IP Rating

IP54

Downloads

LD73SR
LD73SR Datasheet
LD73SR
Design Pack
LD73SR
Photometric LDT
Files
LD73SR
Install Instructions
LD73SR
Drivers
