LD1082

Description

The LD1082 is part of a range of ultra-shallow, high-power downlights designed to fit into ceilings with a minimal recess depth. With two engine options, this compact, high-quality downlight can deliver over 900lm making it ideal for general downlighting, as well as wall washing and architectural applications. A matt black internal baffle helps to reduce glare and can be custom painted to suit the design scheme. Rated IP40 as standard, LD1082 can also be specified as IP65 for wet or humid areas including bathrooms and spas. With a minimalistic design it complements most interior project styles that require a high-power light output, from a very compact, shallow fitting.

Applications

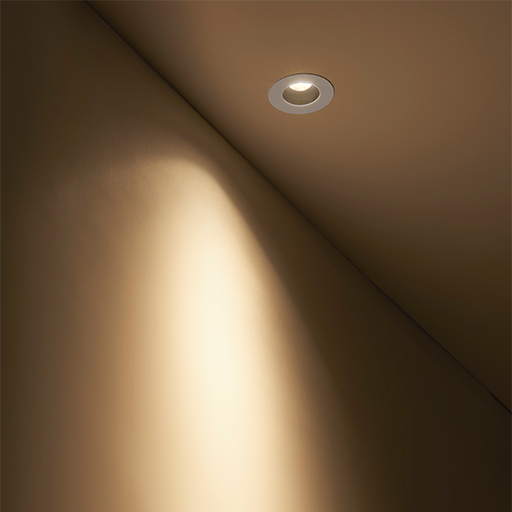

Downlights, Wall Wash, Yacht Lighting, (600lm-900lm) Compact+ range

Fixing

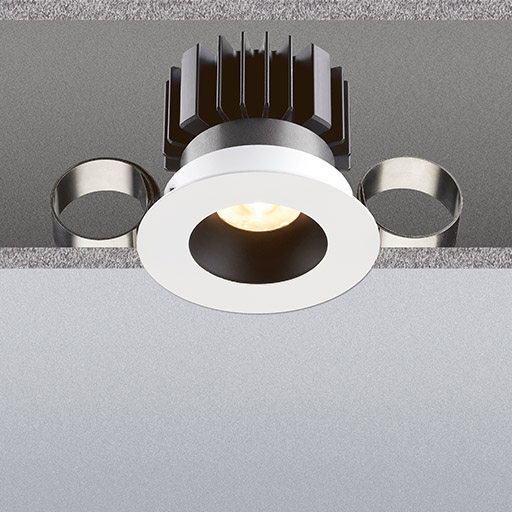

/SC - 2 x spring clips supplied as standard

LED Information

E3 NICHIA LED engine - up to 10W @ 700mA
N1 CREE LED engine - up to 14W @ 700mA

Materials

Anodised aluminium bezel and body, stainless steel spring clips, 1mm low iron glass

IP Rating

IP40 or IP65

Accessories

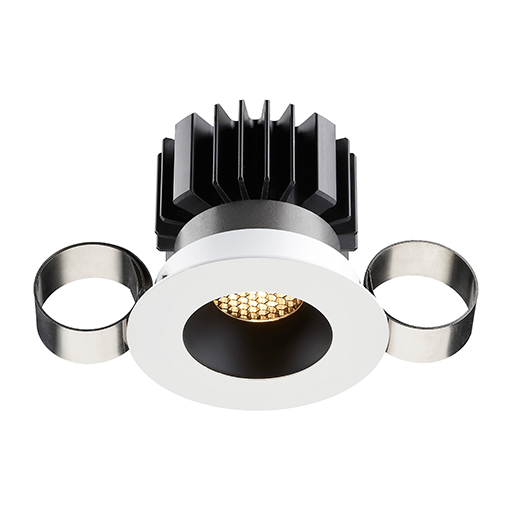

/HL - Honeycomb Louvre

Downloads

LD1082
LD1082E3N1 Datasheet
LD1082
Design Pack
LD1082
Photometric LDT
Files
LD1082
Install Instructions
LD1082
Drivers
