LD1094

Description

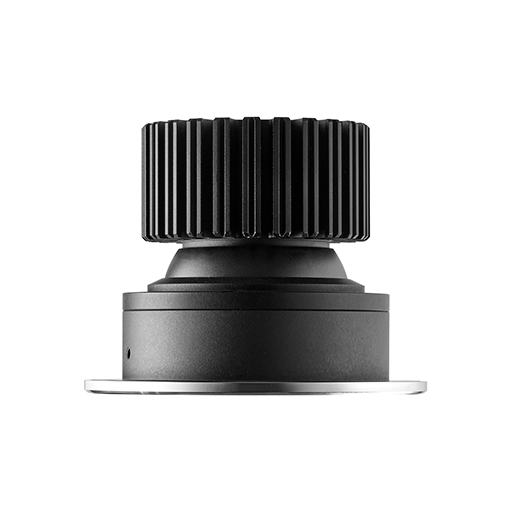

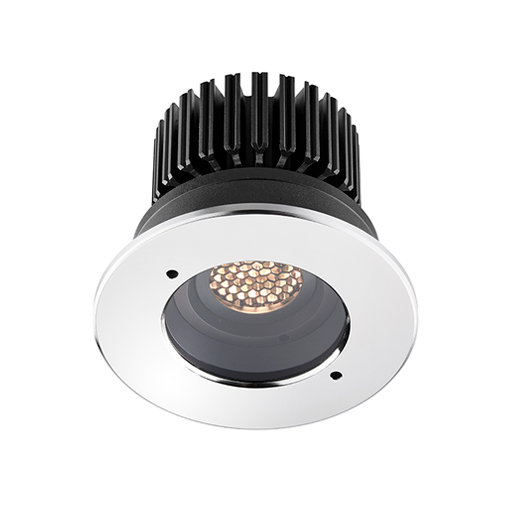

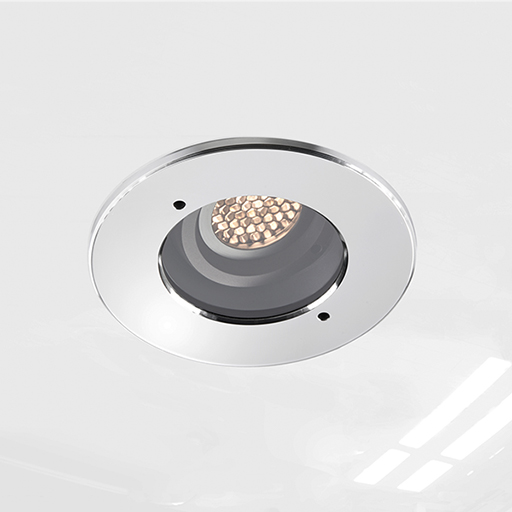

The LD1094 is an IP67/IP65 rated high-power adjustable recessed downlight, designed for challenging marine environments. Featuring an innovative 360° rotating ball-joint, the deep recessed lens assembly can be positioned in any direction and tilted up to 25° for ultimate flexibility. After installation, focusing can be carried out quickly and glare control accessories interchanged by unscrewing the bezel, eliminating the need for the product to be removed from the mounting surface. With a shallow depth of just 67mm, this product is ideal for areas with a height restriction and provides a wide range of hidden fixing options to suit a variety of ceiling types. The LD1094 delivers in excess of 750lm and is available with N1 LED engine offering colour temperatures between 2200K-5000K, as well as several beam angles for multi-purpose use of the fitting throughout a project. This robust downlight solution ensures excellent thermal and light output performance that is built to last in harsh applications.

Key Features

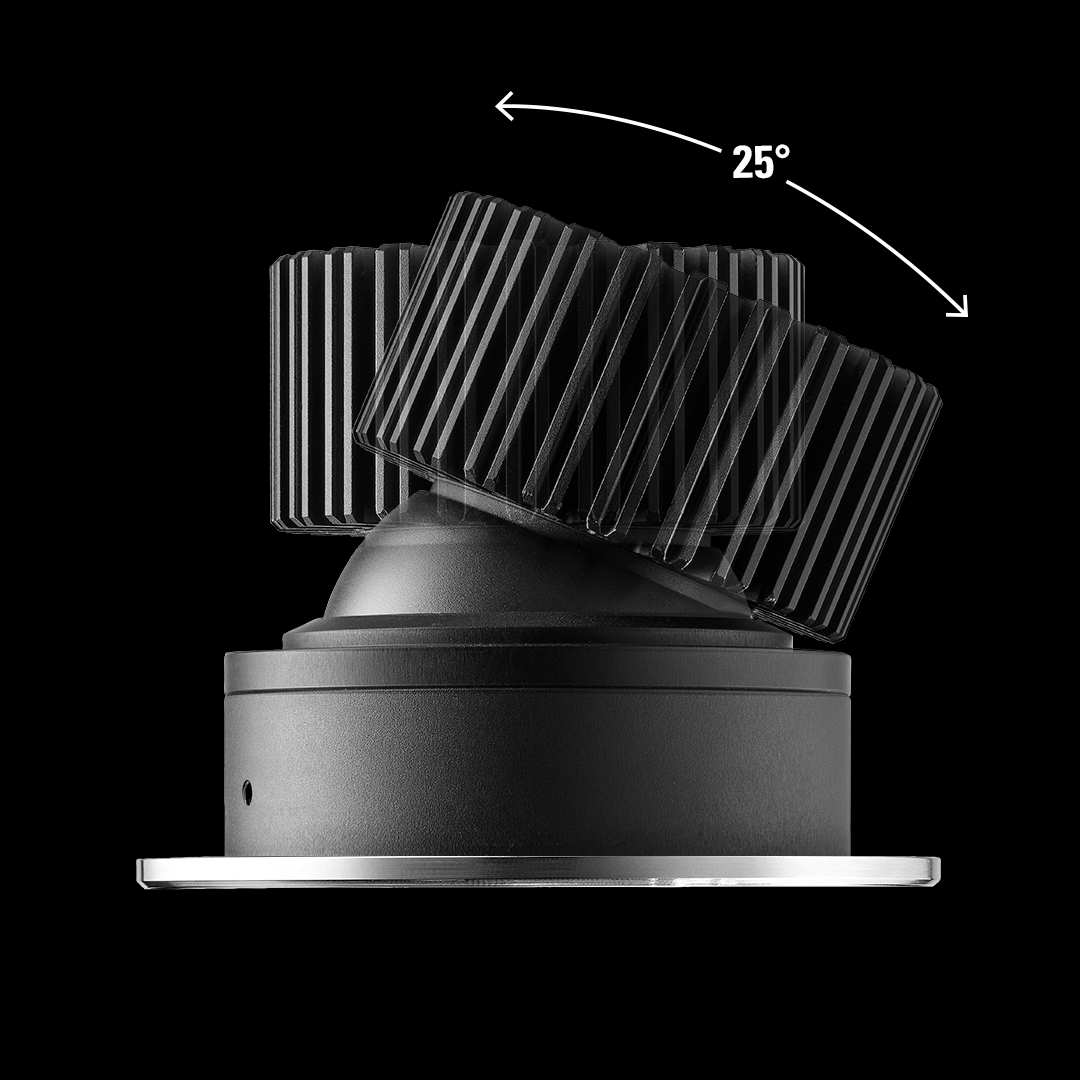

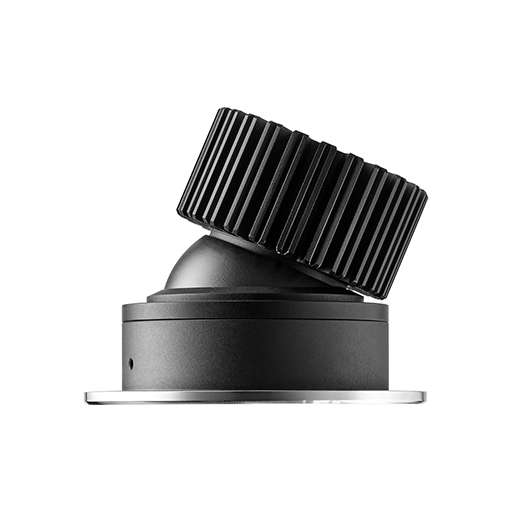

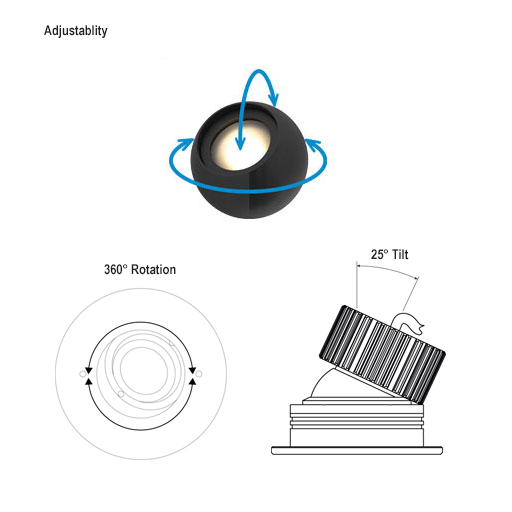

  • Innovative 360° rotating ball-joint can be positioned in any direction and tilted up to 25° for ultimate flexibility when focusing onsite

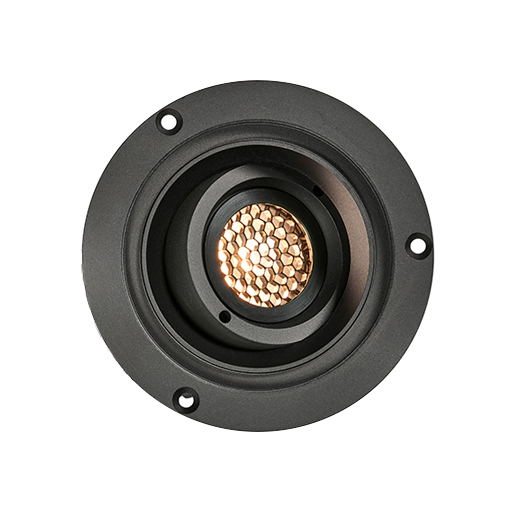

  • Removable bezel for quick and easy on-site focusing once the product is installed
  • Very shallow depth, ideal for height restricted applications
  • Rated IP67 (front) IP65 (back)
  • Interchangeable optics and glare control accessories including honeycomb louvre
  • Beam angles include 28° medium spot, 35° medium, 46° wide, 65° extra wide
  • and a 22 x 43° oval beam
  • Single optic produces superior beam shape and no multiple shadows

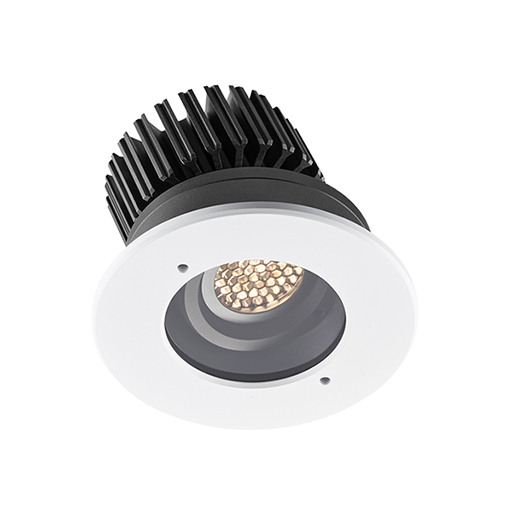

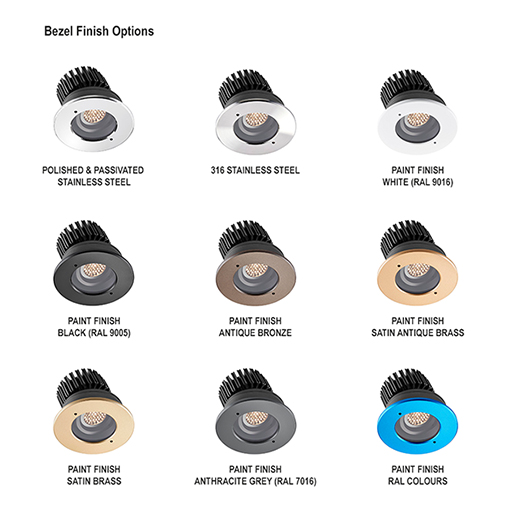

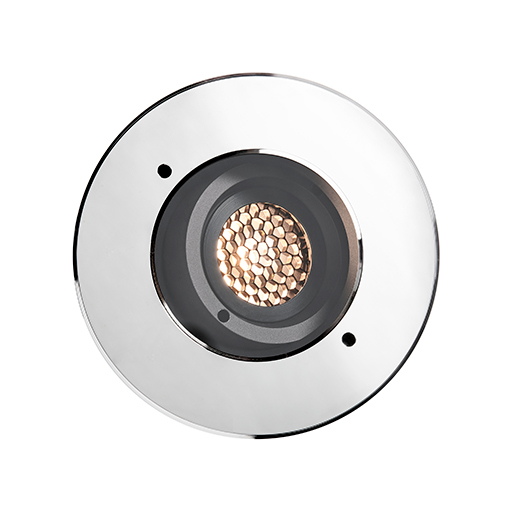

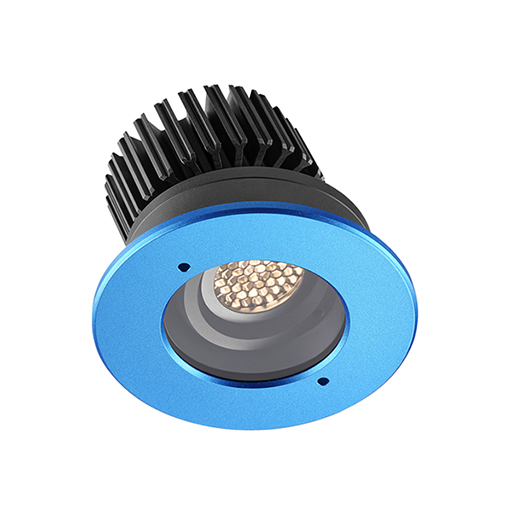

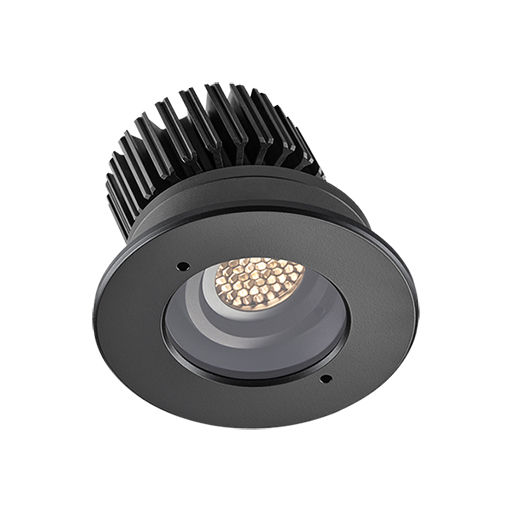

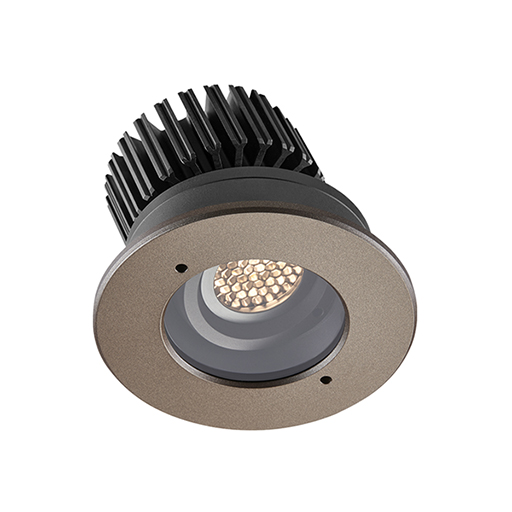

  • High quality machined bezel available in: Polished & Passivated 316 Stainless
  • Steel, 316 Stainless Steel, White (RAL 9016), Black (RAL 9005), Antique Bronze,

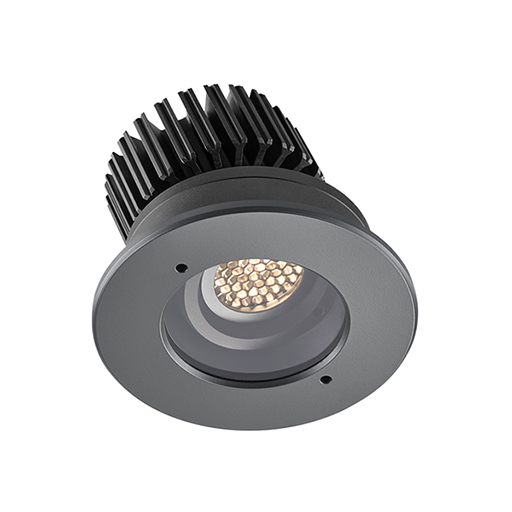

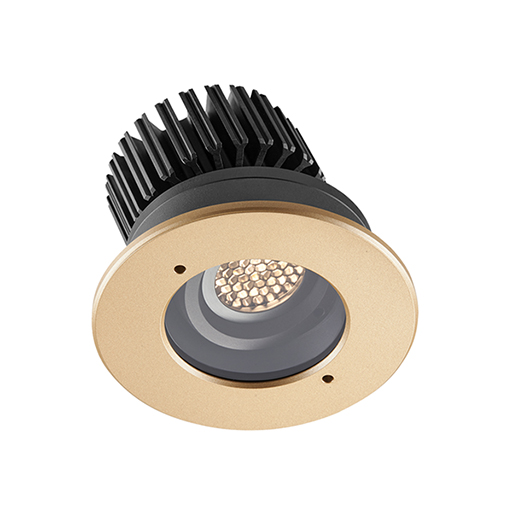

  • Satin Antique Brass, Satin Brass, Anthracite Grey (RAL 7016) and any RAL
  • N1 LED engine, producing up to 755 lumens in 3000K
  • Various hidden fixing methods for multiple ceiling types
  • Switched, 0-10V, Casambi, DMX, DALI or Mains dimmable drivers available



Applications

Downlights, External, Yacht Lighting

Fixing

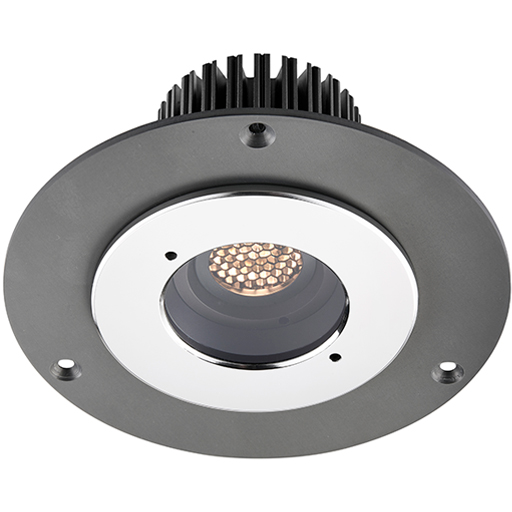

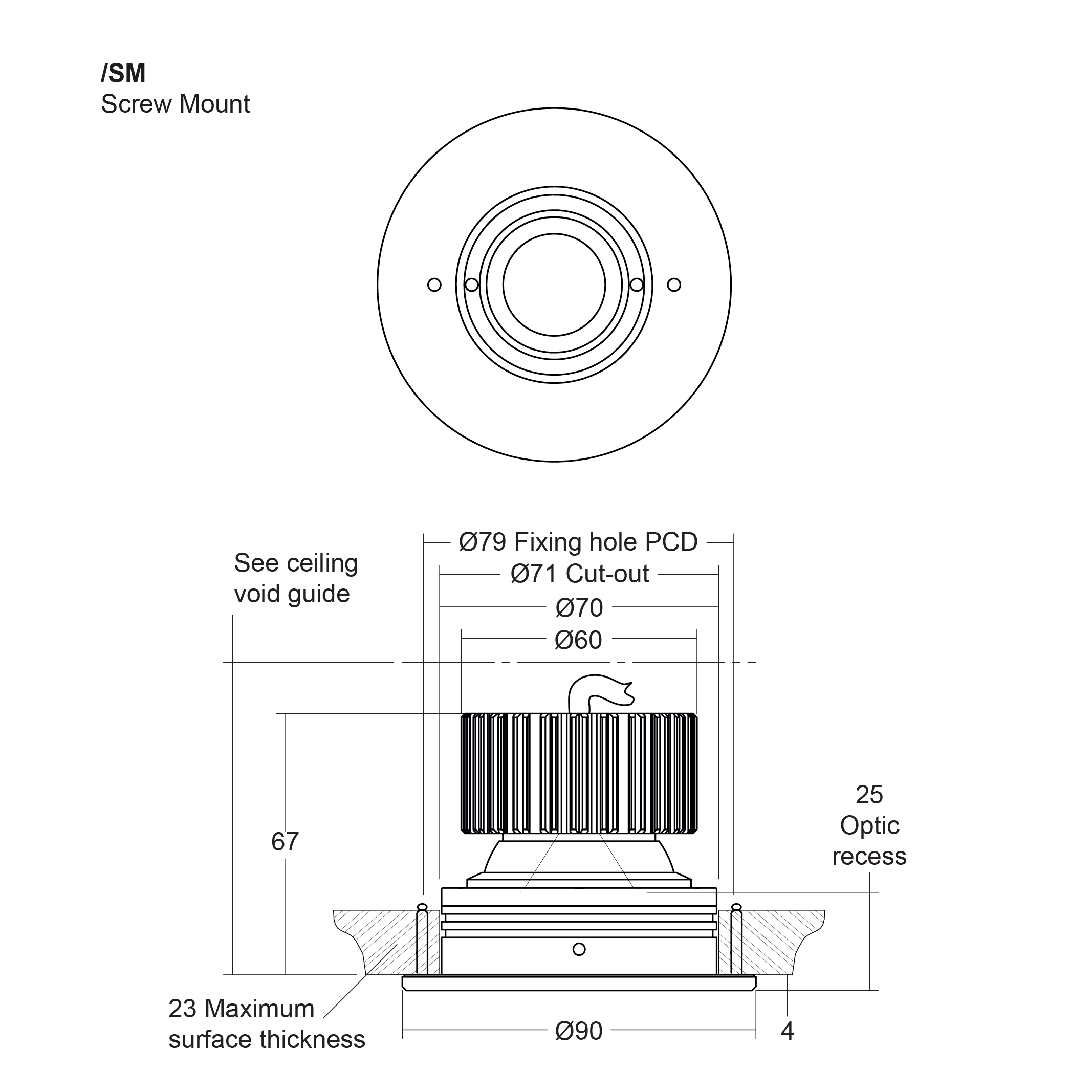

/SM screw mount, /SC 2 x spring clips, /CMR ceiling mount ring

Lamp Information

N1 LED Engine - up to 14W @ 700ma

Materials

Black anodised aluminium body, 316 stainless Steel bezel

IP Rating

IP67 (front) IP65 (back)

Accessories

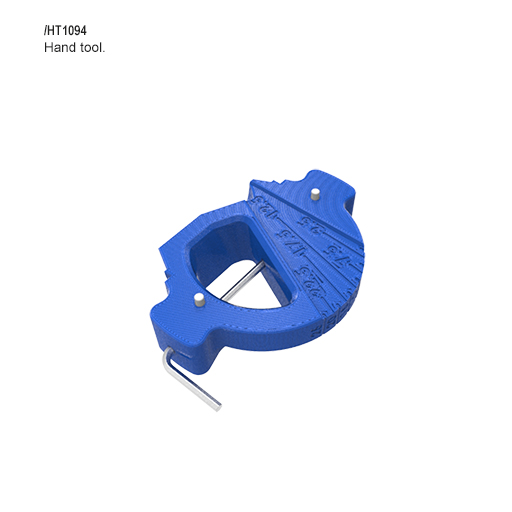

Honeycomb louvre, optic and accessory ring holder, HT1094 hand adjustment tool
