LD150

Description

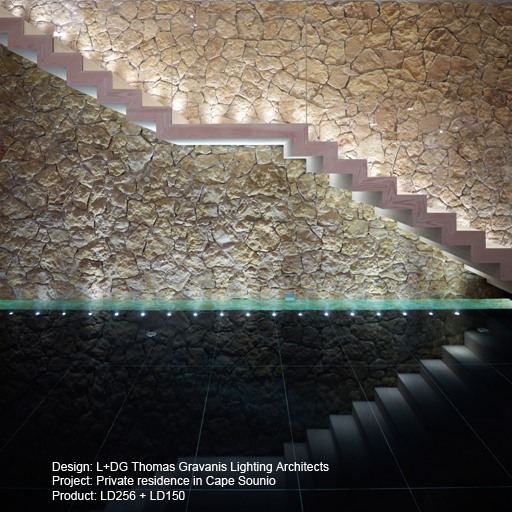

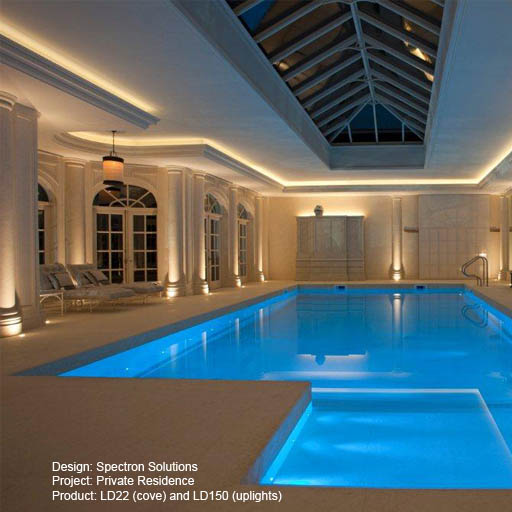

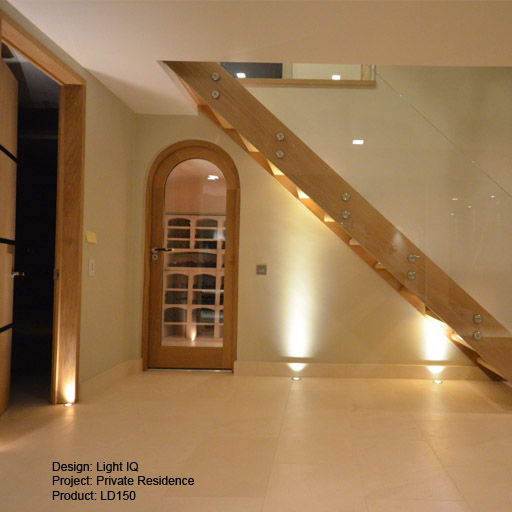

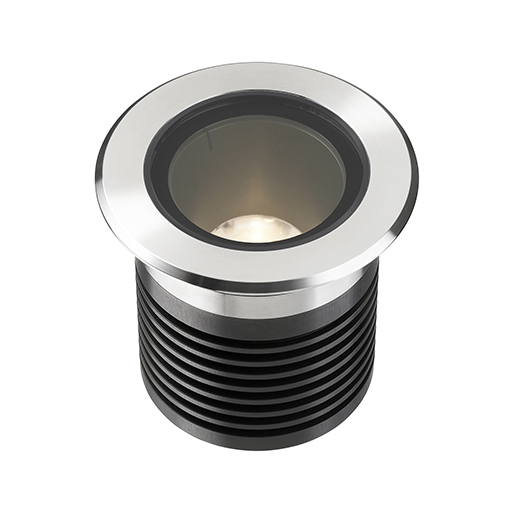

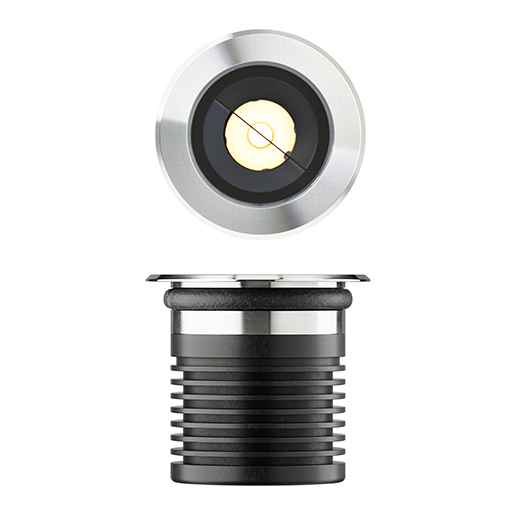

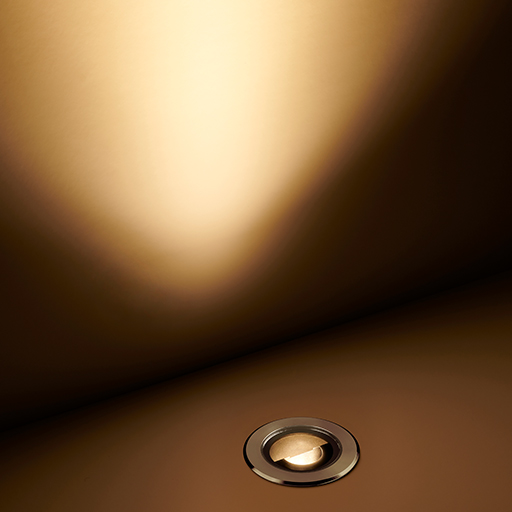

The LD150 is a powerful uplight with a compact size and depth, designed specifically to produce low glare illumination to interior walls and columns. It can be specified with a wide range of options allowing it to suit most project requirements. Available LED engines include E3, Tunable White, RGBW and F1 which offer a range of colour temperatures between 2200K-5000K and beam angles, with multiple accessories and bezel finishes to choose from. The bezel aesthetic is minimal with a chamfered edge, black trim glass and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

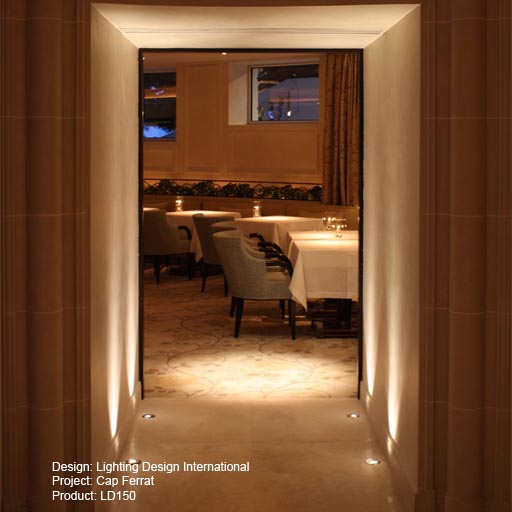

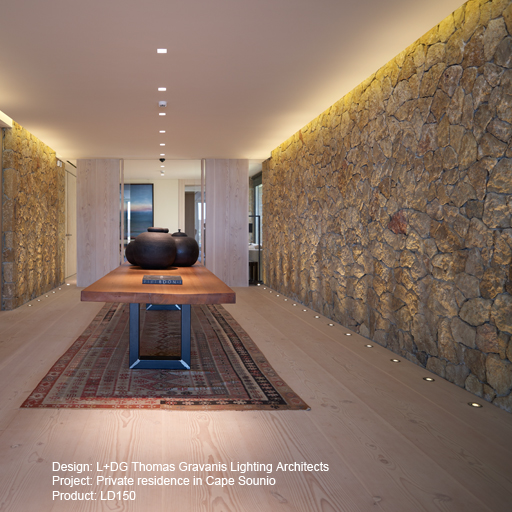

Colour Change, Recessed Uplighting, Wall Wash, Tunable White, (600lm-900lm) Compact+ range

Fixing

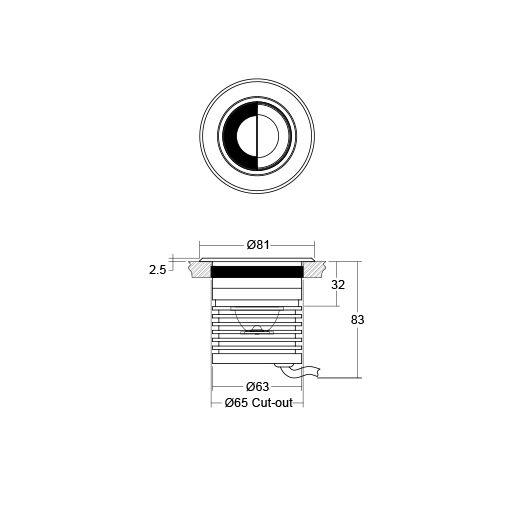

Push fit into cut out with the soft silicon seal, using the fixing sleeve or the concrete housing with optional integral driver

LED Information

E3 LED Engine - Up to 10W @ 700mA (White)

E3-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)
F1 LED Engine - Up to 7W @ 700mA (White)
TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)
RGBW LED Engine - Up to 7W @ 500mA (4 x 1.7W)
CLR LED Engine - Up to 7W @ 500mA

Materials

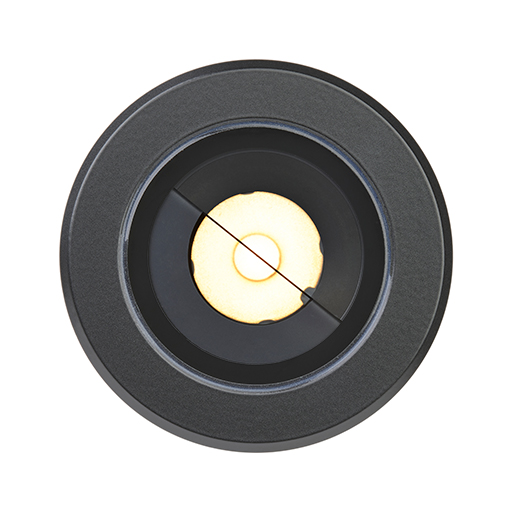

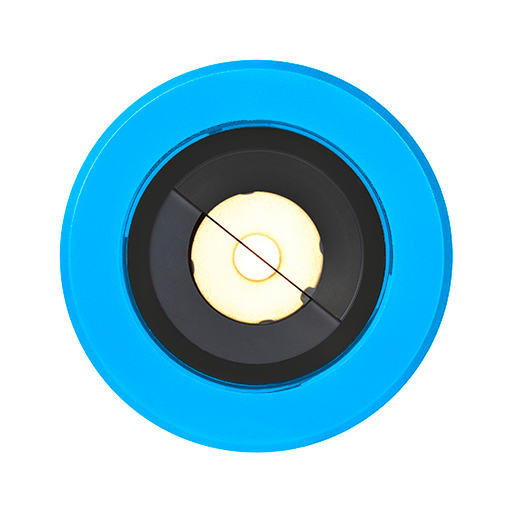

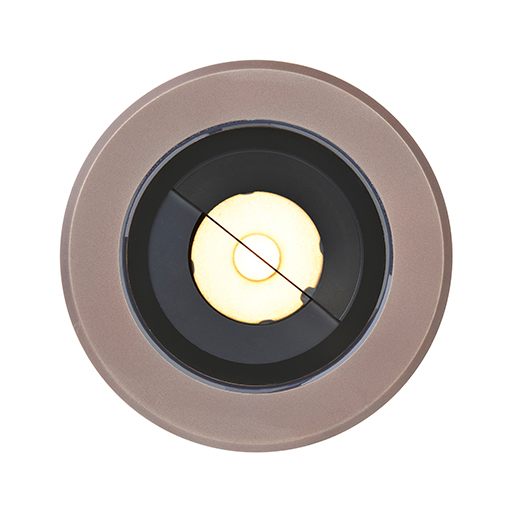

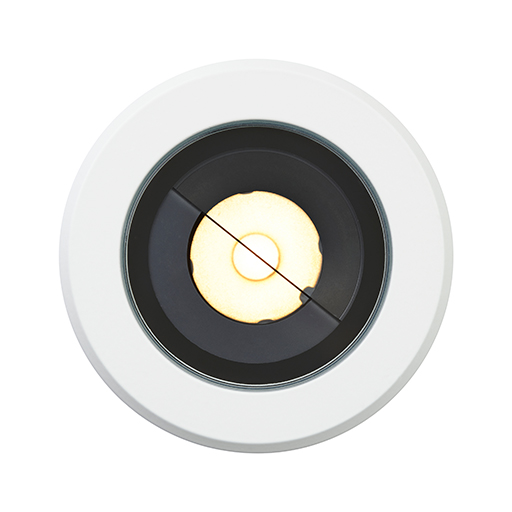

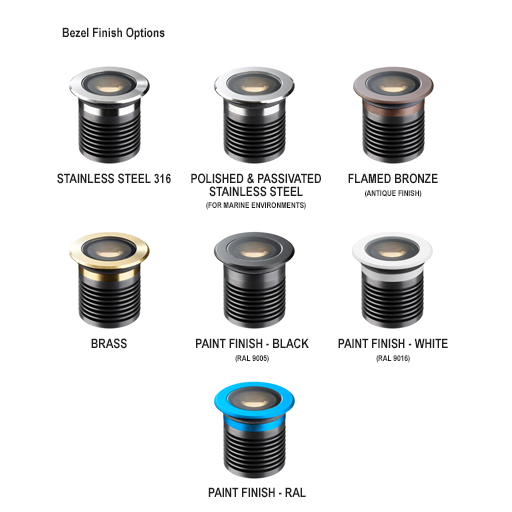

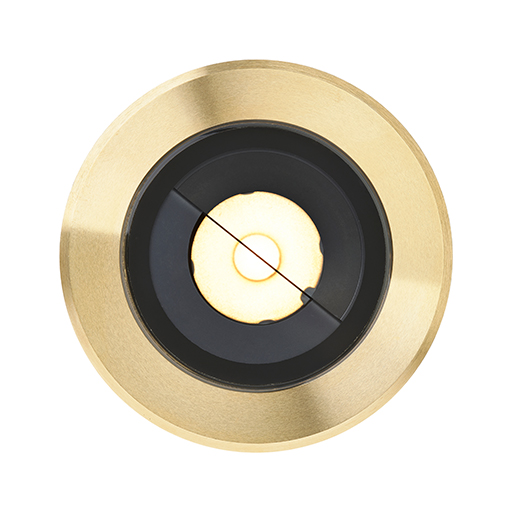

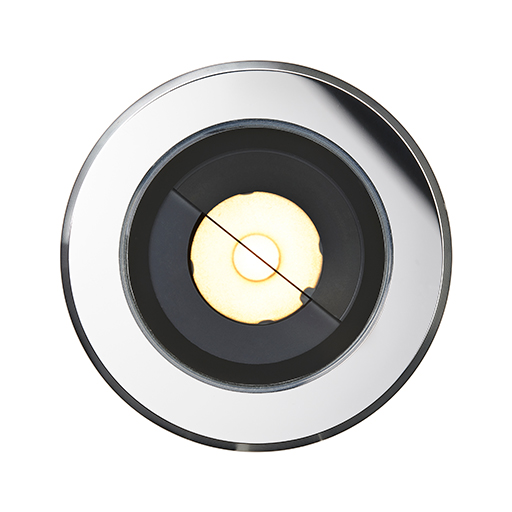

Bezel: Machined 316 Stainless Steel, Polished Stainless Steel, Flamed Bronze, Brass, RAL paint finish

Body: black anodised aluminium

IP Rating

IP54

Accessories

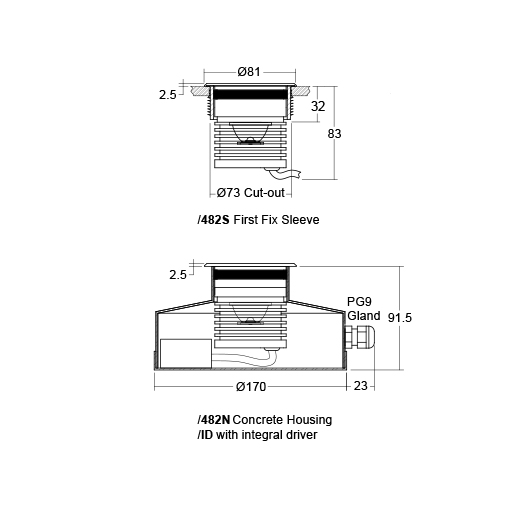

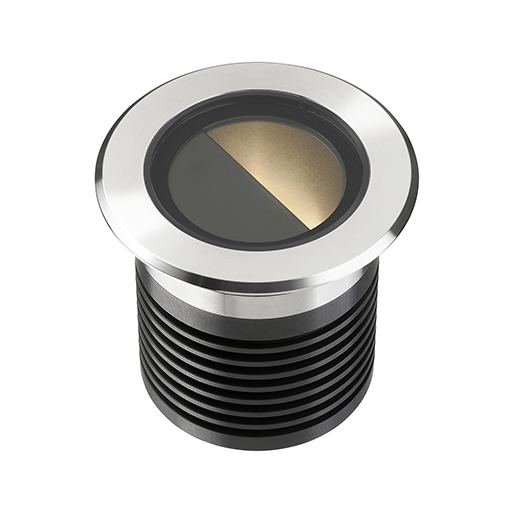

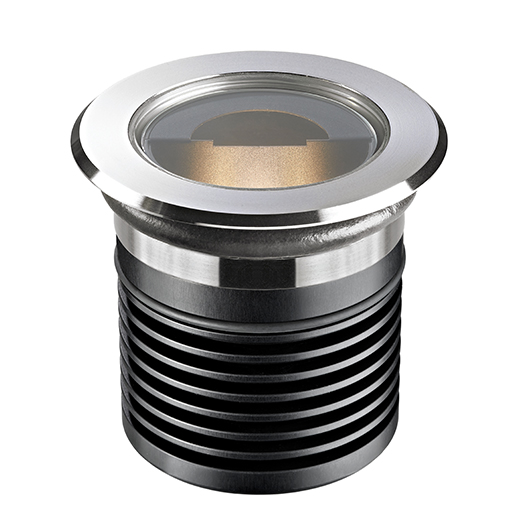

/GS Glare shield, /GSHM Half-moon glare shield, /482S First fix sleeve, /482N Concrete housing with optional /ID Integral driver
