LD151T

Description

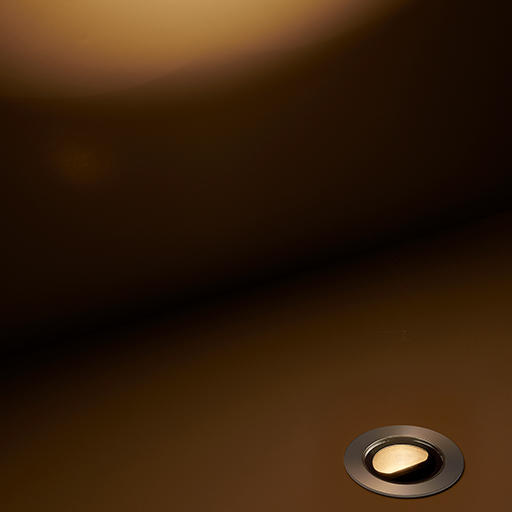

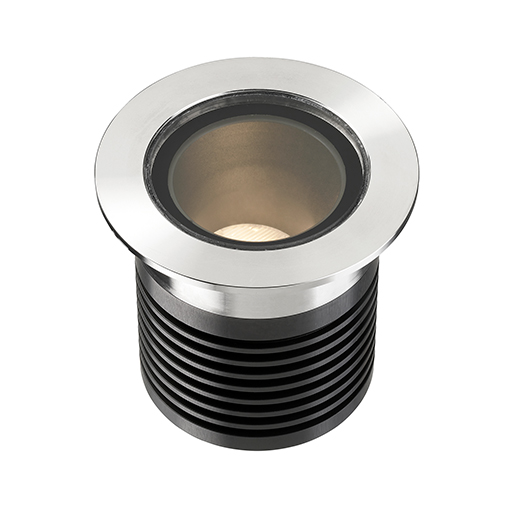

The LD151T is a powerful interior and exterior uplight with a compact size and depth that has been designed with the LED and optics at a 6º tilt. This feature focuses the light onto the lit surface reducing spill onto any ceiling or canopy. By angling the light it reduces glare and allows installation further away from the wall or column. This product can be specified with a wide range options allowing it to suit many project requirements with multiple bezel finishes to choose from as well as accessories, including its own unique glare shield. Available LED engines include E2, Tunable White, RGBW and F1 which offer a range of colour temperatures between 2200K-5000K and various beam angles. When used with an oval beam the LD151T offers a superb wall washing effect. The bezel aesthetic is minimal and features black trim glass and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

External, Recessed Uplighting, Wall Wash

Fixing

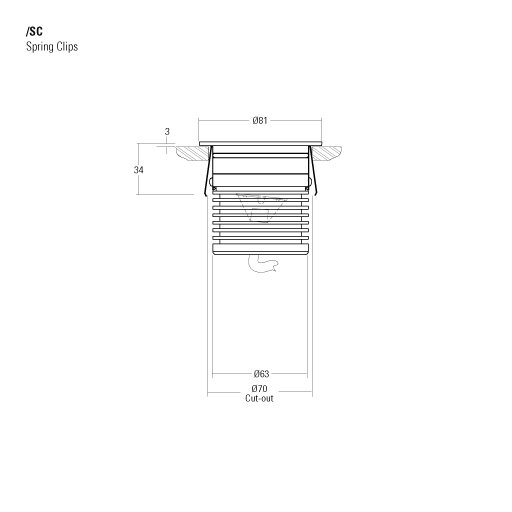

Comes with fixing sleeve and 'O' rings

Lamp Information

E2 LED Engine - Up to 10W @ 700mA (White)

E2-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)

F1 LED Engine - Up to 7W @ 700mA (White)

Materials

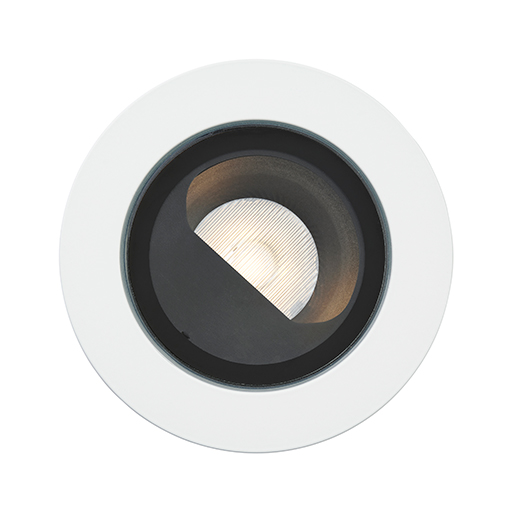

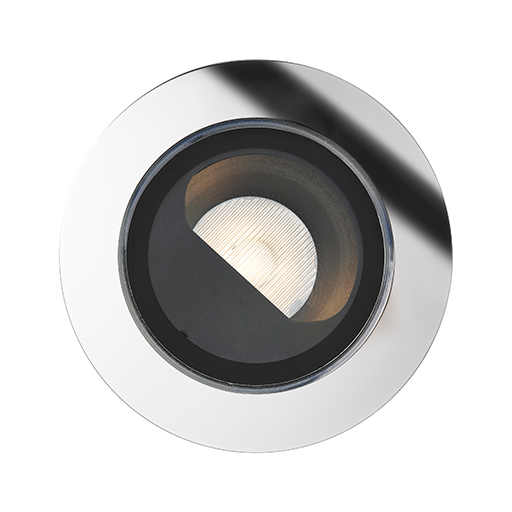

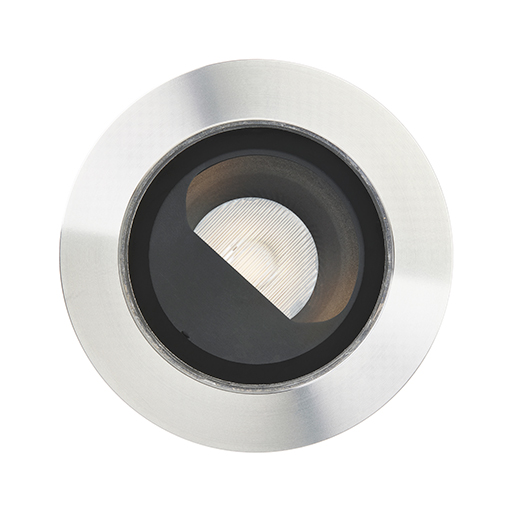

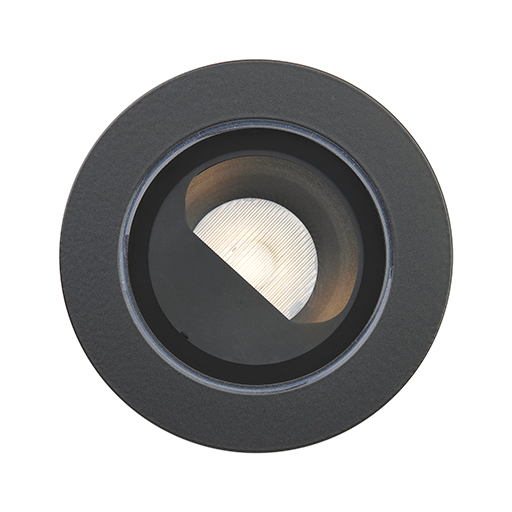

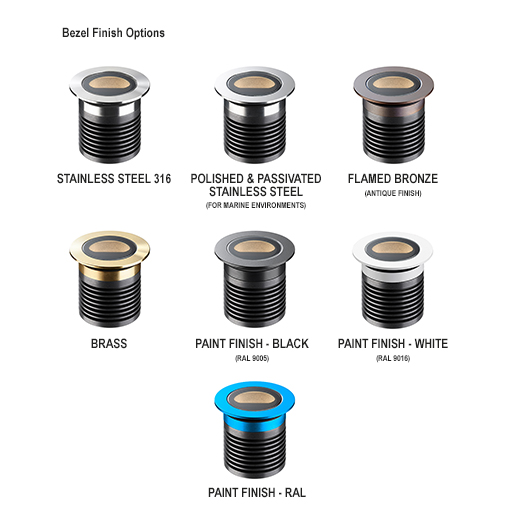

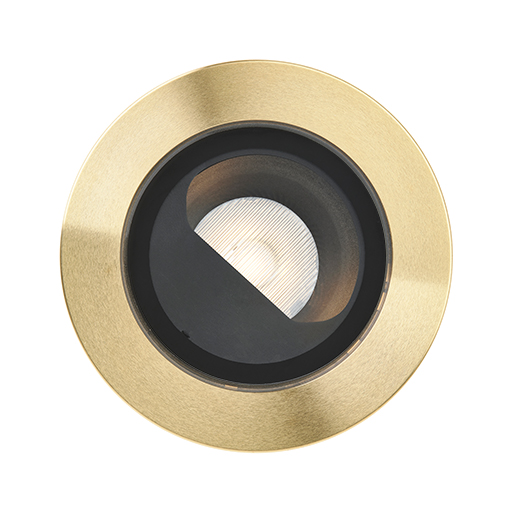

Bezel: machined 316 Stainless Steel 316, Polished Stainless Steel, Brass, Bronze and RAL paint finish

Body: black anodised aluminium

IP Rating

IP67

Accessories

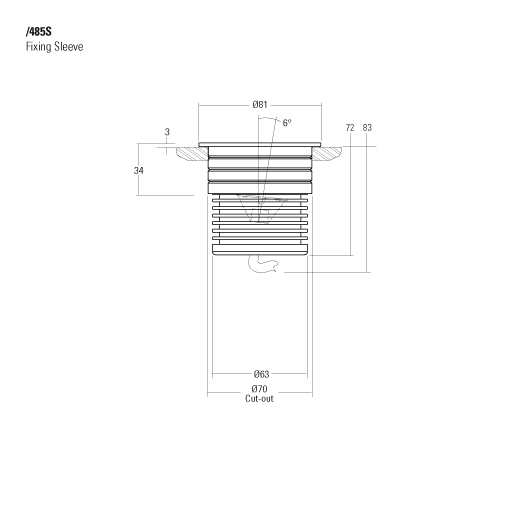

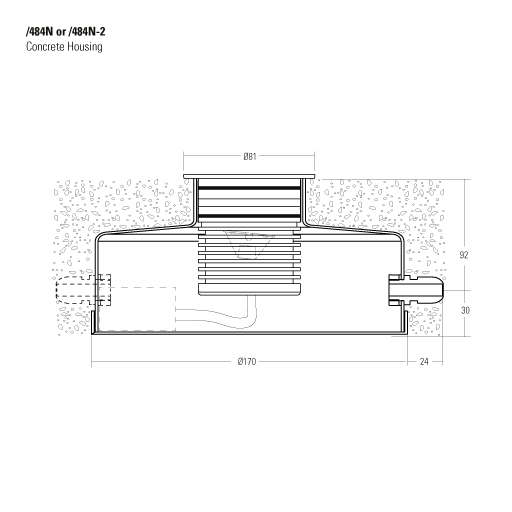

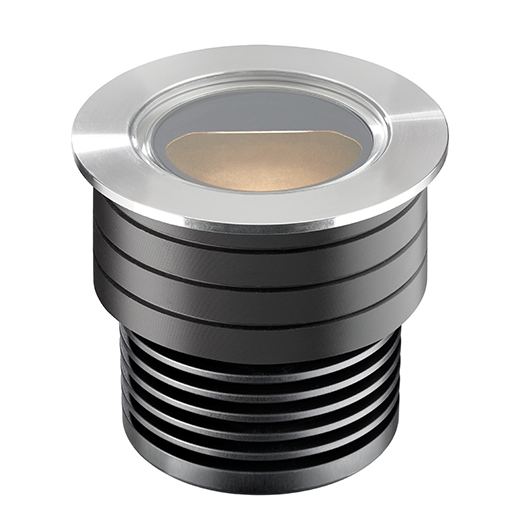

/GS Glare shield, /484 fixing sleeve and 'O' rings /484N Concrete housing with optional /ID Integral driver
