LD10238

Description

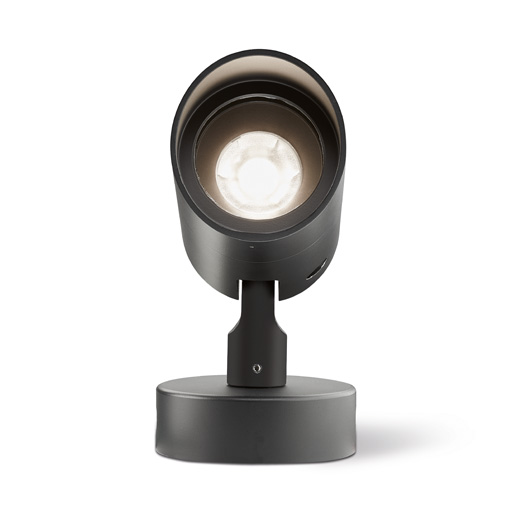

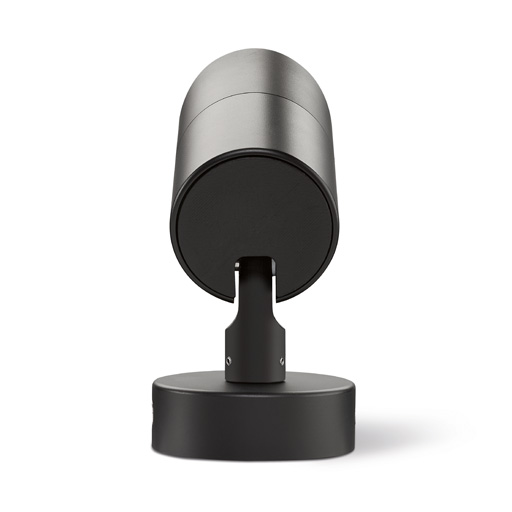

The LD10238 is a compact, high powered surface mounted spotlight, suitable for use in interior or exterior applications. It can be specified with a wide range of options allowing it to suit most project requirements. Available LED engines include E3, Tunable White, N1 and F1 LEDs offering multiple outputs, excellent CRIs of 90+ (N1 & F1 COBs) and colour temperatures between 2200K-5000K. It has a minimal design and is supplied with an anti-glare cowl as well as a choice of mounting methods, such as a bracket, mount base, tree strap or adjustable ground spike. The use of a matt black inner baffle, recessed LED, single optic and optional honeycomb louvre ensure excellent low glare illumination. With a large selection of paint finishes available and fixing options, the LD10238 can blend discreetly into many environments. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

Colour Change, External, Surface Mounted, Wall Wash, Yacht Lighting, Tunable White, (600lm-900lm) Compact+ range, Part L Compliant (Display), Fifty Degree Ambient (50°C)

Fixing

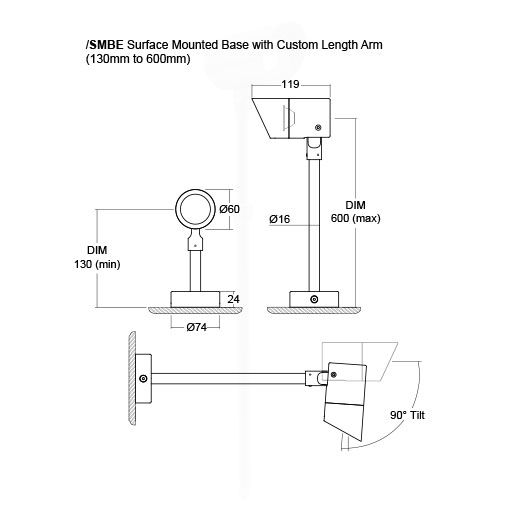

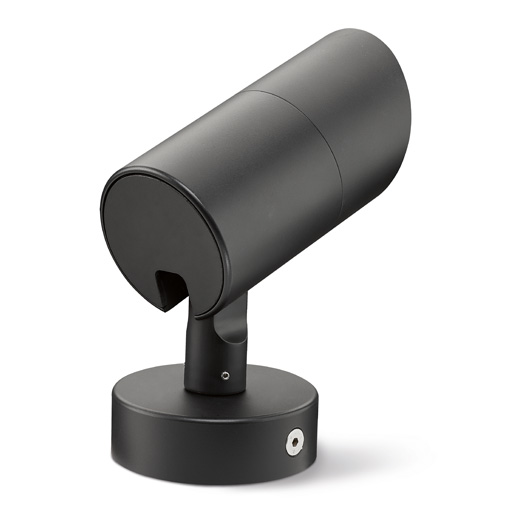

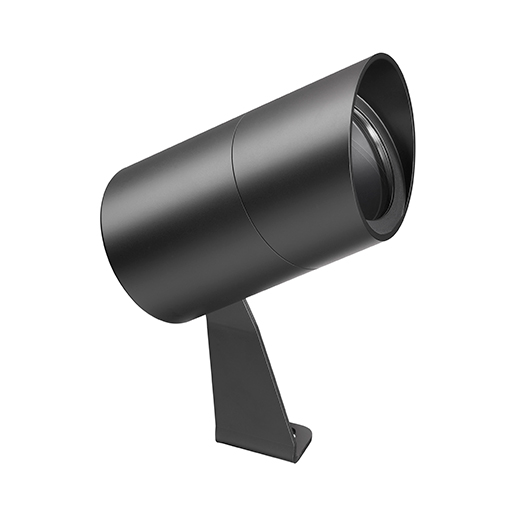

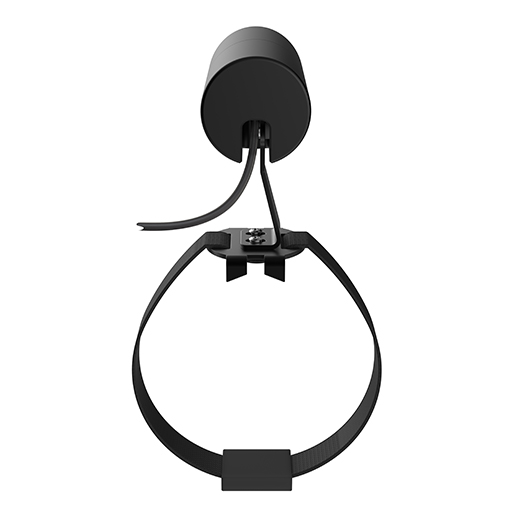

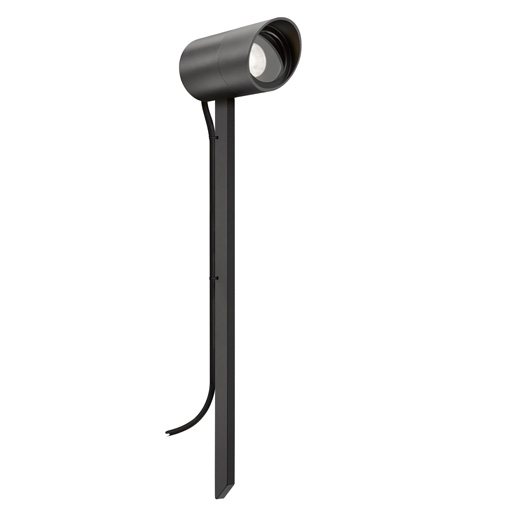

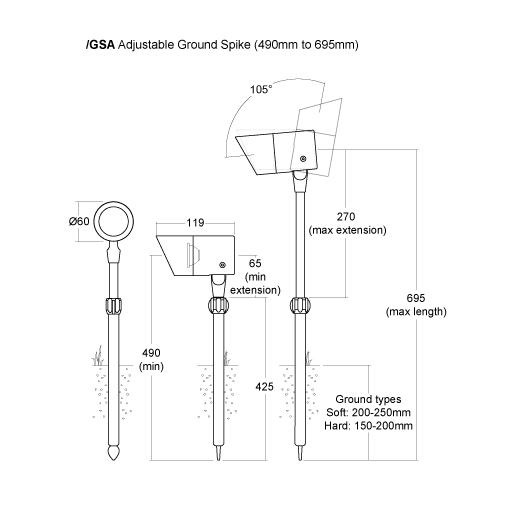

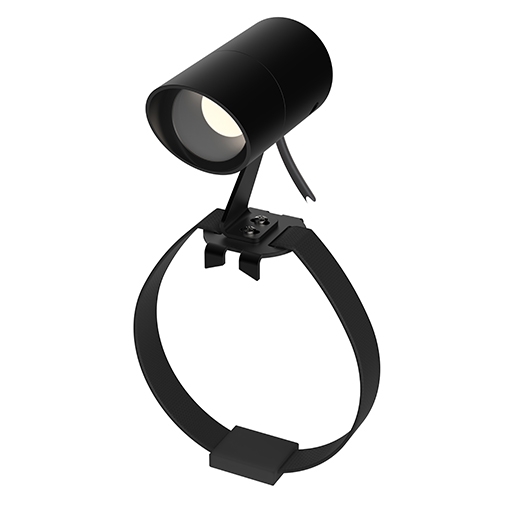

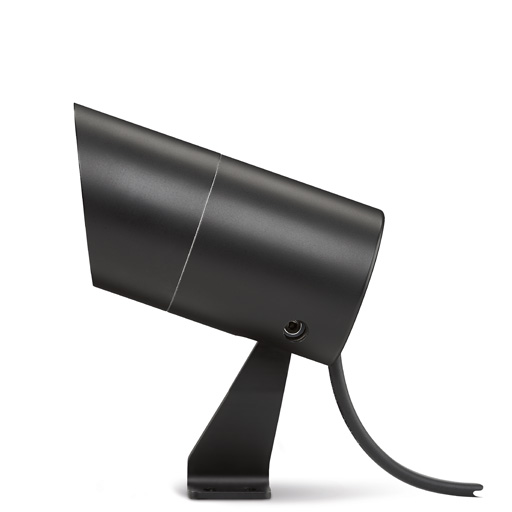

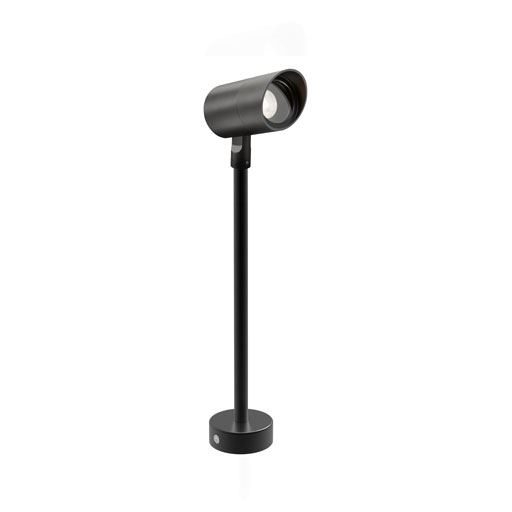

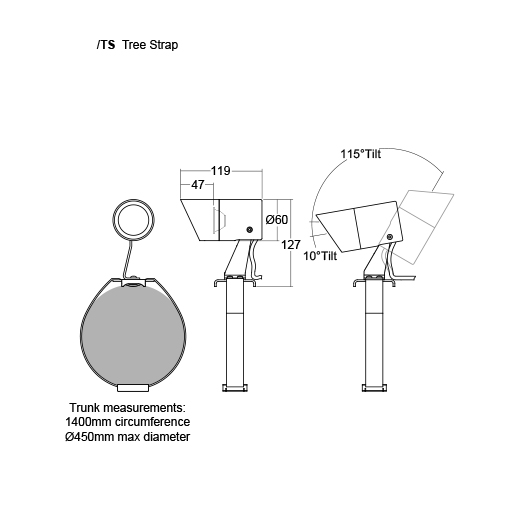

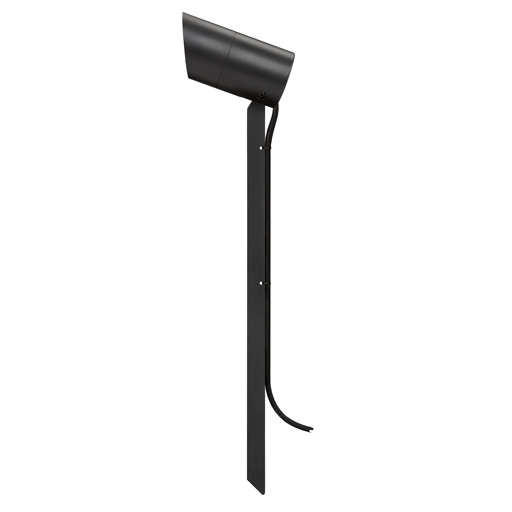

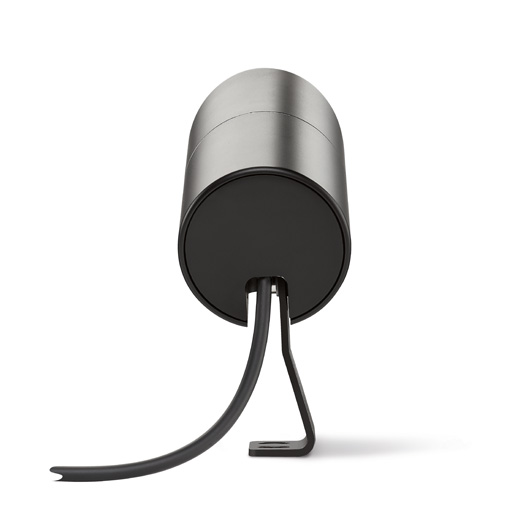

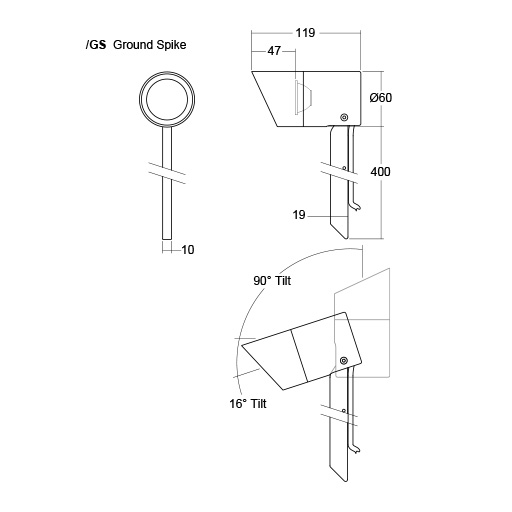

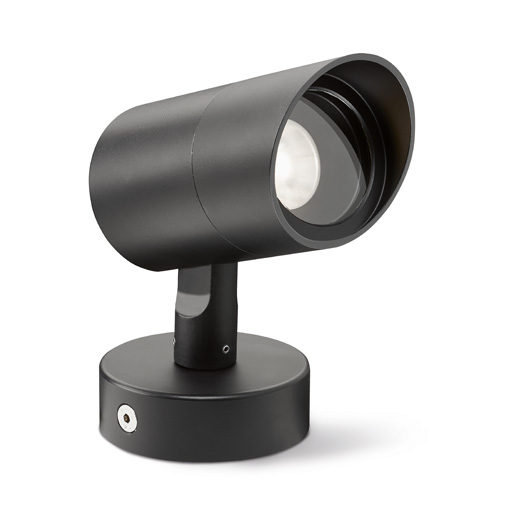

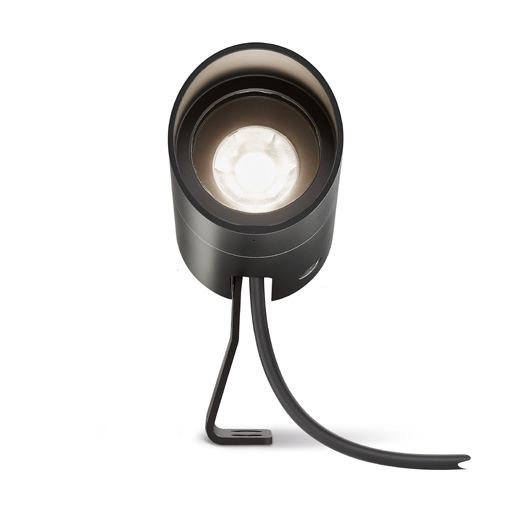

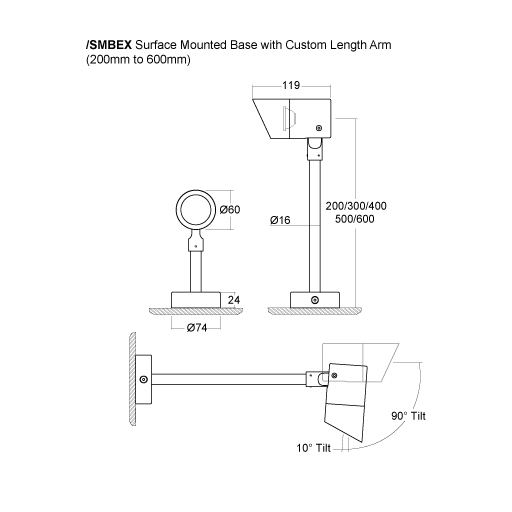

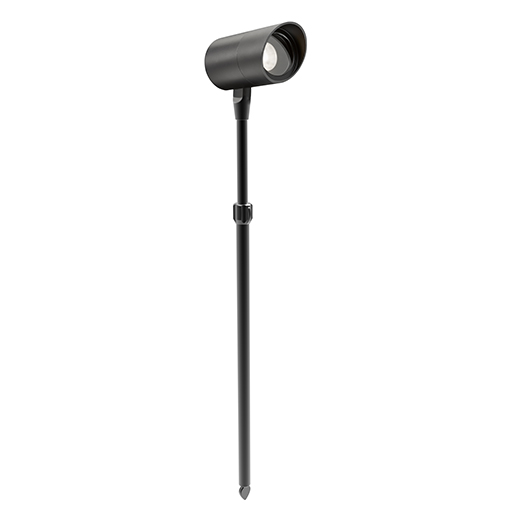

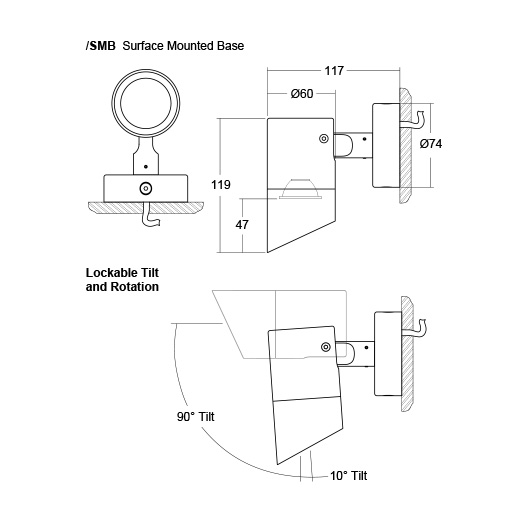

/SAM surface adjustable arm, /SMB surface mount base, /GSA adjustable ground spike, /SMBEX surface mount base with extended arm, /GS ground spike or /TS tree strap

LED Information

E3 LED Engine - Up to 10W @ 700mA (White)

E3-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)

N1 LED Engine - up to 14W @ 700mA

F1 LED Engine - up to 7W @ 700mA

TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)

RGBW LED Engine - Up to 7W @ 500mA

CLR LED Engine - Up to 7W @ 500mA

Materials

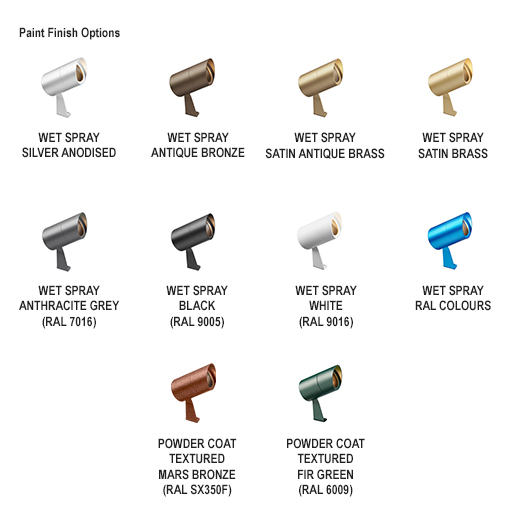

Anodised Aluminium with RAL paint finishes available

IP Rating

IP67

Accessories

/HL Honeycombe Louvre

Downloads

LD10238
LD10238E3N1F1-10 Datasheet
LD10238
Design Pack
LD10238
Photometric LDT
Files
LD10238
Install Instructions
LD10238
Drivers
