LD51

Description

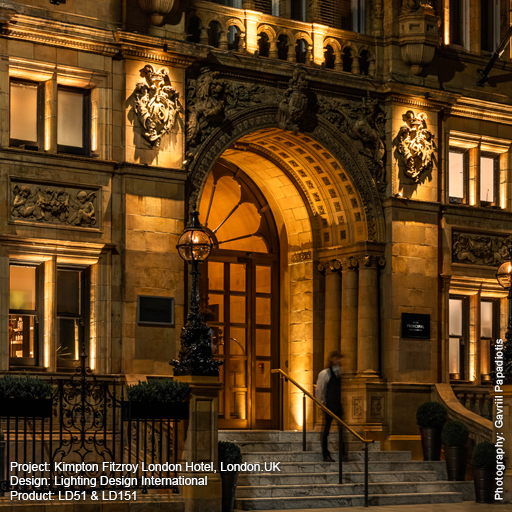

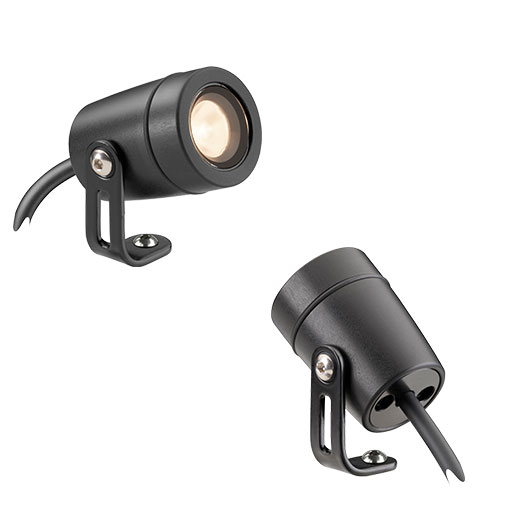

LD51 is a discreet, miniature surface mounted adjustable LED spotlight, with the versatility to meet a large range of applicational requirements. It has been specified on many of our most prestigious projects. The high-power LED is focused with a range of optics that offer excellent beam shape at various angles, thanks to a lockable tilt mechanism, that angles the fitting in the direction of the lit surface. It is manufactured from high quality machined components with glare control accessories and 5 fixing methods available, making it ideal for a variety of interior and exterior projects.

Applications

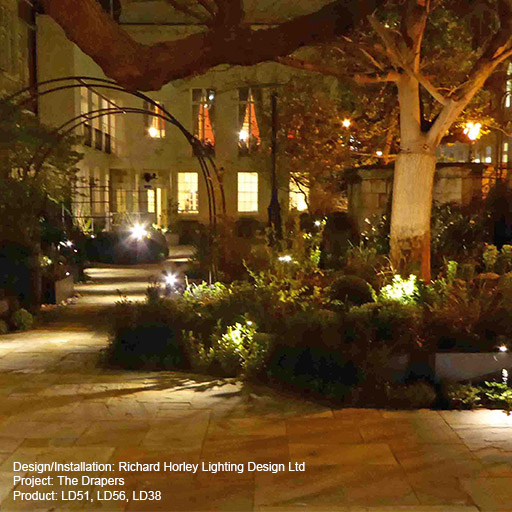

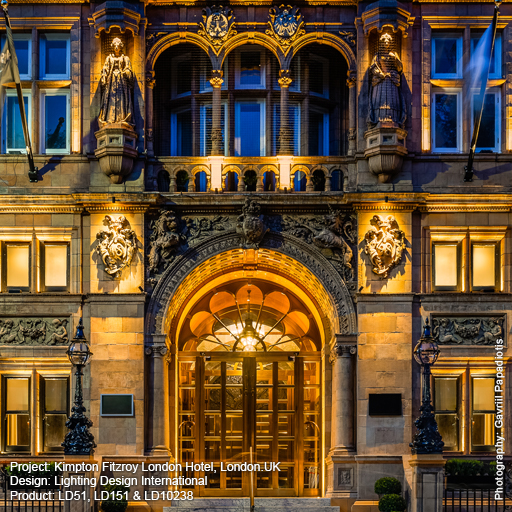

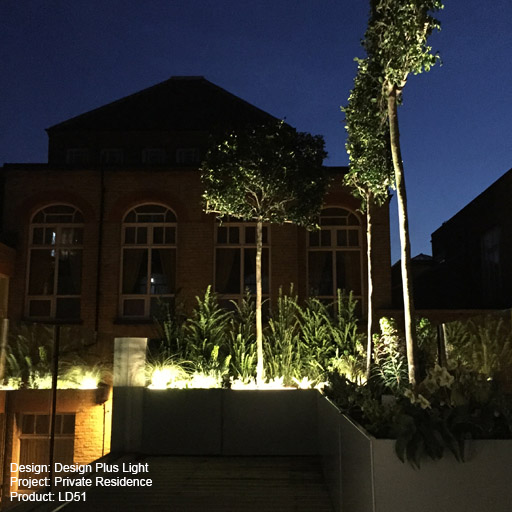

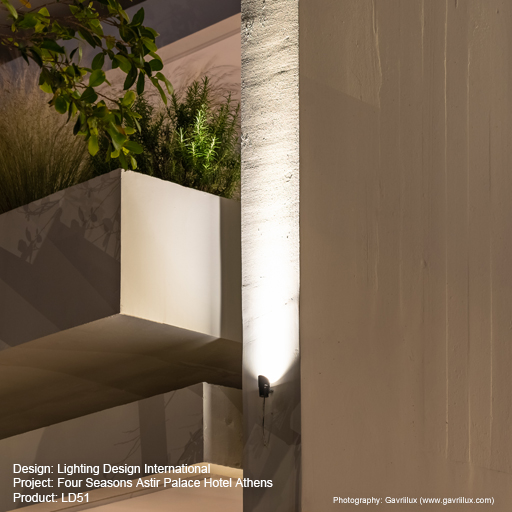

External, Surface Mounted, Wall Wash, Pathway, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

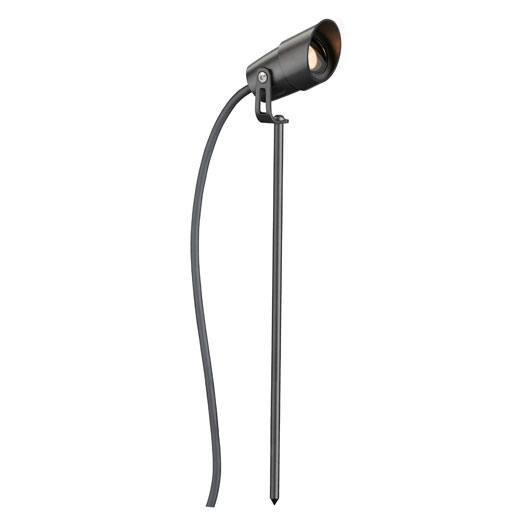

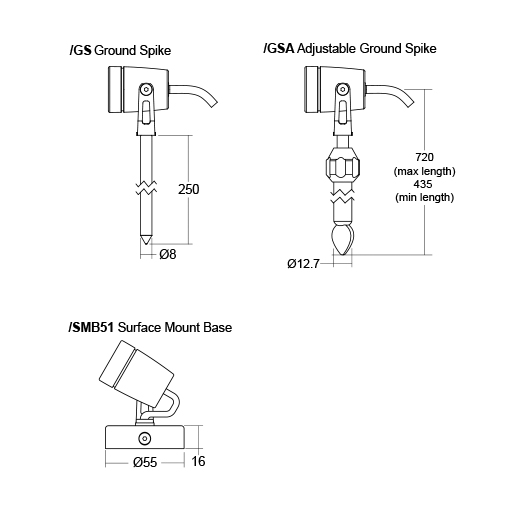

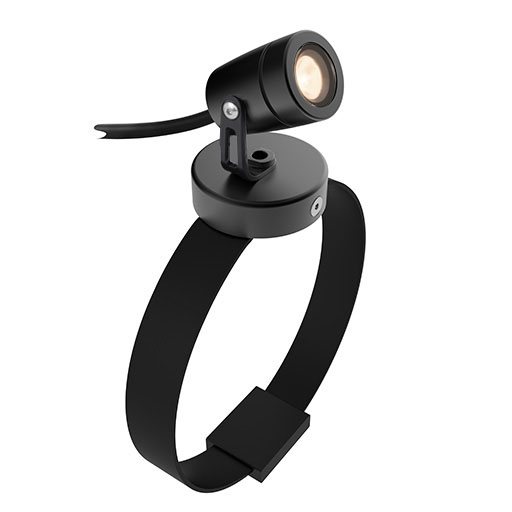

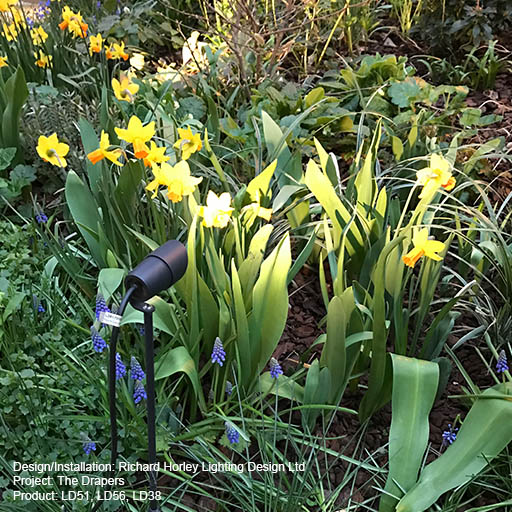

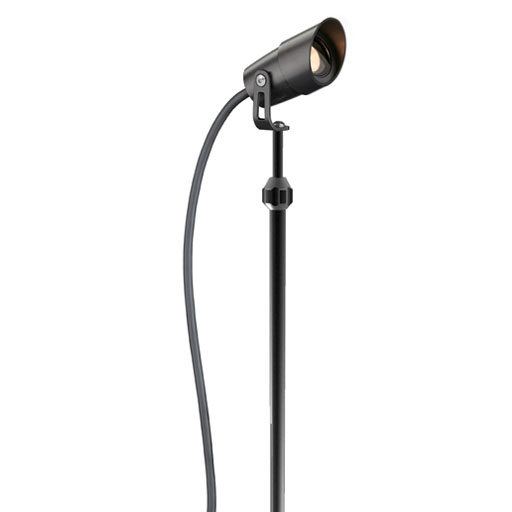

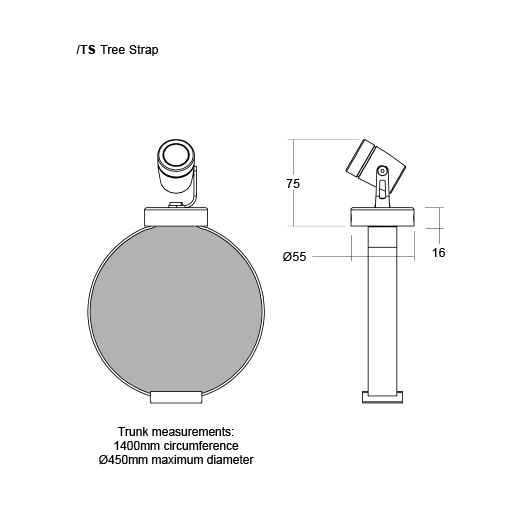

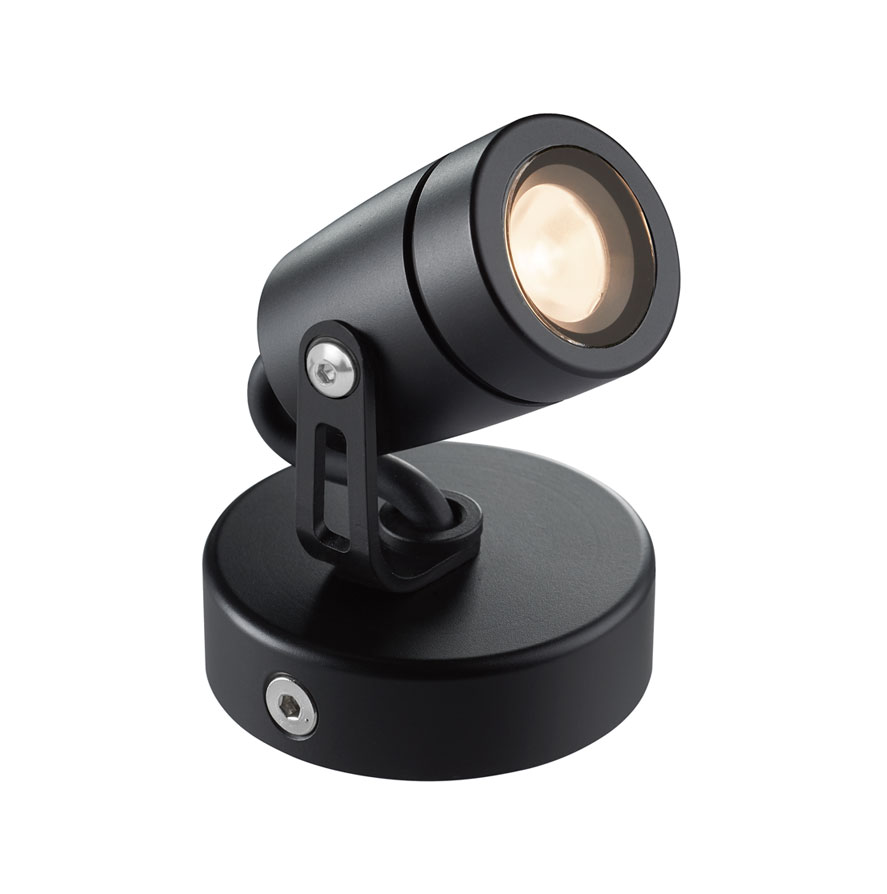

Stainless steel bracket fixed with two countersunk screws on up to 5x fixing options including /GS Ground spike, /SMB Surface mount base, /TS Tree strap

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD51-C1-350),1.7W @ 500mA (LD51-C1-500), 2.4W @ 700mA (LD51-C1-700)

Materials

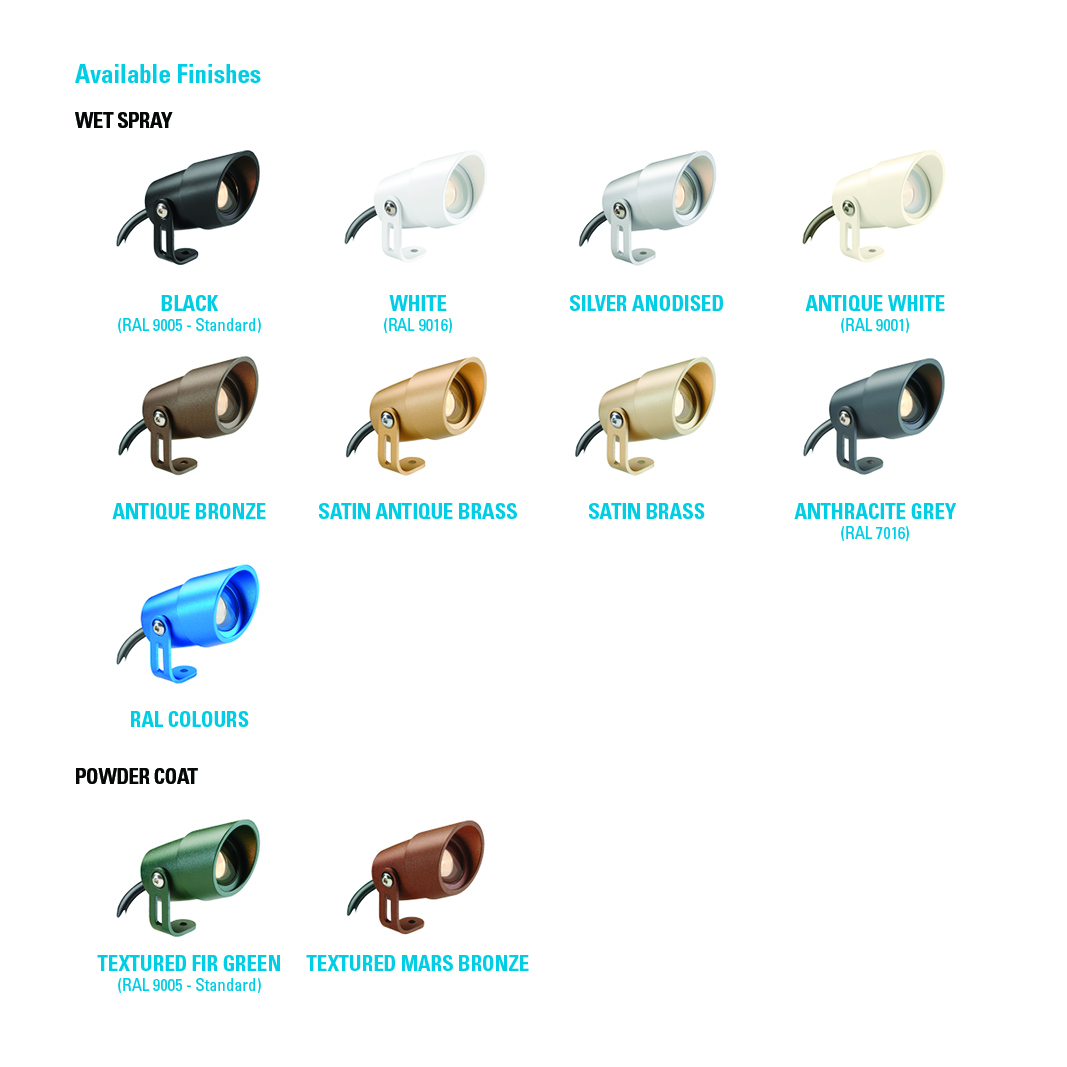

Machined black anodised aluminium body, 3mm borosilicate glass

IP Rating

IP67

Accessories

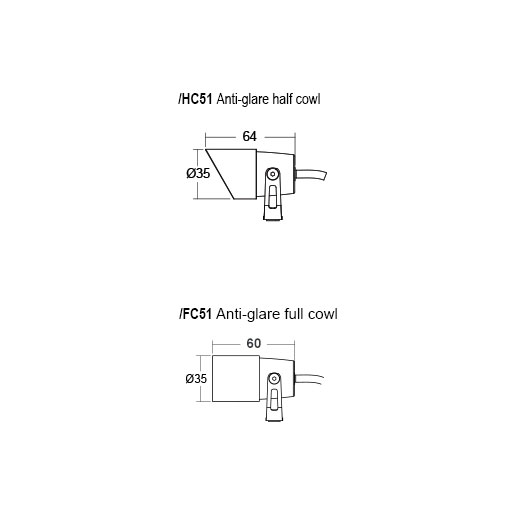

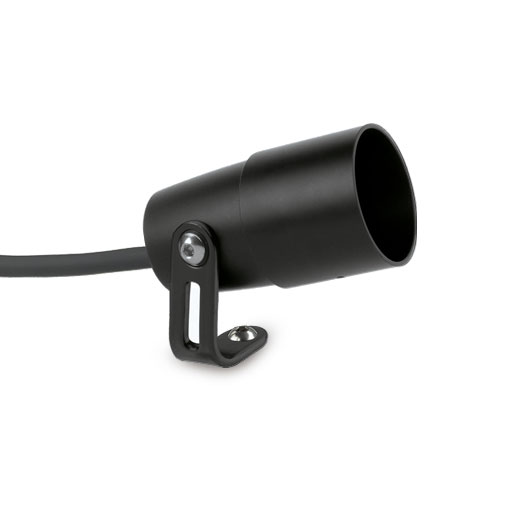

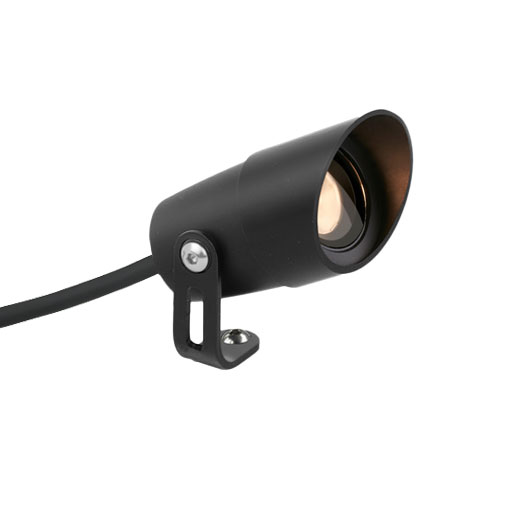

/CO51 Anti-glare half cowl /FC51 Anti-glare full cowl

Downloads

LD51
LD51C1-18 Datasheet
LD51
Design Pack
LD51
Photometric LDT
Files
LD51
Install Instructions
LD51
Drivers

Similar Products

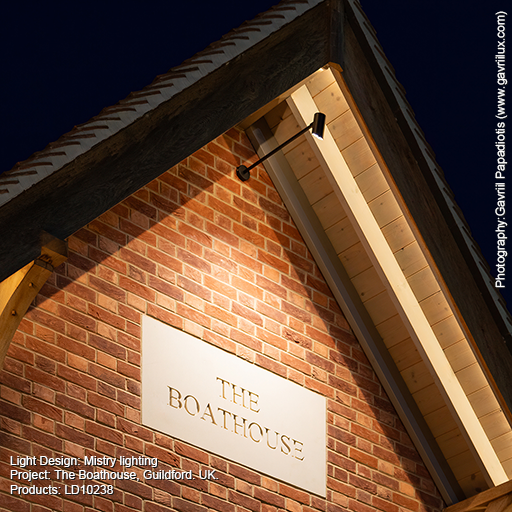

LD10238
