LD190

Description

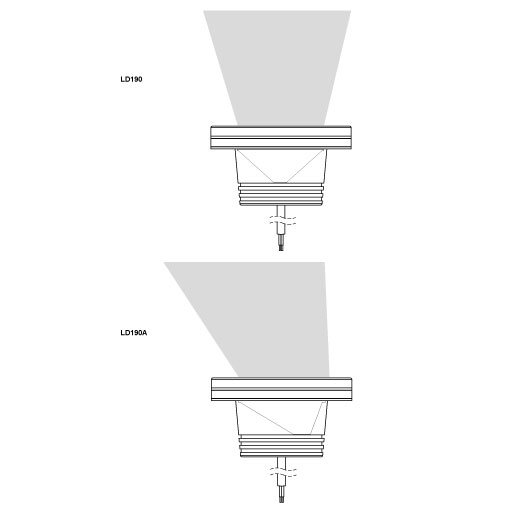

The LD190 is a mid-power, high-quality machined uplight, designed to withstand harsh marine environments. It offers excellent wall washing and features a high transmission opal diffuser, for an impressively wide and even beam distribution. The LD190A features an asymmetric reflector, which tilts and focuses the beam onto the lit surface for a concentrated lit effect. The fitting is very compact, mounted inside a robust machined, hard anodised aluminium body, with marine-grade bezel finish options and toughened safety glass.

Applications

Recessed Uplighting, Wall Wash, Yacht Lighting

Fixing

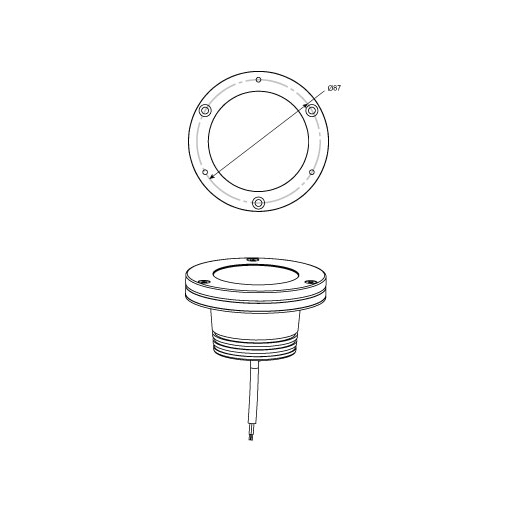

Screw mount (3 countersunk screws), flush mounted fixing

LED Information

F1 LED engine - up to 7W @ 700mA

Materials

Bezel: Machined 316 Stainless Steel Body: hard anodised aluminium

IP Rating

IP67

Downloads

LD190
LD190LD190AF1 Datasheet
LD190
Design Pack
LD190
Photometric LDT
Files
LD190
Drivers
