LD197

Description

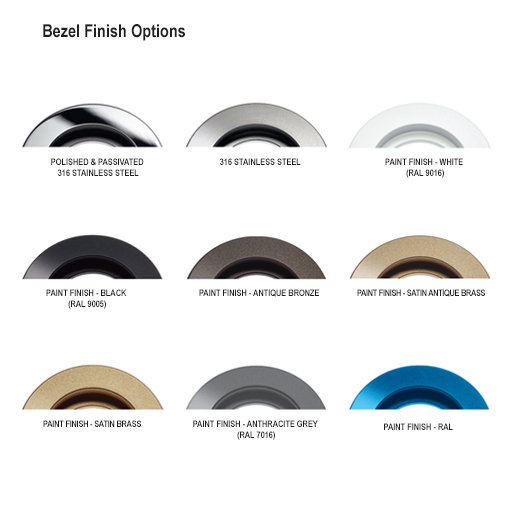

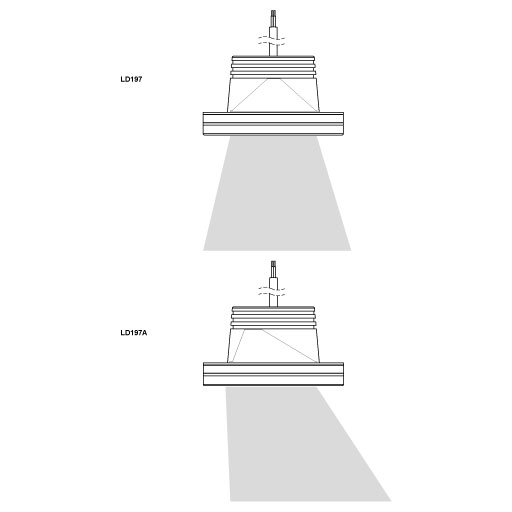

The LD197 is a mid-power, high-quality machined downlight, designed to withstand harsh marine environments. It offers excellent wall washing and features a high transmission frosted opal diffuser, for an impressively wide, even and soft beam distribution. The LD197A option features an asymmetric reflector, which tilts and focuses the beam onto the lit surface for a concentrated lit effect. The fitting is very compact and is mounted inside a hard anodised aluminium body, with marine-grade bezel finish options available.

Applications

Downlights, Yacht Lighting

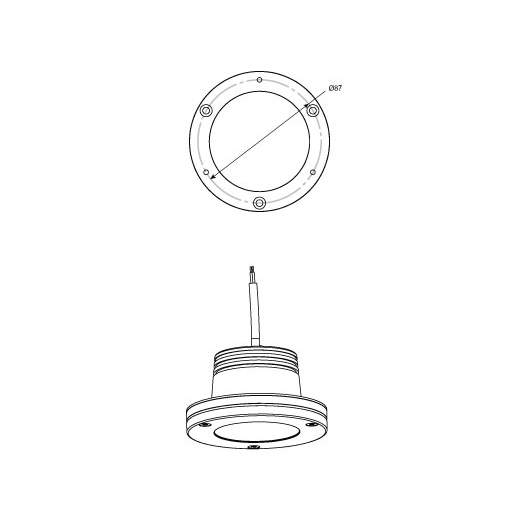

Fixing

Screw mount (3 countersunk screws), flush mounted fixing

LED Information

F1 LED engine - up to 7W @ 700mA

Materials

Bezel: Machined 316 Stainless Steel Body: hard anodised aluminium

IP Rating

IP67

Downloads

LD197
LD197197AF1 Datasheet
LD197
Design Pack
LD197
Photometric LDT
Files
LD197
Install Instructions
LD197
Drivers
