LD50

Description

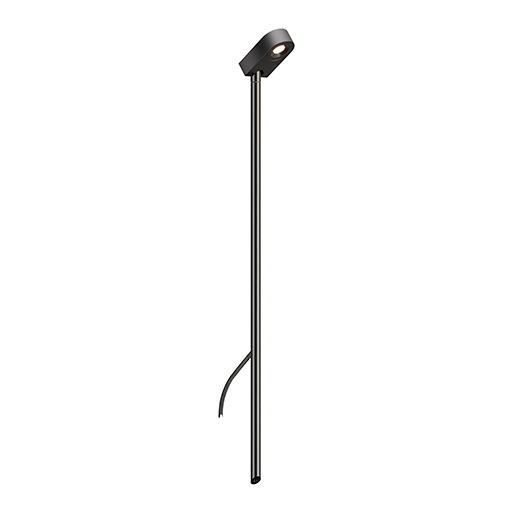

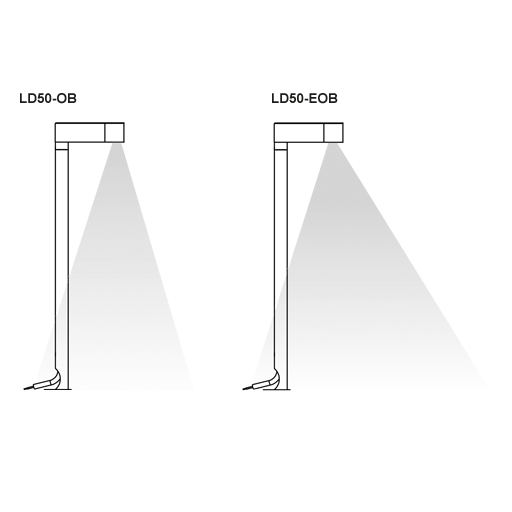

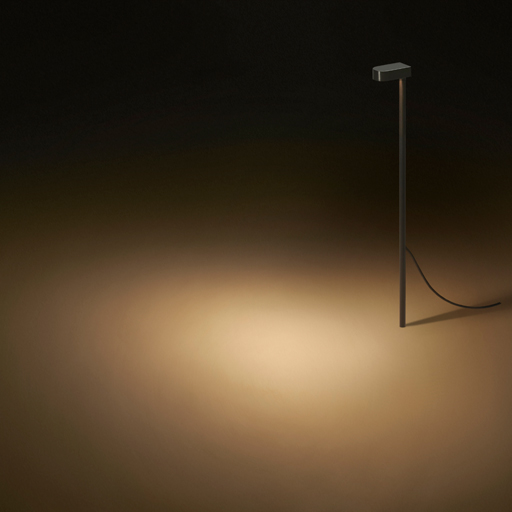

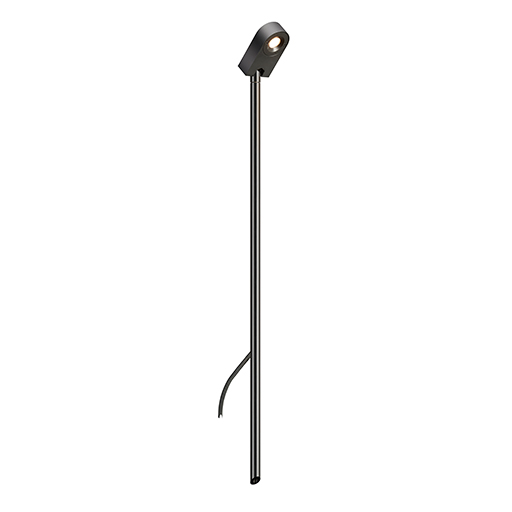

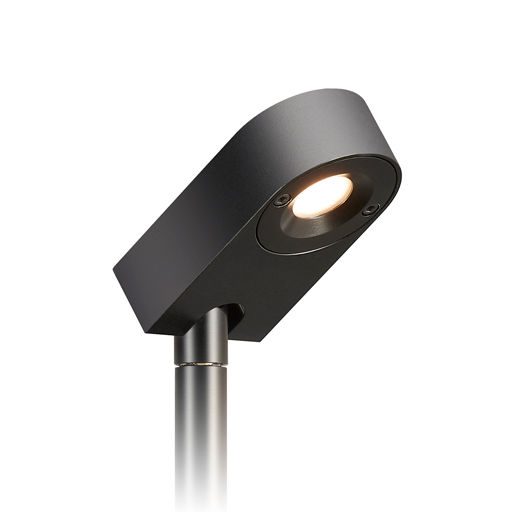

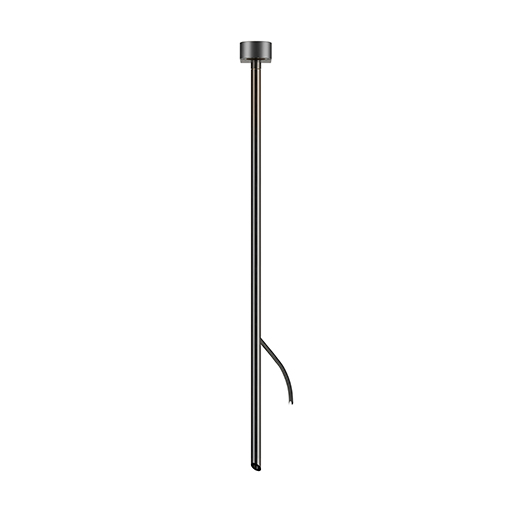

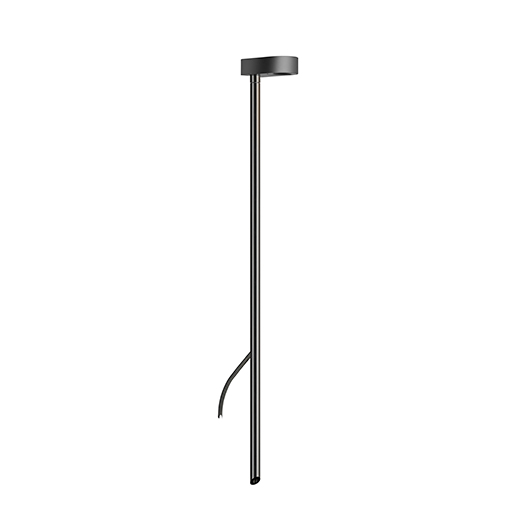

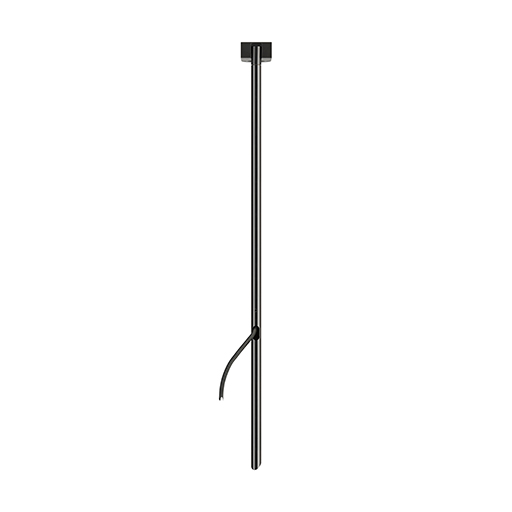

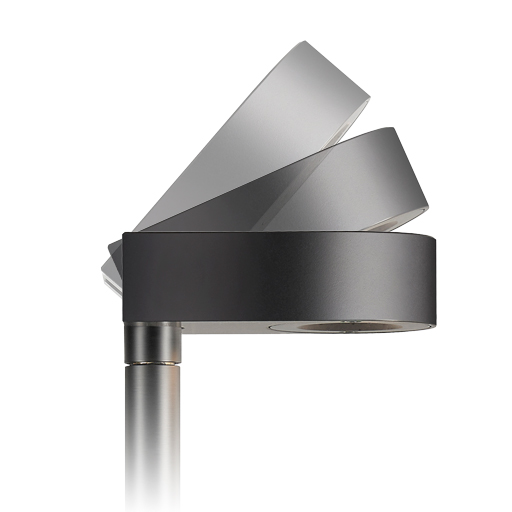

The LD50 low-level path light offers a wide distribution from a very compact fitting, reducing the number of luminaires required to achieve an even floor wash. With two oval beams available, the extra oval beam features an additional 20° tilt film to focus the light out onto the pathway, whilst the head remains horizontal for ultra low glare. The head can be adjusted up to 90° from horizontal to vertical, allowing the fitting to be placed further away from the path. Designed with a hidden cable located at the bottom of its ground spike, the minimal profile of the LD50 seamlessly integrates into its surroundings which can be further enhanced through a wide range of paint finishes.

Environmental data

TM65: 8kg CO2e

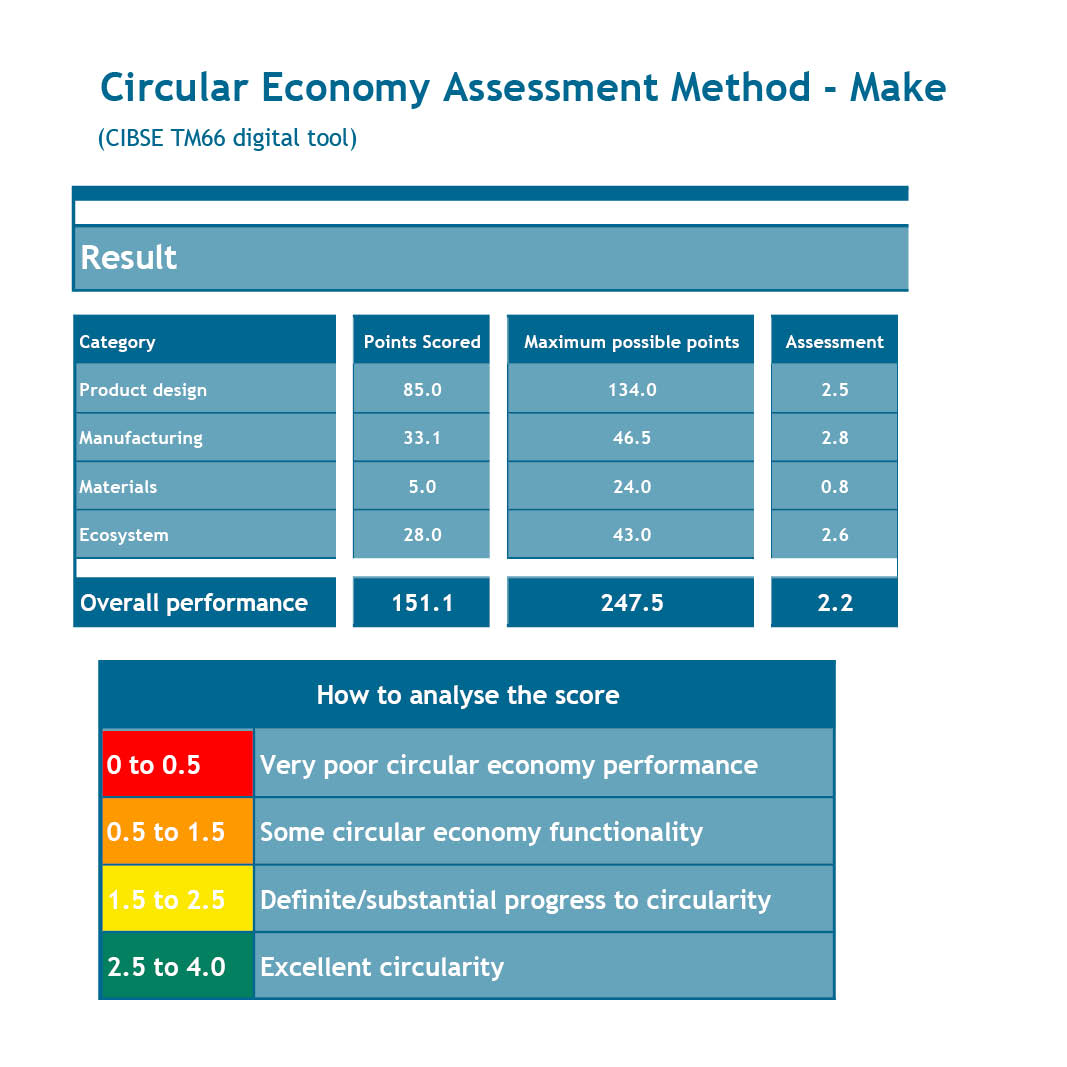

TM66: 2.2

Applications

Floor Wash, Pathway, (50lm-200lm) Miniature range

Fixing

Ground spike

LED Information

C1 LED engine - up to 1.2W @ 350mA, up to 1.7W @ 500mA, up to 2.4W @700mA

Materials

Black hard anodised aluminium body

IP Rating

IP65

Downloads

LD50
LD50C1-9 Datasheet
LD50
Photometric LDT
Files
LD50
Install Instructions
LD50
Drivers
