LD56T

Description

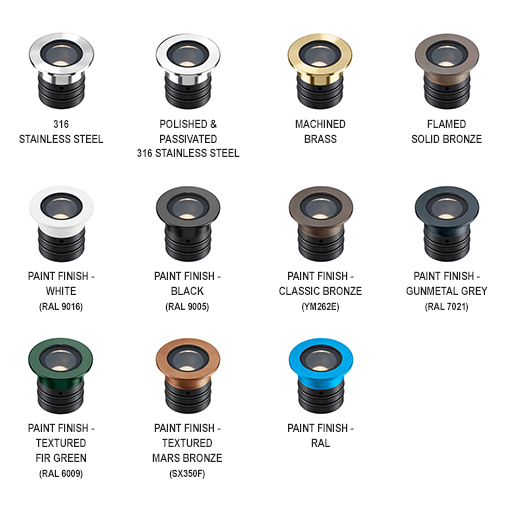

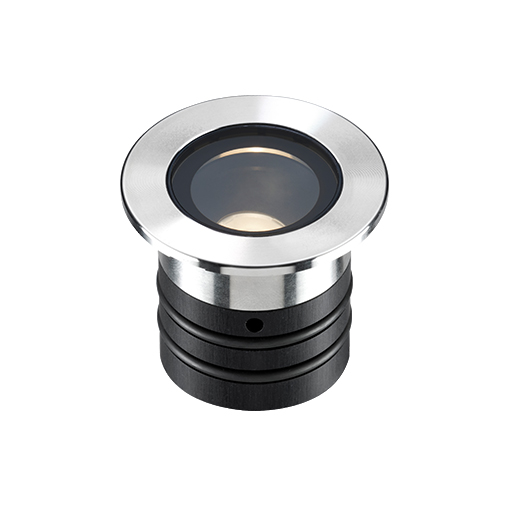

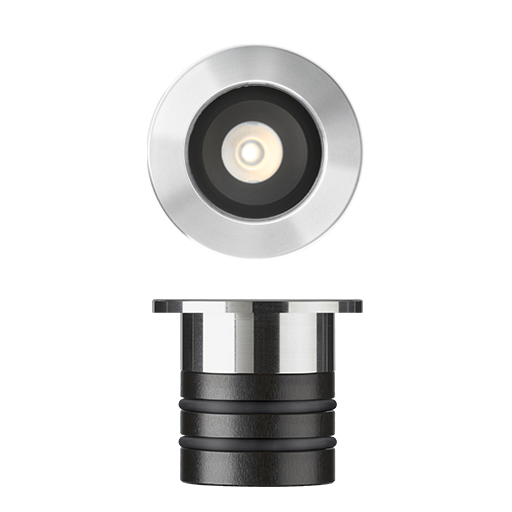

The LD56T packs a lot of features into a very compact product with a recess depth of just 42mm. The LED is angled at 6º to focus the light onto and up a wall or column with fantastic beam shape and spread. Deep recessed optics reduce glare with an optional glare shield available to further improve visual comfort. Rated IP68, the LD56T is incredibly versatile and has been used in projects all over the world in various applications, including as a downlight. It is a very tough, high quality fitting, with a minimal aesthetic, available in a wide range of high-grade machined metal and paint finishes.

Applications

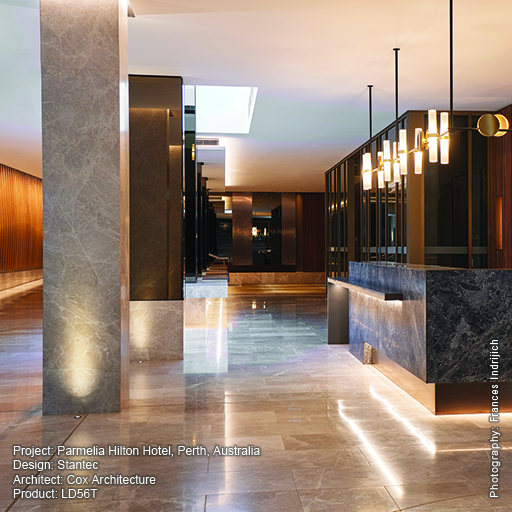

Bathroom and Mirror, Downlights, External, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting

Fixing

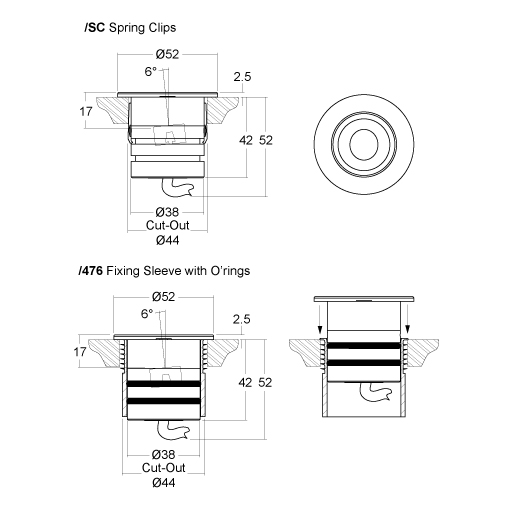

Spring clips /SC, O-rings and /476 fixing sleeve, Ground tube /476GT

LED Information

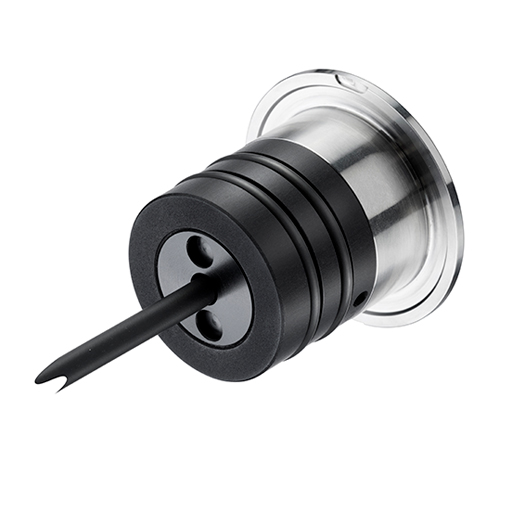

NICHIA C1 LED Engine: 1.2W @ 350mA (LD56T-C1-350), 1.7W @ 500mA (LD56T-C1-500), 2.4W @ 700mA (LD56T-C1-700)

Materials

316 Stainless Steel bezel, hard anodised aluminium body, 5mm borosilicate glass

IP Rating

IP68 - Not for permanent submersion (use LD242A)

Accessories

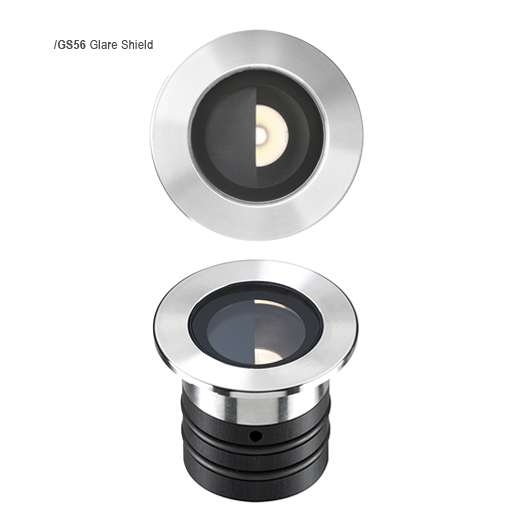

/GS56 Glare shield

Downloads

LD56T
LD56TC1-4 Datasheet
LD56T
Design Pack
LD56T
Photometric LDT
Files
LD56T
Drivers
