LD43

Description

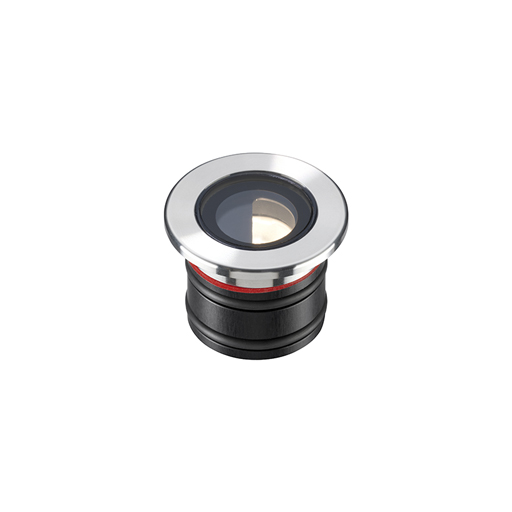

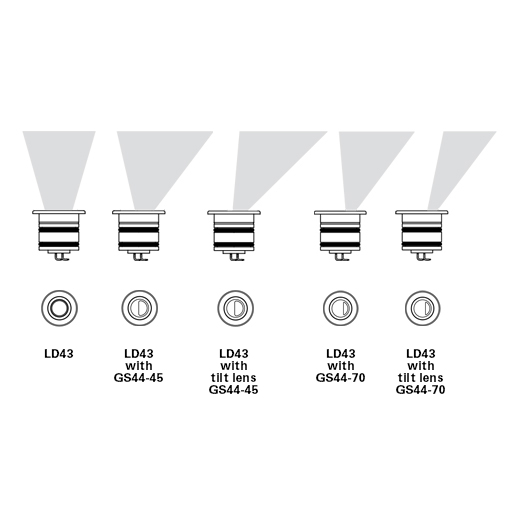

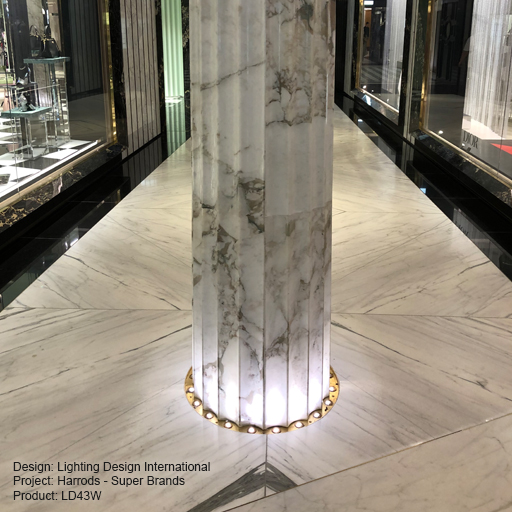

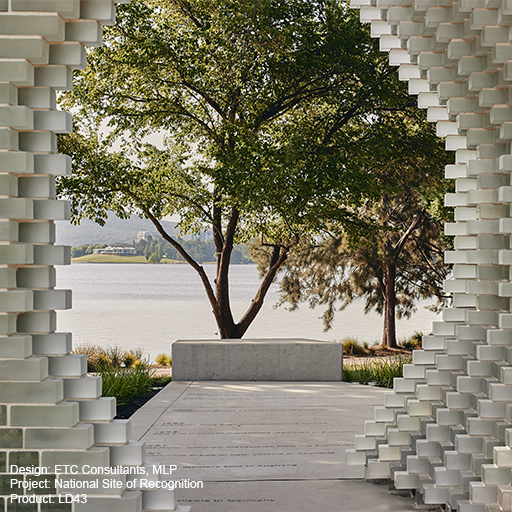

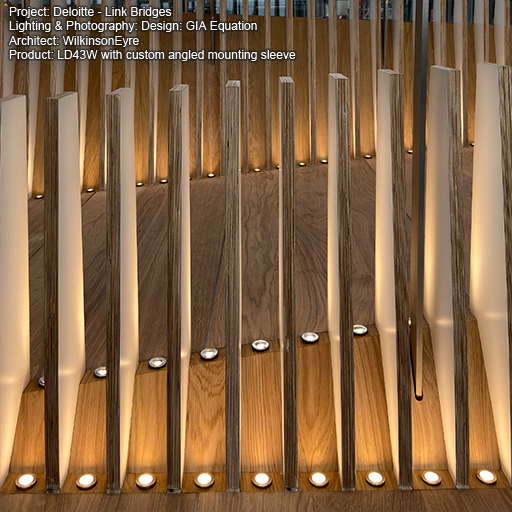

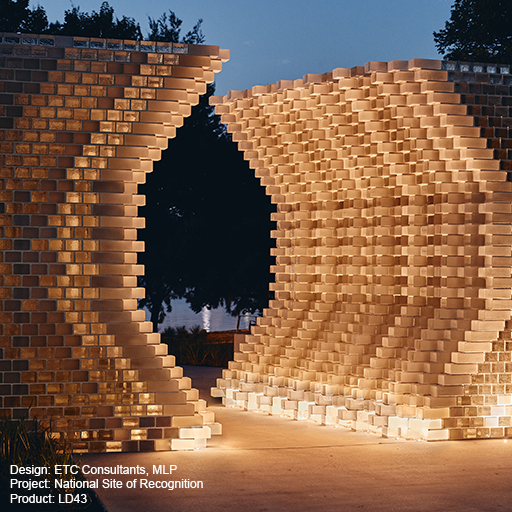

The LD43 fittings are a range of miniature recessed uplights with a very minimal depth and small cables, ideal for interior applications, including bathrooms. Featuring a flush glass and walkover bezel for in-ground use, the LED and optics are recessed 10mm into the body for low glare. Various glare shield and tilt film options (W, A ,R, AR) are also available for glare reduction and to create lit effects to suit individual applications. This includes aperture reductions of 50% or 70%, with or without an integral 20° tilt film, which focuses the light onto the lit surface for a concentrated lit effect. For a miniature fitting, LD43 produces an excellent throw of light when more output is required. If used with our LD42 wall light, a uniform floor and wall washing effect can be achieved. For exterior in-ground applications please use the LD41, LD60 or LD56's.

Applications

Recessed Uplighting, Steps, Wall Wash, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

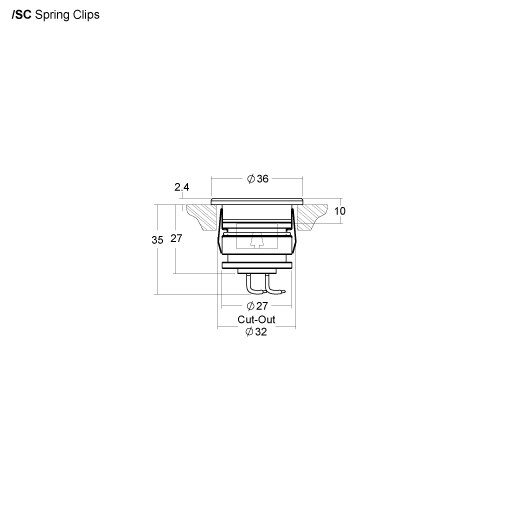

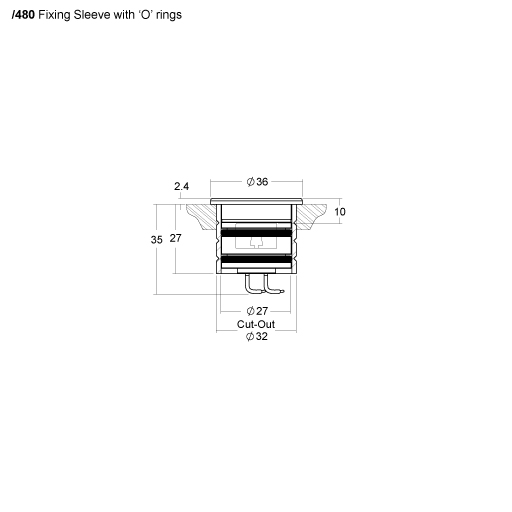

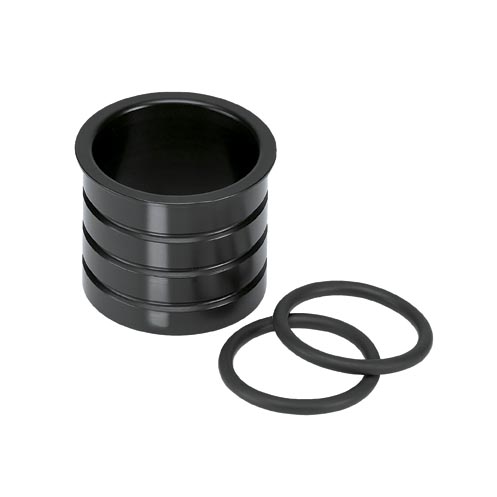

Spring clips /SC, /480 Fixing sleeve and O-rings (recommended)

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD43-C1-350),1.7W @ 500mA (LD43-C1-500)

Materials

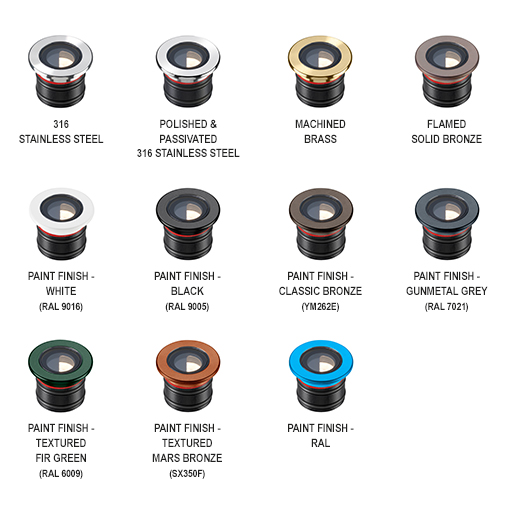

316 Stainless Steel bezel, hard anodised aluminium body, 3.3mm black ceramic screen print borosilicate glass

IP Rating

IP66

Accessories

A, W, R, AR glare shields

Downloads

LD43
LD43WARARC1-12 Datasheet
LD43
Design Pack
LD43
Photometric LDT
Files
LD43
Install Instructions
LD43
Drivers
